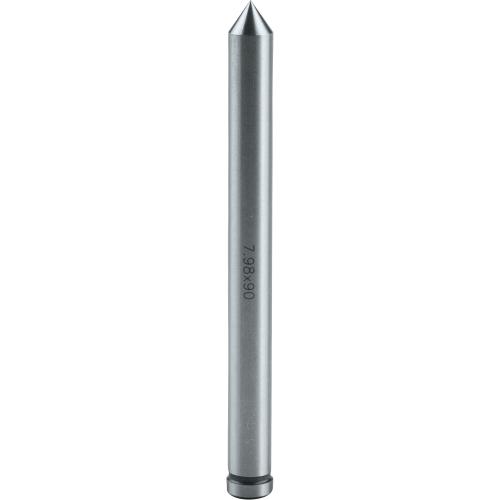

Pilot Pin for 1" Depth of Cut TCT Annular Cutters with a Diameter from 3/4" to 3"
Print Print

Part No: UDPILOTU1B
PERFORMANCE : Tip penetrates quickly, pin helps center and stabilize the TCT cutter for accurate holes
DURABILITY : High strength EN31 alloy steel construction for long term durability
EFFICIENCY : Pin supports the ejection of waste material at the end of a cut
COMPATIBILITY : For use with Makita 1" depth of cut TCT Annular Cutters from 3/4" to 3" in diameter
INCLUDES : Pilot Pin for 1" Depth of Cut TCT Annular Cutters with a Diameter from 3/4" to 3"




SPECIFICATIONS


Package Quantity :
 1

Product Type (DB, HS) :
 Annular Cutters

Shank Type :
 Weldon

Max. Cutting Depth :
 1-3/8"

Length :
 1-3/8"

Application (DB, RHB, HS) :
 Steel, Stainless Steel, Aluminum, Cast Iron

Overall Length :
 3-1/2"

Shipping Weight :
 .04 lbs.
