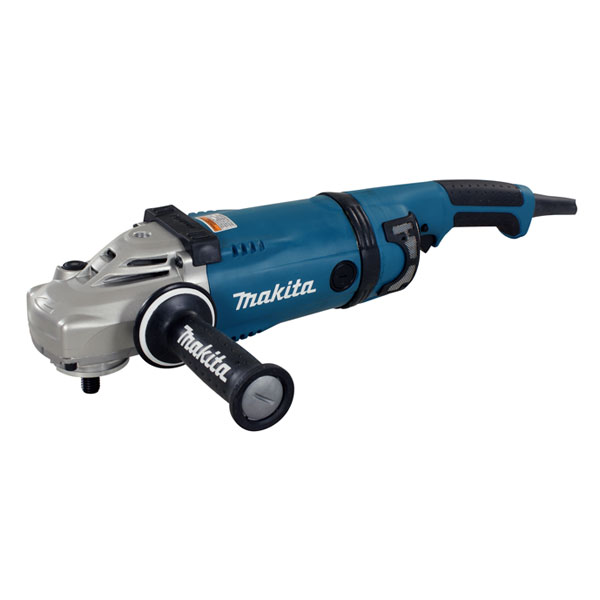

9" / 7" Sander
Owner's Manual Parts Breakdown Print Email to Friend


Model No: SA9031Y


Two Stage Safety Trigger Switch (AC/DC)

  • Heavy duty torque limiter prevents damage to internal gearing and prevents operator from experiencing a surge of torque during wheel lock up
  • Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
  • Includes rear vent “Dust Cover Assembly” for added protection against dust and debris
  • Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
  • Rear handle swivels 180o to adjust to the most comfortable grinding position
  • Rotatable gear housing can be positioned at every 90o for optimal positioning
  • Removable side handle can be mounted on left or right side of tool
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

STANDARD EQUIPMENT

INCLUDES: Vibration Proof Grip (194543-3), Dust Cover Attachment Set (194289-1)



SPECIFICATIONS


Maximum Capacities:

   Grinding Wheel

9” (230 mm)

   Sanding Disc

7” (180 mm)

   Wire Cup Brush

4-3/8" (110 mm)

   Spindle Thread

5/8” - 11 UNC

No Load Speed

6,600 RPM

AMPS (120V)

15.0 A

Overall Length

19-7/8" (504 mm)

Net Weight

14.3 lbs (6.5 kg)

Shipping Weight

16.7 lbs (7.6 kg)
