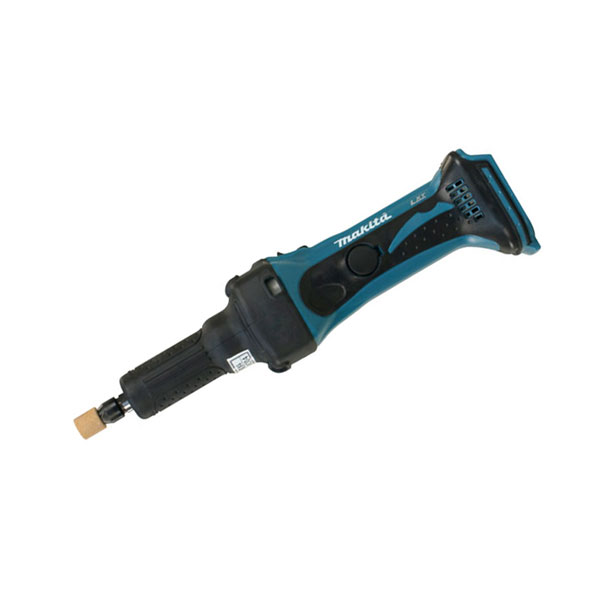

Cordless Die Grinder
Owner's Manual Parts Breakdown Print Email to Friend


Powered by energy star saving Tool only. Battery and Charger sold Separately
Model No: LXDG01Z


Compact And Lightweight Die Grinder

  • Anti-Restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Low Battery Capacity Light indicates ideal time to recharge battery
  • Vent Slots direct exhaust towards opposite side of operator
  • Easy to Grip Motor Housing for easier handling
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

STANDARD EQUIPMENT

INCLUDES: Tool Only.  Batteries and Charger Sold Seperately.  1/4" Collet Cone (763673-7), Collet Nut (763668-0), 2 Ea. Wrench 13 (781039-9)


SPECIFICATIONS


Battery

 18V (3.0 Ah ) Li-Ion

Collet Capacity

 1/4" (8 mm)

Maximum Wheel Diameter

 1-1/2" (38 mm)

No Load Speed

 25,000 RPM

Vibration Level

 6.5 m/s2

Noise Level

 72 dB

Overall Length

 15-3/4" (402 mm)

Net Weight

 3.1 lbs (1.4 kg)

Shipping Weight

 3.8 lbs (1.7 kg)
