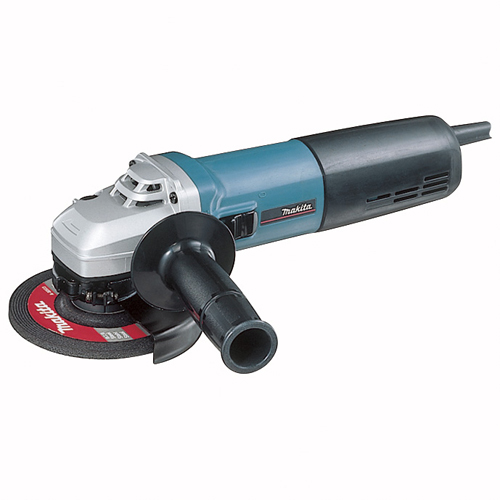

5" Angle Grinder
Owner's Manual Parts Breakdown Print Email to Friend


Model No: 9565CV

“SJS” Technology, Variable Speed, Electronic Current Limiter

Thumb Switch with Lock-On (AC)

  • "SJS" (Super Joint System) prevents kickback during wheel lock up for optimal tool and operator protection
  • Labyrinth construction seals motor and bearings from contamination
  • Electronic current limiter protects motor from accidental overload
  • Thumb switch conveniently located for operator comfort
  • Removable side handle can be mounted on left or right side of tool
  • Tool-less wheel guard adjustment

STANDARD EQUIPMENT

INCLUDES: 5” Depressed Centre Wheel (741407-B), Inner Flange (224399-1), Wheel Guard (135108-2), Lock Nut (224568-4), Lock Nut Wrench (782412-6), Side Handle (153489-2)


SPECIFICATIONS


Maximum Capacities:

   Grinding Wheel

 5” (125 mm)

   Sanding Disc

 5” (125 mm)

   Diamond Wheel

 5” (125 mm)

   Wire Brush

 3-1/2” (90 mm)

Spindle Thread

 5/8” - 11 UNC

No Load Speed:

 2,800 - 10,500 RPM

AMPS (120 V):

 12.0 A

Overall Length:

 11-3/4” (299 mm)

Net Weight:

 5.3 lbs (2.4 kg)

Shipping Weight:

 7.7 lbs (3.5 kg)
