6-1/2" Plunge Cut Circular Saw
Owner's Manual Parts Breakdown Print Email to Friend


Model No: SP6000X1

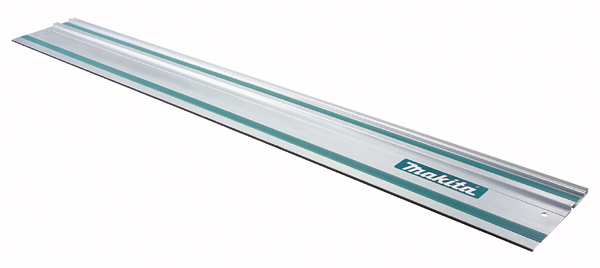

55" Guide Rail

Unique Plunge Action For Specialized Cuts

  • Depth Stopper enables splinter-free cutting
  • Precision Bevel Cut feature maintains exact blade position for quick and easy bevel cutting without compensating adjustments
  • Soft Start feature gradually increases speed to eliminate start up shock
  • Constant Speed Control maintains constant speed under heavy load
  • Overload Protection prevents motor burnout due to current overload
  • Variable Speed Dial adjusts cutting speed based on materials or application
  • Lightweight design with magnesium blade case, gear housing and base
  • Close to Wall Cut of just 11/16"
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

STANDARD EQUIPMENT

INCLUDES: 6-1/2" C.T. Blade 48T (B-07353), Hex Wrench 5 (783203-8), Vacuum Hose Adapter (P-80013), 55" (139.7 cm) Guide Rail (194368-5), Protective Guide Rail Holder (P-67810)


SPECIFICATIONS


Blade Diameter

 6-1/2” (165 mm)

Arbor

 13/16" (20 mm)

Maximum Cutting Capacity:

  0°

 2-3/16” (56 mm)

  45°

 1-9/16” (39 mm)

  48°

 1-1/2" (38 mm)

No Load Speed

 2,000 - 5,200 RPM

AMPS (120 V)

 12.0 A

Vibration Level

 2.5 m/s2

Noise Level

 91 dB

Overall Length

 13-3/8” (341 mm)

Shipping Weight:

 19.1 lbs (8.7 kg)
