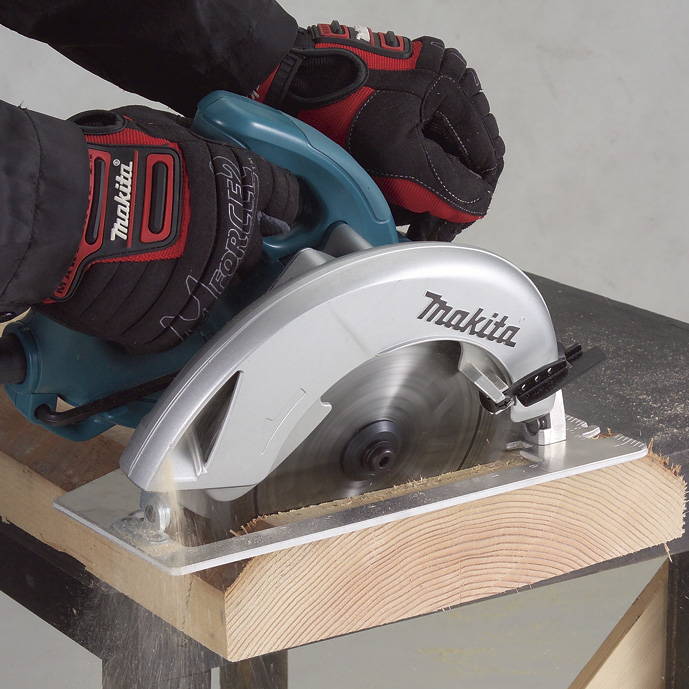

Action Shots
Click On the Image to see larger image
7-1/4" Circular Saw
Owner's Manual Parts Breakdown Print Email to Friend


Carrying Case

Model No: 5007NFK

Cutting Capacity Of 2-1/2" (63.5 Mm)

High Power To Weight Ratio

  • Heavy Duty Aluminum Baseplate for durability
  • LED Job Light illuminates cut line
  • Blower feature keeps cutting line free of sawdust
  • Bevel Capacity of 50o with Positive Stops at 22.5°, 45°, and 50°
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

STANDARD EQUIPMENT

INCLUDES: 1Pc. 7-1/4" Blade 24T (A-94839-10), Hex Wrench (783204-6), Guide Rule (164095-8), Plastic Carrying Case (824772-1)


SPECIFICATIONS


Blade Diameter

 7-1/4” (185 mm)

Arbor

 5/8” (15.88 mm)

Maximum Cutting Capacities:

  0°

 2-1/2”( 63.5 mm)

  45°

 1-3/4" (45 mm)

  56°

 1-3/8" (35 mm)

No Load Speed

 5,800 RPM

AMPS (120V)

 15.0 A

Overall Length

 12-1/2” (317 mm)

Net Weight

 11.5 lbs (5.2 kg)

Shipping Weight:

 18.4 lbs (8.4 kg)
