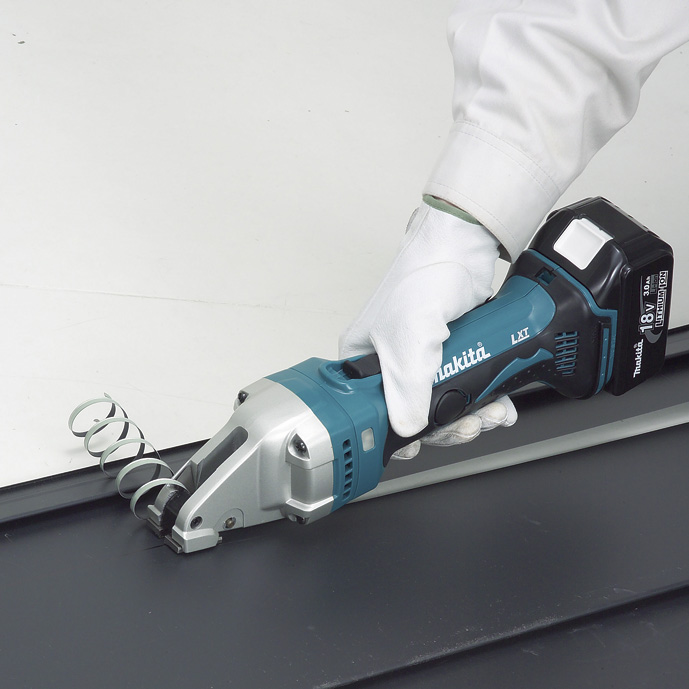

Action Shots
Click On the Image to see larger image

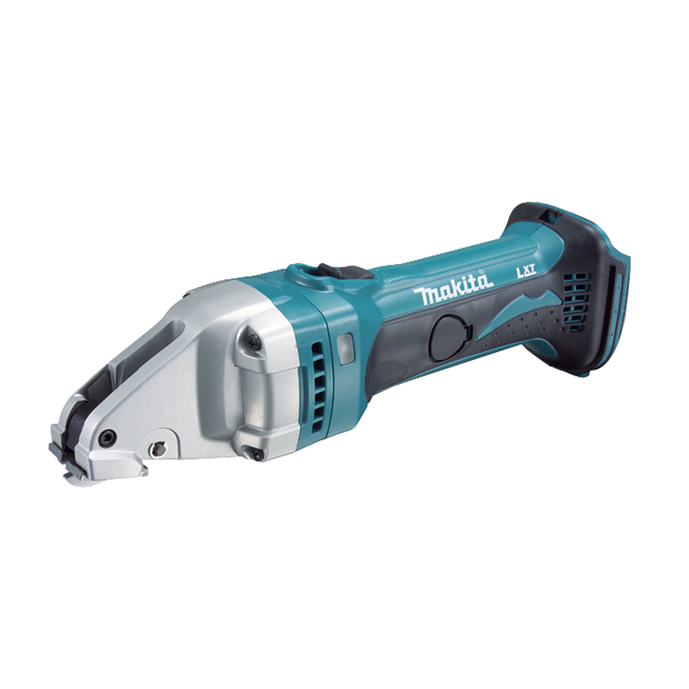

Cordless Straight Shear
Owner's Manual Parts Breakdown Print Email to Friend


Powered by energy star saving Tool only. Battery and Charger sold Separately
Model No: BJS161Z


In-Line Design Allows For Better Control And Excellent Maneuverability

  • Battery Capacity Warning Light indicates ideal time to recharge battery
  • Anti-Restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Electronic Current Limiter with Warning Light prevents motor burnout caused by overloading
  • Adjustable blade set minimizes burring for various thicknesses of material
  • Small Circumference, Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

STANDARD EQUIPMENT

INCLUDES: Thickness Gauge (762013-6), Hex Wrench 13 (783201-2), Side Blade Set (792533-6), Centre Blade (792534-4)


SPECIFICATIONS


Battery

 18V (3.0 Ah) Li-Ion

Capacities:

  Steel

 16 gauge (1.6 mm)

  Stainless

 18 gauge (1.2 mm)

No Load Speed

 4,300 SPM

Minimum Cutting Radius

 9-7/8" (250 mm)

Vibration Level

 13.0 m/s2

Noise Level

 71 dB

Overall Length

 14-1/4” (362 mm)

Net Weight

 3.1 lbs (1.4 kg)

Shipping weight

 3.6 lbs (1.6 kg)
