HB350

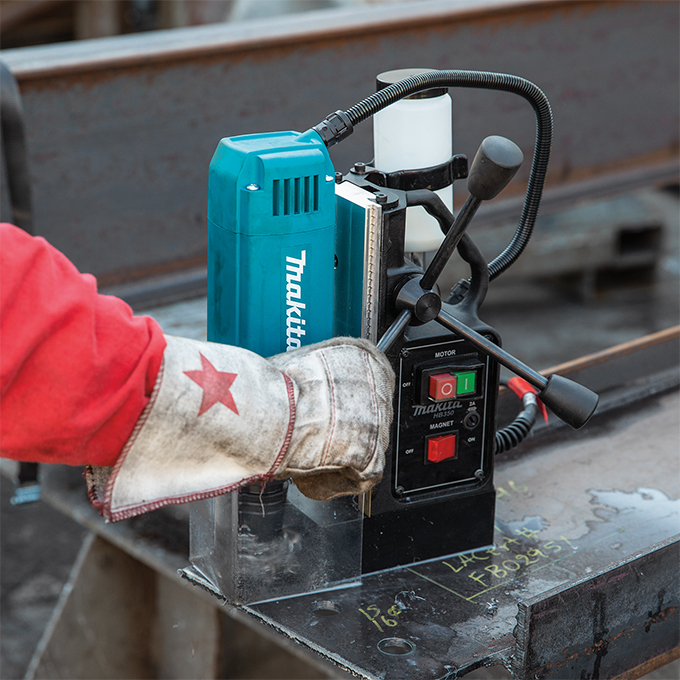

1-3/8" Magnetic Drill

1,800 lbs. (816 kg) Electromagnetic Clamping Force!

Accepts 3/4" Weldon Shank Annular Cutters


  • Ideal for cutting holes up to 1-3/8” diameter in up to 2” thick steel
  • 10.0 A motor delivers 850 RPM for increased cutting speed
  • Lightweight and portable design ideal for working in tight spaces or at heights
  • Removable guard isolates the cutting mechanism while drilling
  • Spindle coolant system with removable reservoir for precise cutting performance
  • Industrial chuck accepts 3/4" weldon shank annular cutters
  • Electromagnetic base with  1,800 lbs. (816 kg) clamping force for maximum stability and drilling accuracy
  • Dovetail slide mechanism for smooth and consistent drilling performance
  • Simple three button control panel (ON/OFF/MAGNET) for fast and easy operation
  • Removable feed handles for convenient storage
  • Integrated carrying handle for added operator convenience
  • Includes polyester carrying strap for added support in horizontal or overhead drilling applications

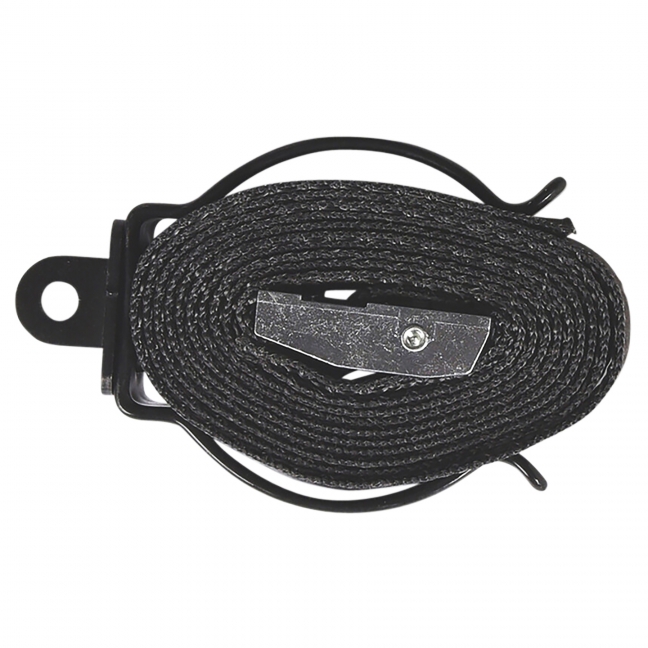

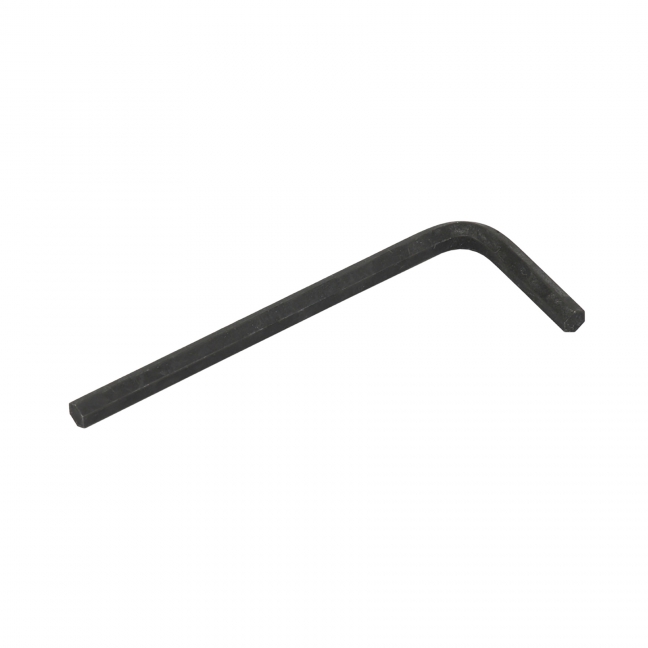

Items Included:Wrench 2.5 (UD000KEY01), Wrench 4 (UD000KEY03), Wrench 5 (UD000KEY04), Safety Strap (UD0STRAP01), Carrying case

Read More
  • Ideal for cutting holes up to 1-3/8” diameter in up to 2” thick steel
  • 10.0 A motor delivers 850 RPM for increased cutting speed
  • Lightweight and portable design ideal for working in tight spaces or at heights
  • Removable guard isolates the cutting mechanism while drilling
  • Spindle coolant system with removable reservoir for precise cutting performance
  • Industrial chuck accepts 3/4" weldon shank annular cutters
  • Electromagnetic base with  1,800 lbs. (816 kg) clamping force for maximum stability and drilling accuracy
  • Dovetail slide mechanism for smooth and consistent drilling performance
  • Simple three button control panel (ON/OFF/MAGNET) for fast and easy operation
  • Removable feed handles for convenient storage
  • Integrated carrying handle for added operator convenience
  • Includes polyester carrying strap for added support in horizontal or overhead drilling applications

Items Included: Wrench 2.5 (UD000KEY01), Wrench 4 (UD000KEY03), Wrench 5 (UD000KEY04), Safety Strap (UD0STRAP01), Carrying case

Shipping Dimensions (Length x Width x Height) & Weight : 7.48 In. X 15.75 In. X 21.65 In. Weight : 37 Lb.

Specifications

Capacities:
  Cutter capacity 1-3/8" (35 mm)
  Chuck capacity 1/2" (13 mm)
AMPS (120V)  9.3 A
Magnetic clamping force 8,000 N
No Load Speed 850 RPM
Vibration Leve (unavailable)
Noise Level (unavailable)
Overall length 8-7/8" (225 mm)
Net weight 26 lbs (11.6kg)
1

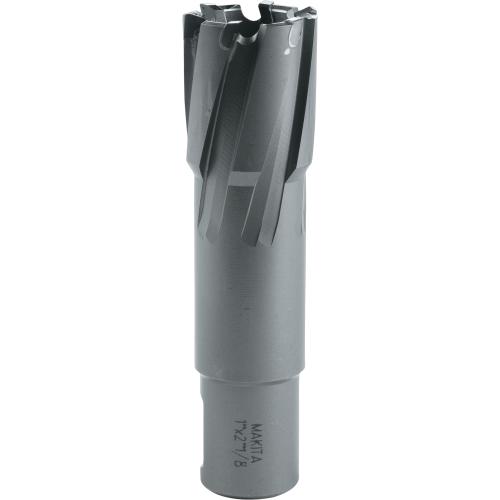

1" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1

1" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1- 5/16

1- 5/16" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1-1/4

1-1/4" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1-1/4

1-1/4" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1-3/16

1-3/16" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1-3/8

1-3/8" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1-5/16

1-5/16" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1/2

1/2" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More
1/2

1/2" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
11/16

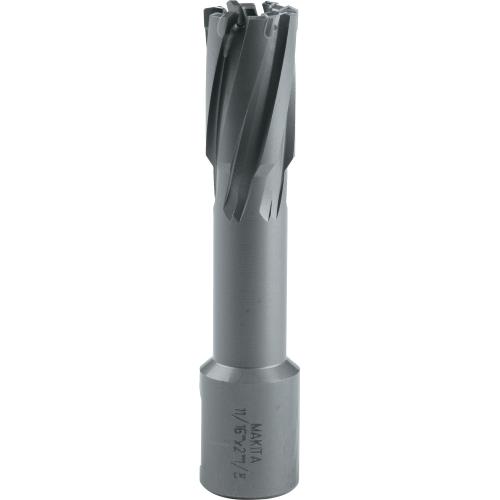

11/16" X 2-1/8" Tungsten Carbide-Tipped Annular Cutter

Read More
13/16

13/16" x 1-3/8" Tungsten Carbide-Tipped Annular Cutter

Read More

User Manual: HB350 - EN FR SP.pdf

Parts Breakdown: HB350 - DEC2022.pdf

Support: If you require support from any of our customer service teams, please call 1 800 663-0909(Western Canada), 1 800 263-3734(Eastern Canada & Prairies) or send us a message here

Warranty Info: Click Here

Battery Care Guide: Click Here
