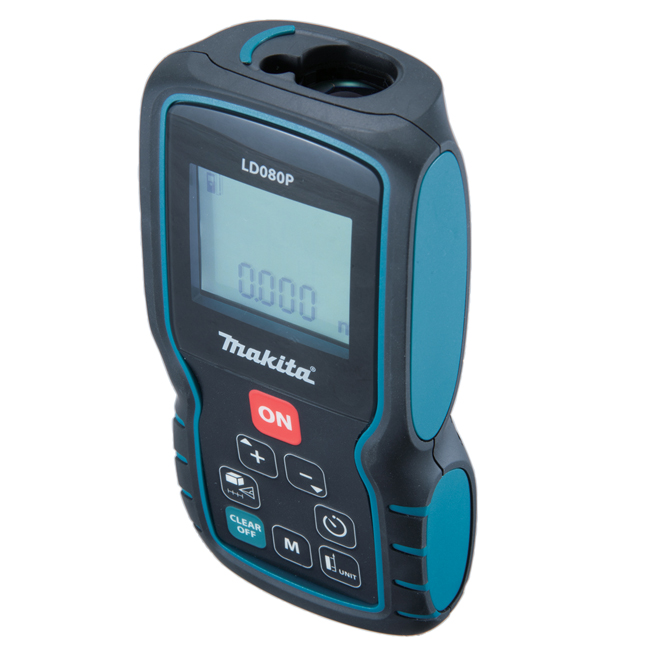

262' Laser Distance Measurer
Owners Manual Print Print

Part No: LD080PI
  • Laser Distance Measurers offer accuracy, consistency, speed, versatility and simplicity versus traditional measuring methods or ultra-sonic distance measurers
  • Features continuous, stake out, distance, tilt, area, volume, minimum / maximum, add / subtract, partial / 2 / 3 point pythagoras, smart horizontal, height tracking levelling and timer functions for maximum jobsite versatility
  • Memory function retains last 20 measurements
  • Flip out end piece enables quick and accurate measuring from corners or edges
  • Backlit LED display enables easy operation in dark areas
  • Auto power and laser off feature prevents unnecessary draining of battery power
  • Class II, Type 635 nm < 1 mW Laser
  • ISO 16331-1 certified for accuracy and range
  • IP54 rated against penetration from water, dust or debris
  • Features 1/4" thread for use with tripod
  • Includes: LD080PI, Operator's Manual CD-ROM, Quickstart Guide, 2 x AAA Batteries, Carrying Strap, Carrying Pouch



SPECIFICATIONS


Operating Range

262' (80 m)

Accuracy

1/16"

Protection Class

IP54

Laser Class

II (<1 mW) at 635 nM

Auto Laser Off

>90 seconds

Power Supply

2 x AAA Batteries

Battery Life

Up to 5,000 Measurements

Auto Power Off

>180 seconds

Measuring Units

7

Smallest Unit Displayed

1/32"

Dimensions (L x W x H)

4-5/8" x 2-3/8" x 1-3/8"

Net Weight

0.31 lbs. (0.14 kg)




Note: Makita Canada reserves the right to change specification of products without notice. The contents of the parts breakdown and Instruction manuals may be different from current products.
