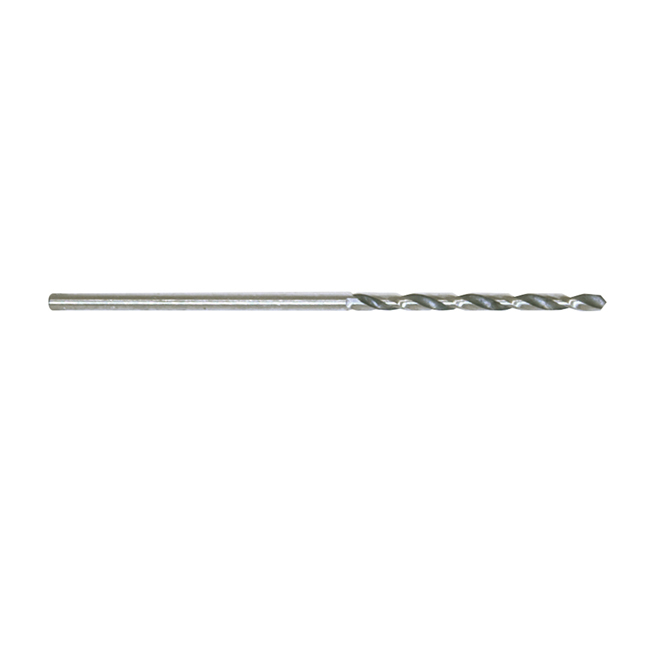

High Speed Steel Drill BIts
Print Print

Part No: 710001-A

Ideal for Wood, Metal and Plastic Applications

135o Split Point

  • Premium High Speed Steel construction
  • Split Point prevents "walking" and increases drilling speed
  • Aggressive Chisel and Rake Angles along with Enlarged Precision Ground Flutes offer maximum chip removal and limit binding in material for increased accuracy


High Speed Steel Drill Bits
Diameter Overall Length Flute Length Part No.

1/16" 1-7/8" 7/8" 710001-A
5/64" 2" 1" 710002-A
3/32" 2-1/4" 1-1/4" 710003-A
7/64" 2-5/8" 1-1/2" 710004-A
1/8" 2-3/4" 1-5/8" 710005-A
9/64" 2-7/8" 1-3/4" 710006-A
5/32" 3-1/8" 2" 710007-A
11/64" 3-1/4" 2-1/8" 710007-B
3/16" 3-1/2" 2-5/16" 710008-A
13/64" 3-5/8" 2-7/16" 710008-B
7/32" 3-3/4" 2-1/2" 710009-A
15/64" 3-7/8" 2-5/8" 710009-B
1/4" 4" 2-3/4" 710010-A
17/64" 4-1/8" 2-7/8" 710010-B
9/32" 4-1/4" 2-15/16" 710010-C
19/64" 4-3/8" 3-1/16" 710010-D
5/16" 4-1/2" 3-1/16" 710011-A
21/64" 4-5/8" 3-5/16" 710011-B
11/32" 4-3/4" 3-7/16" 710011-C
23/64" 4-7/8" 3-1/2" 710011-D
3/8" 5" 3-5/8" 710012-A
13/32" 5-1/4" 3-7/8" 710012-C
27/64" 5-3/8" 3-15/16" 710012-D
7/16" 5-1/2" 4-1/16" 710013-A
29/64" 5-5/8" 4-3/16" 710013-B
15/32" 5-3/4" 4-5/16" 710013-C
31/64" 5-7/8" 4-3/8" 710013-D
1/2" 6" 4-1/2" 710014-A
