Makita Canada Inc

18V LXT Cordless 500 lm LED Worklight (Tool Only)

[Go Back]

Owners Manual

Parts Breakdown

Part No: DML816

· Rotatable (left or right) and foldable head design enables flashlight to be positioned in numerous configurations for maximum versatility in a variety of applications

· Foldable head features 7 positive stops at 0^o, 30^o, 60^o, 90^o, 120^o, 150^o, 180^o

· Features 18 LED's for maximum illumination

· 4 stage push button control for low (100 lm) , medium (250 lm) or high (500 lm) brightness and OFF

· Over-discharge circuit protection prevents damage to battery caused by over-discharge of cells

· Retractable sky hook for added convenience

· Ergonomic soft rubber grip design for comfortable operation

· Optional Lamp Shade (part no. GM00001326) provides wider irradiation range with reduced glare

SPECIFICATIONS

Battery	18V / 14.4V Li-Ion
Continuous Use:
High Brightness	Approx. 17 Hours (with battery BL1860B)
Medium Brightness	Approx. 34 Hours (with battery BL1860B)
Low Brightness	Approx. 75 Hours (with battery BL1860B)
Luminous Flux	500 / 250 / 100 lm
Overall Dimensions (L x W x H)	15-3/4" x 3-1/8" x 5" (400 x 79 x 127 mm)
Net Weight (no battery)	0.9 lbs. (0.41 kg)

RELATED TOOLS

DDA460PT2 MORE INFORMATION	DDA460Z MORE INFORMATION	DGA700Z MORE INFORMATION	DGA900Z MORE INFORMATION
DHR263Z MORE INFORMATION	DHR264Z MORE INFORMATION	DHR280Z MORE INFORMATION	DHR282Z MORE INFORMATION
DHR400T2N MORE INFORMATION	DHR400ZKN MORE INFORMATION	DHS711Z MORE INFORMATION	DHS780Z MORE INFORMATION
DHS781Z MORE INFORMATION	DHS782Z MORE INFORMATION	DHS900Z MORE INFORMATION	DJR360Z MORE INFORMATION
DKT360Z MORE INFORMATION	DLS111Z MORE INFORMATION	DLS112Z MORE INFORMATION	DLS211Z MORE INFORMATION
DLS212Z MORE INFORMATION	DLS714Z MORE INFORMATION	DLW140Z MORE INFORMATION	DRC200Z MORE INFORMATION
DRS780Z MORE INFORMATION	DSP600ZJ MORE INFORMATION	DSP601ZJ MORE INFORMATION	DVC151LZ MORE INFORMATION
DVC152LZ MORE INFORMATION	DVC155LZX2 MORE INFORMATION	DVC156LZX1 MORE INFORMATION	DVC157LZX1 MORE INFORMATION
DVC261TX11 MORE INFORMATION	DVC261ZX11 MORE INFORMATION	DVC265ZXU MORE INFORMATION	DVC560PT2 MORE INFORMATION
DVC560Z MORE INFORMATION	DVC660PT2 MORE INFORMATION	DVC660ZX MORE INFORMATION	DVC665TX4U MORE INFORMATION
DVC665Z MORE INFORMATION	DVC665ZX4U MORE INFORMATION	DVC865LZX2 MORE INFORMATION	DVC866LZX1 MORE INFORMATION
DVC867LZX2 MORE INFORMATION	DLX2005T MORE INFORMATION	DLX2022S MORE INFORMATION	DLX2089M MORE INFORMATION

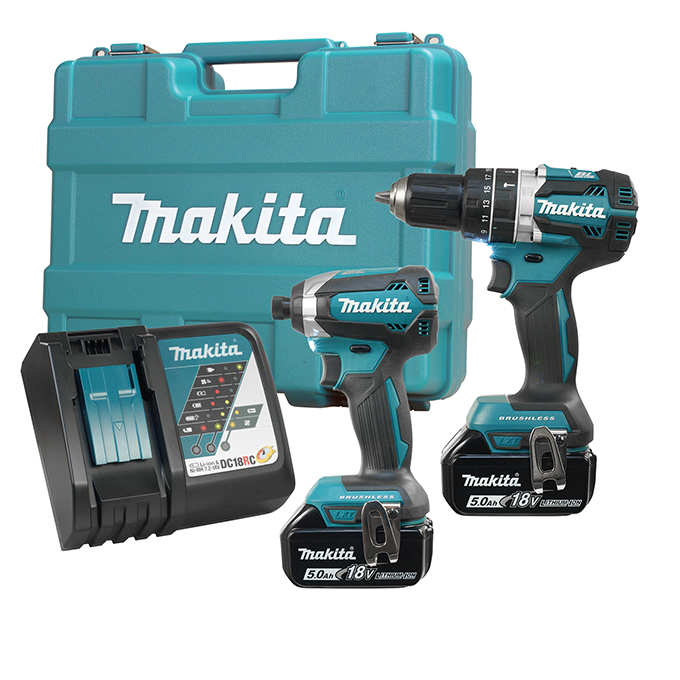

DLX2141SY MORE INFORMATION	DLX2149 MORE INFORMATION	DLX2180S MORE INFORMATION	DLX2180T MORE INFORMATION
DLX2186T MORE INFORMATION	DLX2220SYB MORE INFORMATION	DLX2221SYB MORE INFORMATION	DLX2318TX1 MORE INFORMATION
DLX2398 MORE INFORMATION	DLX2411T MORE INFORMATION	DLX2412T MORE INFORMATION	DLX2423BX3 MORE INFORMATION

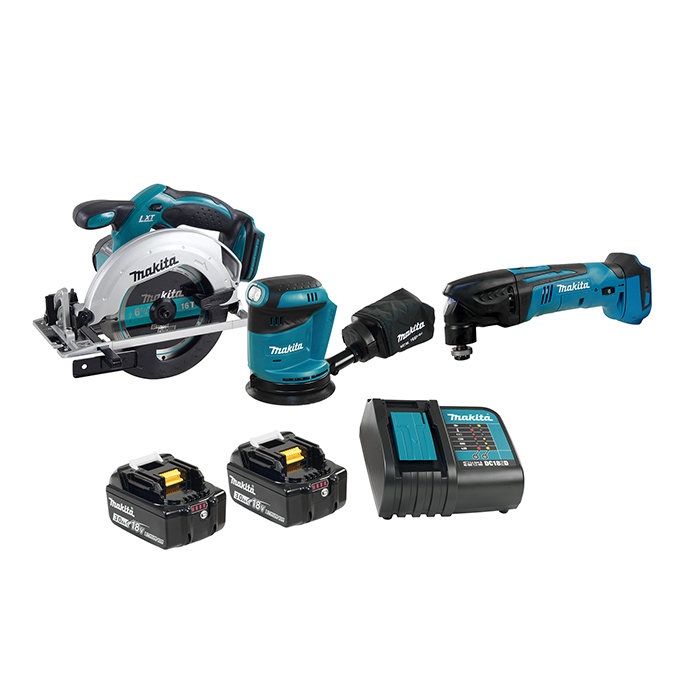

DLX2465TX1 MORE INFORMATION	DLX3170S MORE INFORMATION	DLX4057X1 MORE INFORMATION	DLX4058M MORE INFORMATION
