Power converter powered by Makita portable backpack power supply.

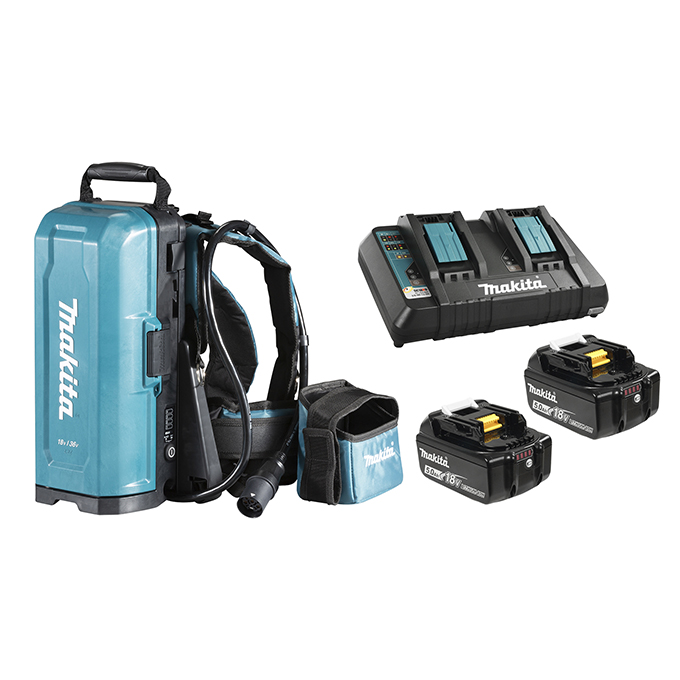

Can be used with PDC01 or PDC1200 portable backpack power supplies.
Turns DC power into AC power suitable for powering electric tools and appliances.

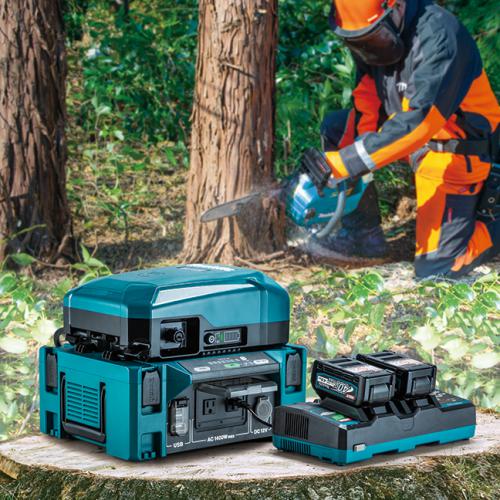

Ideal as an emergency power source or for outdoor leisure activities.

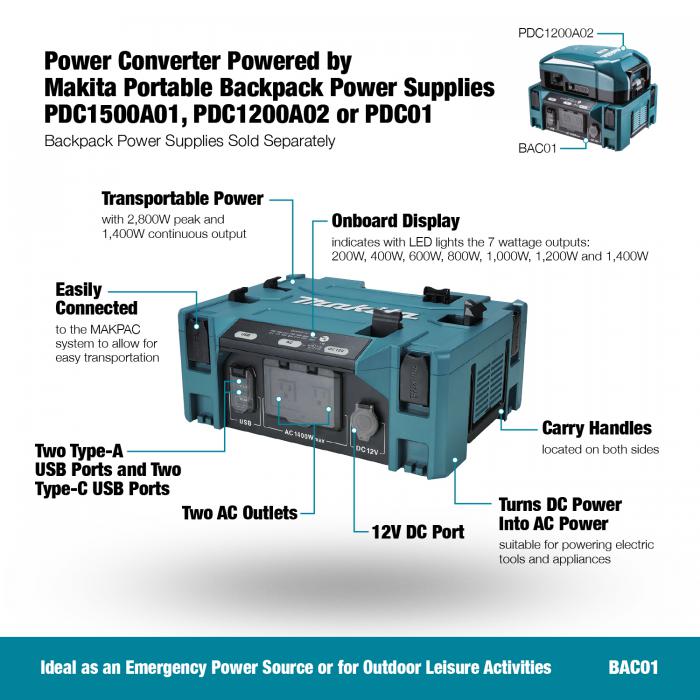

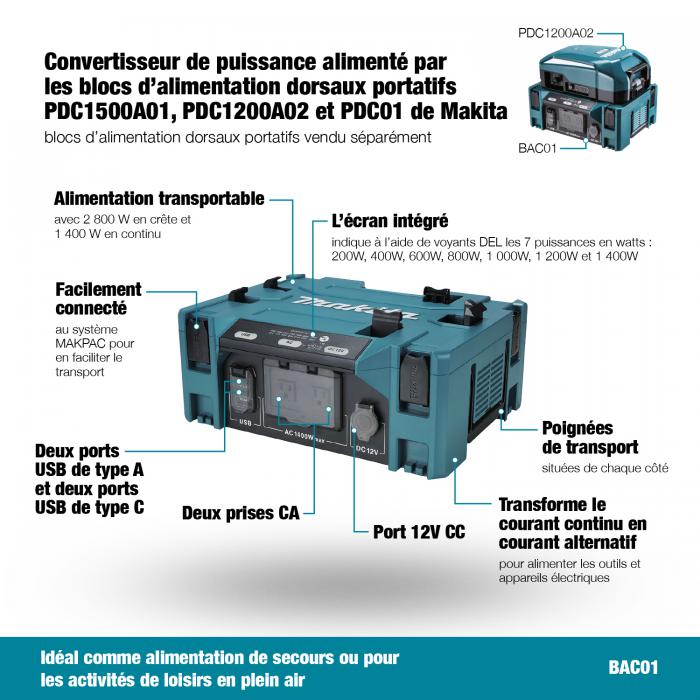

Equipped with multiple outlets including two AC outlets, two Type-A USB ports, two Type-C USB ports and one 12V DC port.
Onboard display indicates with LED lights the 7 wattage outputs (200, 400, 600, 800, 1000, 1200 and 1400 watts).
The 1400W LED light will flash when AC power outlets alone reaches 1450 watts or total power output reaches 1500 watts.
A built-in audible buzzer warns the user when the unit stops supplying power output due to overload, high temperature, low battery capacity or other malfunctions.
AC power output of 1400W (continuous output) and 2800W (maximum output) - 50/60Hz (switchable frequency).
AC power with pure sine wave enables the use of delicate electronic devices.

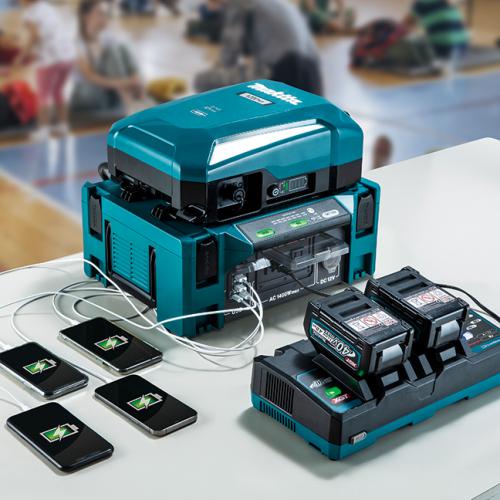

AC power is compatible with battery chargers, small home appliances and electronic devices such as computers.

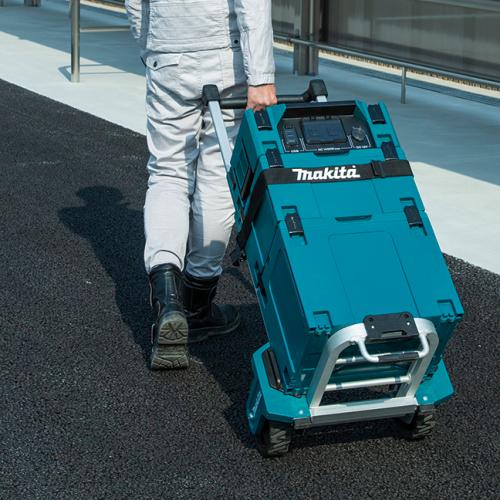

BAC01 is compatible with the Makita MAKPAC system allowing for easy transportation on the MAKPAC trolley or cart.
SPECIFICATIONS
Battery Voltage:
36V
Inverter Capacity W(VA)
Continuous Rating Output: 1,400
Max Output: 2,800
AC Output Voltage:
120V
AC Output:
With Pure Sine Wave, Frequency: 50/60 Hz Switchable, 2 AC Outlets
USB Outlets:

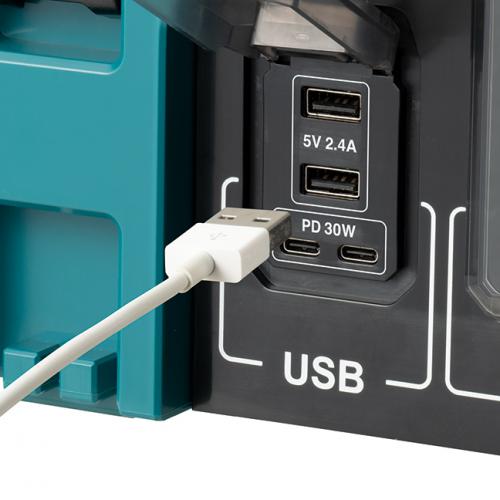

2 Type-A (5V/2.4A) USB Output Ports
2 Type-C (USB-PD 30W) USB Output Ports
DC Output

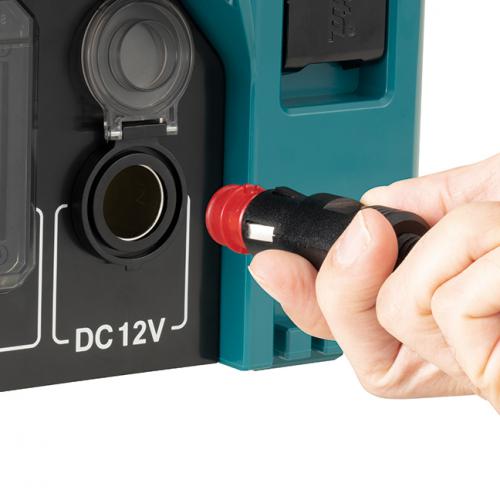

1(one) 12V/10A Outlet Socket
Continuous Run Time (Approx.) On A Fully Charged Power Supply:
56 Minutes* With PDC1200 (*When Discharging At A Rate Of 1,000W(VA)
20 Minutes** With PDC01 (**When Loaded With Four BL1860B Batteries And Discharging At A Rate Of 750W(VA)
Warning Buzzer:
Yes (Battery Capacity/High Temperature/Overload)
Overload Protection:
Yes
Protection Against Electric Shock:
Double Insulation
Weight:
7.3 kg (16.1 lbs.) BAC01 Only
12.8 kg (28.2 lbs.) With PDC01 With Four BL1860B Batteries
Note: Makita Canada reserves the right to change specification of products without notice. The contents of the parts breakdown and Instruction manuals may be different from current products.
