DFL404FZ

18V Brushless 3/8" Angle Wrench 20-40 Nm, Tool Only

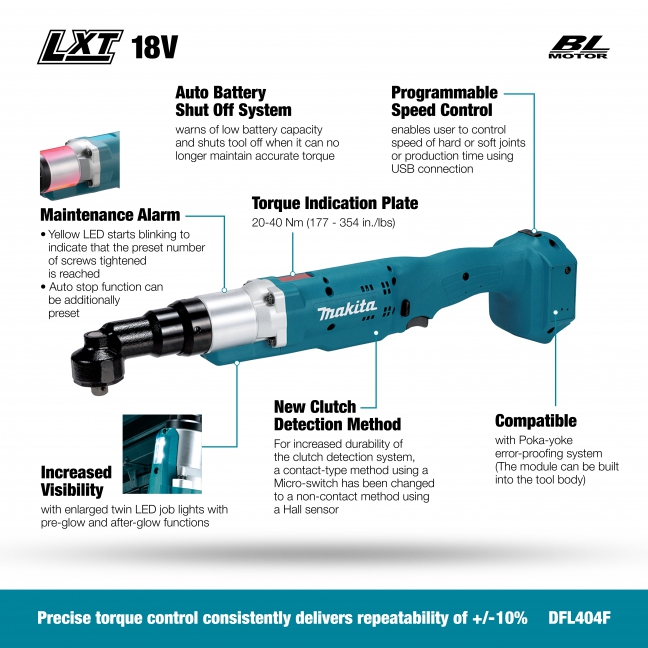

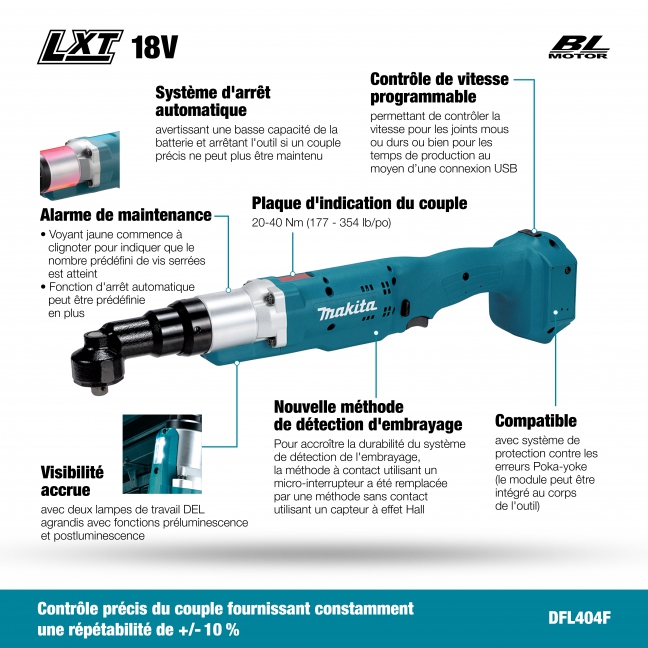

Programmable speed control enables user to control speed of hard or soft joints or production time using USB connection

Precise torque control consistently delivers repeatability of +/- 10%

Auto battery shut off system warns of low battery capacity and shuts tool off when it can no longer maintain accurate torque

• 18V cordless 3/8" angle wrench powered by an 18V LXT Li-Ion battery and developed for fastening tasks in assembly lines.
• The working area has been expanded with an increased range of the rotation speed and tightening torque from previous model DFL403F.
• The visibility for the operator has been improved by positioning the indicator lamp in a ring shape at the tip of the tool and enlarging the lamp.
• Maneuverability has been improved by the compact design and by revising the mechanical parts of the previous DFL403F series, resulting in a shortened overall length.
• The durability has been improved by switching the clutch detection from a contact-type using a microswitch to a non-contact type using a Hall sensor.
• Takt time has been reduced by increasing the maximum rotation speed.
• Compatible with Poka-yoke (error-proofing) system (The module can be built into the tool body.)

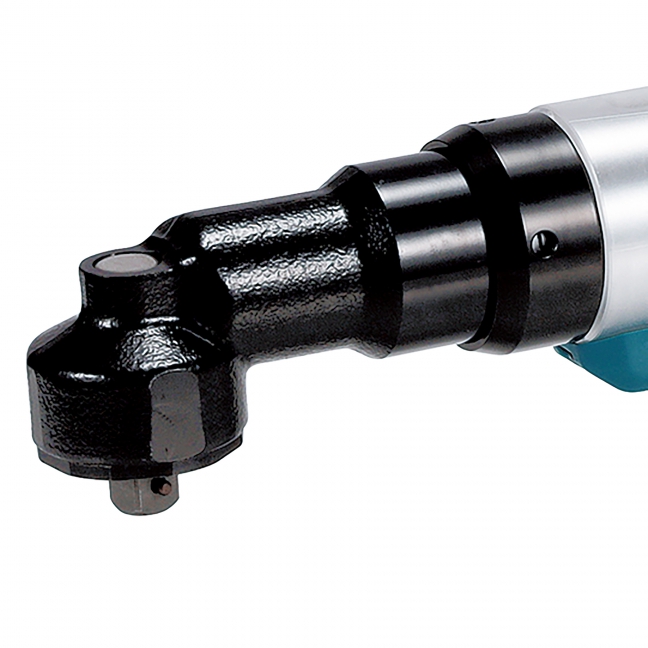

• 3/8" (9.5mm) square drive
• The LED blinks when it is time to carry out maintenance.
• Auto-stop system:  Indication lamp and beeper warn assembly worker visually and audibly of battery power reduction. If battery power reduces further, the motor automatically stops to minimize incomplete fastening.

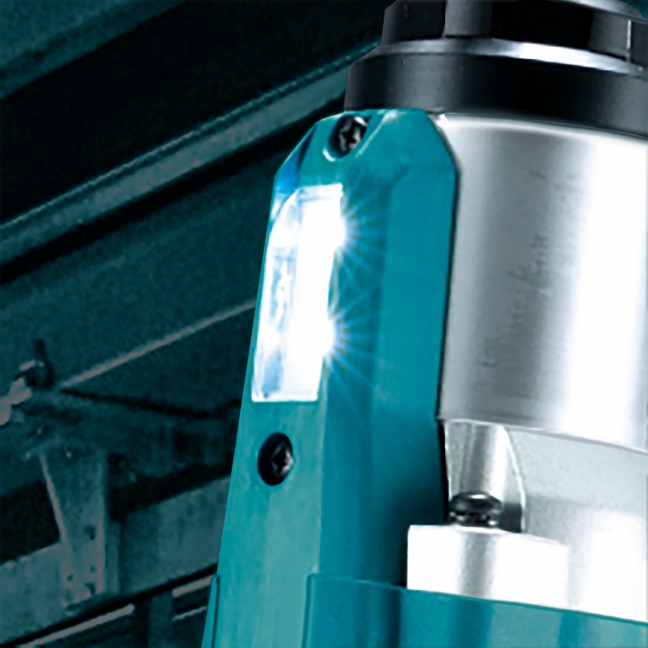

• Twin LED job light with preglow and afterglow functions works when trigger is pulled for low light conditions.
• Compatible with application software Ver. 3.0.1 to make settings for the tool.
• Designed to meet homologation requirements:  Torque accuracy value: ±10%, ±3σ, Cm≥1.67 obtained from internal testing performed  in accordance with VDI/VDE2647.

Items Included:Tool Only. Batteries and Charger Sold Separately.
