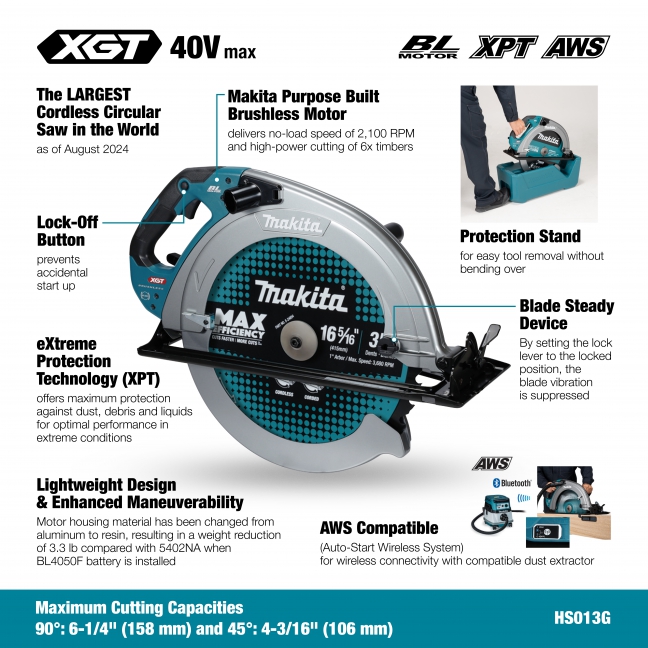

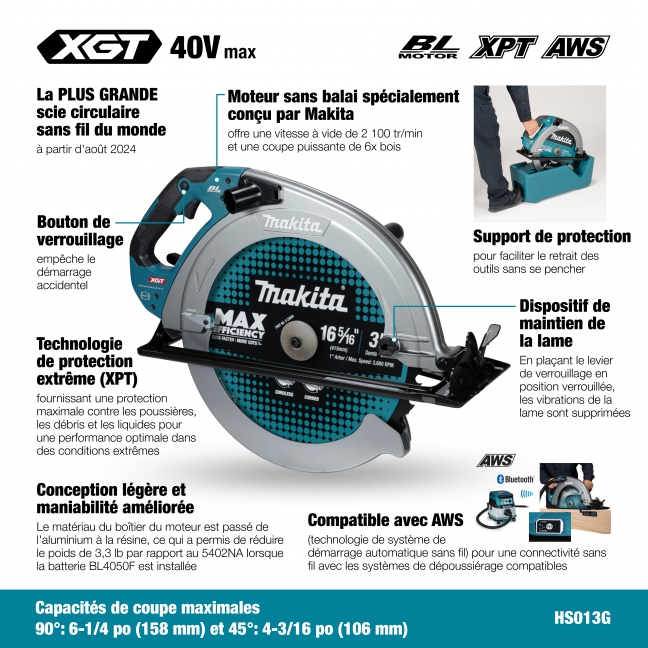

40Vmax XGT Brushless 16-5/16" Circular Saw w/AWS, Tool Only

Power comparable to Makita's electric 16-5/16" model 5402NA has been achieved by utilizing high voltage 40Vmax XGT battery and a purpose built genuine Makita brushless motor and a Makita Max Efficiency circular saw blade

AWS (Auto-Start Wireless System) uses Bluetooth® technology to communicate between tool and vacuum and enable wireless control when used with Makita AWS cordless tools

eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions

Equipped With Electric Brake And Soft Start

40Vmax XGT Brushless 16-5/16" Circular Saw, Electric Brake, Soft Start
This model has been developed based on Makita electric 16-5/16" model 5402NA.

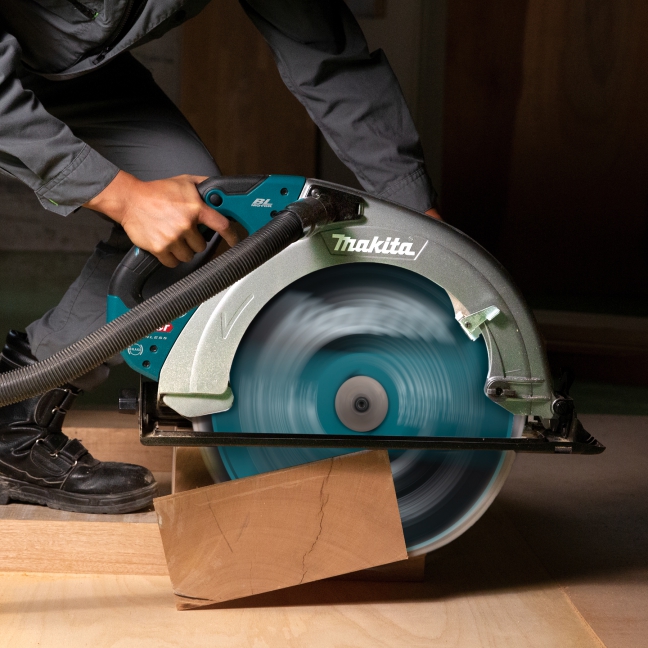

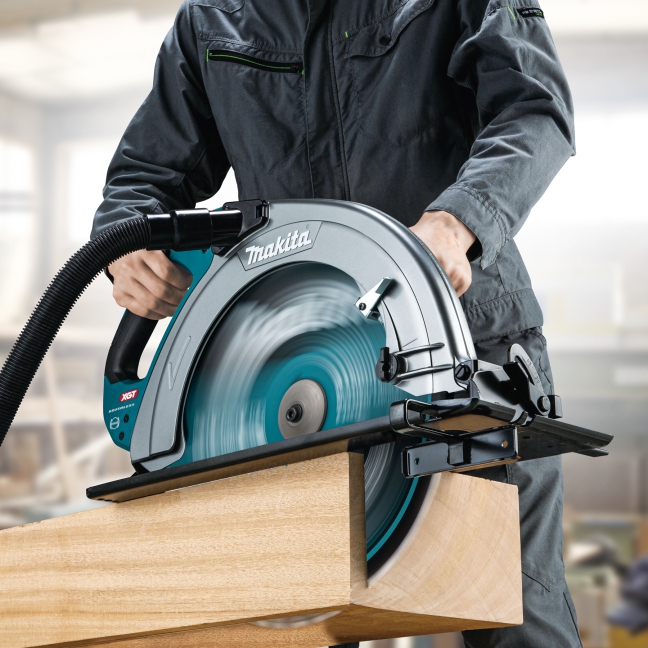

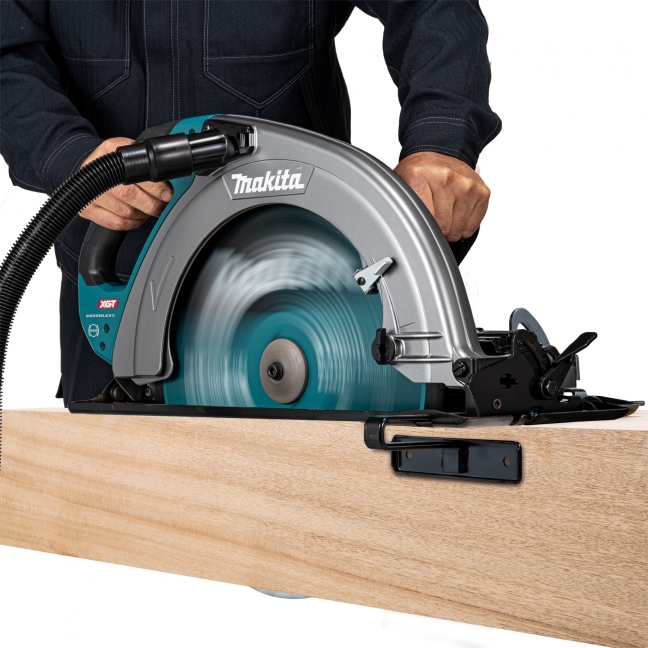

With 40Vmax XGT power and a purpose built genuine Makita brushless motor, the world's largest cordless circular saw can cut timbers up to 6-1/4" at 90 degrees and 4-3/16" at 45 degrees.
Lightweight design and enhanced maneuverability
The motor housing material has been changed from aluminum to resin, resulting in a weight reduction of 1.5kg compared with model 5402NA when a BL4050F battery is installed.
This reduction has been achieved without compromising rigidity, ensuring the durability similar or superior to the current electric model.

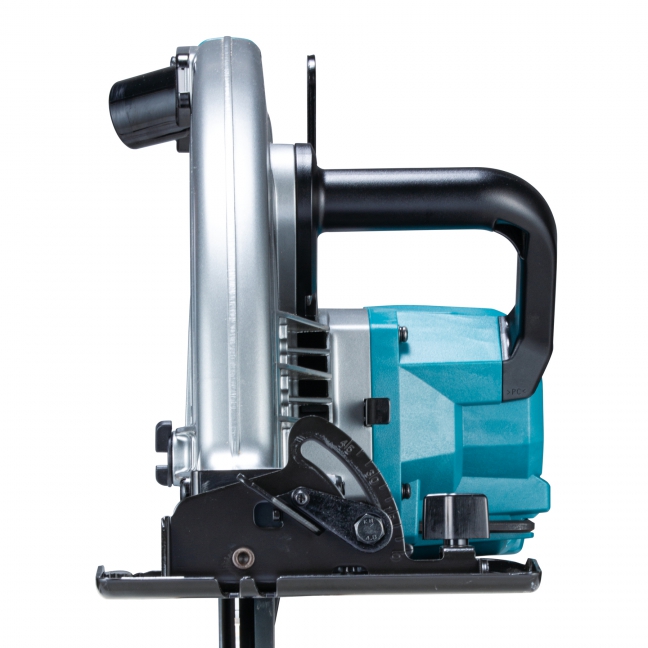

With the adoption of a brushless motor, the tool's width has been reduced by 65mm compared with model 5402NA, enhancing stability and maneuverability during blade changes.

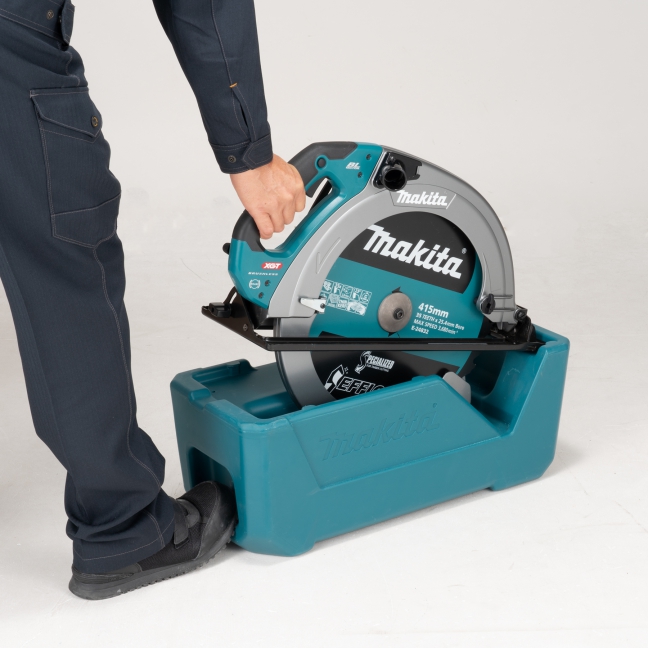

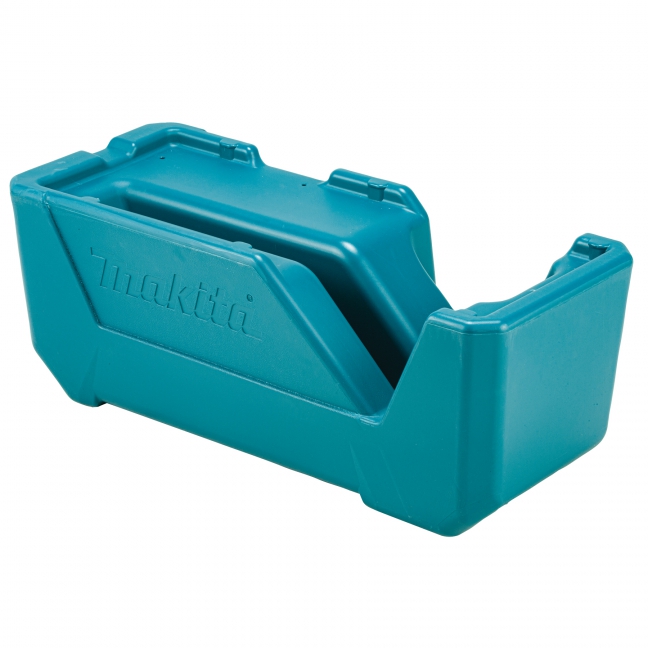

Includes a protective resin stand allowing for storage without damaging the tool.
Stabilizing the stand by pressing down the recessed portion with a foot allows for easy removal of the tool from storage.
The tool can be temporarily placed at an angle for easy access to the tool without bending over.

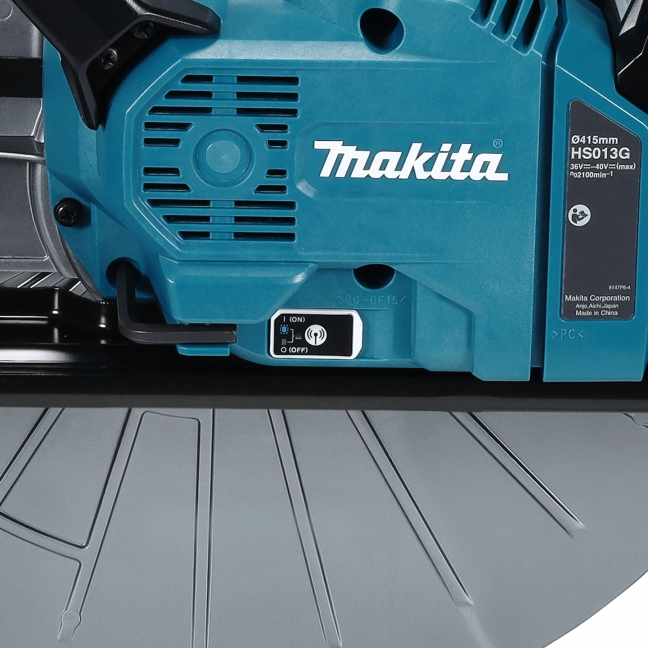

Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Bevel capacity: 0 - 45 degrees
Right-side saw blade position
Equipped with electric brake
Soft start suppresses start-up reaction for more control and better accuracy
Anti-restart function minimizes accidental start-up

Where to buy

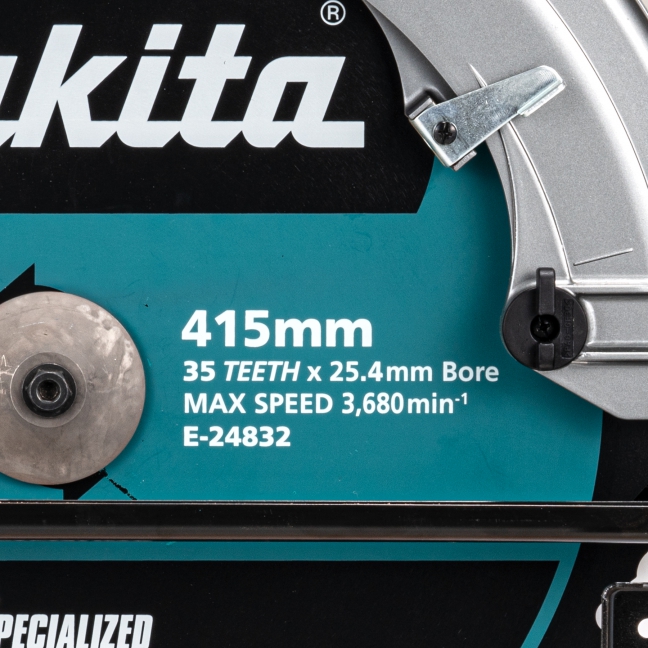

Items Included:Tool Only. Batteries and Charger Sold Separately. 16-5/16" C.T Blade 35T (E-24854), Protection Stand (4131E7-2), Hex Wrench 6 (783204-6)

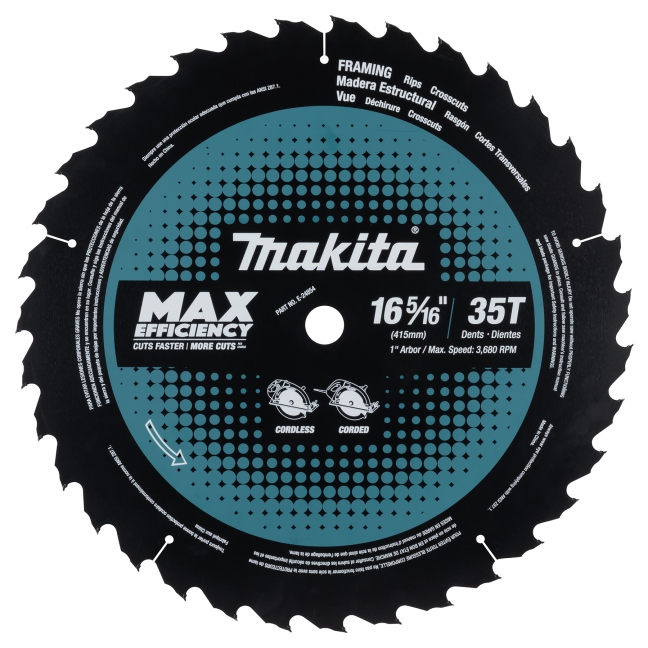

E-24854

4131E7-2

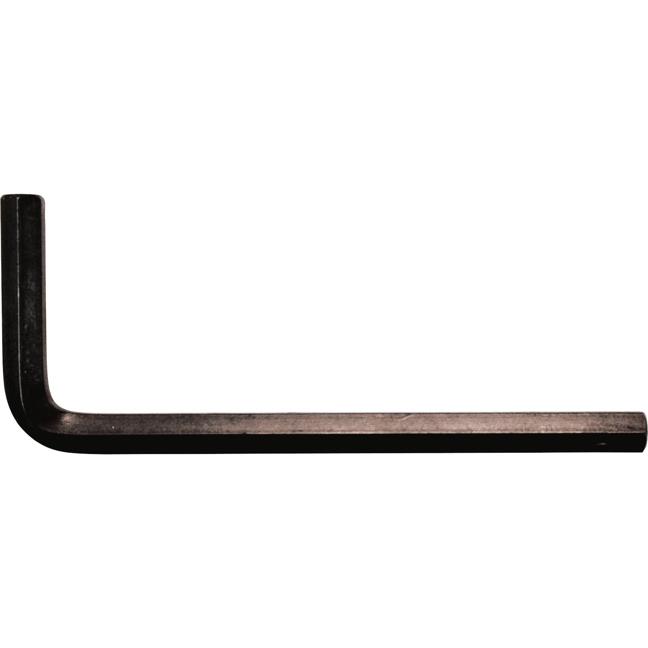

783204-6

Images shown may not represent the full listing or the true size of included items.

40Vmax XGT Brushless 16-5/16" Circular Saw, Electric Brake, Soft Start
This model has been developed based on Makita electric 16-5/16" model 5402NA.
With 40Vmax XGT power and a purpose built genuine Makita brushless motor, the world's largest cordless circular saw can cut timbers up to 6-1/4" at 90 degrees and 4-3/16" at 45 degrees.
Lightweight design and enhanced maneuverability
The motor housing material has been changed from aluminum to resin, resulting in a weight reduction of 1.5kg compared with model 5402NA when a BL4050F battery is installed.
This reduction has been achieved without compromising rigidity, ensuring the durability similar or superior to the current electric model.
With the adoption of a brushless motor, the tool's width has been reduced by 65mm compared with model 5402NA, enhancing stability and maneuverability during blade changes.
Includes a protective resin stand allowing for storage without damaging the tool.
Stabilizing the stand by pressing down the recessed portion with a foot allows for easy removal of the tool from storage.
The tool can be temporarily placed at an angle for easy access to the tool without bending over.
Auto-start Wireless System (AWS) connects to compatible vacuum cleaners with Bluetooth
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Bevel capacity: 0 - 45 degrees
Right-side saw blade position
Equipped with electric brake
Soft start suppresses start-up reaction for more control and better accuracy
Anti-restart function minimizes accidental start-up

Items Included: Tool Only. Batteries and Charger Sold Separately. 16-5/16" C.T Blade 35T (E-24854), Protection Stand (4131E7-2), Hex Wrench 6 (783204-6)

Shipping Dimensions (Length x Width x Height) & Weight : 28 In. X 14.4 In. X 25 In. Weight : 44.6 Lb.

Specifications

Battery Capacities	40V Max Li-Ion
Blade Diameter	16-5/16" (415 mm)
Arbor	1" (25 mm)
Maximum Cutting Capacities:
0°	6-1/4" (158 mm)
45°	4-3/16" (106 mm)
No Load Speed	2,100 RPM
Vibration Level	2.5 m/s²
Noise Level	98 dB(A)
Dimensions (L x W x H)	23-7/8" x 9-1/8" x 18-3/4" (606 mm x 233 mm x 476 mm)
Net Weight	22.3 lbs (10.1 kg)
