DBN901ZK

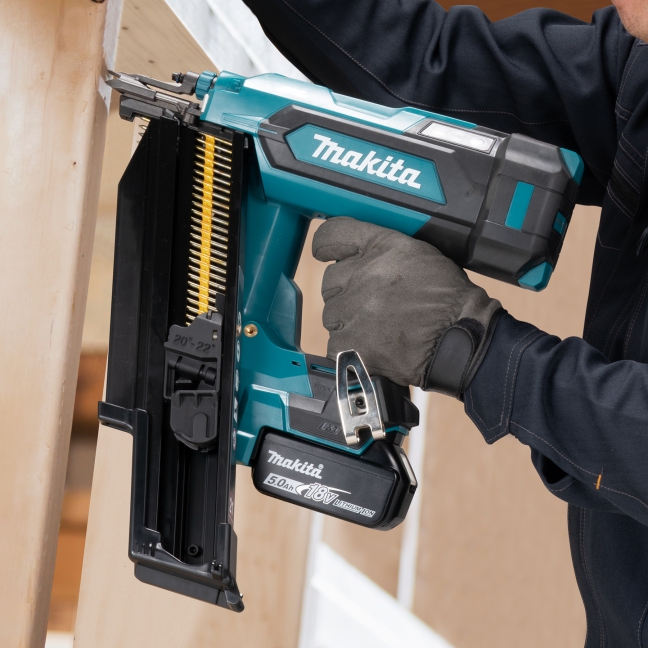

18V LXT 3-1/2" Framing Nailer, Round Head, Tool Only

Anti-dry fire mechanism prevents added wear on the drive pin

Rubber bumpers protect tool and materials from damage

Capable of driving nails 2" to 3-1/2" with performance similar to a pneumatic framing nailer

Bump & Sequential Fire Operating Modes

LXT Technology LXT Technology

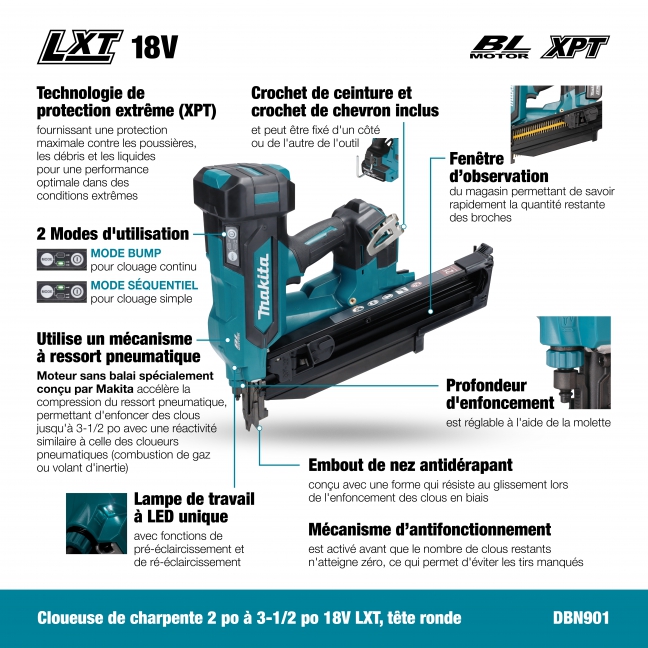

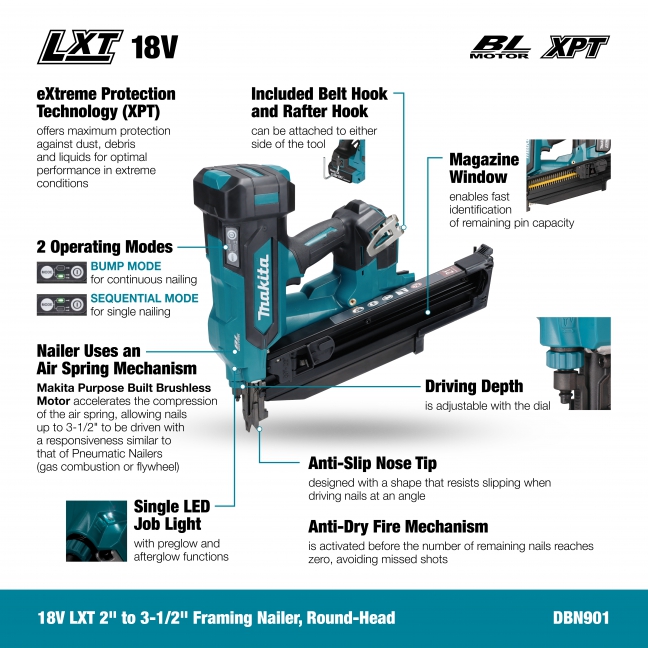

  • 18V LXT 2" to 3-1/2" Framing Nailer, Round-Head
  • Capable of driving nails up to 3-1/2" with a feel similar to using a pneumatic nailer
  • Uses an air spring mechanism. The purpose built genuine Makita brushless motor accelerates the compression of the air spring, allowing nails up to 3-1/2" to be driven with a responsiveness similar to that of a pneumatic nailer, compared to gas combustion or flywheel types.

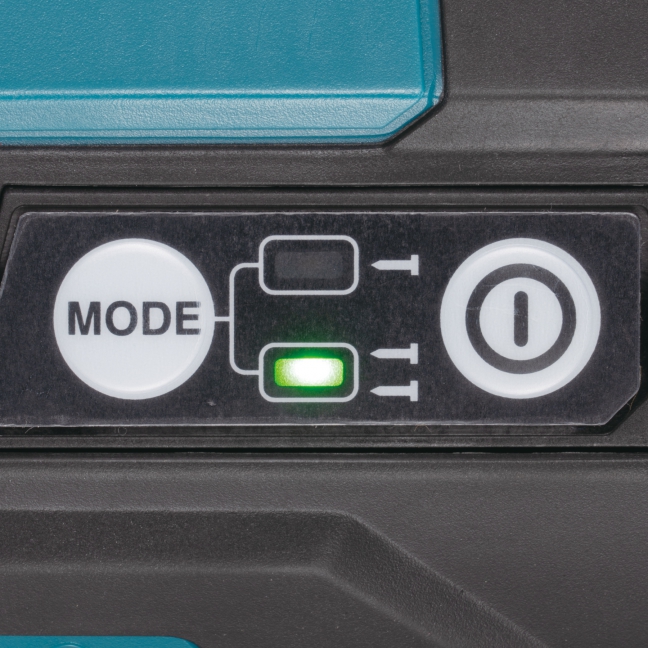

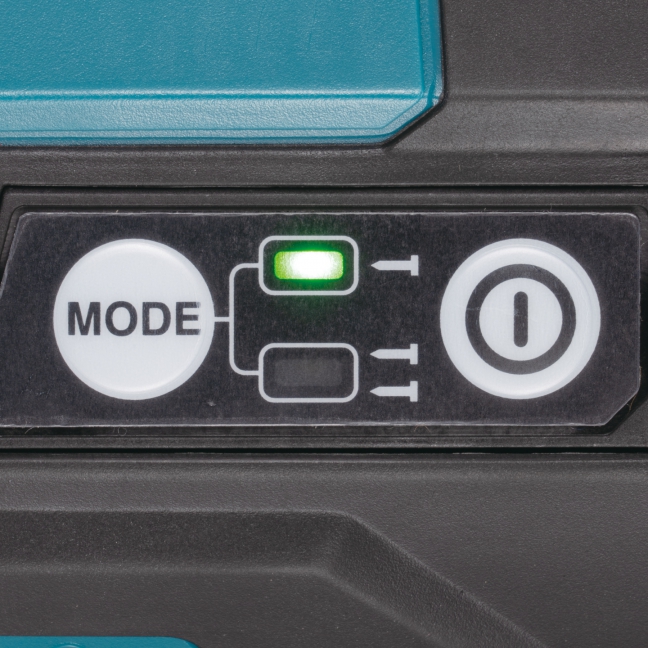

  • Operation modes are selectable from full sequential actuation mode (for single nailing) to contact actuation mode (for continuous nailing)

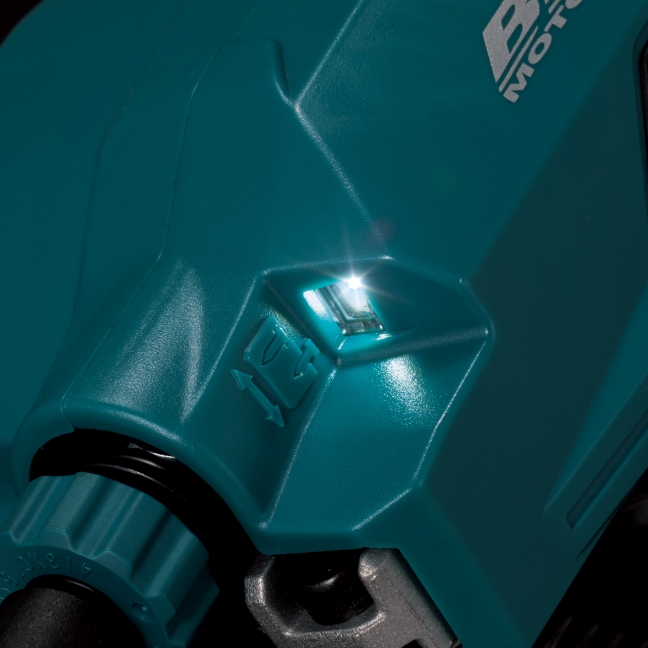

  • Single LED job light with preglow and afterglow functions

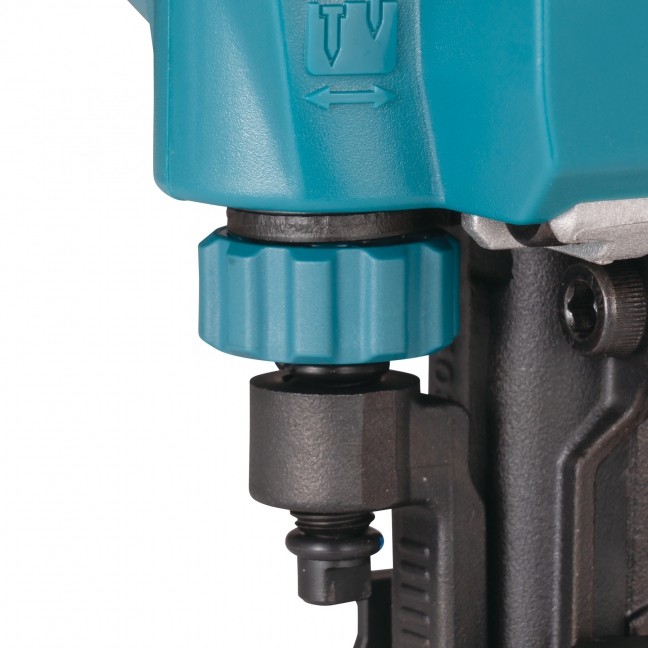

  • Driving depth is adjustable with the dial
  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle

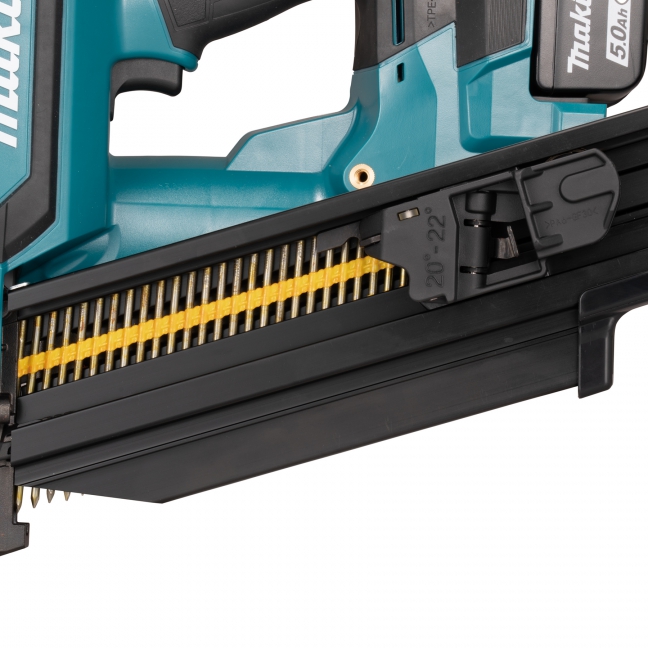

  • Window for checking remaining nail quantity
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.

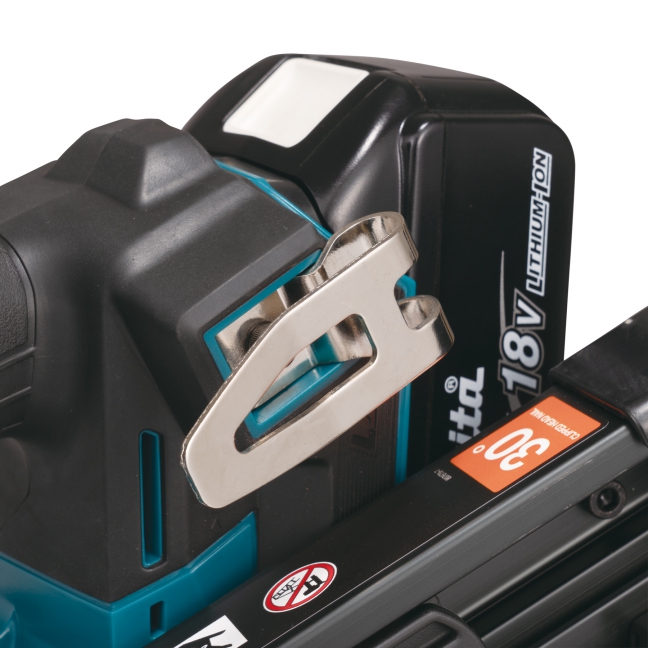

  • Utilizes unique hooks that can be attached to the left and right sides for various work applications.

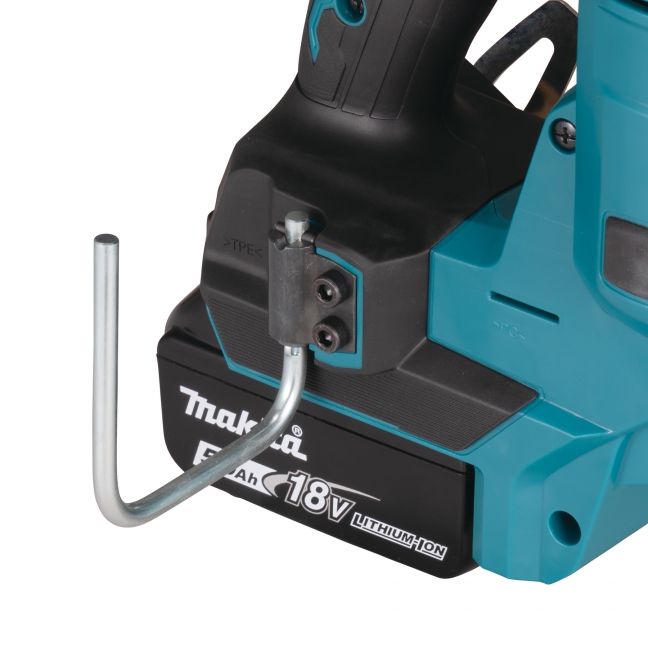

  • The rafter hook can be attached to the opposite side of the belt hook. The width of the hook portion is 2-1/2" which allows for hooking on ladders, scaffolding, and 3x timbers.

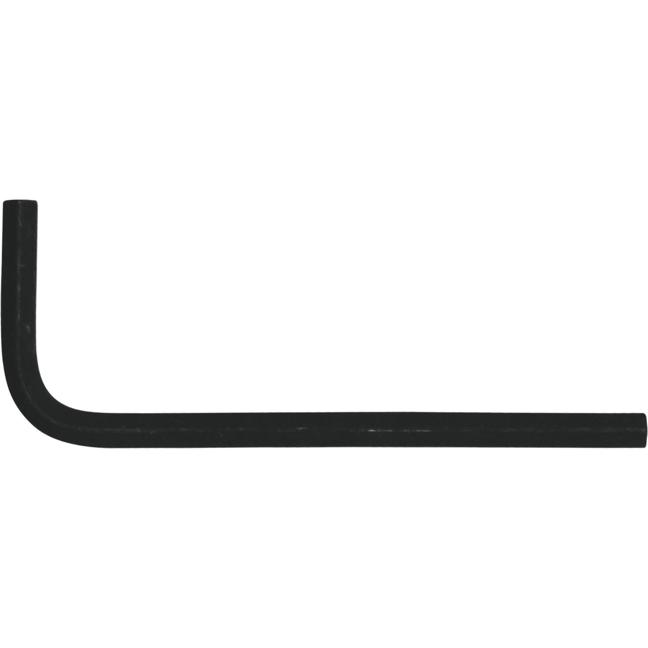

Items Included:Tool Only. Batteries and Charger Sold Separately. Nose Adapter (4130T1-3), Hook (347C14-9), Hang Hook (141X57-7), Hex Wrench 4 (783202-0), Plastic Carrying Case

  • 18V LXT 2" to 3-1/2" Framing Nailer, Round-Head
  • Capable of driving nails up to 3-1/2" with a feel similar to using a pneumatic nailer
  • Uses an air spring mechanism. The purpose built genuine Makita brushless motor accelerates the compression of the air spring, allowing nails up to 3-1/2" to be driven with a responsiveness similar to that of a pneumatic nailer, compared to gas combustion or flywheel types.
  • Operation modes are selectable from full sequential actuation mode (for single nailing) to contact actuation mode (for continuous nailing)
  • Single LED job light with preglow and afterglow functions
  • Driving depth is adjustable with the dial
  • Anti-slip nose tip designed with a shape that resists slipping when driving nails at an angle
  • Window for checking remaining nail quantity
  • Anti-dry fire mechanism is activated before the number of remaining nails reaches zero, avoiding missed shots.
  • Utilizes unique hooks that can be attached to the left and right sides for various work applications.
  • The rafter hook can be attached to the opposite side of the belt hook. The width of the hook portion is 2-1/2" which allows for hooking on ladders, scaffolding, and 3x timbers.

Items Included: Tool Only. Batteries and Charger Sold Separately. Nose Adapter (4130T1-3), Hook (347C14-9), Hang Hook (141X57-7), Hex Wrench 4 (783202-0), Plastic Carrying Case

Shipping Dimensions (Length x Width x Height) & Weight : 26.2 In. X 7.5 In. X 19.2 In. Weight : 20.63 Lb.

Specifications

Battery Capacities: 18V Li-Ion
Nail Size 2" - 3-1/2" (50 - 90 mm)
Nail Type .113" - .148" 21° Round Head
Magazine Capacities  36 - 41 nails
Vibration Level  3.5 m/s²
Noise Level 92 dB(A)
Dimensions (L x W x H)  15-1/4" x 7-7/16" x 14-1/8" (389 mm x 189 mm x 358 mm)
Net Weight  11.0 - 11.9 lbs (5.0 - 5.4 kg)
