AN924

3-1/2" Framing Nailer

21° Round Head Framing Nailer

Uses 21° Round Head Framing Nails

  • Redesigned trigger valves to reduce air leaks and minimize recoil for fast and efficient bump fire nailing
  • 2 operating modes – sequential or bump fire
  • 13 depth nailing settings with adjustment dial for maximum nailing precision
  • Top loading magazine with nail view window clearly shows remaining nail capacity for fast reference on the jobsite
  • Rubber bumpers protect tool and material from damage when the nailer is placed on its side
  • Rafter hook is easily adjustable to left or right side of the tool for maximum operator convenience

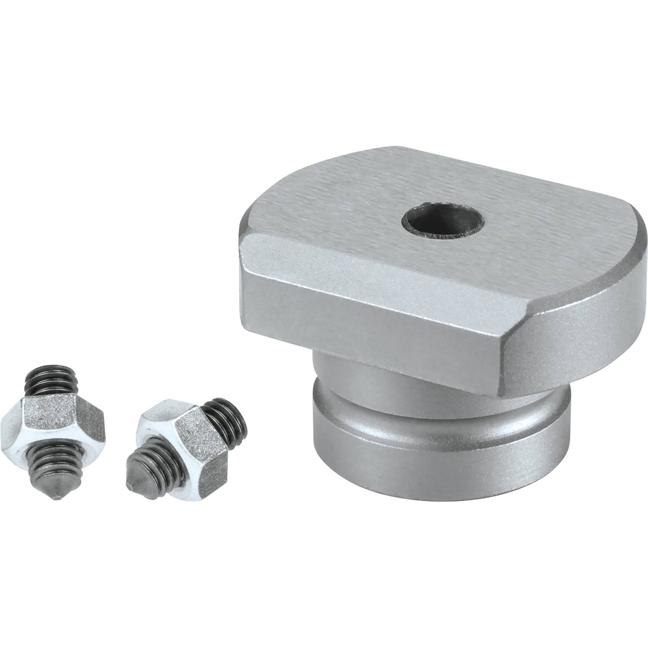

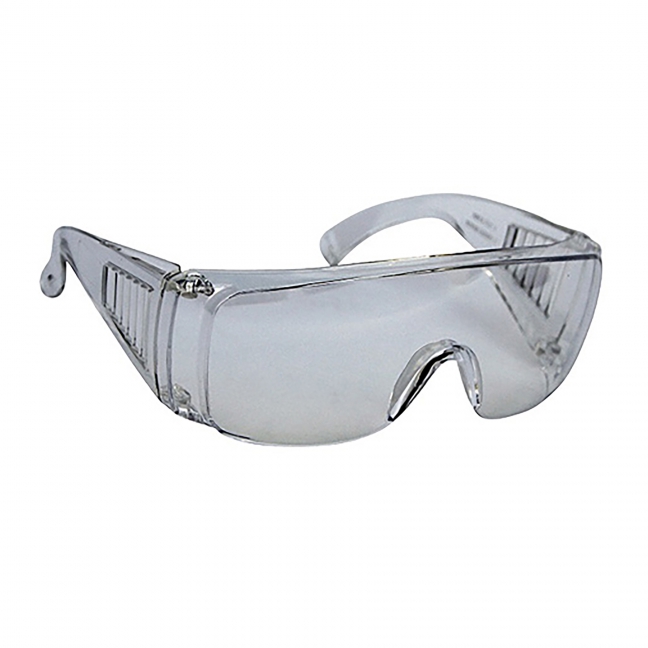

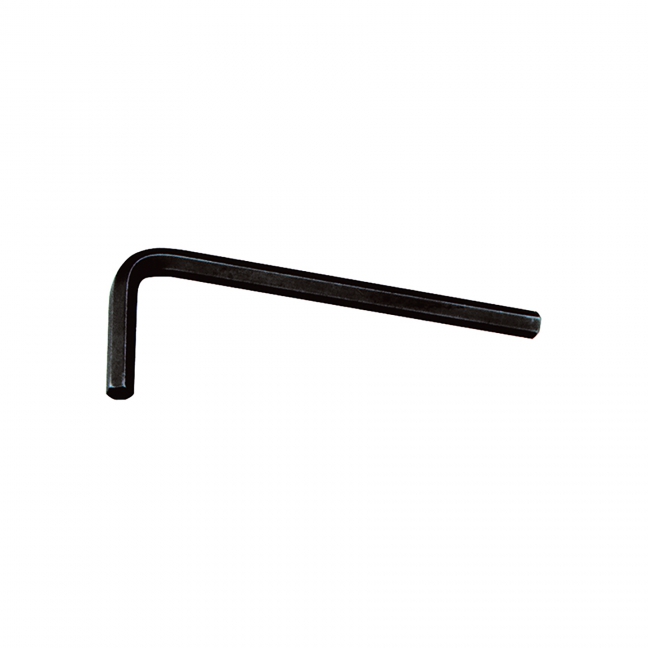

Items Included:Safety Goggles (HY00000951), Hex Wrench 5 (HY00000953), Die SB13 (SC00000217)

  • Redesigned trigger valves to reduce air leaks and minimize recoil for fast and efficient bump fire nailing
  • 2 operating modes – sequential or bump fire
  • 13 depth nailing settings with adjustment dial for maximum nailing precision
  • Top loading magazine with nail view window clearly shows remaining nail capacity for fast reference on the jobsite
  • Rubber bumpers protect tool and material from damage when the nailer is placed on its side
  • Rafter hook is easily adjustable to left or right side of the tool for maximum operator convenience

Items Included: Safety Goggles (HY00000951), Hex Wrench 5 (HY00000953), Die SB13 (SC00000217)

Shipping Dimensions (Length x Width x Height) & Weight : 24.41 In. X 5.31 In. X 15.55 In. Weight : 12.85 Lb.

Specifications

Operating Air Pressure 70-120 PSIG
Nail Size 2" - 3-1/2"
Nail Type .113" - .148" 21° Round Head
Magazine Capacity 64 - 73 nails
Vibration Level 8.1 m/s²
Noise Level 106 dB(A)
Dimensions (L x W x H) 22" x 4-5/8" x 13-3/4" (560 mm x 117 mm x 348 mm)
Net Weight 8.3 lbs (3.8 kg)

User Manual: AN924 - EN FR SP.pdf

Parts Breakdown: AN924 - AUG2019.pdf
