DCU602Z

36V(18Vx2) LXT Brushless Material Mover w/XL Bucket, Electric Dump, Tool Only

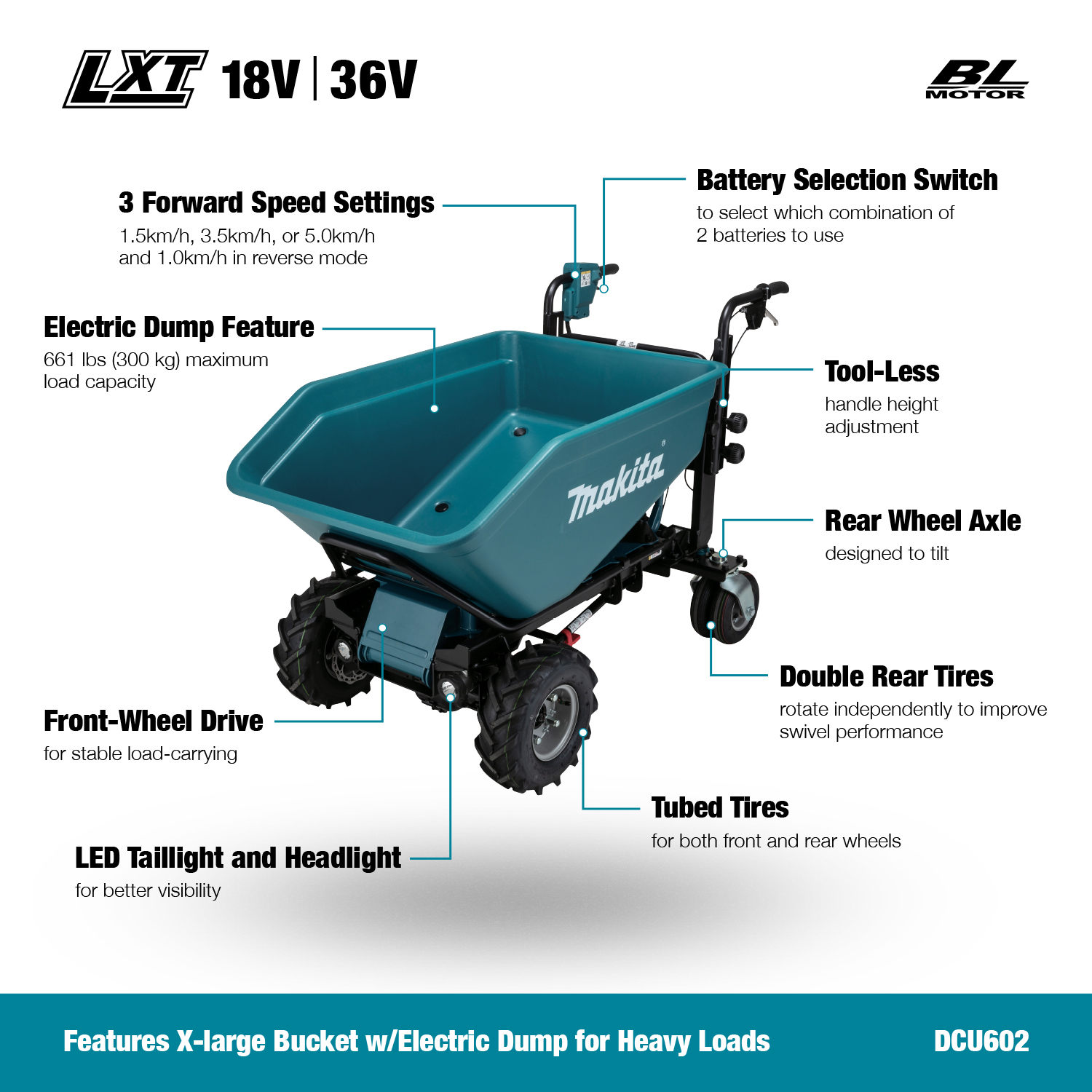

36V(18Vx2) LXT BL wheelbarrow features an X-large bucket w/electric dump for heavy loads

LXT Technology LXT Technology

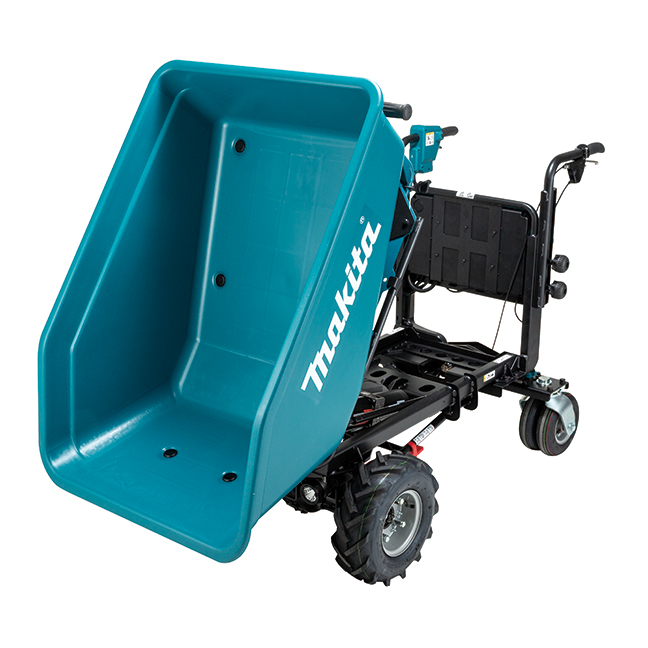

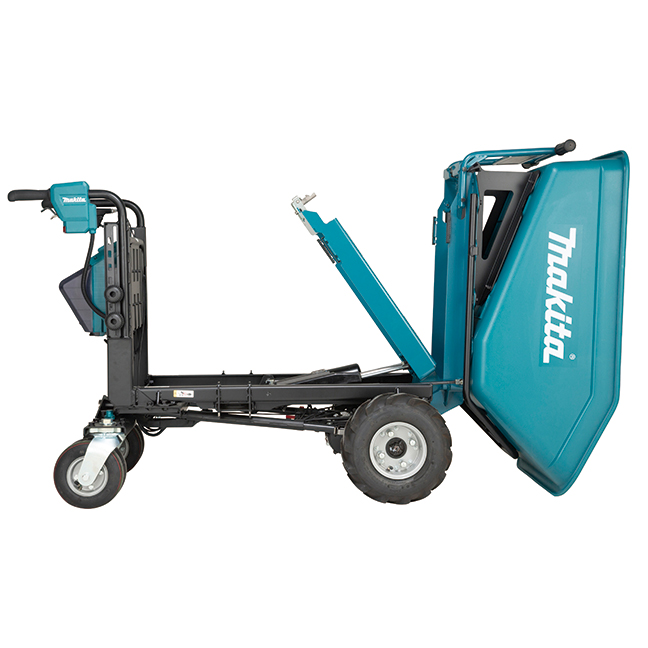

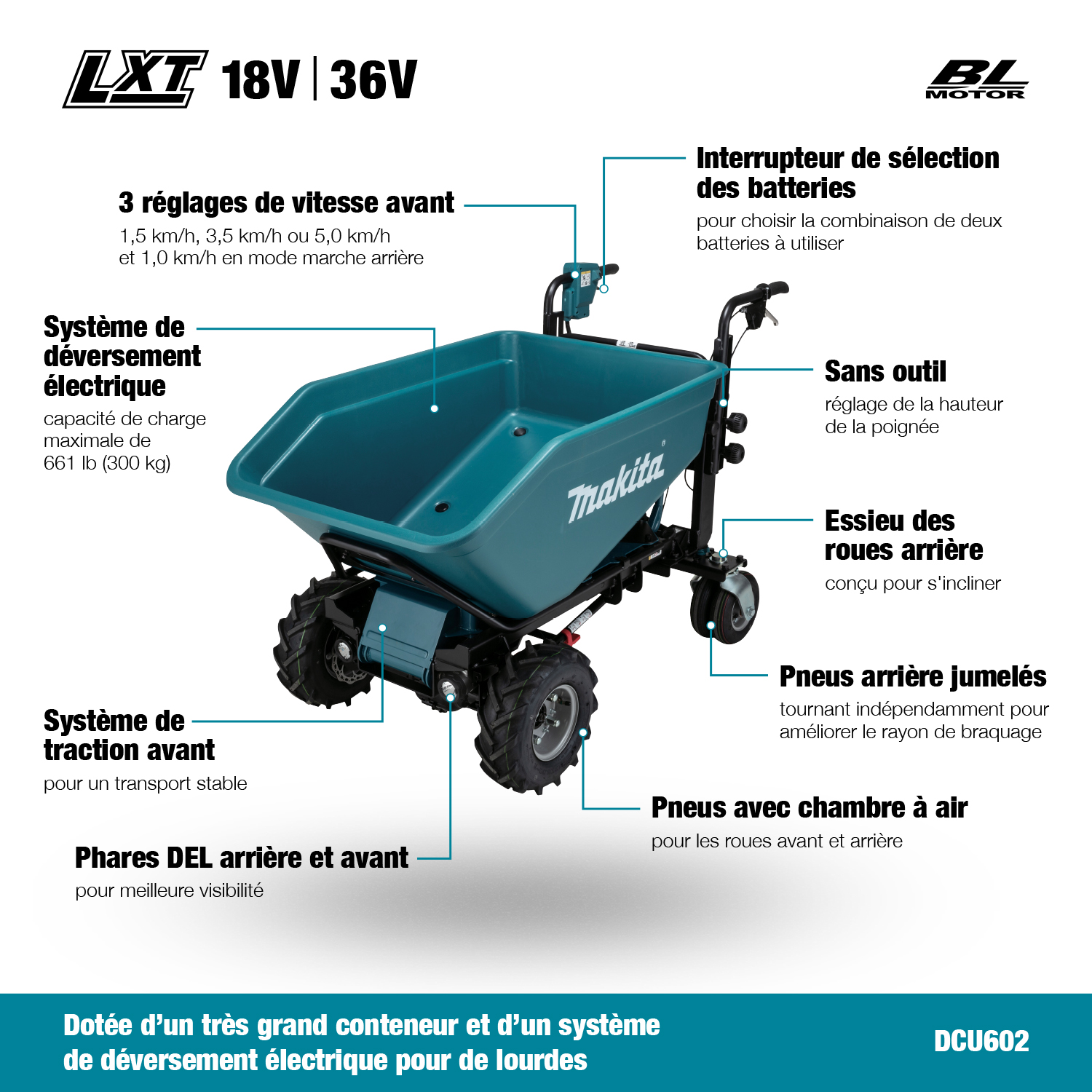

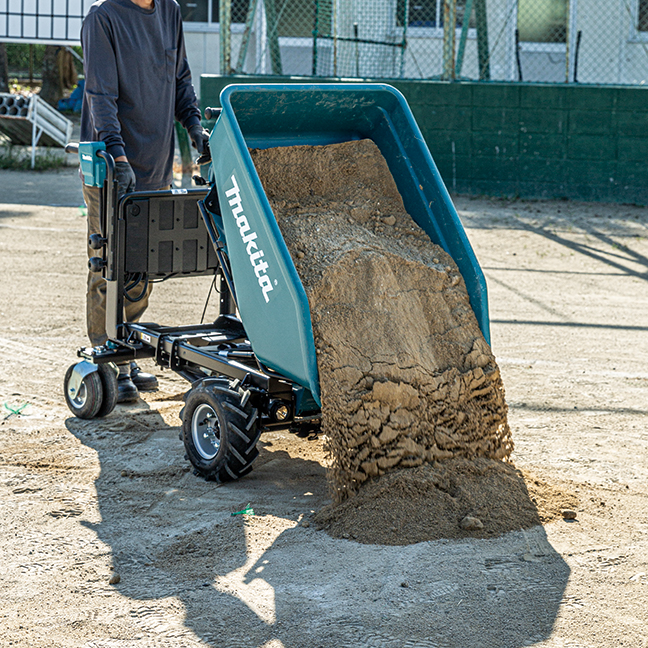

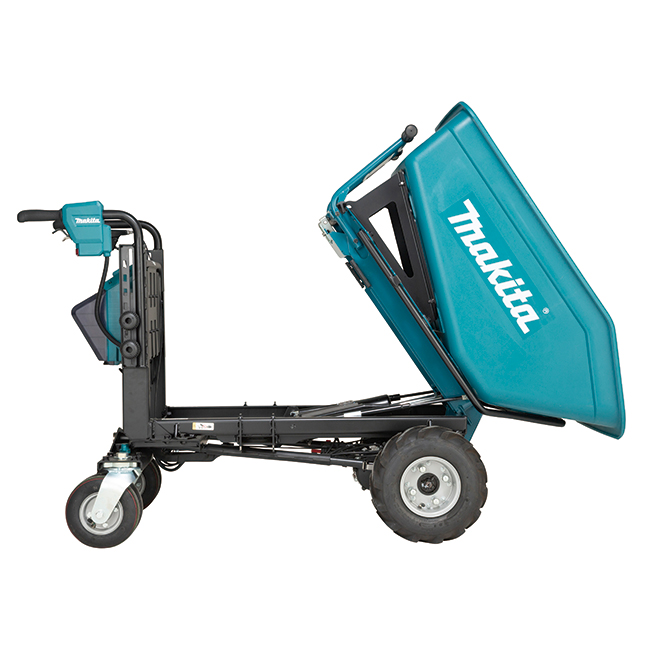

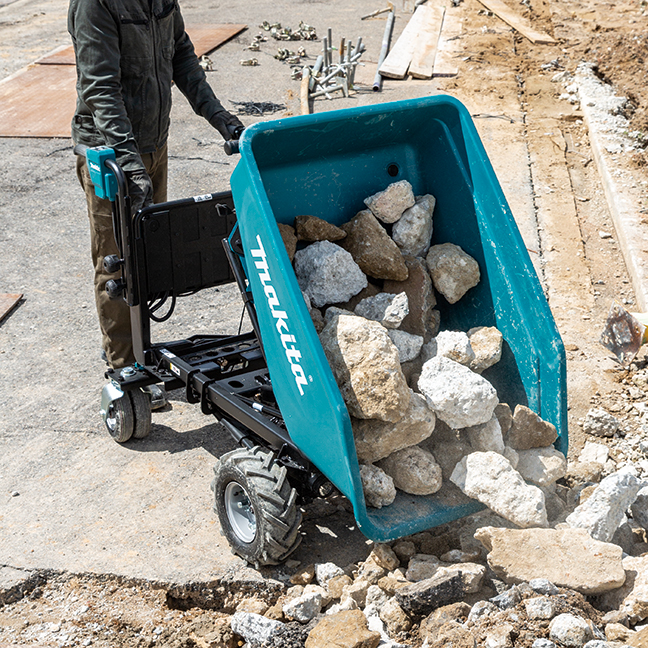

  • CONVENIENCE: Electric dump feature with 661 lbs (300 kg) maximum load capacity
  • PERFORMANCE: 100-minute runtime and up to 7.2km range using four BL1860B 18V LXT (6.0Ah) batteries

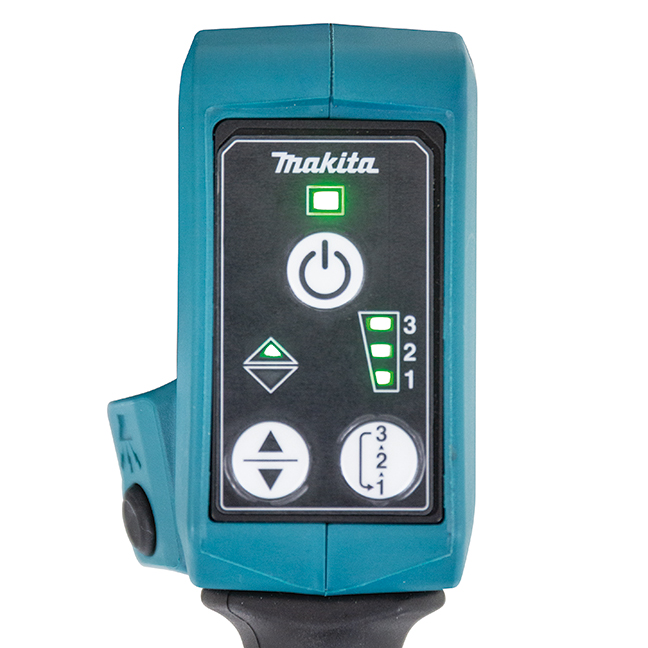

  • ADAPTABILITY: Enjoy flexibility with 3 forward speed settings (1.5km/h, 3.5km/h, or 5.0km/h), and effortlessly maneuver at 1.0km/h in reverse mode
  • 4-wheels with front-wheel drive system for stable load-carrying even with heavy loads
  • Equipped with a battery selection switch to choose which combination of 2 batteries to use with up to total 4 batteries installed for long run time

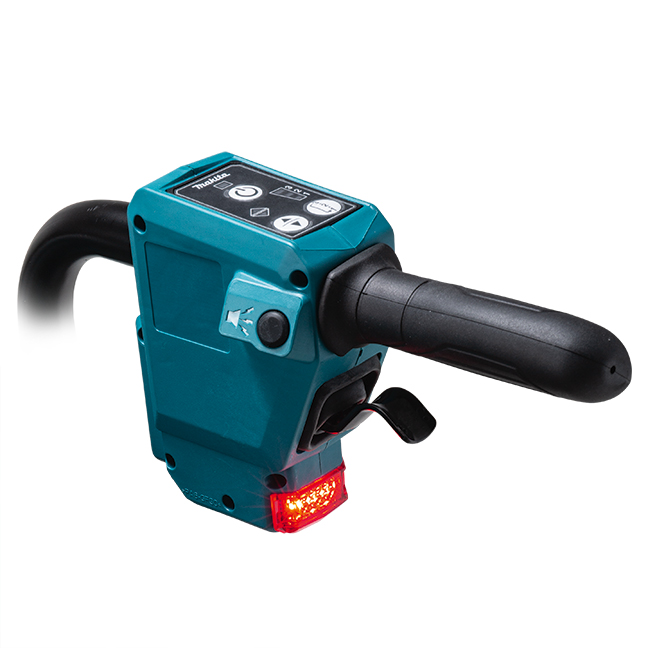

  • LED taillight and headlight lights up together for better visibility in the dark and turns off automatically with no operation for 10 minutes
  • Tubed tire used for both front and rear wheels along with 2-piece split wheels for easy repair

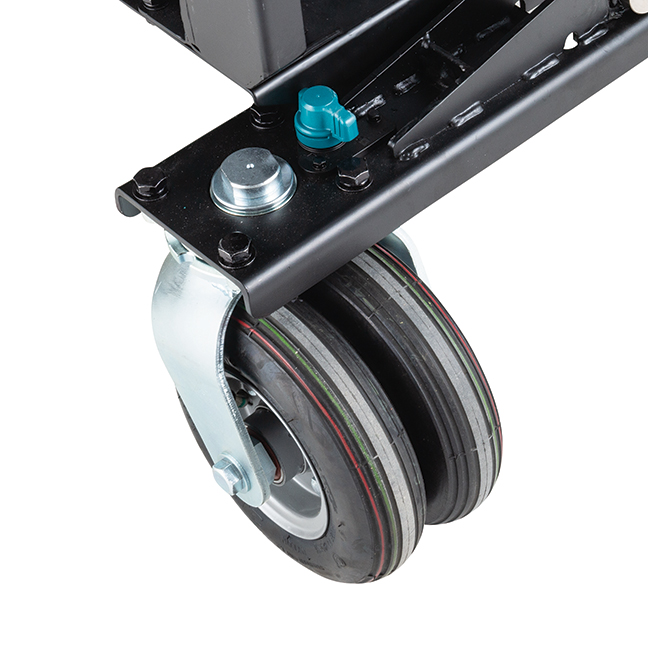

  • Double rear tires, each of which rotates independently, improve swivel performance (especially in U-turn when the rear wheels swivel 180º)
  • Rear wheel axle is designed to tilt to enable Front wheels (driving wheels) to stably touch the ground for reliable driving even on bumpy road surfaces
  • Handle height can be adjusted according to user's height without tool simply by turning 2 knob screws
  • Constant speed control feature automatically applies additional power to the motor to maintain speed under heavy load
  • Soft start for smooth start-ups make the unit easier to control and maneuver
  • Warning beeper comes standard to alert people around you for added safety
  • Includes a lock key to prevent unauthorized operation and theft

Items Included:Batteries and Charger Sold Separately.

  • CONVENIENCE: Electric dump feature with 661 lbs (300 kg) maximum load capacity
  • PERFORMANCE: 100-minute runtime and up to 7.2km range using four BL1860B 18V LXT (6.0Ah) batteries
  • ADAPTABILITY: Enjoy flexibility with 3 forward speed settings (1.5km/h, 3.5km/h, or 5.0km/h), and effortlessly maneuver at 1.0km/h in reverse mode
  • 4-wheels with front-wheel drive system for stable load-carrying even with heavy loads
  • Equipped with a battery selection switch to choose which combination of 2 batteries to use with up to total 4 batteries installed for long run time
  • LED taillight and headlight lights up together for better visibility in the dark and turns off automatically with no operation for 10 minutes
  • Tubed tire used for both front and rear wheels along with 2-piece split wheels for easy repair
  • Double rear tires, each of which rotates independently, improve swivel performance (especially in U-turn when the rear wheels swivel 180º)
  • Rear wheel axle is designed to tilt to enable Front wheels (driving wheels) to stably touch the ground for reliable driving even on bumpy road surfaces
  • Handle height can be adjusted according to user's height without tool simply by turning 2 knob screws
  • Constant speed control feature automatically applies additional power to the motor to maintain speed under heavy load
  • Soft start for smooth start-ups make the unit easier to control and maneuver
  • Warning beeper comes standard to alert people around you for added safety
  • Includes a lock key to prevent unauthorized operation and theft

Items Included: Batteries and Charger Sold Separately.

Shipping Dimensions (Length x Width x Height) & Weight : 60.24 In. X 36.22 In. X 40.35 In. Weight : 443.1 Lb.

Specifications

Battery Capacities Two 18V LXT
Maximum Speed:
  Forward 1.5 / 3.5 / 5.0 km/h
  Reverse  1.0 km/h
Minimum Turning Radius (Outer diameter when turning with front wheel as axis)  45-1/4" (115 cm)
Maximum Climbing Capacity  12°
Maximum Load Capacity:
    On Flat Ground: 661.4 lbs (300 kg)
    On Slope (3 ° - 12 °): 397 lbs (180kg)
Overall Dimensions (L x W x H)   58-1/4" x 28-3/4" x 38-1/4" (148 cm x 73 cm x 82 cm)
Net Weight  318.2 lbs (144.3 kg)

User Manual: DCU602 - EN FR SP.pdf

Parts Breakdown: DCU602Z - SEP2024.pdf
