EK7301

14" / 5.1 HP 2-Stroke Power Cutter (20 mm Arbor)

14" Cutting Wheel

Compliant with CARB Tier 3, EPA Phase 2 and EU Stage 2 Regulations

Top Mount Decompression Valve Reduces Required Start Up Force by 70%

2 Stroke Engine 2 Year Warranty
  • NEW Scavenging Losses Rejection (SLR) Muffler recycles exhaust unburnt gas emissions for increased operational efficiency and cleaner emissions
  • Advanced 5 Stage Air Filtration System for cleaner operation and enhanced operational life
  • Large Air Intake for maximum engine cooling
  • Reversible Cutting Arm enables cutting disc to be side or center mounted for optimal operational versatility in a variety of applications
  • Electronic Ignition with rev limiter
  • Always use with 2 Cycle Synthetic Oil

Items Included:14" Cutting Disk For Stone 20 mm (721712-9), Tool Kit (957 004 006), Water Attachment Kit (394 365 630), Starter Rope (394 164 020), Spark Plug (965 603 021)

  • NEW Scavenging Losses Rejection (SLR) Muffler recycles exhaust unburnt gas emissions for increased operational efficiency and cleaner emissions
  • Advanced 5 Stage Air Filtration System for cleaner operation and enhanced operational life
  • Large Air Intake for maximum engine cooling
  • Reversible Cutting Arm enables cutting disc to be side or center mounted for optimal operational versatility in a variety of applications
  • Electronic Ignition with rev limiter
  • Always use with 2 Cycle Synthetic Oil

Items Included: 14" Cutting Disk For Stone 20 mm (721712-9), Tool Kit (957 004 006), Water Attachment Kit (394 365 630), Starter Rope (394 164 020), Spark Plug (965 603 021)

Shipping Dimensions (Length x Width x Height) & Weight : 15.75 In. X 27.17 In. X 11.81 In. Weight : 28.44 Lb.

Specifications

Displacement 4.5 cu.in (73cc)
Max. Power 3.8 kW (5.1 hp)
Fuel / Oil Mixture 50:1
Vibration Level 6.2 m/s2
Noise Level 100 dB(A)
Fuel Tank Capacity 1/3 Gal (1.1 L)
No Load Speed (Engine) 9,400 RPM
Max. Spindle Speed 4,300 RPM
Arbor 20 mm
Max. Cutting Depth 4-13/16" (122 mm)
Dry Weight 22.5 lbs (10.2 kg)
12

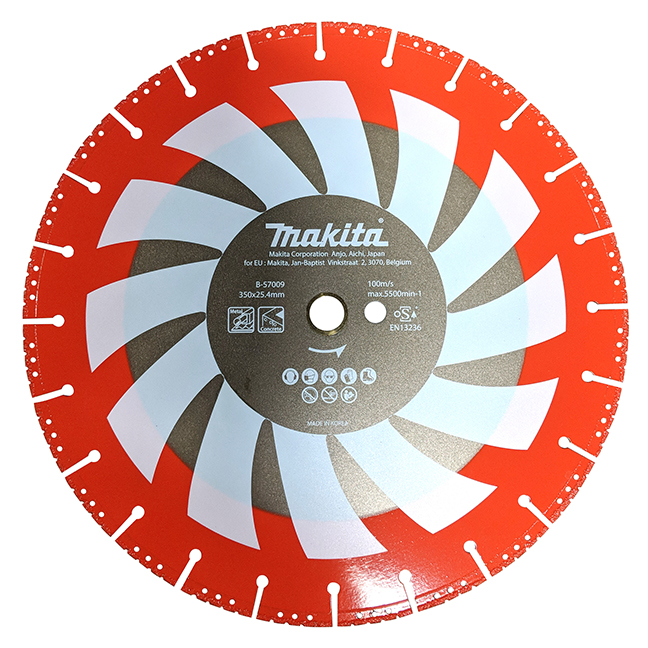

12" - 14" Vacuum Brazed Diamond Rescue Wheels

Read More
12

12" Abrasive Wheels

Read More
14

14" Dual Purpose 3DDGT Diamond Blade

Read More
14

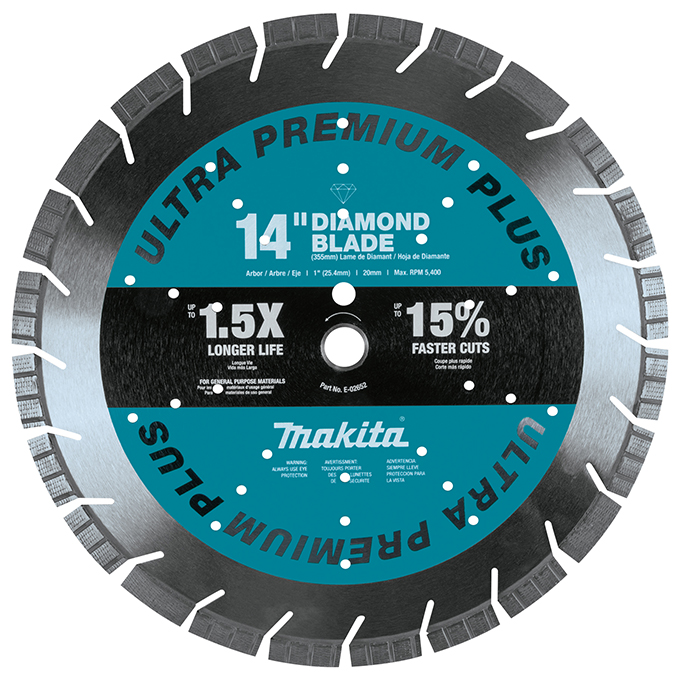

14" Dual Purpose Ultra-Premium Plus 3D Diamond Blade

Read More
14

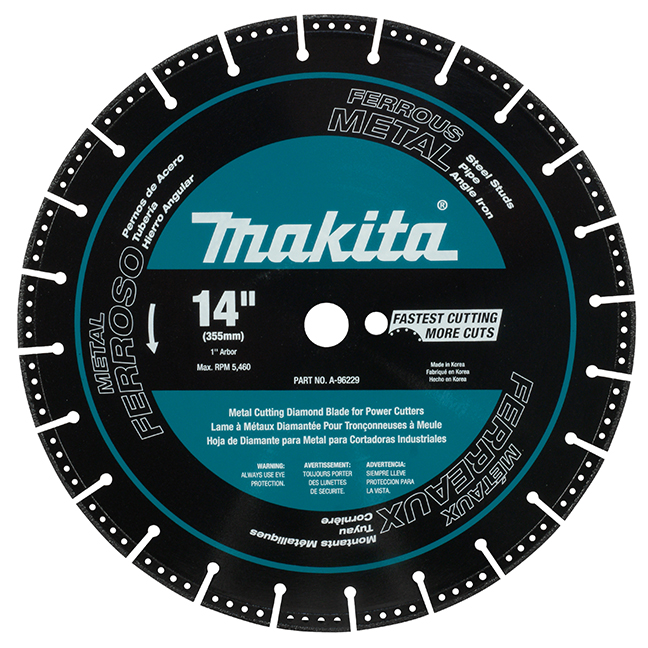

14" Metal Cutting Diamond Blade for Power Cutters
