7-1/2" Dual Sliding Compound Mitre Saw w/Dust Box

Ideal For Trim And Flooring Applications

Sliding Rail Mechanism incorporating 4 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
Electric Brake for increased operator safety
Mitre Capacity of 47^o Left or 57^o Right with Positive Stops at 0^o, 15^o, 22.5^o, 30^o & 45^o
Bevel Capacity of 45^o Left or 5^o Right

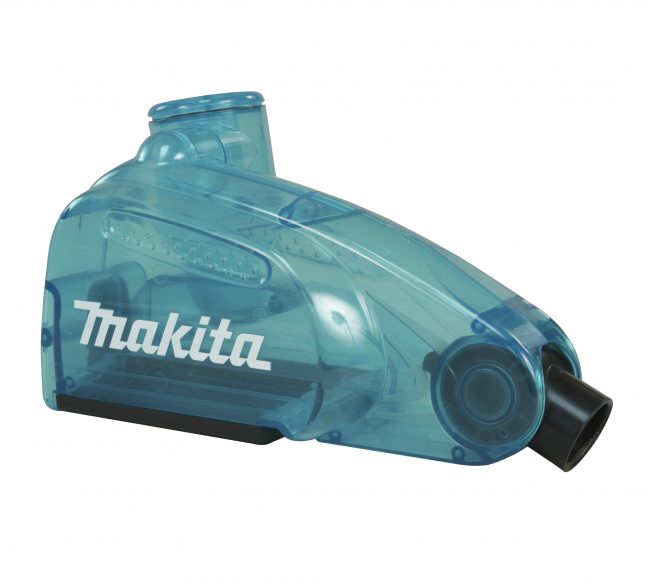

Includes Cyclonic Mitre Saw Dust Box for improved dust collection

Items Included:7-1/2” C.T. Blade 40T (A-90629), Hex Wrench 5 (783203-8), Triangle Rule (762001-3), Dust Box (194175-6), Vertical Vise (122571-8), Holder Assembly (127056-9)

Where to buy

Sliding Rail Mechanism incorporating 4 Linear Ball Bearings provides increased rigidity to produce precise, adjustment free cuts right out of the box
Electric Brake for increased operator safety
Mitre Capacity of 47^o Left or 57^o Right with Positive Stops at 0^o, 15^o, 22.5^o, 30^o & 45^o
Bevel Capacity of 45^o Left or 5^o Right
Includes Cyclonic Mitre Saw Dust Box for improved dust collection

Items Included: 7-1/2” C.T. Blade 40T (A-90629), Hex Wrench 5 (783203-8), Triangle Rule (762001-3), Dust Box (194175-6), Vertical Vise (122571-8), Holder Assembly (127056-9)

Shipping Dimensions (Length x Width x Height) & Weight : 15 In. X 27.75 In. X 17.5 In. Weight : 42.11 Lb.

Specifications

Blade Diameter	7-1/2" (190 mm)
Arbor	5/8" (15.88 mm)
No Load Speed	6,400 RPM
AMPS (120V)	10.0 A
Vibration Level	2.5 m/s²
Noise Level	92 dB(A)
Dimensions (L xW x H)	17" x 26-3/8" x 18" (430 mm x 670 mm x 458 mm)
Net Weight	28.9 lbs (13.1 kg)
