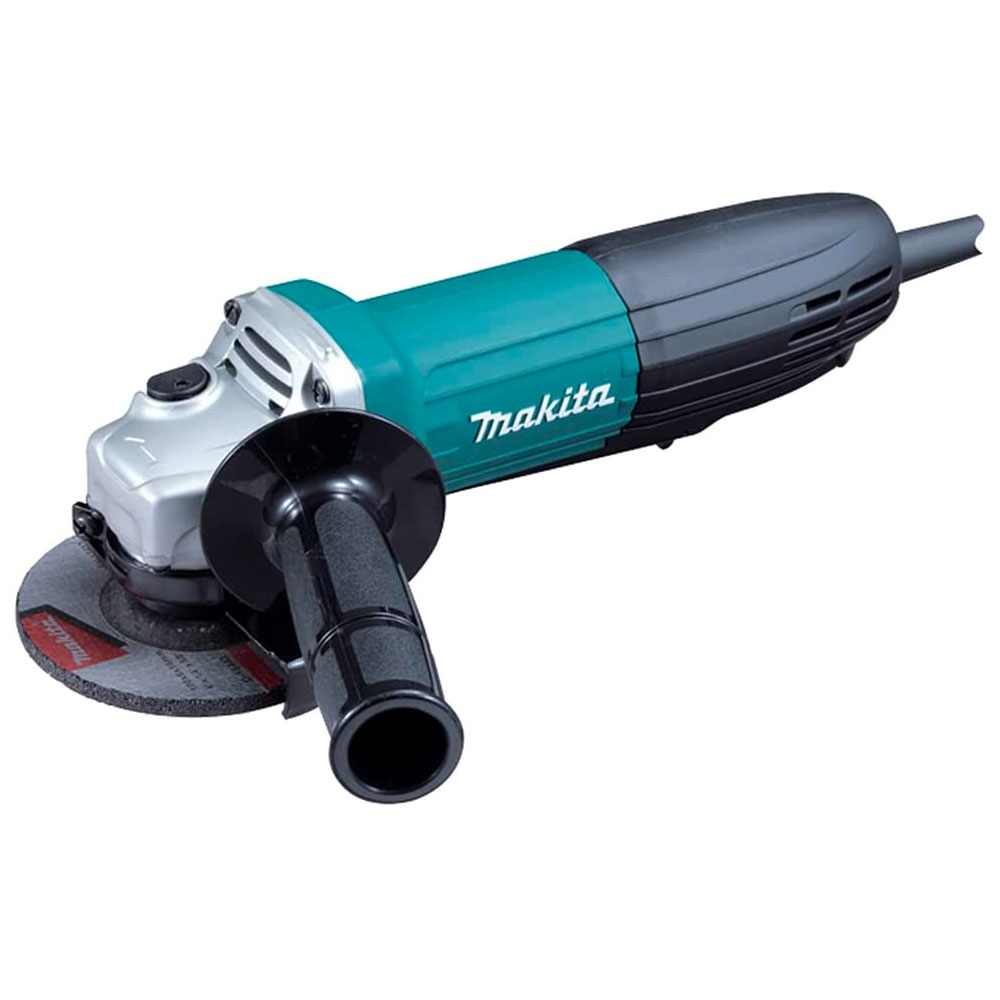

4-1/2" Angle Grinder w/Paddle Switch AC/DC

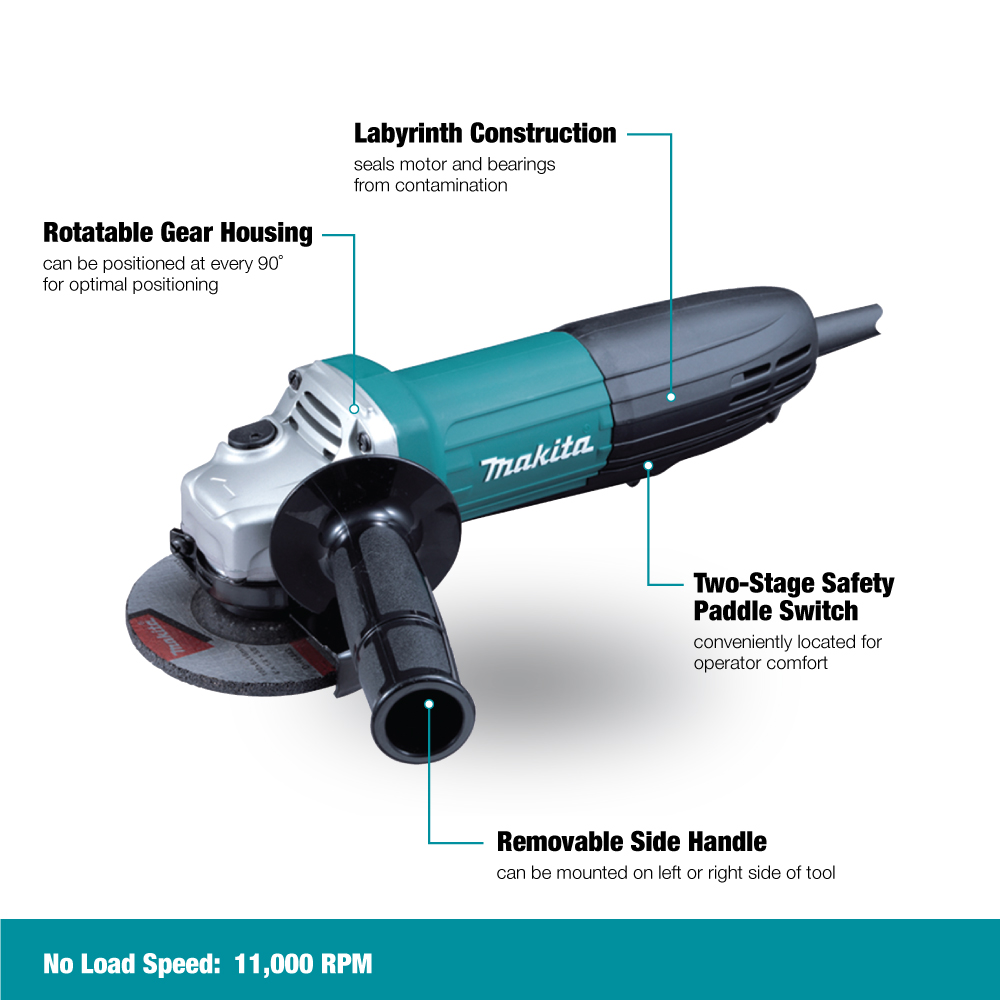

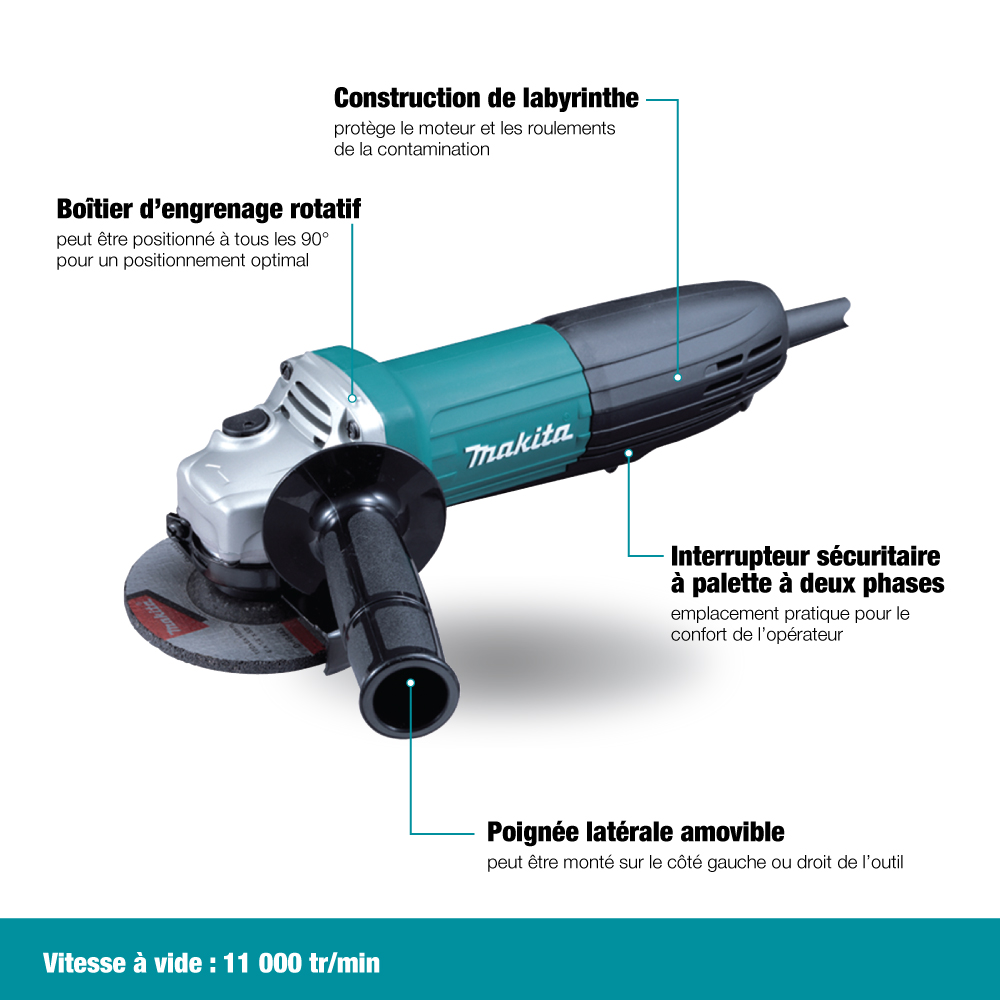

Two Stage Safety Paddle Switch (AC/DC)

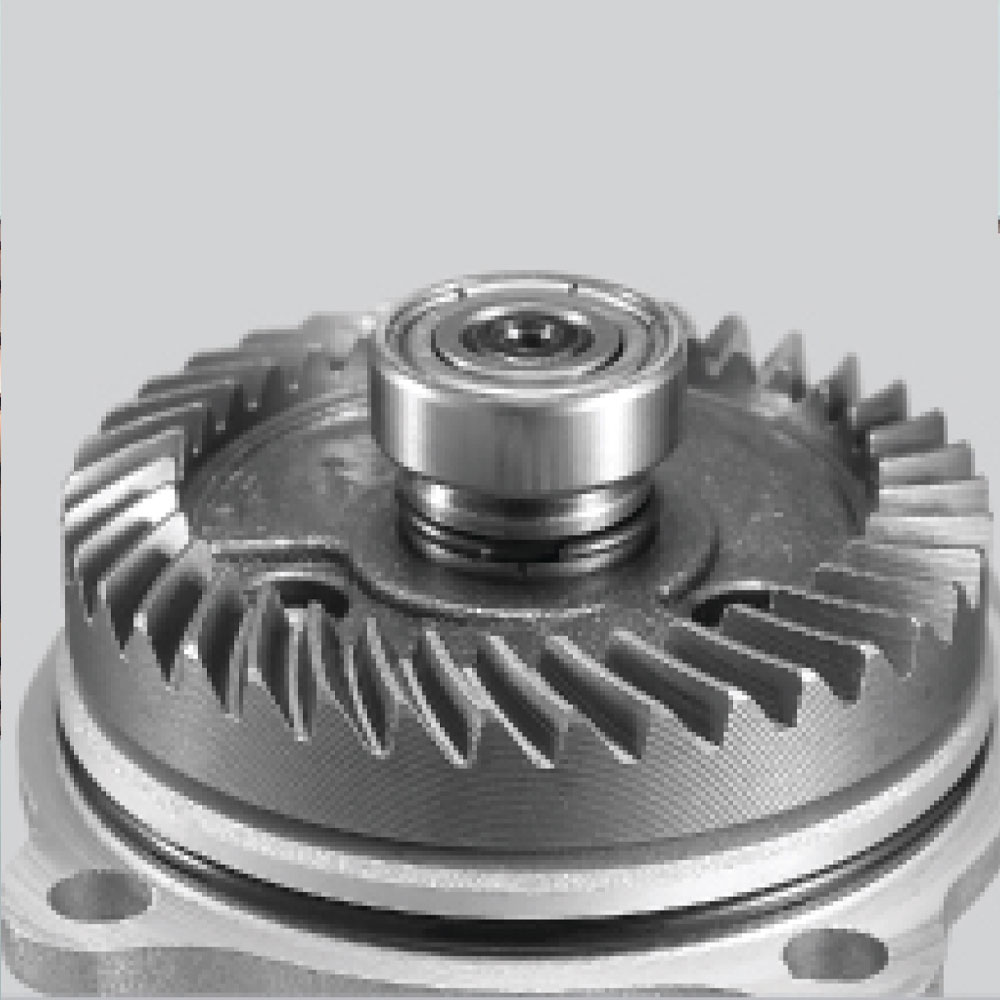

Re-designed gear housing for enhanced shaft lock durability

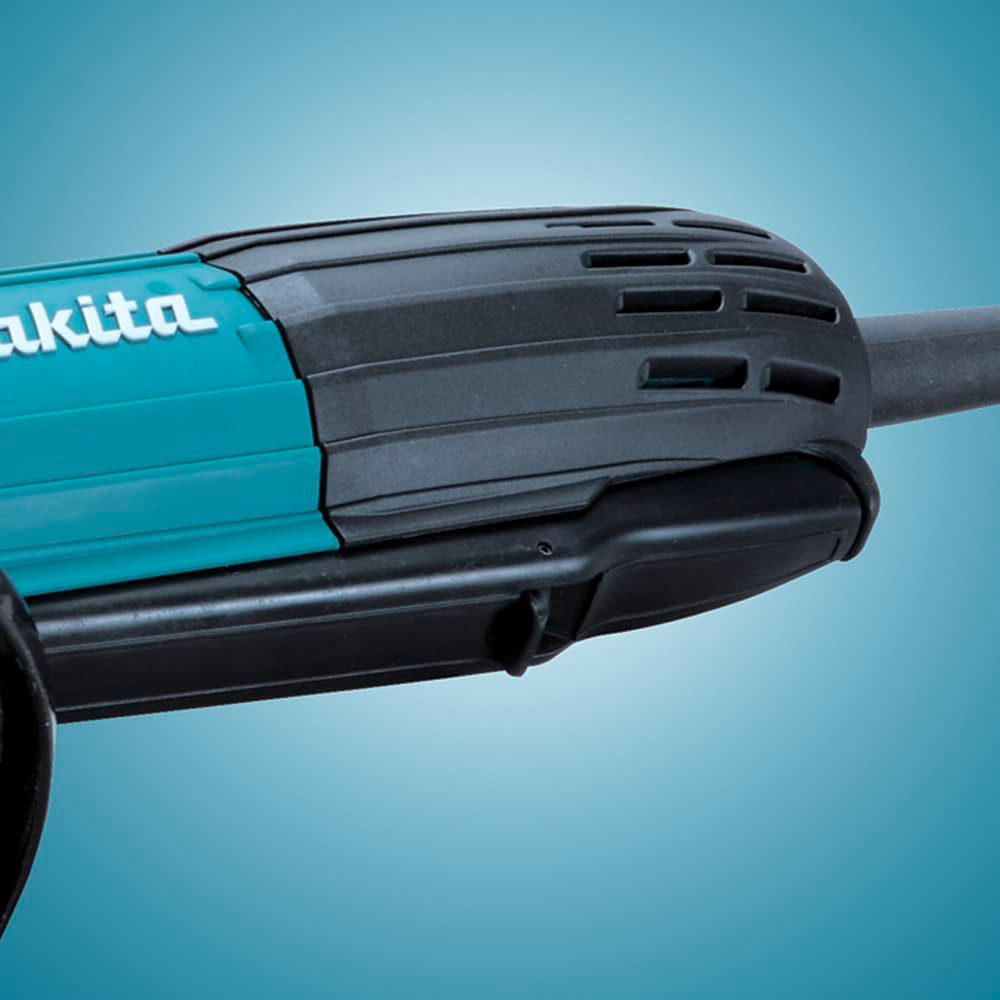

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life

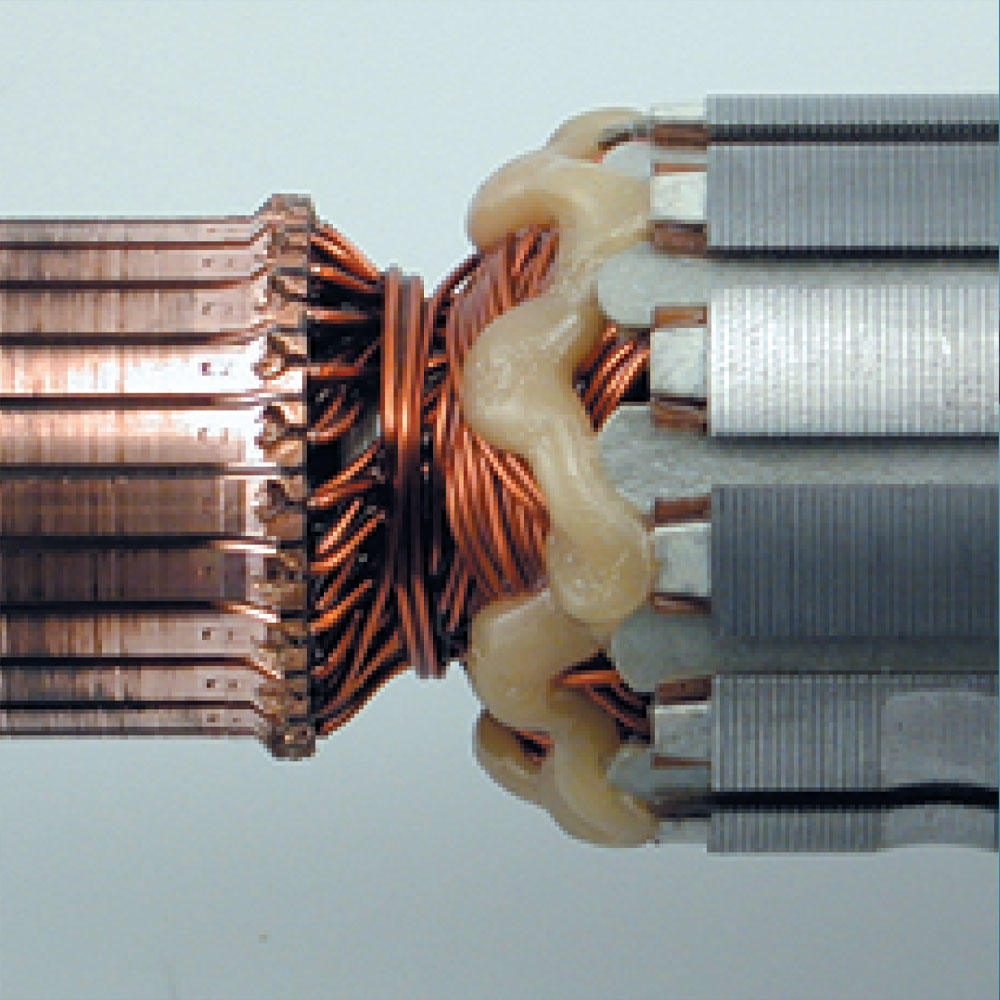

Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris

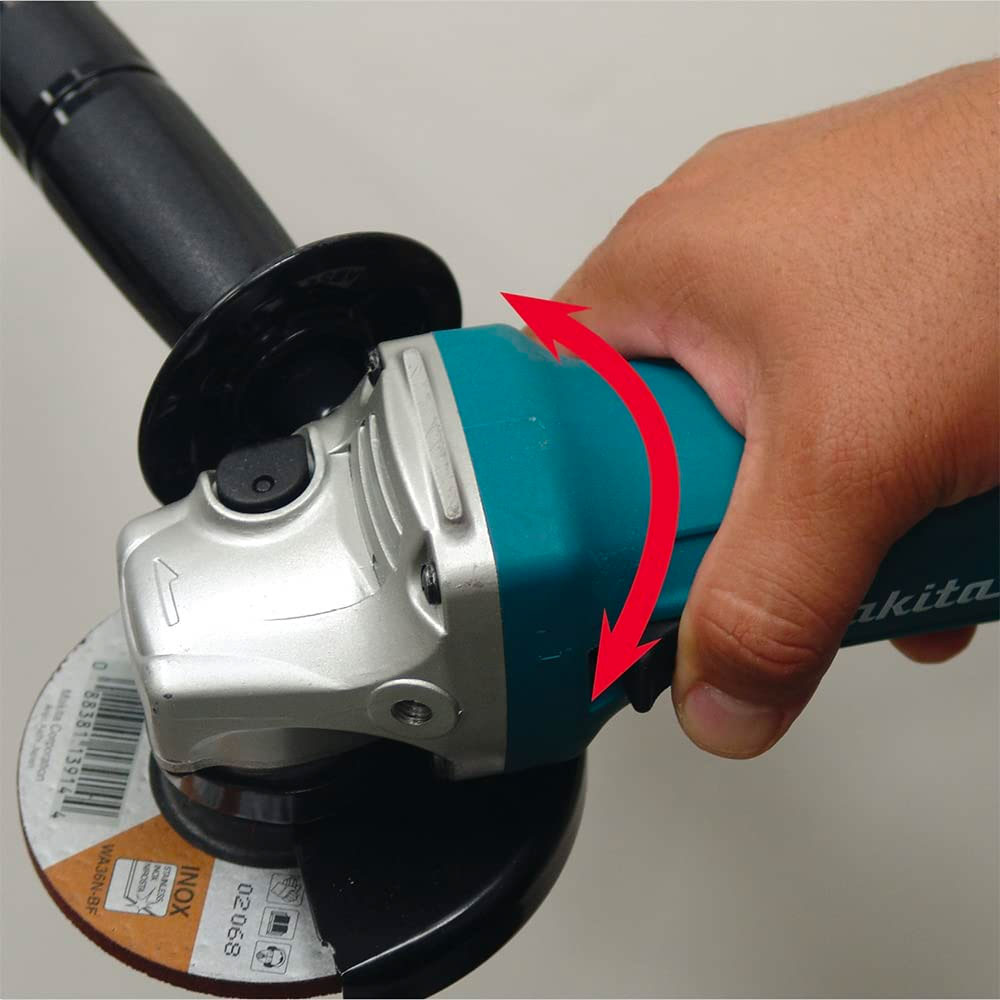

Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Slim housing design for easy handling and maneuverability

Items Included:4-1/2” Depressed Center Wheel (1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Wheel Cover (123098-1), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Side Handle (153504-2)

Where to buy

Re-designed gear housing for enhanced shaft lock durability
Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Slim housing design for easy handling and maneuverability

Items Included: 4-1/2” Depressed Center Wheel (1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Wheel Cover (123098-1), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Side Handle (153504-2)

Shipping Dimensions (Length x Width x Height) & Weight : 5.55 In. X 13.66 In. X 5.63 In. Weight : 6 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	4-1/2" (115 mm)
Sanding Disc	4-1/2" (115 mm)
Wire Cup Brush	3-1/2" (90 mm)
Spindle Thread:	5/8" - 11 UNC
No Load Speed:	11,000 RPM
AMPS (120V)	6.0 A
Vibration Level	8.0 m/s²
Noise Level	86 dB(A)
Overall length	10-3/8" (265 mm)
Net Weight	4.2 lbs (1.9 kg)
