3-1/4" Planer w/Planer Blade & Case

Lightweight Design For Easy Surface Planing

Base Plate Foot protects materials and blade from damage
Single Chamfering Groove enables quick and easy chamfering of corners
Depth Adjustment Knob with Click Stops for precision planing applications
Lock-On Button enables easy continuous operation and can be operated from left or right side
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

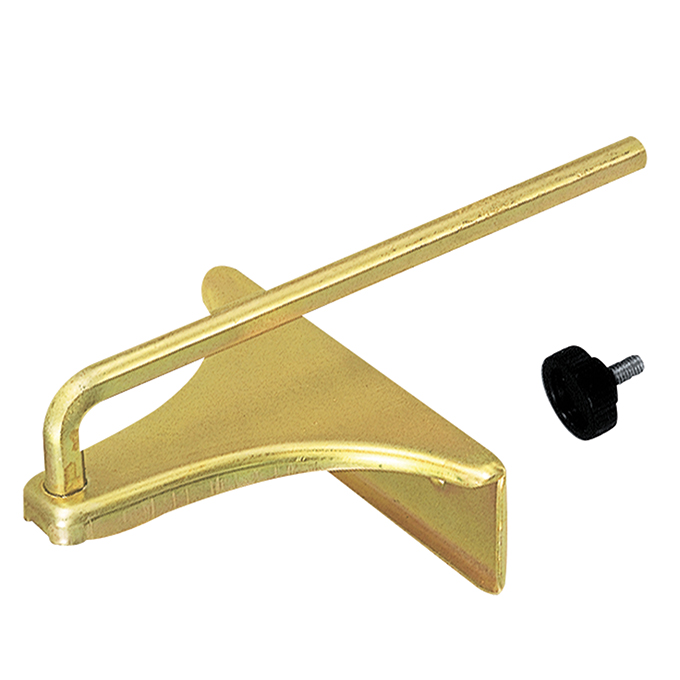

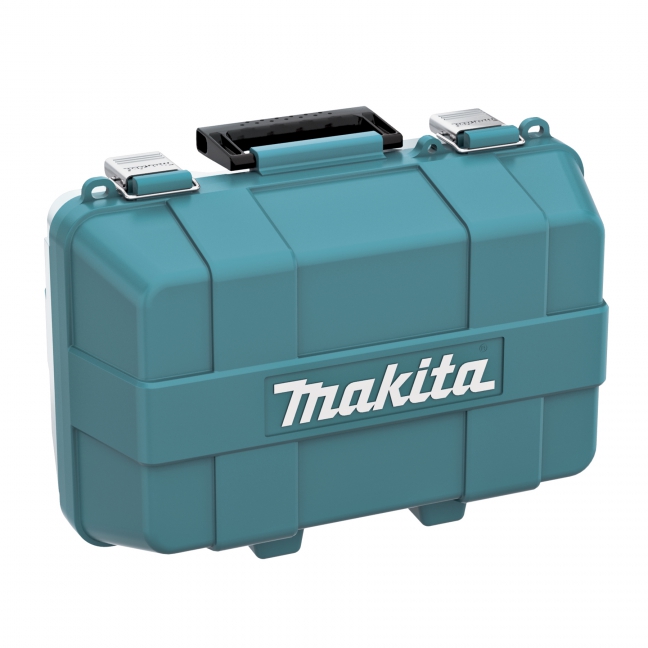

Items Included:Two Set 3-1/4" Double Edged Mini Planer Blades (D-16966), Blade Gauge Assembly (191C19-9), Socket Wrench 9 (782209-3), Guide Rule (195055-9), Plastic Carrying Case (824892-1)

Where to buy

Base Plate Foot protects materials and blade from damage
Single Chamfering Groove enables quick and easy chamfering of corners
Depth Adjustment Knob with Click Stops for precision planing applications
Lock-On Button enables easy continuous operation and can be operated from left or right side
Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Two Set 3-1/4" Double Edged Mini Planer Blades (D-16966), Blade Gauge Assembly (191C19-9), Socket Wrench 9 (782209-3), Guide Rule (195055-9), Plastic Carrying Case (824892-1)

Shipping Dimensions (Length x Width x Height) & Weight : 7.95 In. X 14.57 In. X 9.25 In. Weight : 10.69 Lb.

Specifications

Maximum Capacities:
Planing Width	3-1/4" (82 mm)
Planing Depth	0-3/32" (0 - 2.5 mm)
Shiplapping	0 - 11/32" (0 - 9 mm)
No Load Speed	17,000 RPM
AMPS (120V)	6.5 A
Vibration Level	2.5 m/s²
Noise Level	89 dB(A)
Overall Length	11-1/4" (285 mm)
Net Weight	5.7 lbs (2.6 kg)
