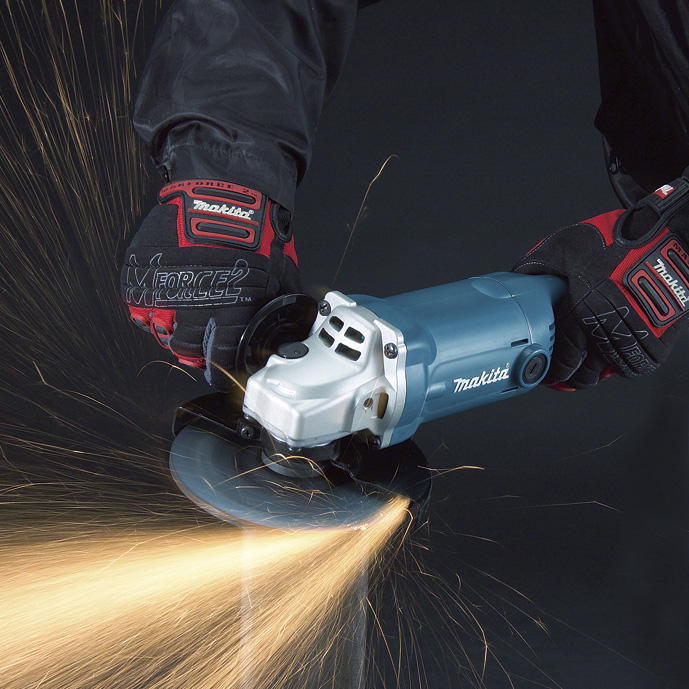

6" Angle Grinder w/Trigger Switch AC/DC & 5" Guard

Trigger Switch With No Lock-On Button (AC/DC)

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

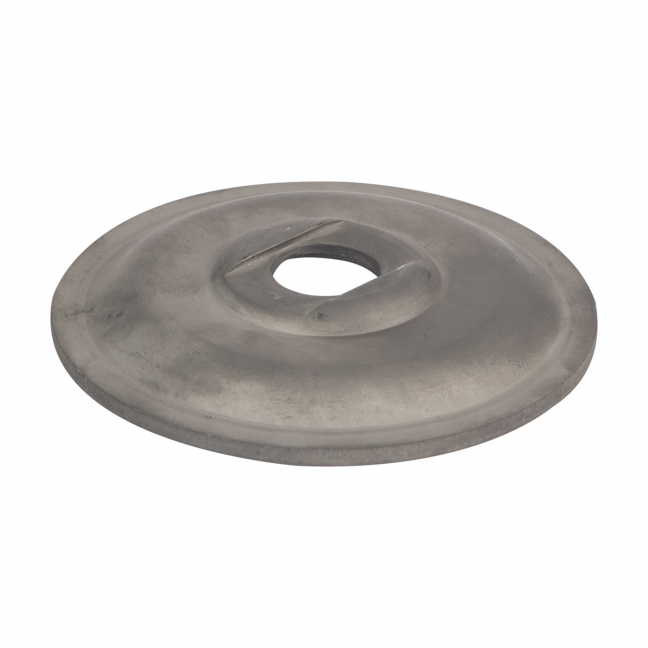

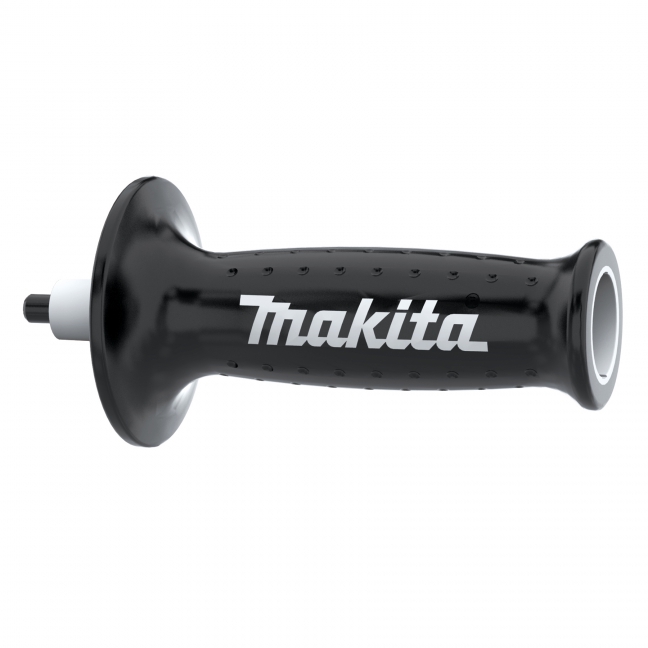

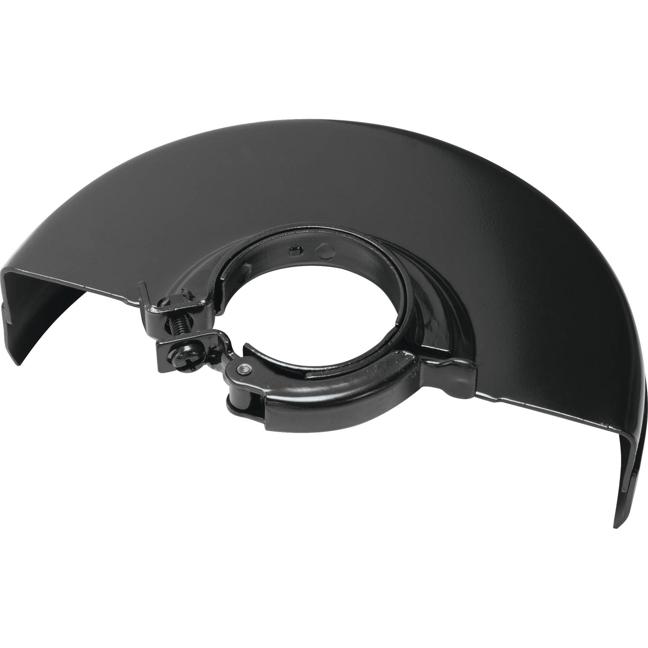

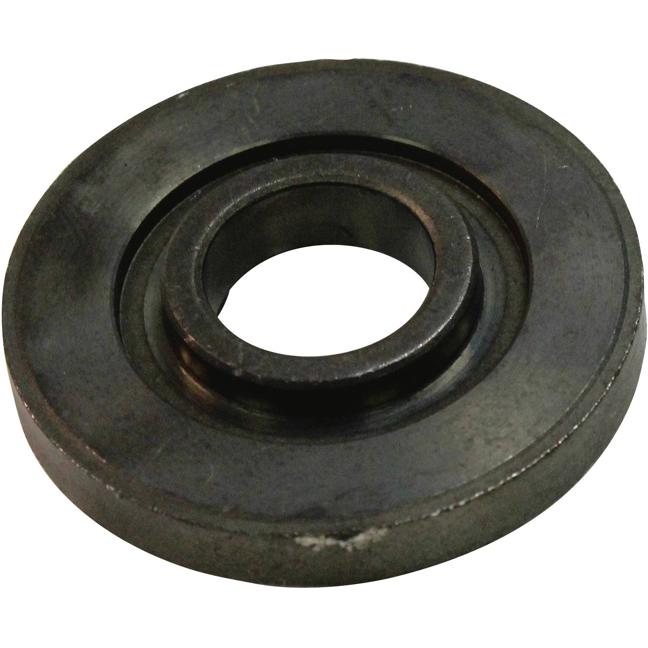

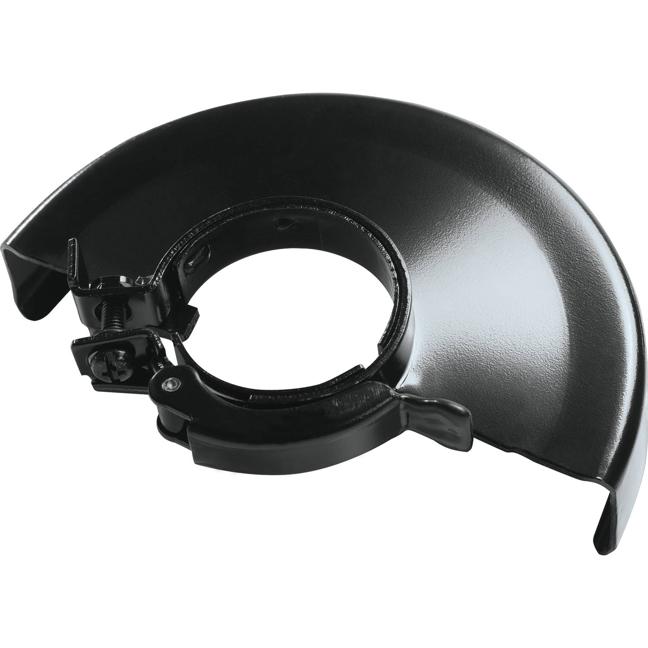

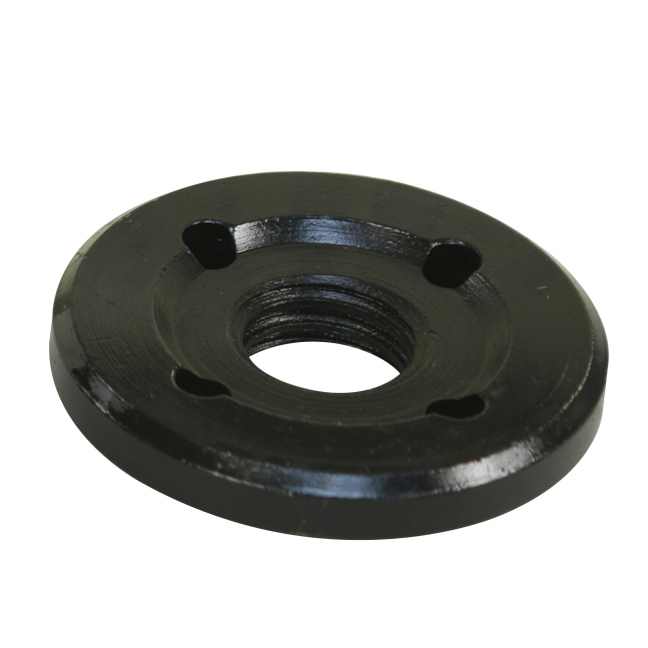

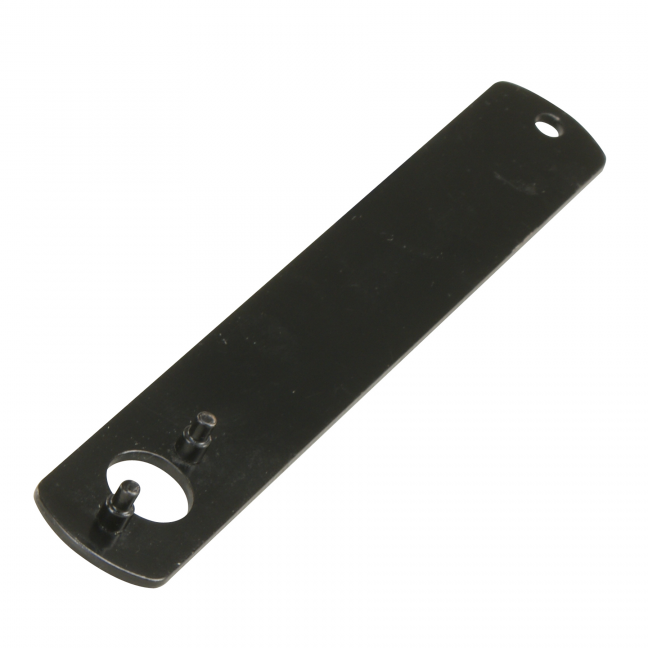

Items Included:Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), 6" Toolless Wheel Cover (123146-6), 6" Depressed Center Wheel (1 Ea. A-95978-25), Inner Flange (224361-6), Lock Nut 5/8"-45 (224568-4) PLUS 5" Toolless Wheel Cover (123145-8), Inner Flange (224399-1)

Where to buy

Labyrinth construction features a complex series of channels to prevent penetration of dust and debris into the field and armature for maximum operational life
Motor winding protection features "Zig-Zag" varnish on the armature and hardened powder on the field coils to act as an impenetrable barrier to dust and debris
Rotatable gear housing can be positioned at every 90^o for optimal positioning
Removable side handle can be mounted on left or right side of tool
Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), 6" Toolless Wheel Cover (123146-6), 6" Depressed Center Wheel (1 Ea. A-95978-25), Inner Flange (224361-6), Lock Nut 5/8"-45 (224568-4) PLUS 5" Toolless Wheel Cover (123145-8), Inner Flange (224399-1)

Shipping Dimensions (Length x Width x Height) & Weight : 6.54 In. X 5.47 In. X 15.31 In. Weight : 8.8 Lb.

Specifications

Maximum Capacities:
Grinding Wheel	6" (150 mm)
Sanding Disc	6" (150 mm)
Wire Cup Brush	3-1/2" (90 mm)
Spindle Thread	5/8" - 11 UNC
No Load Speed	10,000 RPM
AMPS (120V)	10.5 A
Vibration Level	2.5 m/s²
Noise Level	90 dB(A)
Overall Length	14" (356 mm)
Net Weight:	6.0 lbs (2.7 kg)
