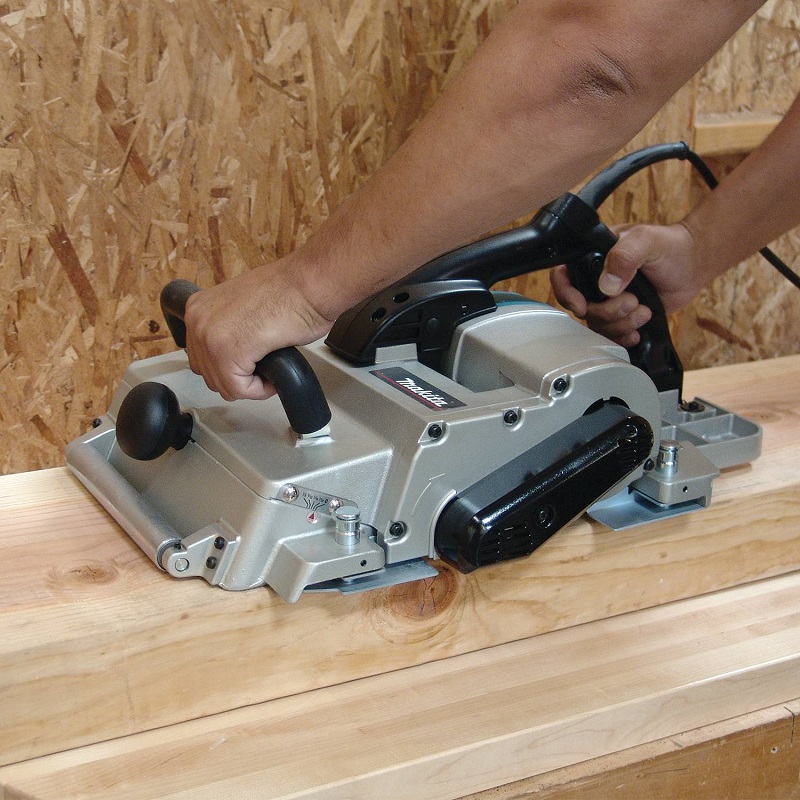

KP312

12-1/4" Planer

2-Blade Cutter Head Makes 24,000 CPM


  • Unrivaled for power, size and performance
  • Larger and sturdy sole plate for added stability
  • Front roller for easy moving over rough materials
  • Guide rule for accurate and maximum use of planing width
  • Poly "V" belt designed with grooves efficiently transfers power from the motor to the blades
  • Large ejection chute provides high rate of chip discharge

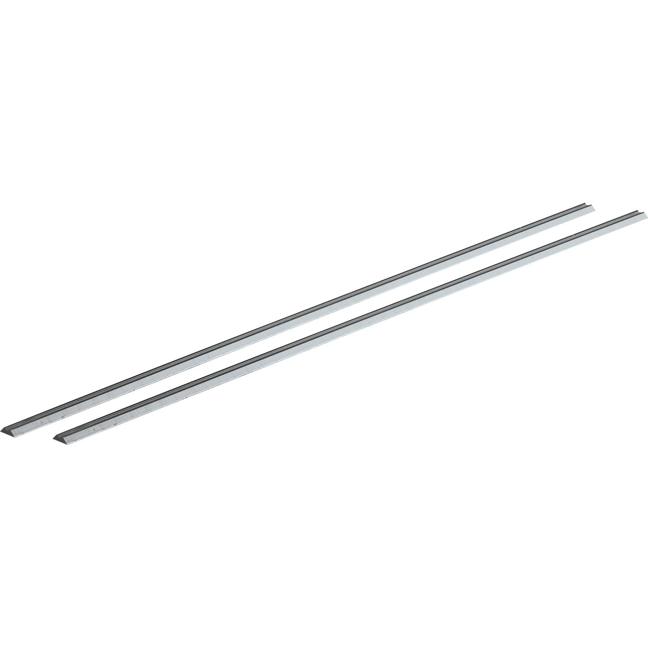

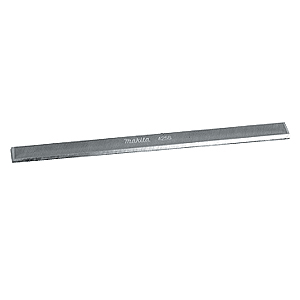

Items Included:Socket Wrench 9 (782209-3), Wrench Holder (416536-3), Triangular Rule (762001-3), High Speed Steel Blades (B-02870)

  • Unrivaled for power, size and performance
  • Larger and sturdy sole plate for added stability
  • Front roller for easy moving over rough materials
  • Guide rule for accurate and maximum use of planing width
  • Poly "V" belt designed with grooves efficiently transfers power from the motor to the blades
  • Large ejection chute provides high rate of chip discharge

Items Included: Socket Wrench 9 (782209-3), Wrench Holder (416536-3), Triangular Rule (762001-3), High Speed Steel Blades (B-02870)

Shipping Dimensions (Length x Width x Height) & Weight : 11.61 In. X 19.69 In. X 25.2 In. Weight : 52.47 Lb.

Specifications

Maximum Capacities:
Planing Width 12-1/4" (312 mm)
Planing Depth 1/8" (3.5 mm)
No Load Speed 12,000 RPM
AMPS (120V) 15.0
Vibration Level 2.5 m/s2
Noise Level 92 dB(A)
Cord Length 33 ft. (10 m)
Overall Length 21-3/4" (551 mm)
Net Weight 40.6 lbs (18.4 kg)
