DHR264Z

36V(18Vx2) LXT 1" Rotary Hammer SDS-PLUS, Tool Only

Makita's FIRST 18VX2 Direct (36V) 1" Rotary Hammer

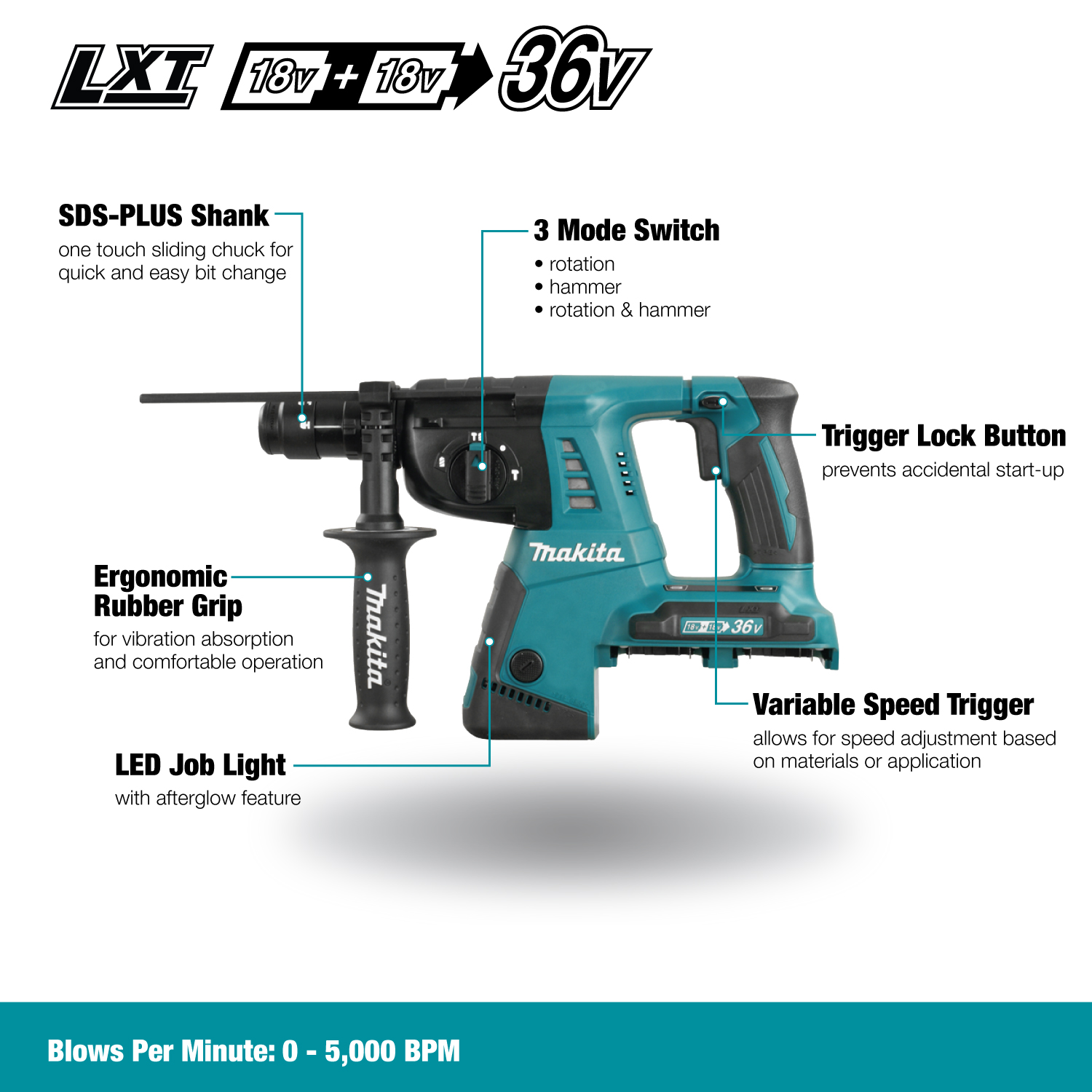

Hammer & Rotation / Hammer Only / Rotation Only Features Quick Change Drill Chuck

SDS-PLUS Shank

Variable Speed, Reversible

LXT Technology 18Vx2
  • Accepts 2 x 18V Li-Ion batteries without a battery converter for use with existing 18V Li-Ion battery platform
  • Center of gravity located close to rear handle resulting in ideal tool balance during operation
  • Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
  • 40 angle bit positions enable chisels to be positioned at optimum angle of operation
  • Rubber housing bumper protects mode selector switch and gear housing from damage
  • LED job light with afterglow feature

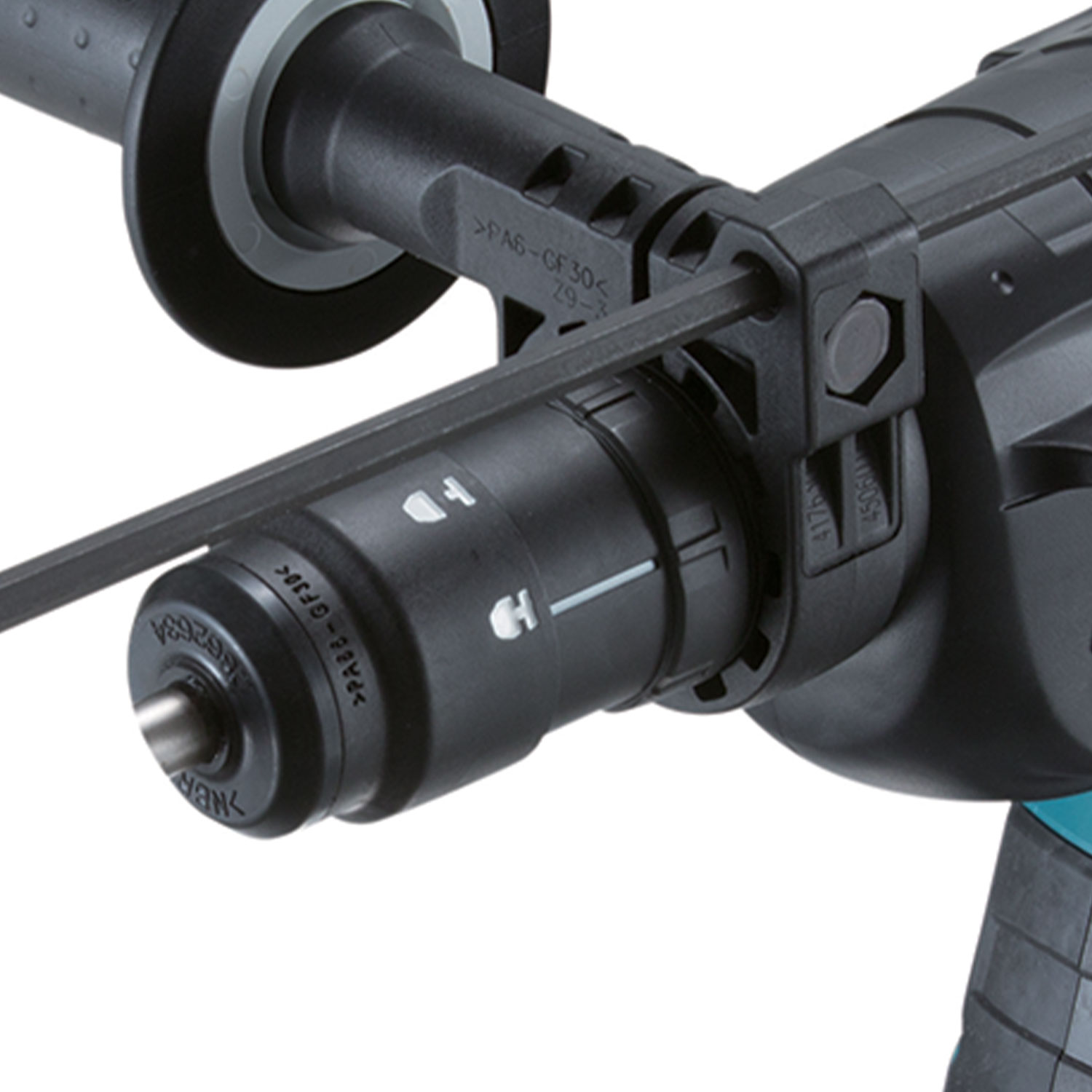

  • One touch sliding chuck enables quick and easy bit changes
  • Sliding rear handle for increased vibration absorption
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

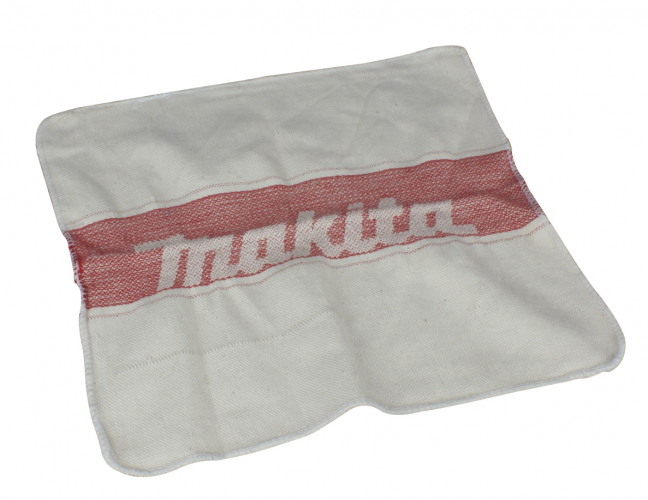

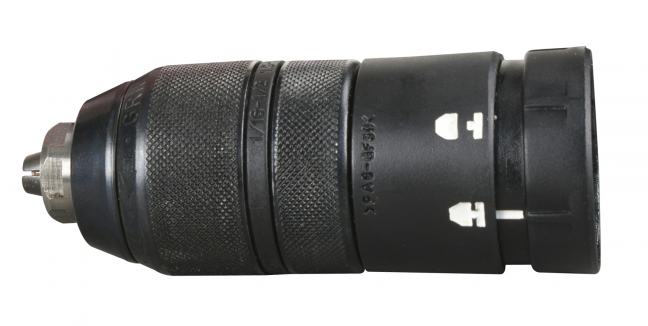

Items Included:Batteries and Charger Sold Separately. Side Handle (158057-6), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (324219-0), Quick Change Drill Chuck (194079-2)

  • Accepts 2 x 18V Li-Ion batteries without a battery converter for use with existing 18V Li-Ion battery platform
  • Center of gravity located close to rear handle resulting in ideal tool balance during operation
  • Torque limiter stops rotation if bit jams for increased operator safety and enhanced motor protection
  • 40 angle bit positions enable chisels to be positioned at optimum angle of operation
  • Rubber housing bumper protects mode selector switch and gear housing from damage
  • LED job light with afterglow feature
  • One touch sliding chuck enables quick and easy bit changes
  • Sliding rear handle for increased vibration absorption
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Batteries and Charger Sold Separately. Side Handle (158057-6), Cleaning Cloth (443122-7), Bit Grease (194683-7), Depth Gauge (324219-0), Quick Change Drill Chuck (194079-2)

Shipping Dimensions (Length x Width x Height) & Weight : 11.3 In. X 16.93 In. X 5.04 In. Weight : 10.36 Lb.

Specifications

Battery Capacities Two 18V LXT
Capacities:
Concrete 1" (26 mm)
Steel 1/2" (13 mm)
Wood 1-1/4" (32 mm)
No Load Speed 0 - 1,250 RPM
Blows Per Minute 0 - 5,000 BPM
Impact Energy 3.0 J (2.2 ft. lbs)
Vibration Level 15.5 m/s2
Noise Level 94 dB(A)
Overall Length 14-3/4" (374 mm)
Net Weight 7.7 lbs (3.5 kg)
