8-1/2" Sliding Compound Mitre Saw w/Laser

Up To 12" Cuts In 2x Material

Offers High Cutting Capacity With Reduced Weight And Size

High Cutting Capacity And Dust Extraction Rate

Electric brake for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
LED job light illuminates cutting area for increased accuracy and precision
Factory calibrated class II laser enables accurate alignment of blade and cutting line
Bevel Capacity of 48^o left or 5^o right
Mitre Capacity of 50^o left or 60^o right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o and 45^o
2 stage safety switch for increased operator safety
Ergonomic vertical soft rubber grip for vibration absorption and comfortable operation

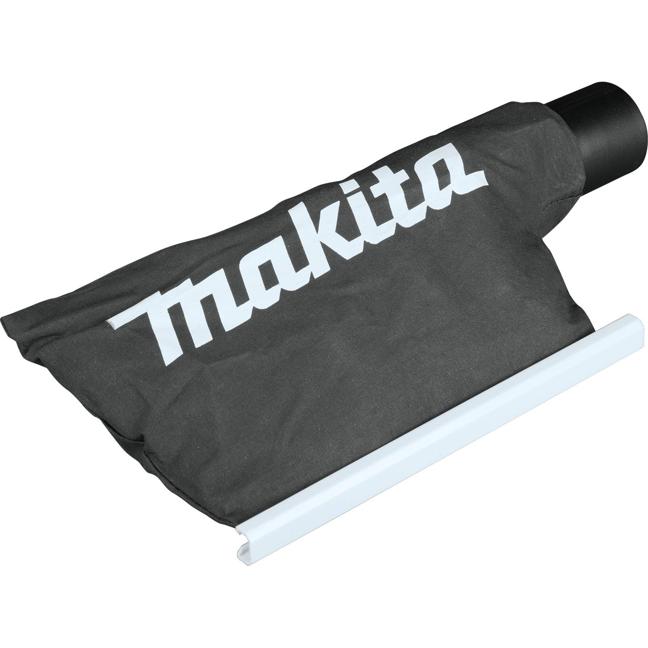

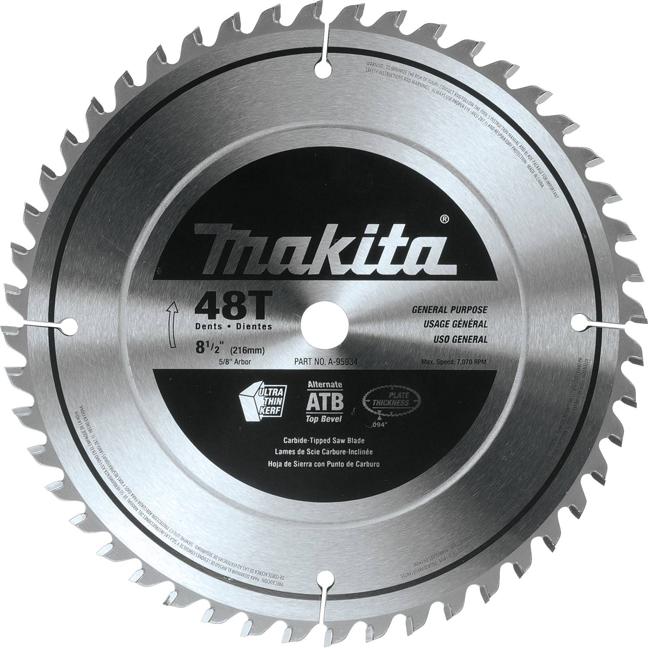

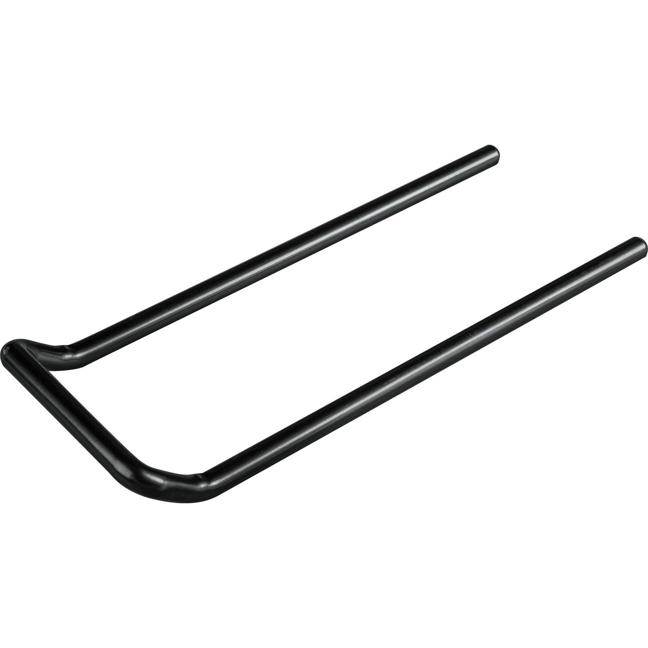

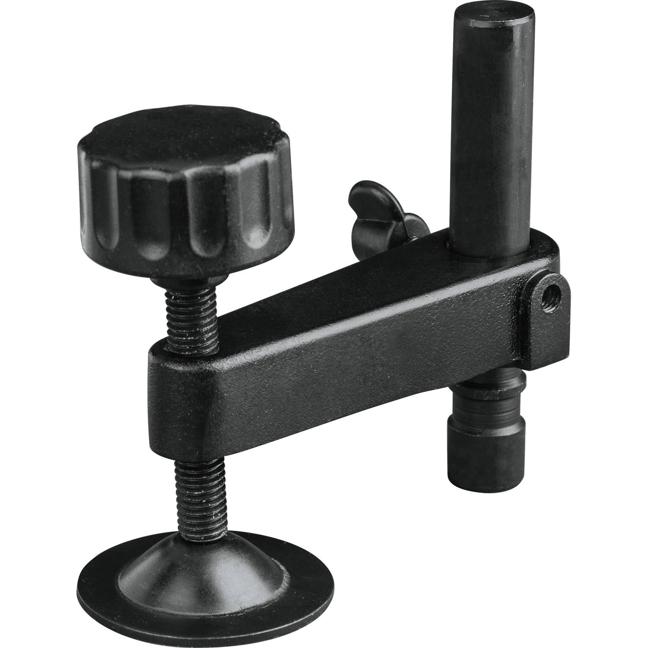

Items Included:8-1/2” C.T. Blade 48T (A-95934), Box Wrench 13-3 (JM23100197), Dust Bag (JM23510010), Vertical Vise (JM23510009), Triangle Rule (JM27000328), Two Holders (JM23000127)

Where to buy

Electric brake for increased operator safety
Soft start feature gradually increases speed to eliminate start up shock
LED job light illuminates cutting area for increased accuracy and precision
Factory calibrated class II laser enables accurate alignment of blade and cutting line
Bevel Capacity of 48^o left or 5^o right
Mitre Capacity of 50^o left or 60^o right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o and 45^o
2 stage safety switch for increased operator safety
Ergonomic vertical soft rubber grip for vibration absorption and comfortable operation

Items Included: 8-1/2” C.T. Blade 48T (A-95934), Box Wrench 13-3 (JM23100197), Dust Bag (JM23510010), Vertical Vise (JM23510009), Triangle Rule (JM27000328), Two Holders (JM23000127)

Shipping Dimensions (Length x Width x Height) & Weight : 14.76 In. X 32.01 In. X 24.25 In. Weight : 42.42 Lb.

Specifications

Blade Diameter	8-1/2" (216 mm)
Arbor	5/8" (15.88 mm)
No Load Speed	5,000 RPM
AMPS (120V)	10.5 A
Vibration Level	2.5 m/s²
Noise Level	87 dB(A)
Dimensions (L x W x H)	29-3/4" x 17-3/4" x 19-1/4" (755 mm x 450 mm x 488 mm)
Net Weight	31.1 lbs (14.1 kg)
