Home / Tool / Cordless / LXT / Saws / Portable Band Saws / DPB180Z

LXT Technology

(Tool only)


DPB180Z

18V LXT Portable Band Saw, Tool Only

Well Balanced And Lightweight

Electronic Current Limiter, LED Light

LXT Technology 18V Battery
  • Ideal center of gravity creates well balanced design for optimum control
  • Variable Speed Dial enables operator to set constant speed based on materials or application
  • Electronic Current Limiter prevents motor burnout due to overloading
  • Warning Light indicates ideal time to recharge battery
  • Ball Bearing Blade Guides provide smooth blade movement
  • Rubber Bumper protects tool from damage
  • LED Light with Afterglow feature
  • Rafter Hook enables tool to hang on pipe when not immediately in use
  • Accepts standard 1/2" x 44-7/8" blades

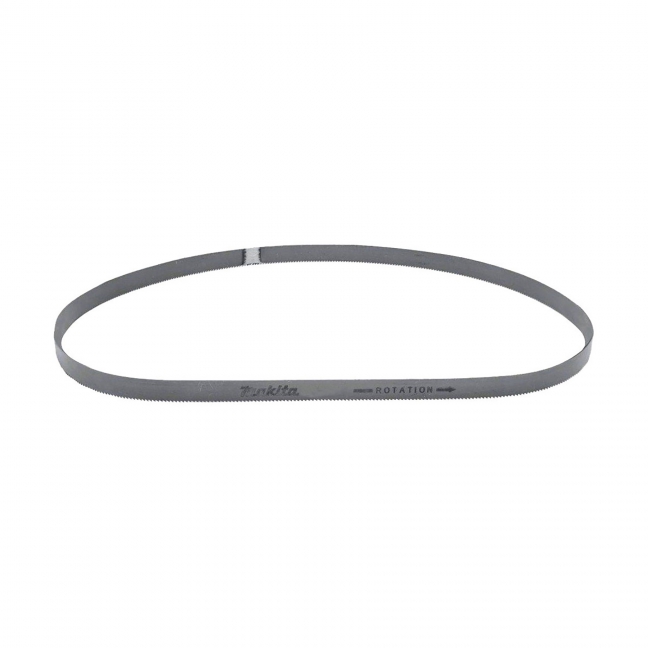

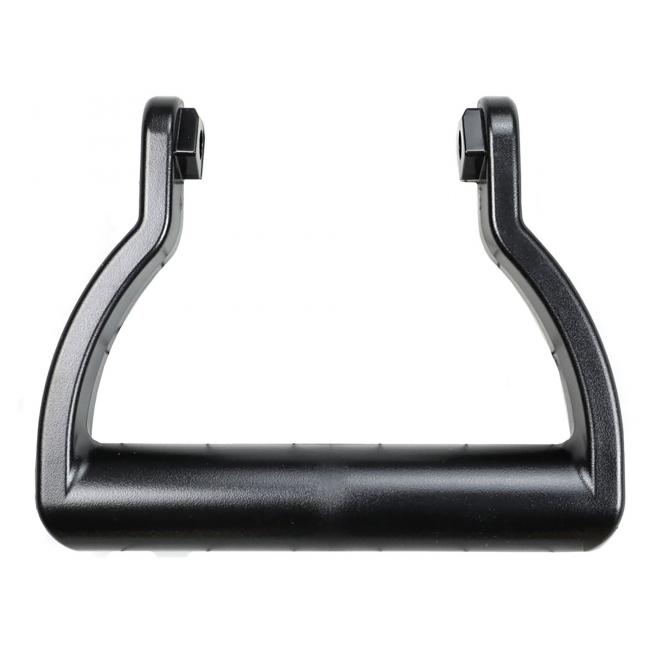

Items Included:Tool Only.  Battery and Charger Sold Separately.  Bi-Metal Band Saw Blade 18 TPI (792556-A ), D-Style Front Handle (273525-9), Hex Wrench 4 (783202-0)

  • Ideal center of gravity creates well balanced design for optimum control
  • Variable Speed Dial enables operator to set constant speed based on materials or application
  • Electronic Current Limiter prevents motor burnout due to overloading
  • Warning Light indicates ideal time to recharge battery
  • Ball Bearing Blade Guides provide smooth blade movement
  • Rubber Bumper protects tool from damage
  • LED Light with Afterglow feature
  • Rafter Hook enables tool to hang on pipe when not immediately in use
  • Accepts standard 1/2" x 44-7/8" blades

Items Included: Tool Only.  Battery and Charger Sold Separately.  Bi-Metal Band Saw Blade 18 TPI (792556-A ), D-Style Front Handle (273525-9), Hex Wrench 4 (783202-0)

Shipping Dimensions (Length x Width x Height) & Weight : 10.67 In. X 22.36 In. X 13.98 In. Weight : 16.53 Lb.

Specifications

Battery Capacities 18V LXT
Cutting Capacities:
Round Material 4-3/4" (120 mm)
Square Material 4-3/4" x 4-3/4" (120 mm x 120 mm)
Blade Speed 275-530 ft./min.
Vibration Level 2.5 m/s2
Noise Level 81 dB(A)
Overall Length 20-5/8" (523 mm)
Net Weight 13.0 lbs (5.9 kg)
