DKP180Z

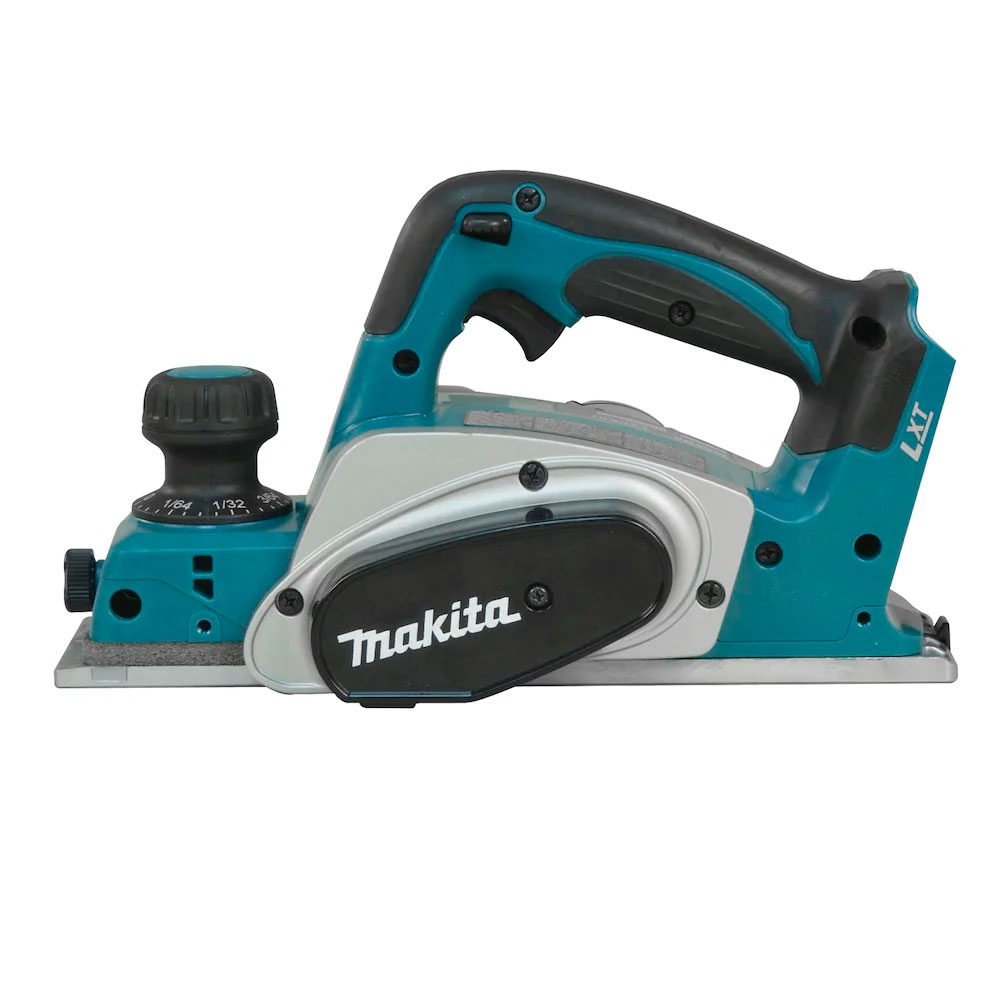

18V LXT 3-1/4" Planer, Tool Only

Incorporates Makita's NEW Battery Protection System

Electric Brake

LXT Technology 18V Battery
  • NEW Battery Protection System provides Over-Discharge, Temperature and Current Protection for enhanced performance, battery cycle life and overall battery life

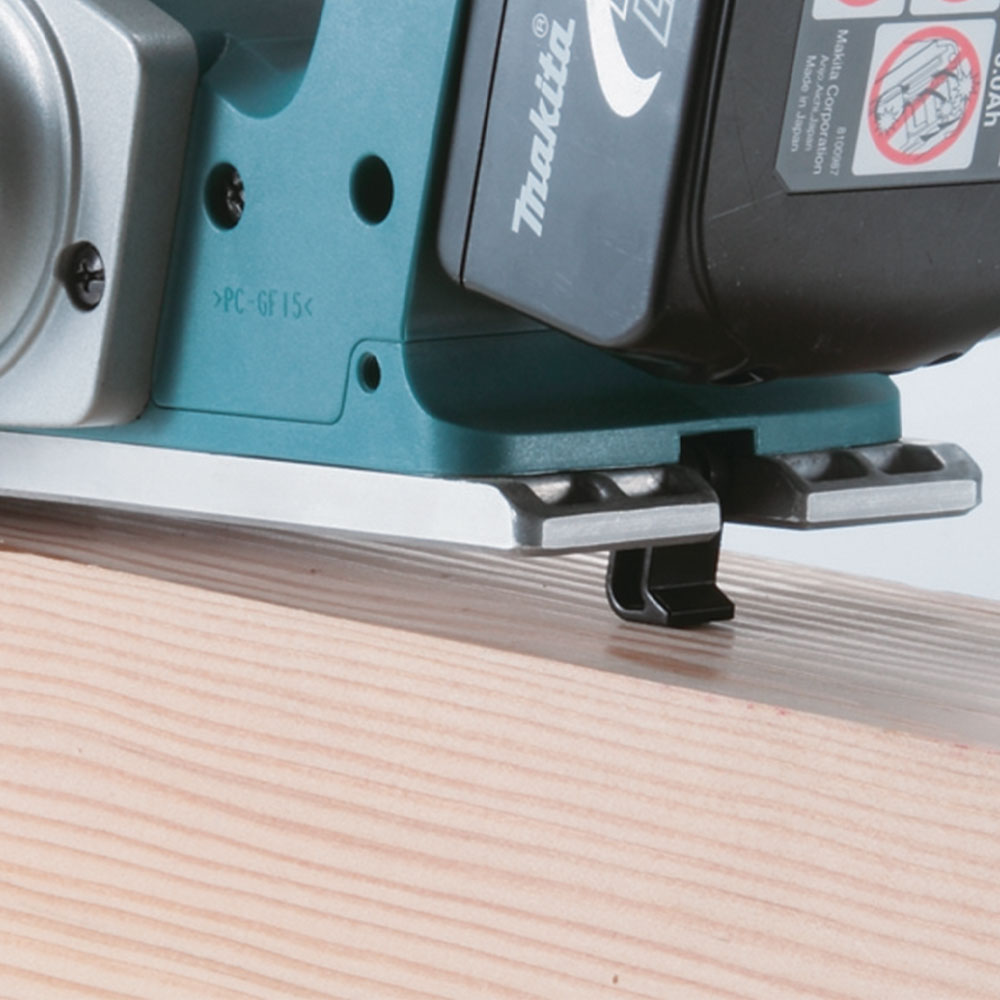

  • Base Plate Foot protects materials and blade from damage
  • Single Chamfering Groove enables quick and easy chamfering of corners
  • Depth Adjustment Knob with Click Stops for precision planing applications
  • Large Lock-Off Safety Lever prevents accidental start up
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Battery and Charger Sold Separately. 3-1/4" C.T. Mini Planer Blade (D-16966), Blade Gauge Assembly (191C19-9), Socket Wrench 9 (782209-3), Guide Rule (195055-9)

  • NEW Battery Protection System provides Over-Discharge, Temperature and Current Protection for enhanced performance, battery cycle life and overall battery life
  • Base Plate Foot protects materials and blade from damage
  • Single Chamfering Groove enables quick and easy chamfering of corners
  • Depth Adjustment Knob with Click Stops for precision planing applications
  • Large Lock-Off Safety Lever prevents accidental start up
  • Ergonomic Soft Rubber Grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Battery and Charger Sold Separately. 3-1/4" C.T. Mini Planer Blade (D-16966), Blade Gauge Assembly (191C19-9), Socket Wrench 9 (782209-3), Guide Rule (195055-9)

Shipping Dimensions (Length x Width x Height) & Weight : 7.48 In. X 7.87 In. X 13.19 In. Weight : 8.36 Lb.

Specifications

Battery Capacities 18V LXT
No Load Speed 14,000 RPM
Maximum Capacities:
Planing Width 3-1/4" (82 mm)
Planing Depth 5/64" (2 mm)
Shiplapping 11/32" (9 mm)
Vibration Level 4.5 m/s²
Noise Level 84 dB(A)
Overall Length 13-1/8" (333 mm)
Net Weight 6.2 lbs (2.8 kg)
