Home / Tool / Cordless / LXT / Saws / Jig Saws / DJV182Z

LXT Technology

(Tool only)


DJV182Z

18V LXT Brushless Jig Saw w/D-Handle, Tool Only

Brushless Motor Offers Same Operability As AC Models

D-Handle Style

Tool-Less Blade Change, Soft Start, Soft No-Load, Variable Speed

LXT Technology LXT Technology
  • Brushless DC motor with high power to weight ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Push button lock-off switch prevents accidental startup
  • Large variable speed trigger switch with lock-on button for maximum operational efficiency
  • 3 orbital settings enable operator to obtain a more aggressive cut
  • Soft start feature gradually increases speed to eliminate start up shock
  • Soft no-load feature reduces blade stroke at high RPM to enable accurate and efficient cutting in fine applications
  • Variable speed dial and trigger enables optimal control and precision in a wide range of applications and materials
  • Dual LED job lights offer increased illumination of work area
  • Improved dust protection for maximum operational life and reduced maintenance
  • Blower feature keeps cutting line free of saw dust
  • Electric brake stops blade immediately for added safety
  • Soft rubber grip design for vibration absorption and comfortable operation

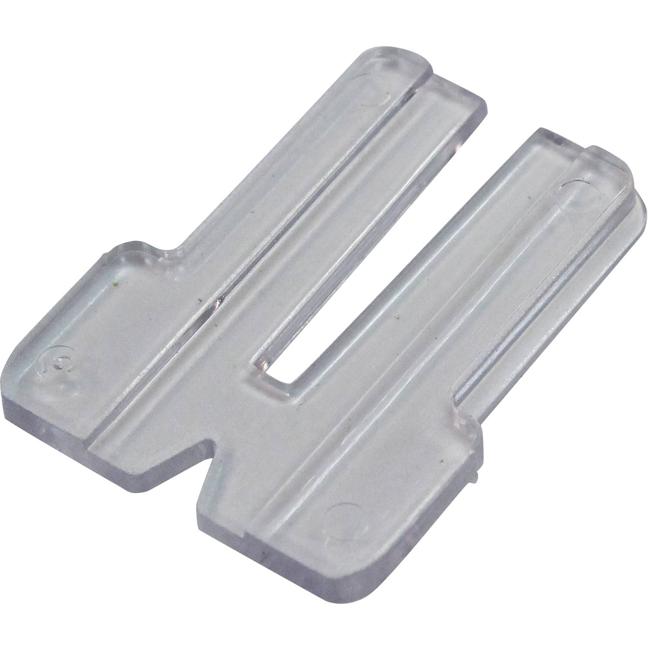

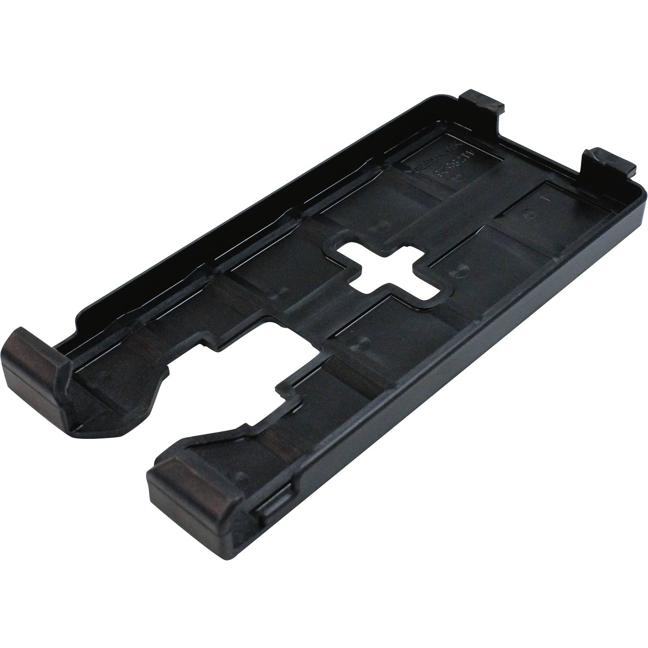

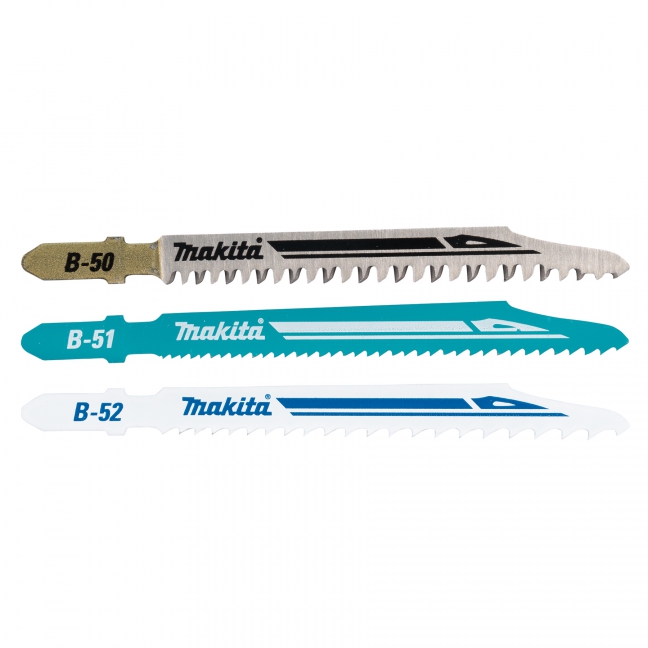

Items Included:Blade Set (E-10687), Hex Wrench 4 (783202-0), Anti-Splintering Device (415524-7), Cover Plate (417852-6)

  • Brushless DC motor with high power to weight ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Push button lock-off switch prevents accidental startup
  • Large variable speed trigger switch with lock-on button for maximum operational efficiency
  • 3 orbital settings enable operator to obtain a more aggressive cut
  • Soft start feature gradually increases speed to eliminate start up shock
  • Soft no-load feature reduces blade stroke at high RPM to enable accurate and efficient cutting in fine applications
  • Variable speed dial and trigger enables optimal control and precision in a wide range of applications and materials
  • Dual LED job lights offer increased illumination of work area
  • Improved dust protection for maximum operational life and reduced maintenance
  • Blower feature keeps cutting line free of saw dust
  • Electric brake stops blade immediately for added safety
  • Soft rubber grip design for vibration absorption and comfortable operation

Items Included: Blade Set (E-10687), Hex Wrench 4 (783202-0), Anti-Splintering Device (415524-7), Cover Plate (417852-6)

Shipping Dimensions (Length x Width x Height) & Weight : 11.42 In. X 3.94 In. X 8.66 In. Weight : 5.4 Lb.

Specifications

Battery Capacities 18V LXT
Max. Cutting Depth:
Steel 3/8" (10 mm)
Wood 5-5/16" (135 mm)
Aluminum 25/32" (20 mm)
Stroke Per Minute 800 - 3,500 SPM
Length of Stroke 1" (26 mm)
Vibration Level 7.0 m/s2
Noise Level 77 dB(A)
Overall Length 10-1/2" (266 mm)
Net Weight 4.4 lbs (2.0 kg)
