DHS680Z

18V LXT Brushless 6-1/2" Circular Saw, Tool Only

Makita's FIRST Brushless Li-Ion Circular Saw!

Automatic torque Drive Technology (ADT), Two-Stage Safety Switch, Electric Brake, Soft Start, Blower, LED Light, Cutting Capa

LXT Technology LXT Technology ADT 18V Battery
  • Ultra-Compact and Lightweight Design with High Performance for Heavy-Duty Cutting Applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications

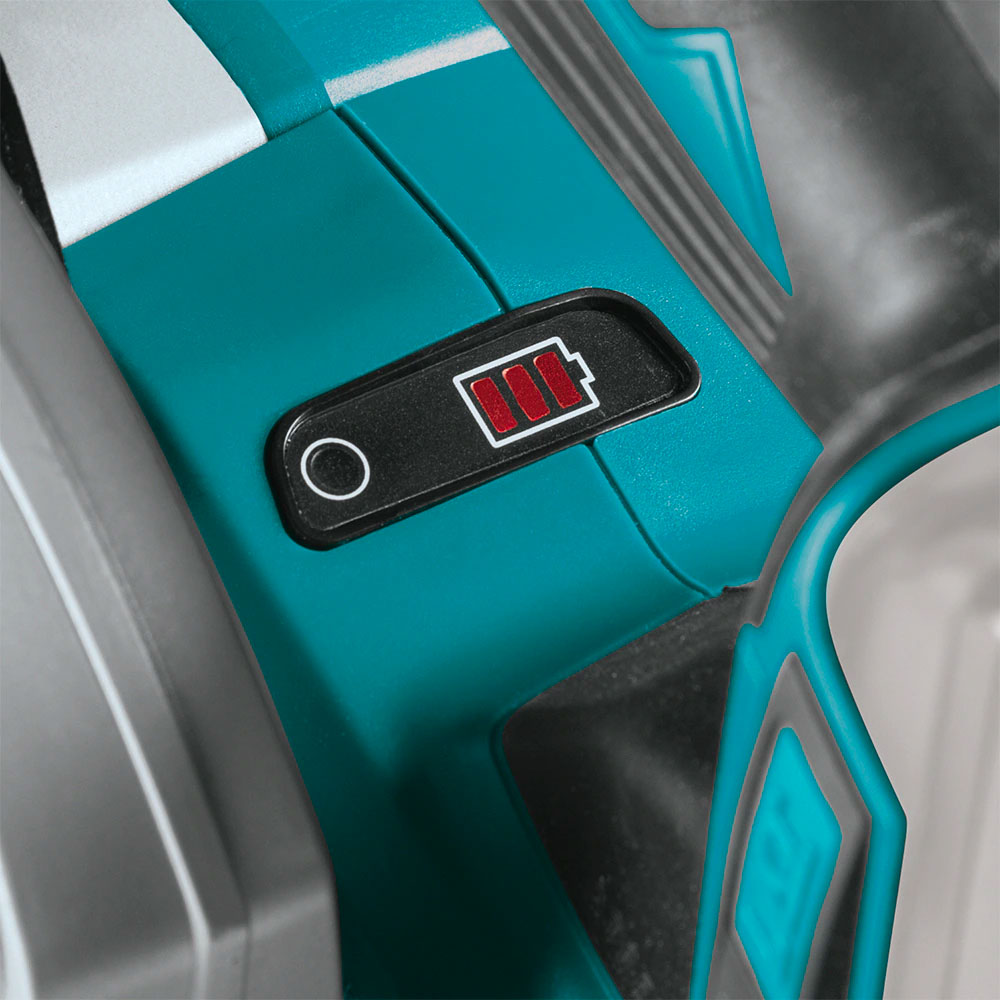

  • LED charge level indicator displays approximate remaining battery power
  • Ultra-lightweight design with magnesium baseplate, blade casing and safety cover
  • Enlarged depth and bevel scales with rubberized levers for maximum operator convenience and accuracy
  • Integrated tool hanger provides convenience on the jobsite
  • Two-stage safety trigger switch prevents accidental startup
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED job light and blower function keeps cut line visible for precise cutting performance
  • Dust extraction capability with enlarged dust nozzle enables dust-free operation for a more comfortable working environment and long term health
  • Bevel capacity of 0o - 50o with positive stop at 45o
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

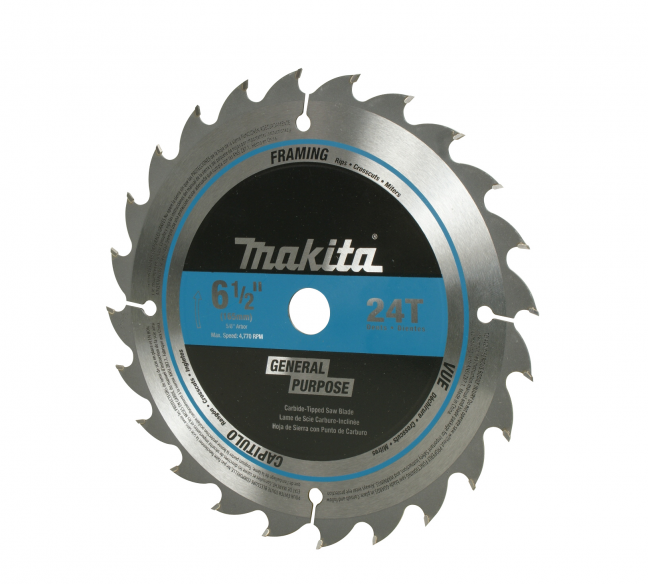

Items Included:Tool Only.  Batteries and Charger Sold Separately.  6-1/2" C.T. Saw Blade 24T (A-85092), Hex Wrench 5 (783203-8)

  • Ultra-Compact and Lightweight Design with High Performance for Heavy-Duty Cutting Applications
  • Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
  • LED charge level indicator displays approximate remaining battery power
  • Ultra-lightweight design with magnesium baseplate, blade casing and safety cover
  • Enlarged depth and bevel scales with rubberized levers for maximum operator convenience and accuracy
  • Integrated tool hanger provides convenience on the jobsite
  • Two-stage safety trigger switch prevents accidental startup
  • Electric brake stops blade 3-5 seconds after trigger is released for increased operator safety
  • Soft start feature gradually increases speed to eliminate start up shock
  • LED job light and blower function keeps cut line visible for precise cutting performance
  • Dust extraction capability with enlarged dust nozzle enables dust-free operation for a more comfortable working environment and long term health
  • Bevel capacity of 0o - 50o with positive stop at 45o
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only.  Batteries and Charger Sold Separately.  6-1/2" C.T. Saw Blade 24T (A-85092), Hex Wrench 5 (783203-8)

Shipping Dimensions (Length x Width x Height) & Weight : 10.43 In. X 14.02 In. X 7.8 In. Weight : 8.05 Lb.

Specifications

Battery Capacities 18V LXT
Blade Diameter 6-1/2" (165 mm)
Arbor 5/8" (15.88 mm)
Max. Cutting Depth:
2-1/4" (57 mm)
45°  1-5/8" (41 mm)
50°  1-7/16" (37 mm)
No Load Speed 5,000 RPM
Vibration Level 2.5 m/s2
Noise Level 83 dB(A)
Overall Length 13-3/4" (350 mm)
Net Weight 6.0 lbs (2.7 kg)
