HM1812

70 lbs Breaker Hammer, 1-1/8" Hex

1-1/8" Hex Shank


Anti vibration Technology
  • Increased impact energy (72.8 J) for maximum demolition power.HIGHEST IMPACT ENERGY IN CLASS

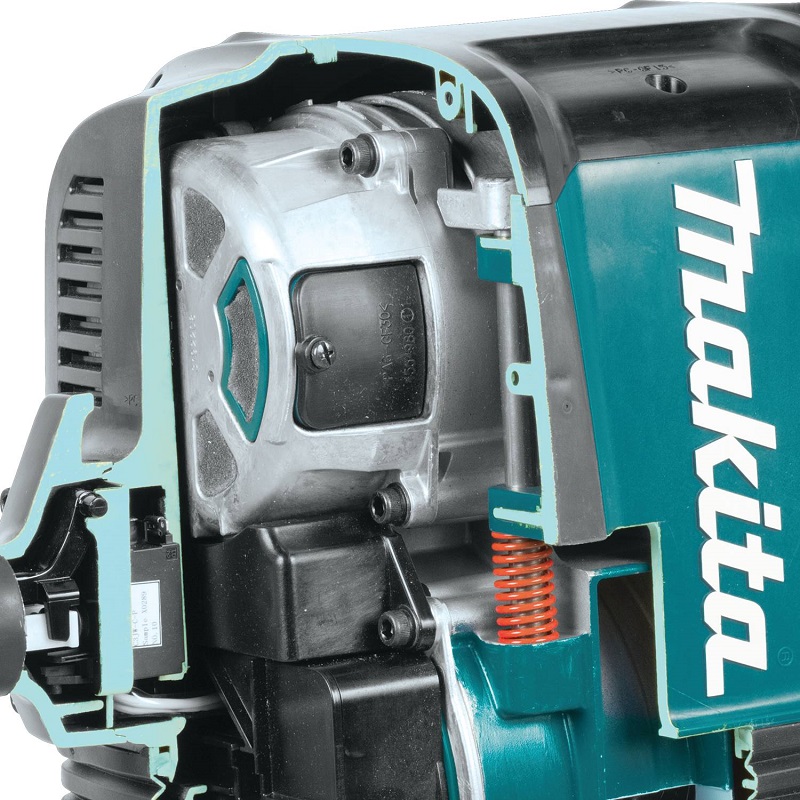

  • Advanced Anti-Vibration Technology (AVTTM) system incorporates vibration absorbing housing and active dynamic vibration absorber to actively counteract the vibration of the tool for greatly reduced transmission to the operator. LOWEST VIBRATION IN CLASS
  • Soft start feature gradually increases speed to eliminate start up shock
  • No load motor suppression limits vibration and bit deflection when idling

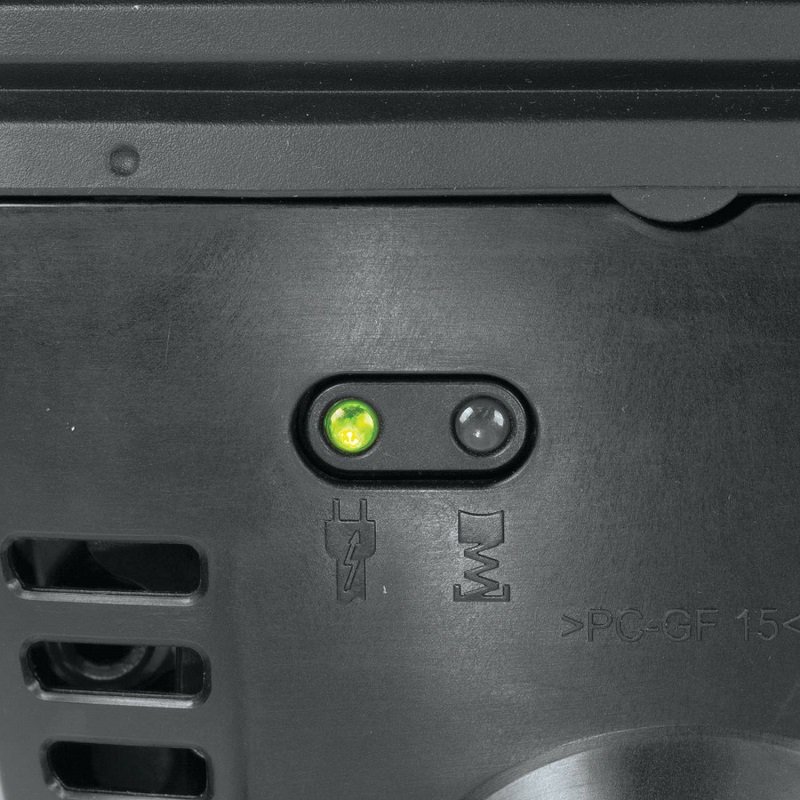

  • LED service light indicates appropriate time to change carbon brushes
  • LED power light indicates active power supply
  • Enhanced dust proof switch prevents contamination

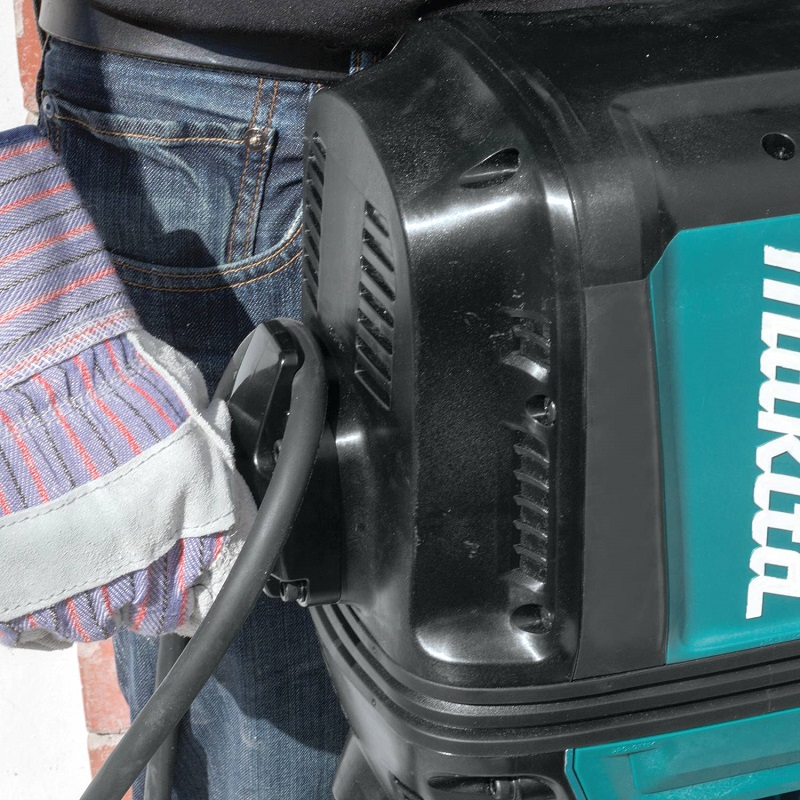

  • Recessed hand hold enables easier movement around the jobsite
  • Cylindrical tool body with increased repairability for maximum operational life

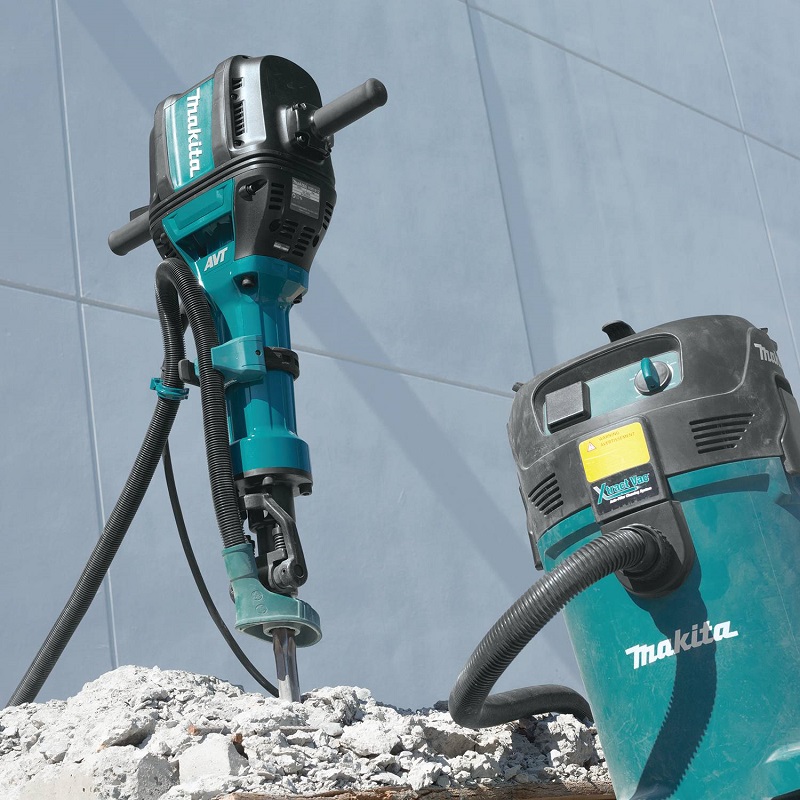

  • Use with Dust Extraction Attachment (part no. 197172-1) for dust-free operation

Items Included:Hex Wrench 5 (783203-8), 1-1/8" Hex Shank Bull Point (B-45559)

  • Increased impact energy (72.8 J) for maximum demolition power.HIGHEST IMPACT ENERGY IN CLASS
  • Advanced Anti-Vibration Technology (AVTTM) system incorporates vibration absorbing housing and active dynamic vibration absorber to actively counteract the vibration of the tool for greatly reduced transmission to the operator. LOWEST VIBRATION IN CLASS
  • Soft start feature gradually increases speed to eliminate start up shock
  • No load motor suppression limits vibration and bit deflection when idling
  • LED service light indicates appropriate time to change carbon brushes
  • LED power light indicates active power supply
  • Enhanced dust proof switch prevents contamination
  • Recessed hand hold enables easier movement around the jobsite
  • Cylindrical tool body with increased repairability for maximum operational life
  • Use with Dust Extraction Attachment (part no. 197172-1) for dust-free operation

Items Included: Hex Wrench 5 (783203-8), 1-1/8" Hex Shank Bull Point (B-45559)

Shipping Dimensions (Length x Width x Height) & Weight : 8.35 In. X 34.49 In. X 21.1 In. Weight : 83.78 Lb.

Specifications

Bit Type 1-1/8" Hex
Blows Per Minute 870 BPM
Impact Energy 72.8 J (53.7 ft. lbs)
AMPS (120V) 15.0 A
Vibration Level 6.5 m/s2
Noise Level 96 dB(A)
Overall Length 33-1/4" (843 mm)
Net Weight 69.1 lbs (31.3 kg)
