9557NB

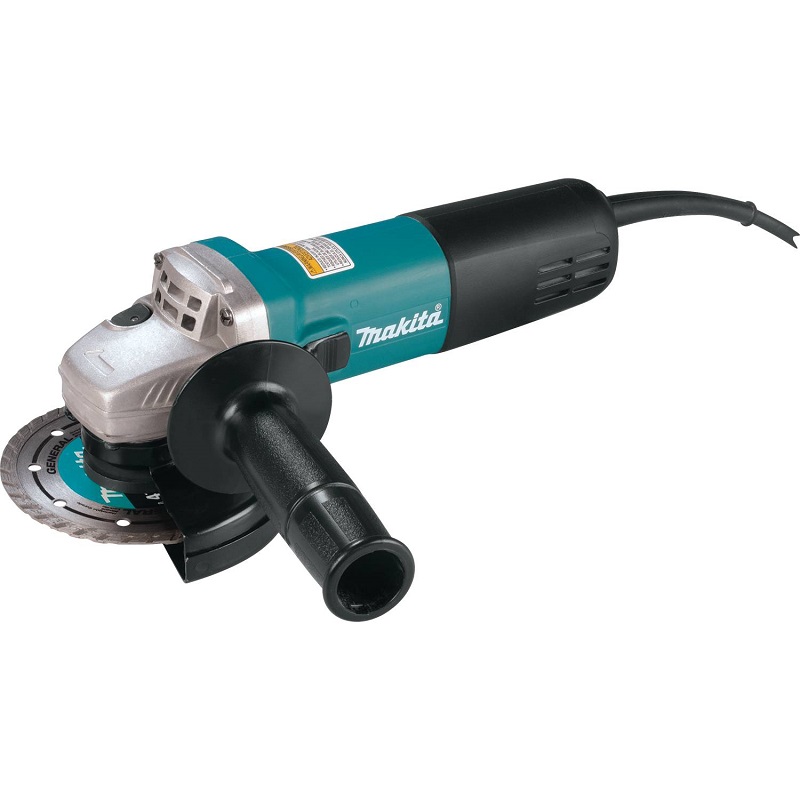

4-1/2" Angle Grinder w/Thumb Switch AC/DC

Thumb Switch with Lock-On (AC/DC)


  • Labyrinth construction seals motor and bearings from contamination
  • Thumb switch conveniently located for operator comfort
  • Removable side handle can be mounted on left or right side of tool

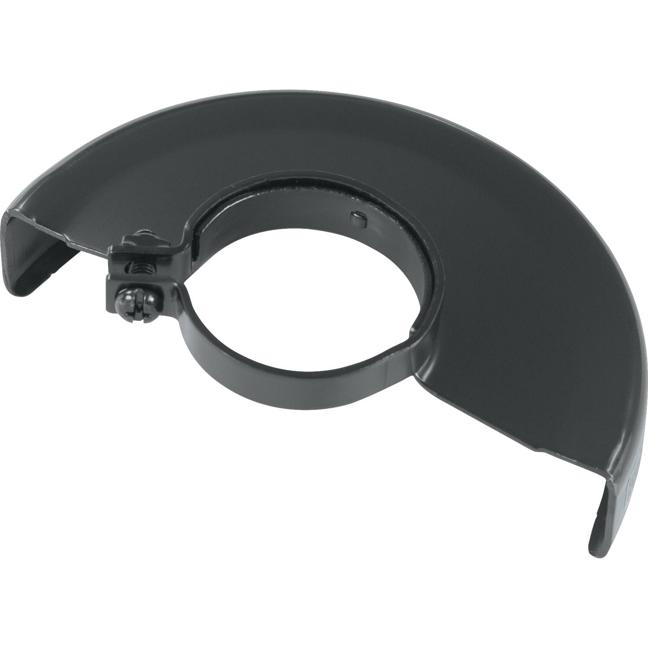

Items Included:4-1/2” Depressed Center Wheel (1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Wheel Cover (123735-7), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Side Handle (153489-2)

  • Labyrinth construction seals motor and bearings from contamination
  • Thumb switch conveniently located for operator comfort
  • Removable side handle can be mounted on left or right side of tool

Items Included: 4-1/2” Depressed Center Wheel (1 Ea. A-95956-25), Lock Nut Wrench 28 (782424-9), Wheel Cover (123735-7), Inner Flange (224399-1), Lock Nut 5/8"-45 (224568-4), Side Handle (153489-2)

Shipping Dimensions (Length x Width x Height) & Weight : 4.76 In. X 12.36 In. X 5.63 In. Weight : 6.39 Lb.

Specifications

Maximum Capacities:
Grinding Wheel 4-1/2" (115 mm)
Sanding Disc 4-1/2" (115 mm)
Wire Cup Brush 3-1/2" (90 mm)
Spindle Thread 5/8" - 11 UNC
No Load Speed 11,000 RPM
AMPS (120V) 7.5 A
Vibration Level 7.5 m/s2
Noise Level 86 dB(A)
Overall Length 10-5/8" (271 mm)
Net Weight 3.5 lbs (1.6 kg)
