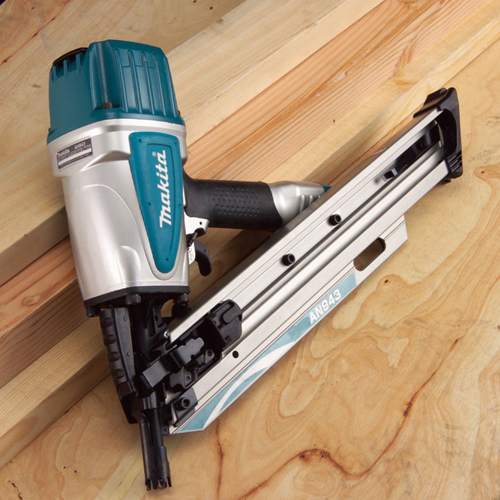

AN943

3-1/2" Framing Nailer

34° Clipped Head Framing Strip Nailer

Uses 34° Clipped Head Framing Nails

  • Large capacity air chamber for increased power
  • 3 Mode - Sequential, Bump, Lock-off
  • 9 depth nailing setting in 1/16" increments with adjustment knob
  • Convenient Collapsible Rafter Hook
  • Nose piece with sure-grip spikes prevents slipping
  • Dry fire prevention system prolongs life of tool
  • Silent sheet reduces noise when disconnecting coupler

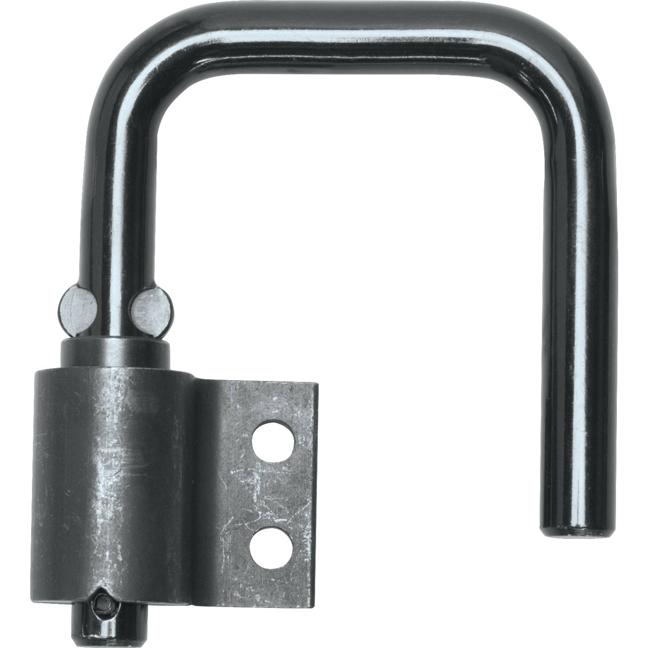

Items Included:Hook Assy (122742-7), Oil Supply (181434-7)

Read More
  • Large capacity air chamber for increased power
  • 3 Mode - Sequential, Bump, Lock-off
  • 9 depth nailing setting in 1/16" increments with adjustment knob
  • Convenient Collapsible Rafter Hook
  • Nose piece with sure-grip spikes prevents slipping
  • Dry fire prevention system prolongs life of tool
  • Silent sheet reduces noise when disconnecting coupler

Items Included: Hook Assy (122742-7), Oil Supply (181434-7)

Shipping Dimensions (Length x Width x Height) & Weight : 20.47 In. X 16.3 In. X 5.51 In. Weight : 11.68 Lb.

Specifications

Nail Type .113" - .131" 34° Clipped Head
Nail Size 2" - 3-1/2" 34o Clipped Head
Operating Air Pressure 65-120 PSIG
Magazine Capacity 60 - 84 Nails
Vibration Level 3.5 m/s2
Noise Level 92 dB(A)
Dimensions (L x W x H) 17-7/8" x 4-1/4" x 14-3/8" (455 mm x 109 mm x 365 mm)
Net Weight 8.8 lbs (4.0 kg)
