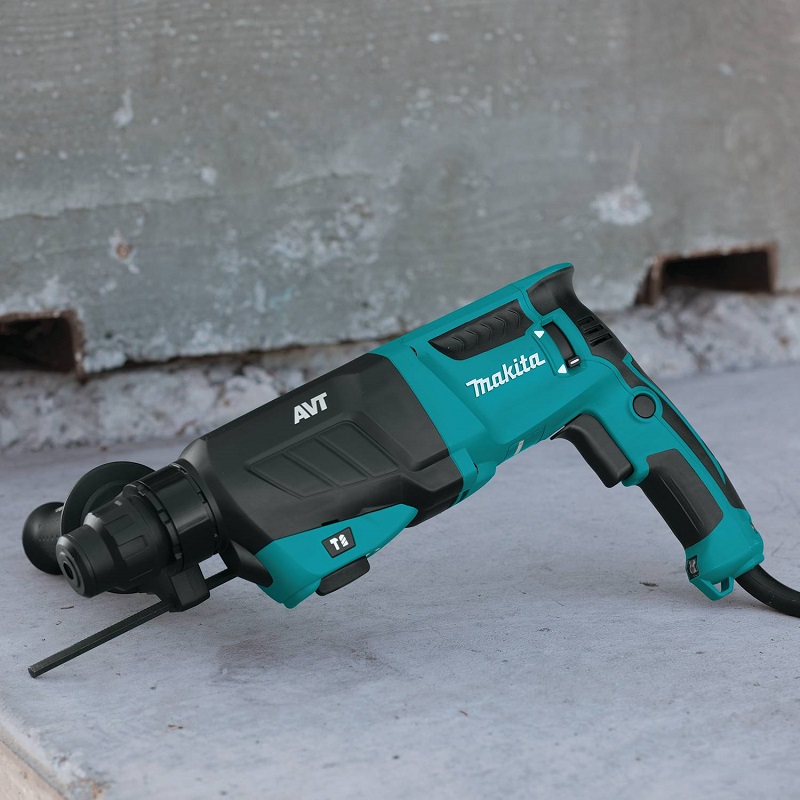

HR2631F

1" Rotary Hammer SDS-PLUS

SDS-PLUS Shank

Hammer & Rotation / Hammer Only / Rotation Only

Variable Speed

Anti vibration Technology

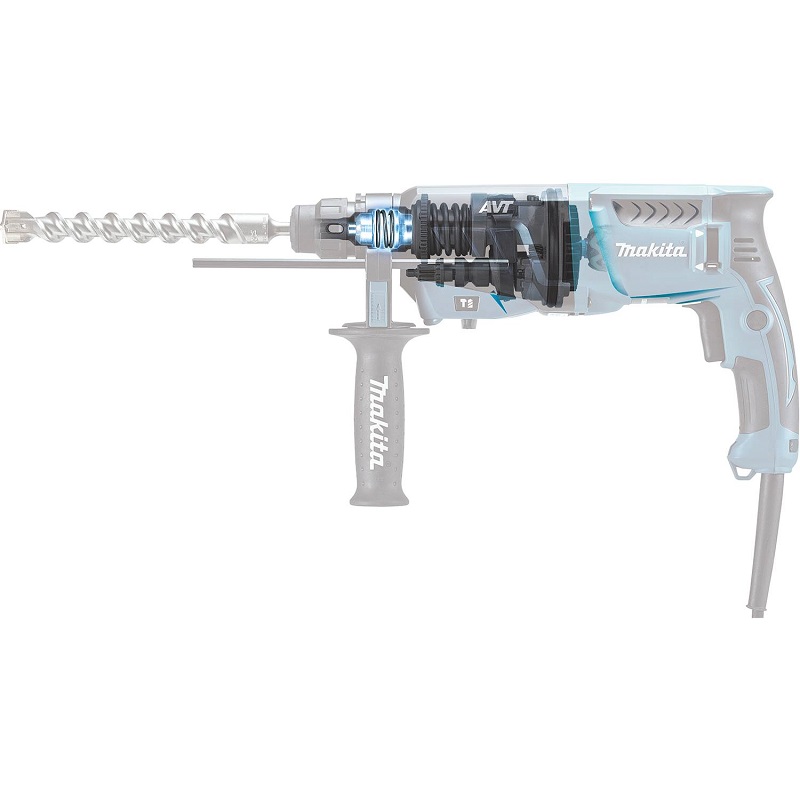

  • Anti-Vibration Technology (AVTTM) system incorporates vibration absorbing housing, active dynamic vibration absorber and damper spring to actively counteract the vibration of the tool for greatly reduced transmission to the operator
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
  • Improved bit guide for increased bit stability during drilling applications

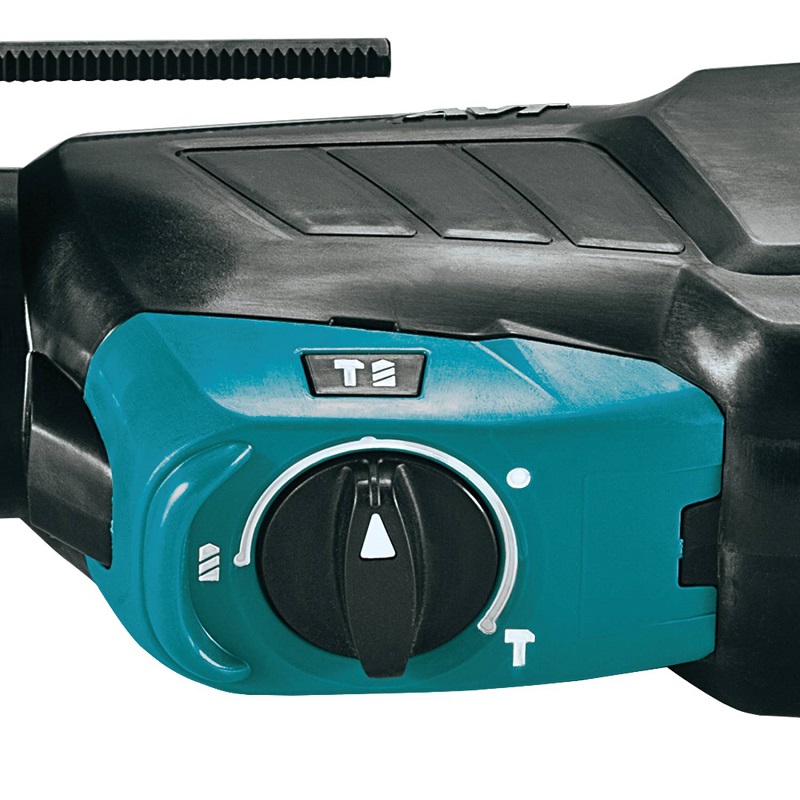

  • Re-located operating mode lever for increased protection and durability
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • 40 Angle bit positions enable chisels to be positioned at optimum angle of operation
  • One-touch sliding chuck for easy bit installation and removal

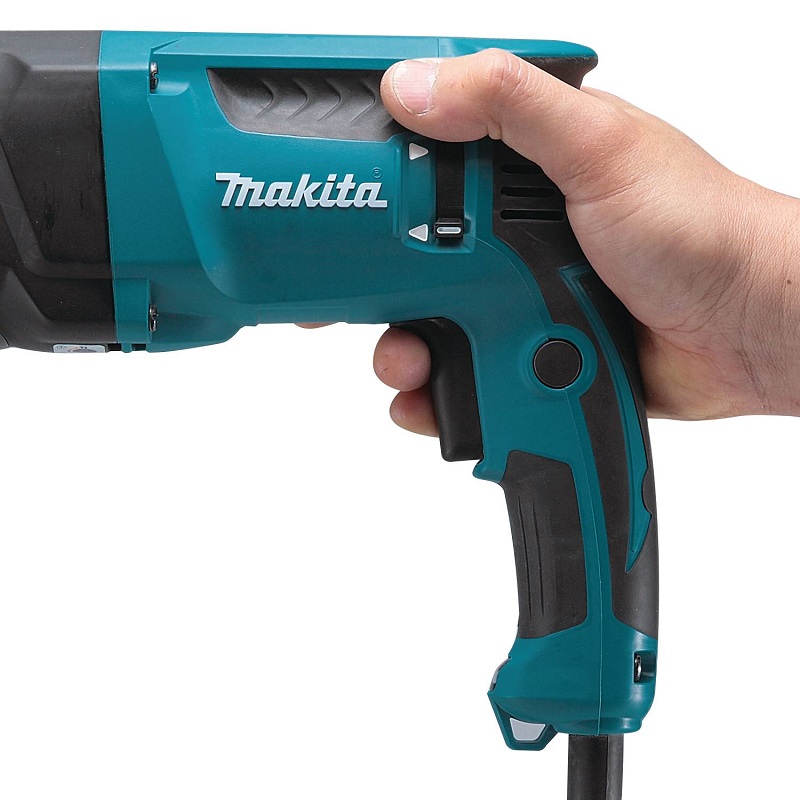

  • Ergonomic soft rubber grip for vibration absorption and comfortable operation

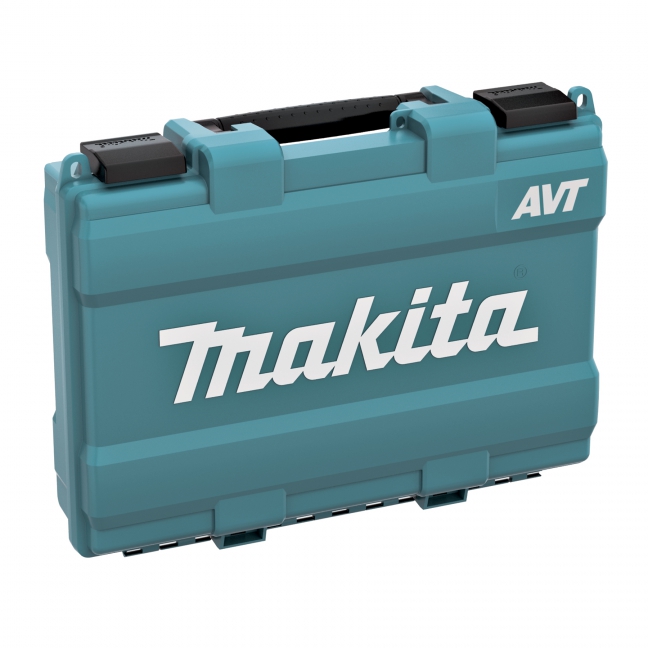

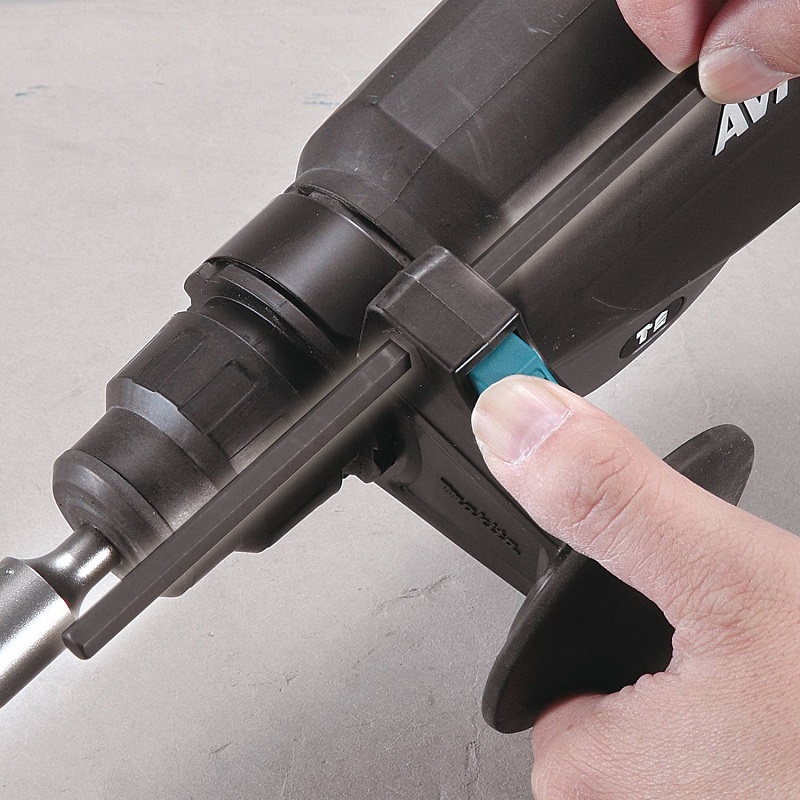

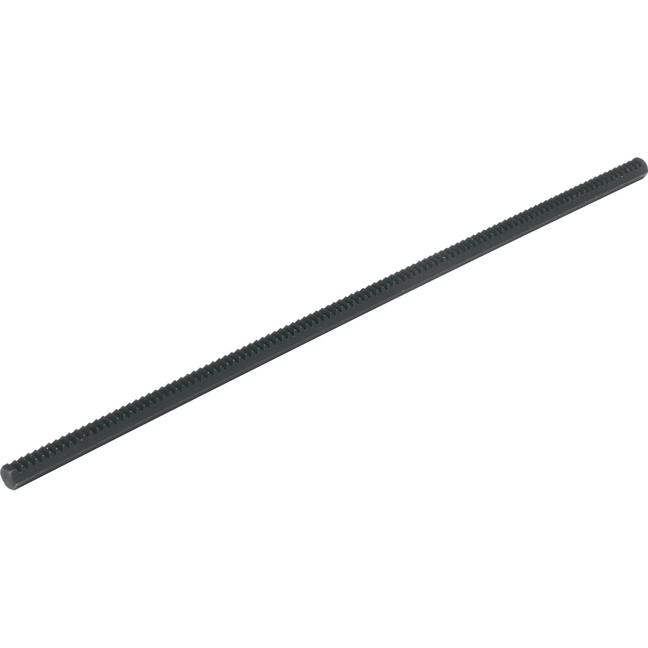

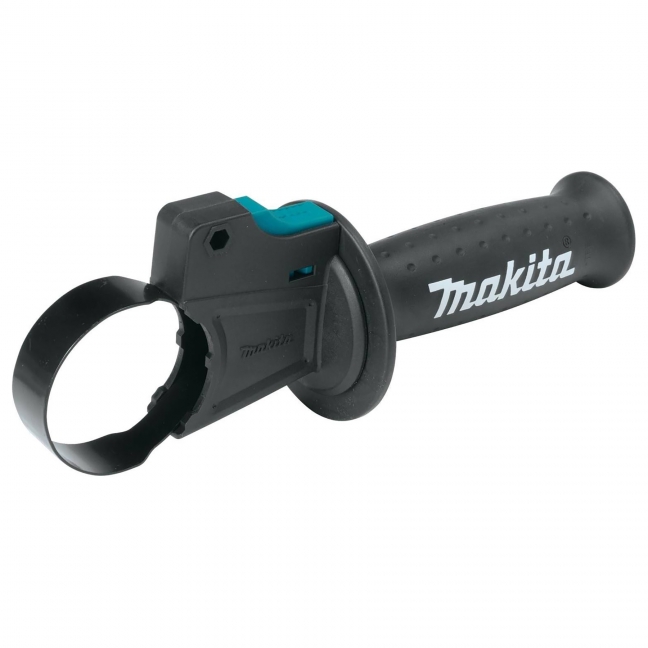

Items Included:Side Handle (122878-2), Depth Gauge (331886-4), Plastic Carrying Case (824913-9)

  • Anti-Vibration Technology (AVTTM) system incorporates vibration absorbing housing, active dynamic vibration absorber and damper spring to actively counteract the vibration of the tool for greatly reduced transmission to the operator
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • High durability design with zig-zag armature varnish, enhanced sealing, improved impact bolt and impact reducing cushion ring
  • Improved bit guide for increased bit stability during drilling applications
  • Re-located operating mode lever for increased protection and durability
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • 40 Angle bit positions enable chisels to be positioned at optimum angle of operation
  • One-touch sliding chuck for easy bit installation and removal
  • Ergonomic soft rubber grip for vibration absorption and comfortable operation

Items Included: Side Handle (122878-2), Depth Gauge (331886-4), Plastic Carrying Case (824913-9)

Shipping Dimensions (Length x Width x Height) & Weight : 12.32 In. X 16.14 In. X 3.98 In. Weight : 11.71 Lb.

Specifications

Bit Type SDS-PLUS
Maximum capacities:
Concrete 1" (26 mm)
Steel 1/2" (13 mm)
Wood 1-1/4" (32 mm)
No Load Speed 0 - 1,200 RPM
Blows Per Minute 0 - 4,600 BPM
Impact Energy 2.9 J (2.1 ft. lbs)
AMPS (120V) 7.0 A
Vibration Level 12.5 m/s2
Noise Level 90 dB(A)
Overall Length 14-1/4" (361 mm)
Net Weight 6.4 lbs (2.9 kg)
13 Piece SDS-PLUS Drill Bit & Chisel Set

13 Piece SDS-PLUS Drill Bit & Chisel Set

Read More

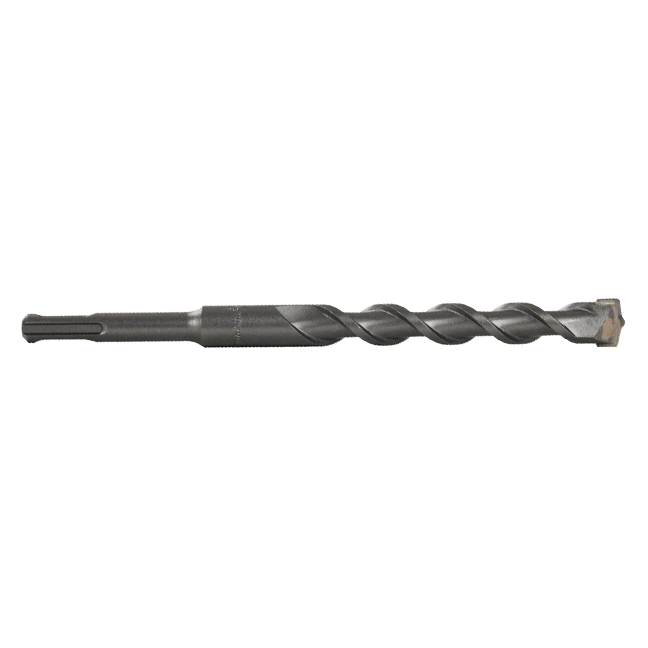

Centering Tip SDS-PLUS 2-Cutter Rotary Hammer Drill Bits

Centering Tip SDS-PLUS 2-Cutter Rotary Hammer Drill Bits

Read More
Demolition & Rotary Hammer Service Kits

Demolition & Rotary Hammer Service Kits

Read More

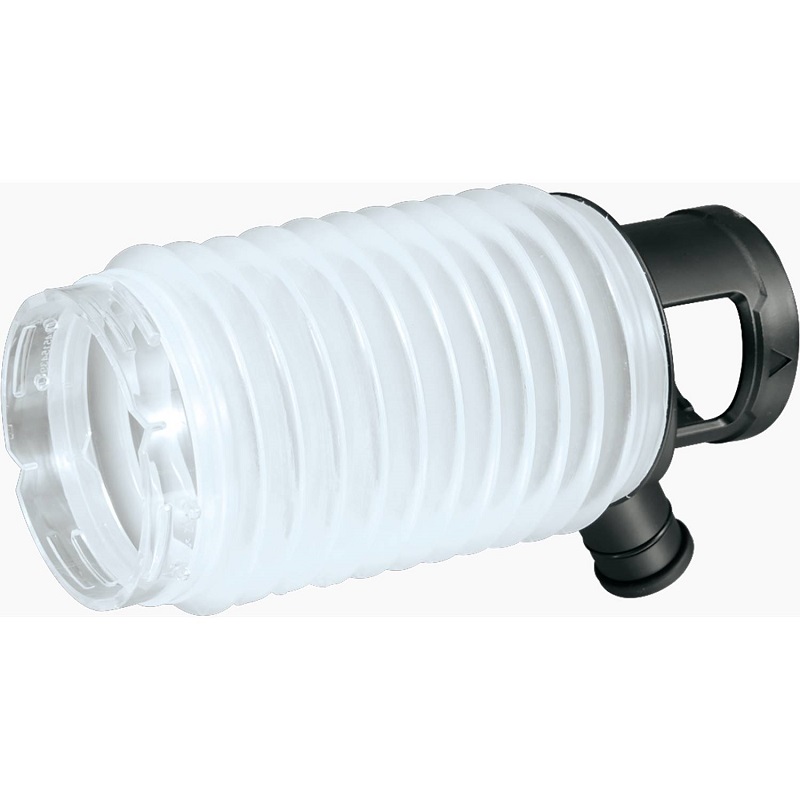

Dust Collection Boots
