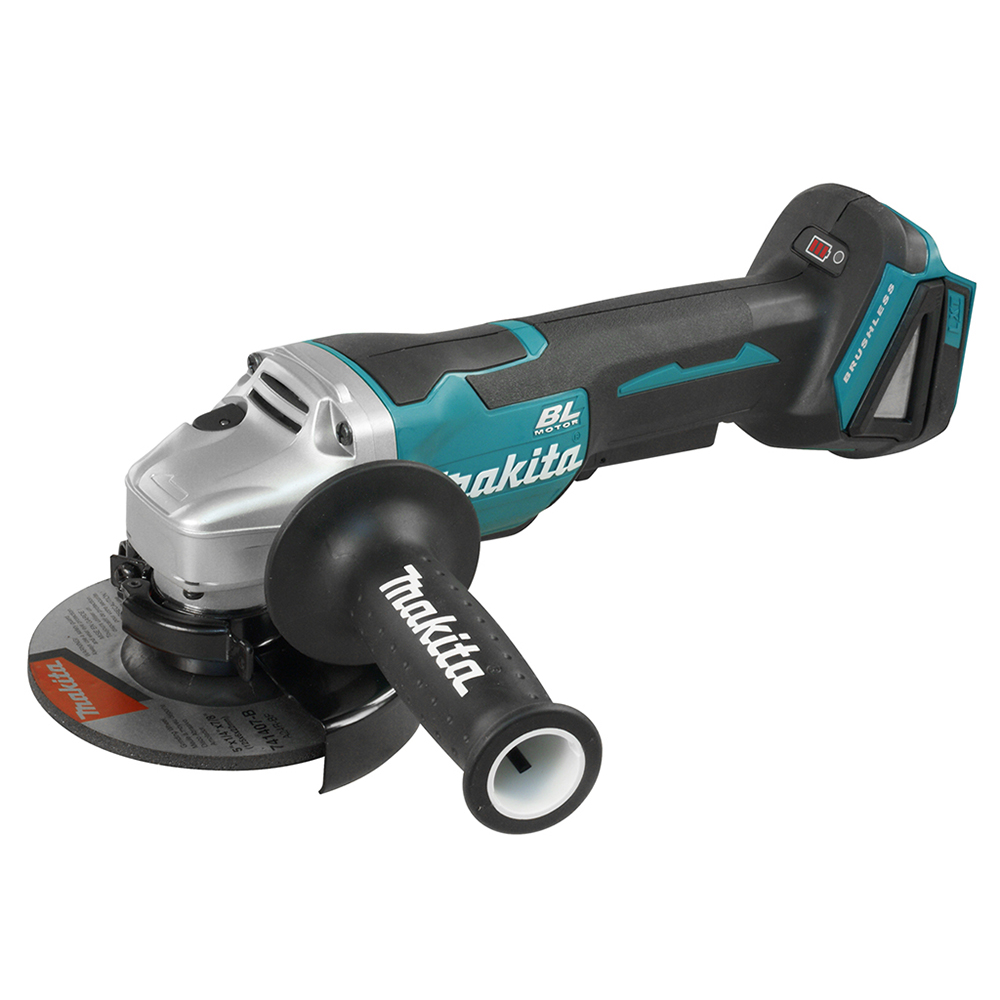

18V LXT Brushless 5" Angle Grinder w/Paddle Switch, Tool Only

High Performance And Efficiency For Heavy-Duty Grinding Applications

Two Stage Safety Paddle Switch, Electric Brake

Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications

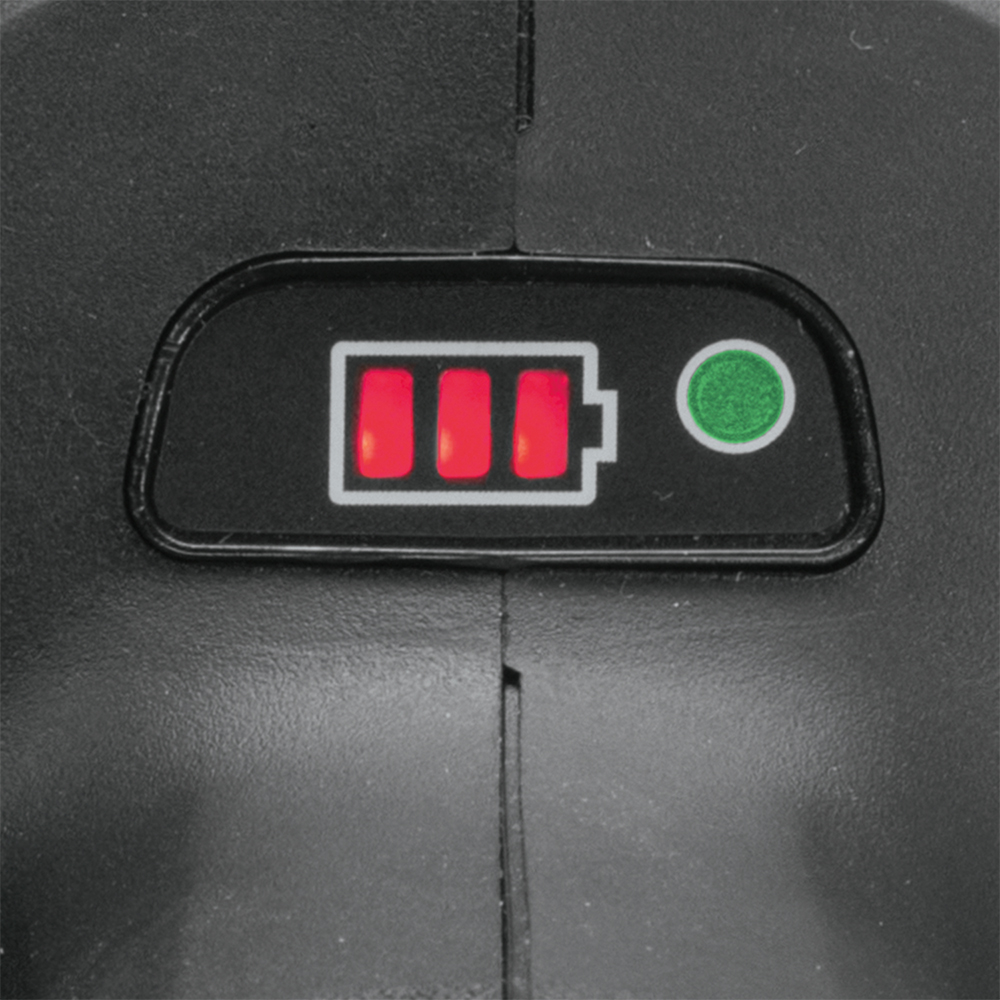

LED charge level indicator displays approximate remaining battery power
Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
Soft start feature gradually increases speed to eliminate start up shock
Electronic current limiter protects motor from accidental overload
Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
Integrated dust screens act as additional protection against dust, dirt and debris
Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Battery and Charger Sold Separately. 5" Depressed Center Wheel (D-20797), Toolless Wheel Cover (123145-8), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4)

Where to buy

Automatic torque Drive Technology (ADT) feature adjusts the torque and speed according to the load condition, enabling rapid movement between high speed and high torque applications
eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
Brushless DC motor with high power to weight and size ratio
Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
LED charge level indicator displays approximate remaining battery power
Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
Soft start feature gradually increases speed to eliminate start up shock
Electronic current limiter protects motor from accidental overload
Electric brake stops wheel or disc 3-5 seconds after switch is released for increased operator safety
Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
Integrated dust screens act as additional protection against dust, dirt and debris
Slim, ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Battery and Charger Sold Separately. 5" Depressed Center Wheel (D-20797), Toolless Wheel Cover (123145-8), Side Handle (158237-4), Lock Nut Wrench 28 (782424-9), Inner Flange (224448-4), Lock Nut 5/8"-45 (224568-4)

Shipping Dimensions (Length x Width x Height) & Weight : 5.24 In. X 13.39 In. X 6.22 In. Weight : 6.04 Lb.

Specifications

Battery Capacities	18V LXT
Grinding Wheel	5" (125 mm)
No Load Speed	8,500 RPM
Arbor Size	7/8" (22.23 mm)
Spindle Thread	5/8" - 11 UNC
Vibration Level	6.0 m/s²
Noise Level	79 dB(A)
Overall Length	14-1/4" (362 mm)
Net Weight	4.2 lbs (1.9 kg)
