LW1400

14" Tool-less Portable Cut-off Saw

Toolless Wheel Change And 3 Position Guide Plate Adjustment

5" (Round) Cutting Capacity

AC Only

Mitres 45° Left

  • Toolless wheel change feature enables fast and easy blade changes without the need for additional tools

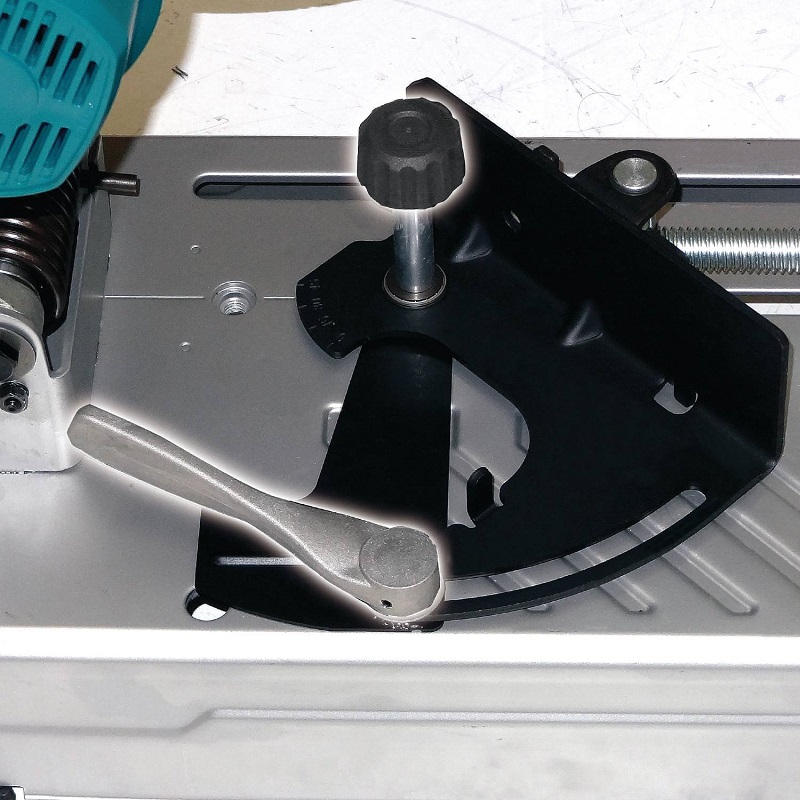

  • Toolless 3 position guide plate adjustment for fast and accurate angle setting
  • Quick release vise enables fast clamping of materials

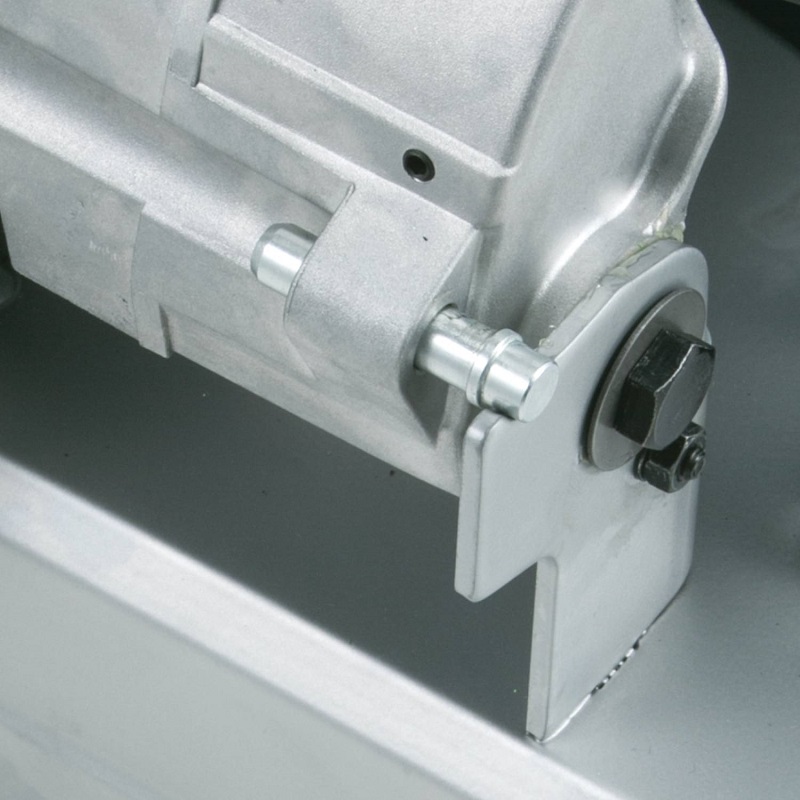

  • Pin lock secures saw head in downward position for safe transportation and storage

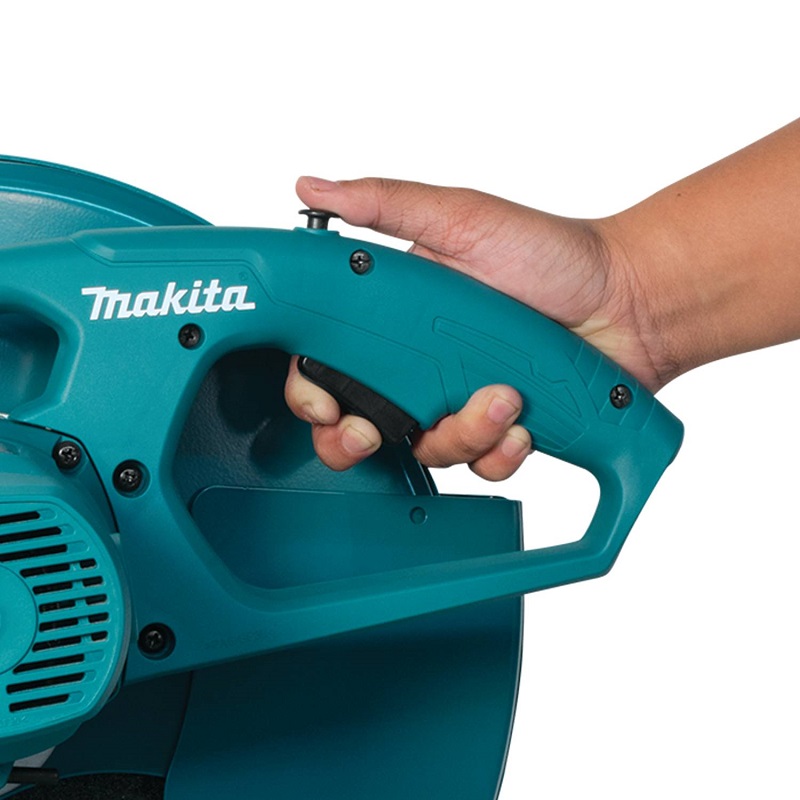

  • Lock off button prevents accidental start up
  • Enlarged spark guard and holder for increased spark collection
  • Large top carrying handle for easy transportation

Items Included:14" Abrasive Wheel (1 Ea. B-23204-5), Vise (135708-8)

  • Toolless wheel change feature enables fast and easy blade changes without the need for additional tools
  • Toolless 3 position guide plate adjustment for fast and accurate angle setting
  • Quick release vise enables fast clamping of materials
  • Pin lock secures saw head in downward position for safe transportation and storage
  • Lock off button prevents accidental start up
  • Enlarged spark guard and holder for increased spark collection
  • Large top carrying handle for easy transportation

Items Included: 14" Abrasive Wheel (1 Ea. B-23204-5), Vise (135708-8)

Shipping Dimensions (Length x Width x Height) & Weight : 18.5 In. X 22.36 In. X 14.49 In. Weight : 46.76 Lb.

Specifications

Blade Diameter 14" (355 mm)
Arbor 1" (25.4 mm)
No Load Speed 3,800 RPM
Cutting Capacity:
45 Degrees 5" (127 mm)
90 Degrees 5" (127 mm)
AMPS (120V) 15.0 A
Overall Length 20-7/8" (530 mm)
Net Weight 37.9 lbs (17.2 kg)
