LW1401

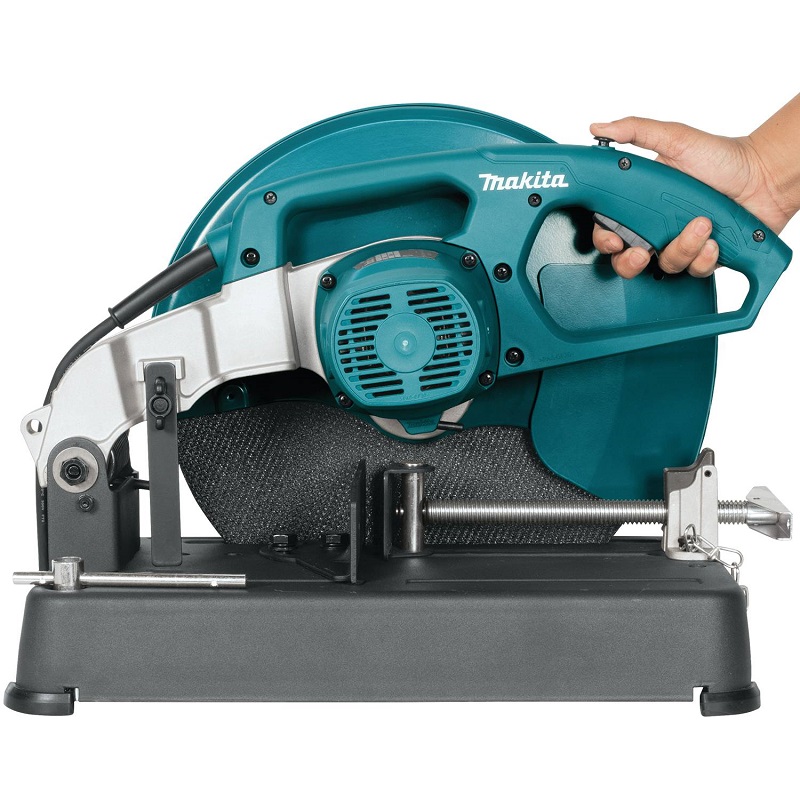

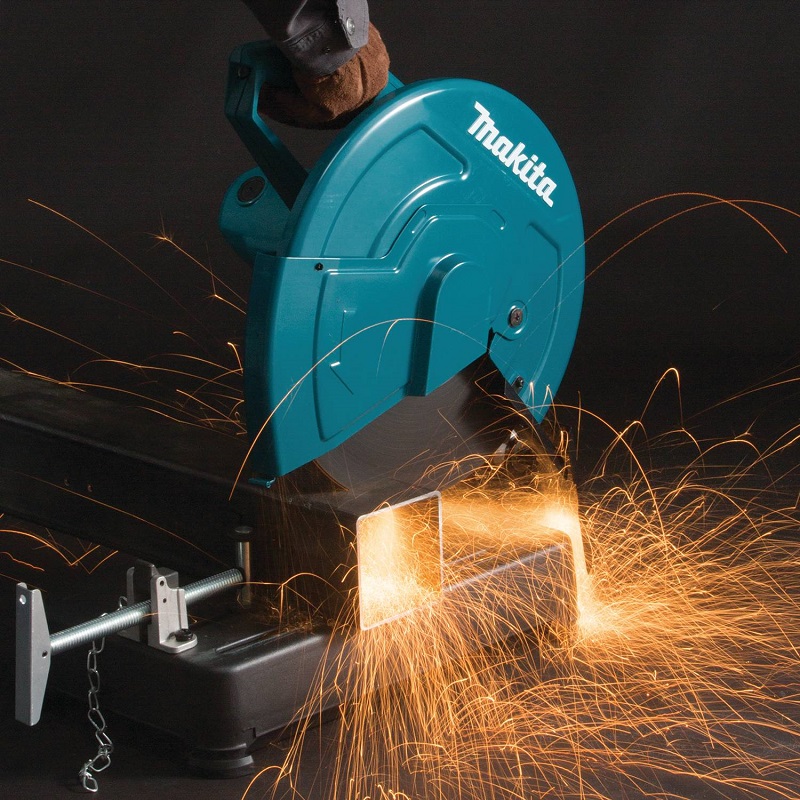

14" Portable Cut-off Saw

Adjustable 2 Position Guide Plate

5" (Round) Cutting Capacity

AC Only

Mitres 45° Left And Right

  • Adjustable 2 position guide plate adjustment for fast and accurate angle setting
  • Quick release vise enables fast clamping of materials
  • Adjustable depth stop for precise, repeatable cutting depth

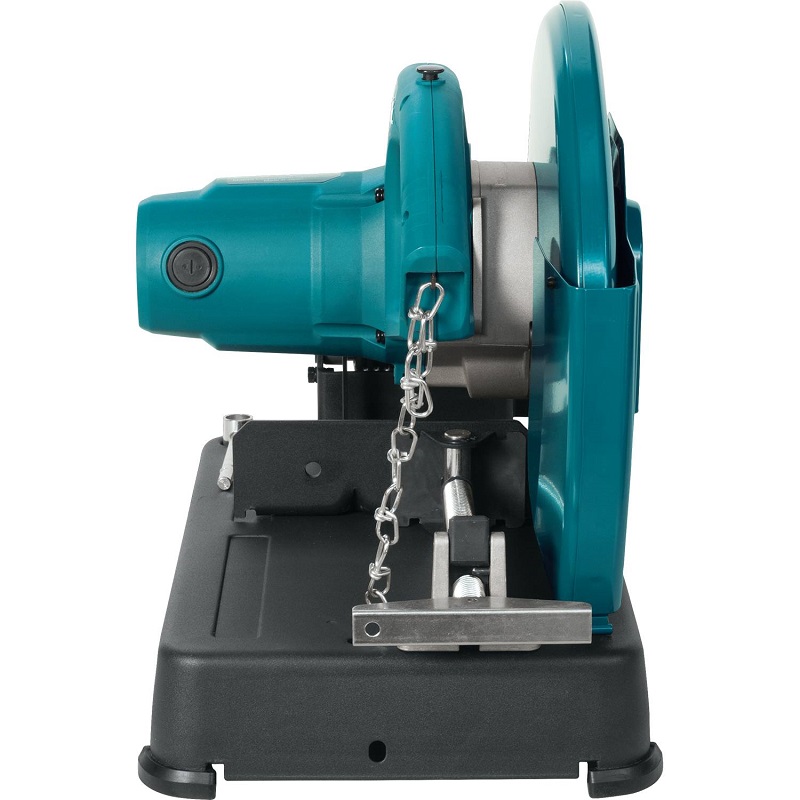

  • Chain lock secures saw head in downward position for safe transportation and storage
  • Lock off button prevents accidental start up

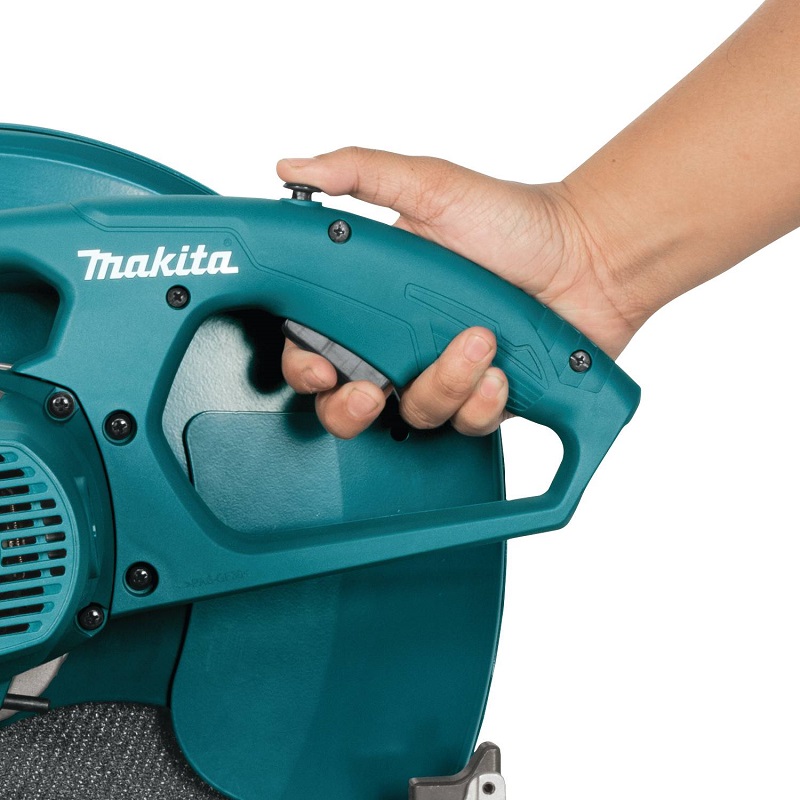

  • Large top carrying handle for easy transportation

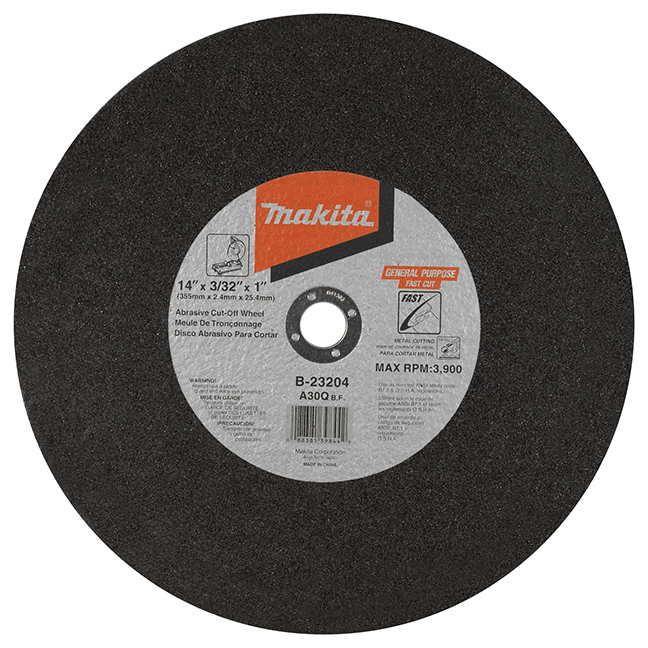

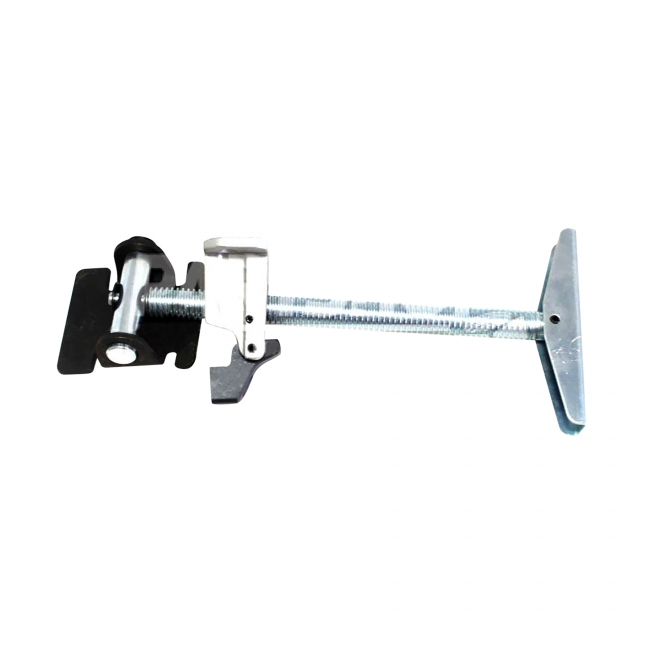

Items Included:14" Abrasive Wheel (1 Ea. B-23204-5), Socket Wrench 17 (782210-8), Vise (135708-8)

  • Adjustable 2 position guide plate adjustment for fast and accurate angle setting
  • Quick release vise enables fast clamping of materials
  • Adjustable depth stop for precise, repeatable cutting depth
  • Chain lock secures saw head in downward position for safe transportation and storage
  • Lock off button prevents accidental start up
  • Large top carrying handle for easy transportation

Items Included: 14" Abrasive Wheel (1 Ea. B-23204-5), Socket Wrench 17 (782210-8), Vise (135708-8)

Shipping Dimensions (Length x Width x Height) & Weight : 18.5 In. X 22.36 In. X 14.49 In. Weight : 45 Lb.

Specifications

Blade Diameter 14" (355 mm)
Arbor 1" (25.4 mm)
No Load Speed 3,800 RPM
Cutting Capacity:
45 Degrees 5" (127 mm)
90 Degrees 5" (127 mm)
AMPS (120V) 15.0 A
Overall Length 19-3/4" (500 mm)
Net Weight 37.0 lbs (16.8 kg)
