RT0701C

1-1/4 HP Compact Router

Compact and Versatile Router For Maximum Versatility


  • Accepts Makita and other industry standard 2 piece template guides
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load

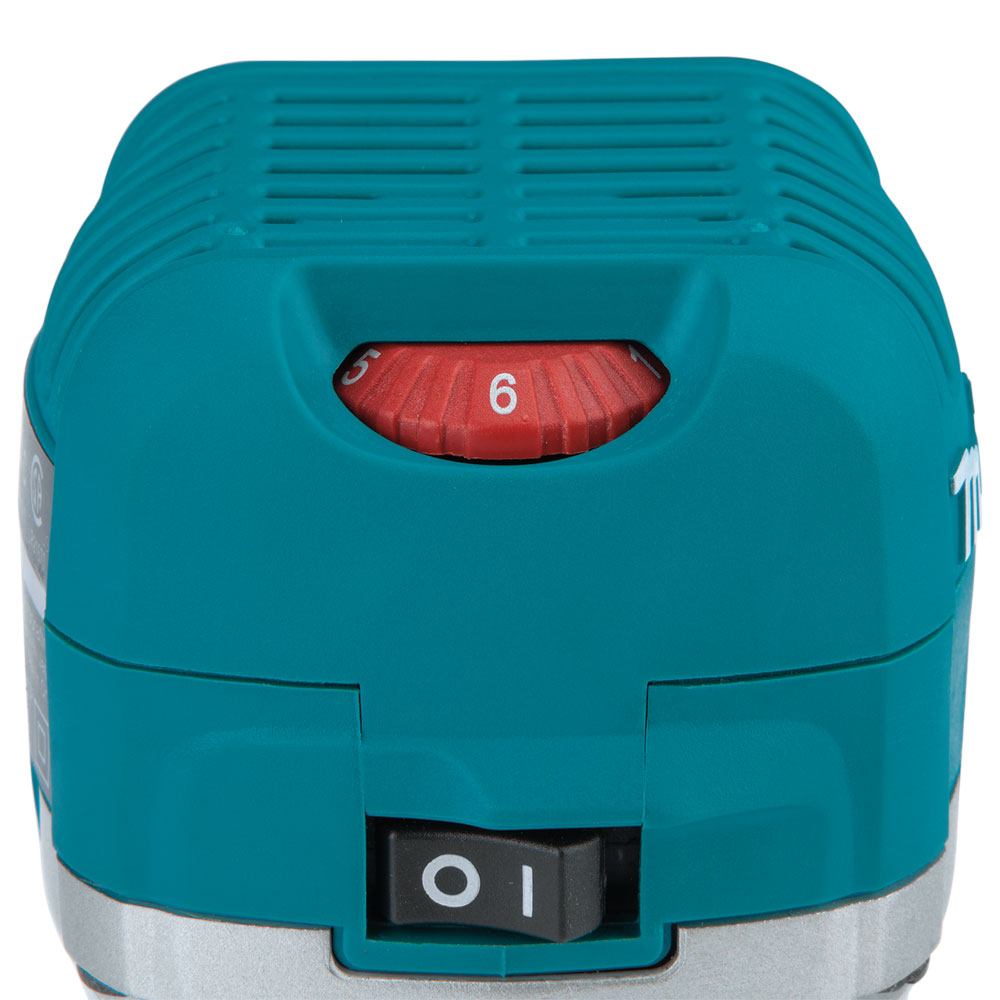

  • Variable speed dial allows operator to adjust speed based on materials or application
  • Flat top design provides a stable platform when changing bits
  • Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
  • Aluminum base and housing offer increased durability and accuracy
  • On/off rocker switch is easy to operate and eliminates interference with handling

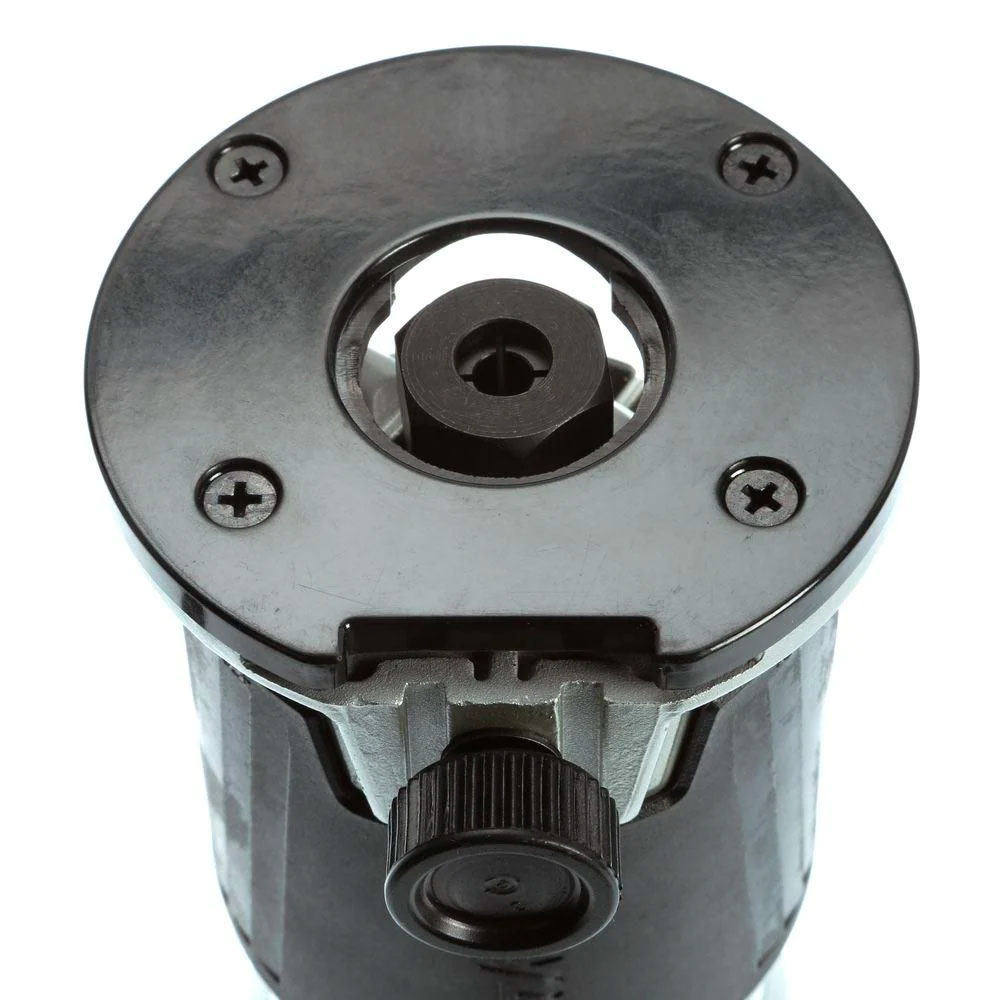

  • Trimmer base assembly provides smooth, fast cutting and easy handling
  • Optional plunge base assembly with precision cutting depth adjustment for accurate plunge cutting applications
  • Optional tilt base assembly enables quick and accurate angled cuts
  • Optional offset base assembly allows operator to make close to wall cuts of just 3/4"
  • Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials

Items Included:1/4" Collet Cone (763637-1), Straight Guide (122965-7), Wrench 13 (781039-9), Wrench 22 (781011-1)

  • Accepts Makita and other industry standard 2 piece template guides
  • Soft start feature gradually increases speed to eliminate start up shock
  • Constant speed control maintains constant speed under heavy load
  • Variable speed dial allows operator to adjust speed based on materials or application
  • Flat top design provides a stable platform when changing bits
  • Shaft lock button enables quick and easy bit changes and eliminates the need for dual wrenches
  • Aluminum base and housing offer increased durability and accuracy
  • On/off rocker switch is easy to operate and eliminates interference with handling
  • Trimmer base assembly provides smooth, fast cutting and easy handling
  • Optional plunge base assembly with precision cutting depth adjustment for accurate plunge cutting applications
  • Optional tilt base assembly enables quick and accurate angled cuts
  • Optional offset base assembly allows operator to make close to wall cuts of just 3/4"
  • Interchangeable bases offer maximum versatility, high bit visibility and non-marring plastic base for smooth movement and protection of materials

Items Included: 1/4" Collet Cone (763637-1), Straight Guide (122965-7), Wrench 13 (781039-9), Wrench 22 (781011-1)

Shipping Dimensions (Length x Width x Height) & Weight : 5.98 In. X 9.61 In. X 7.6 In. Weight : 6 Lb.

Specifications

Collet Capacity 1/4", 3/8" (6.35 mm, 9.53 mm)
AMPS (120V) 6.5 A
No Load Speed 10,000 - 30,000 RPM
Maximum Horsepower (HP) 1-1/4 hp
Vibration Level Unavailable
Noise Level Unavailable
Overall Height 7-7/8" (200 mm)
Net Weight 3.9 lbs (1.8 kg)

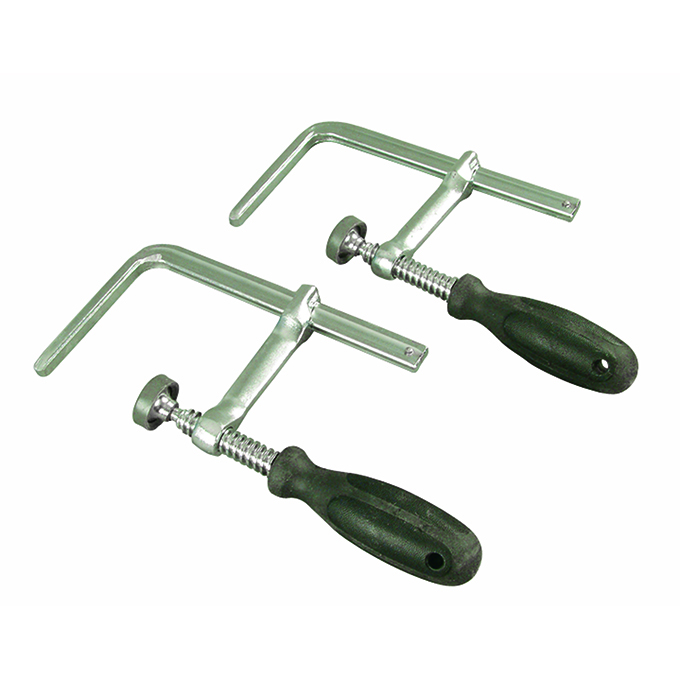

Guide Rail Clamp Set
