AF353

1-3/8" 23 ga Pin Nailer

23-Gauge Pin Nailer


  • Air blower feature cleans material of dust and debris
  • Double trigger design prevents accidental engagement of trigger for maximum operator safety

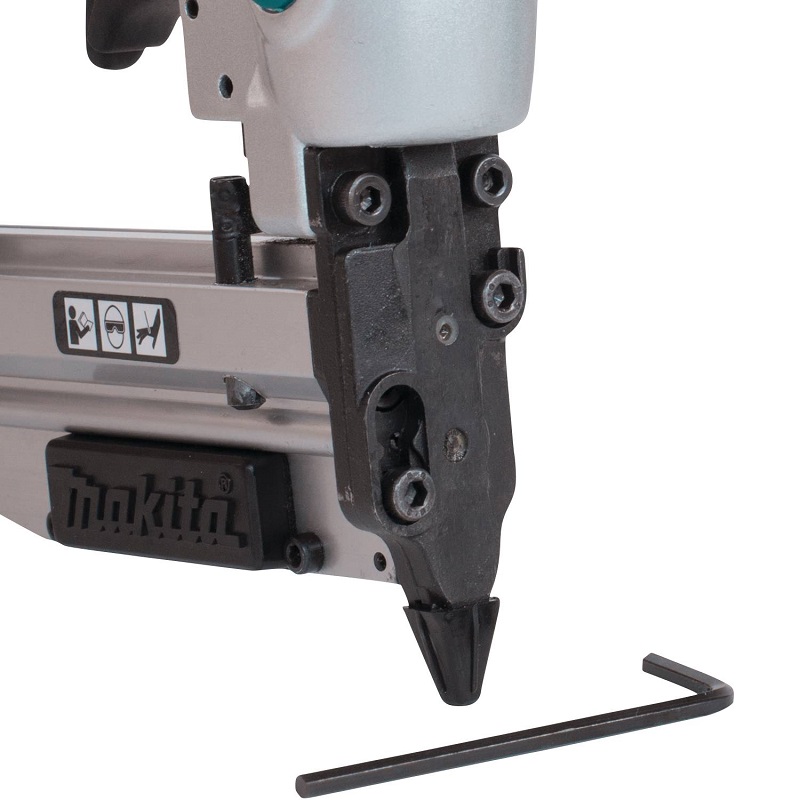

  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin

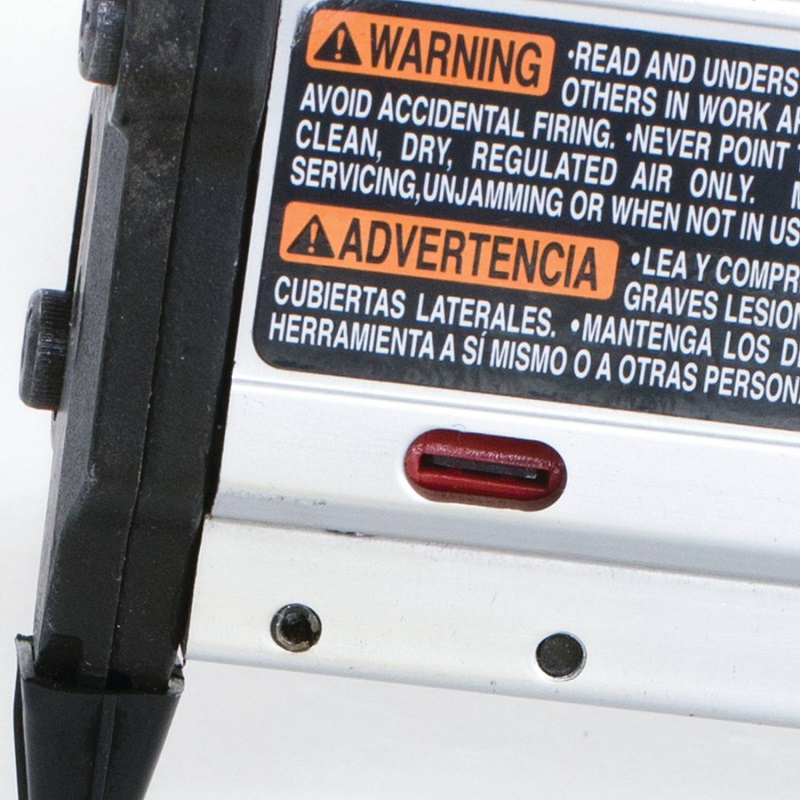

  • Nail view window enables fast identification of remaining nail capacity
  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

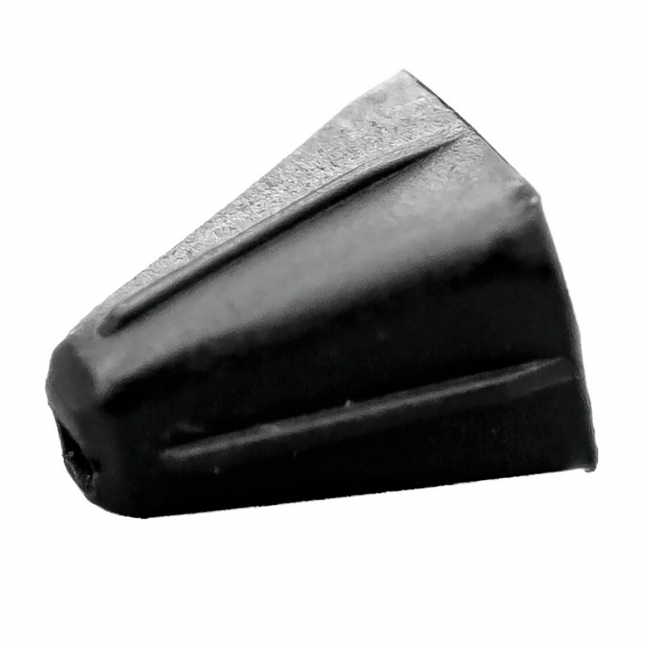

Items Included:Two Nose Adapter (HY00000561), Hex Wrench 3 (HY00000395), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

  • Air blower feature cleans material of dust and debris
  • Double trigger design prevents accidental engagement of trigger for maximum operator safety
  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Nail view window enables fast identification of remaining nail capacity
  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

Items Included: Two Nose Adapter (HY00000561), Hex Wrench 3 (HY00000395), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

Shipping Dimensions (Length x Width x Height) & Weight : 14.96 In. X 13.74 In. X 5.59 In. Weight : 6.28 Lb.

Specifications

Operating Air Pressure 65 - 100 PSIG
Nail Size (23 ga) 5/8" - 1-3/8" (15 - 35 mm)
Nail Type 23 ga Pin Nails
Magazine Capacity 130
Vibration Level 2.5 m/s2
Noise Level 73 dB(A)
Dimensions (L x W x H) 8-3/16" x 2-5/8" x 7-1/2" (208 mm x 66 mm x 191 mm)
Net Weight 2.0 lbs (0.9 kg)
