AF601

2-1/2" 16 ga Straight Finish Nailer

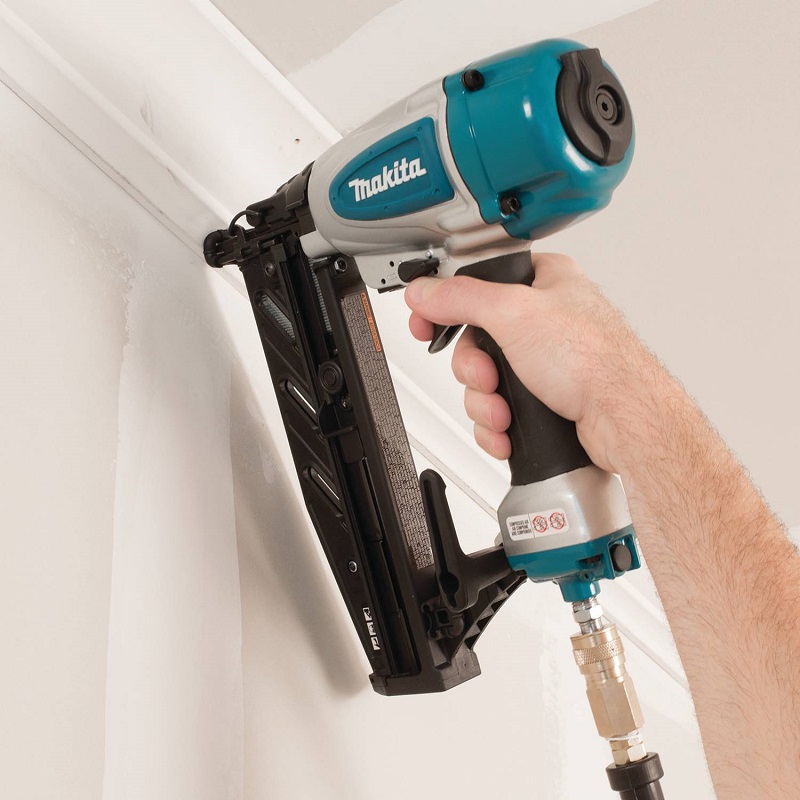

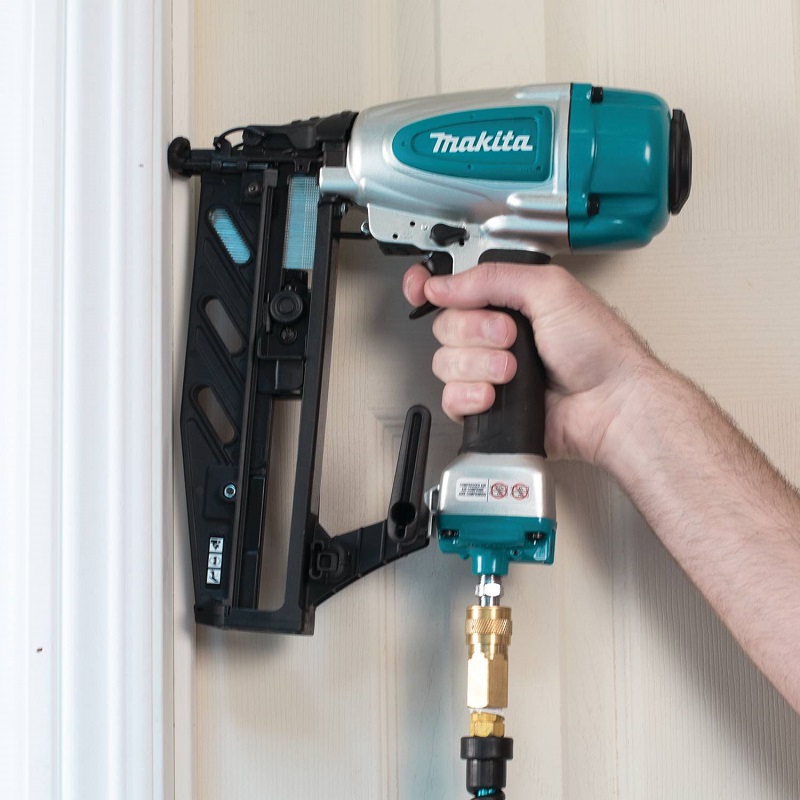

16-Gauge Straight Finish Nailer

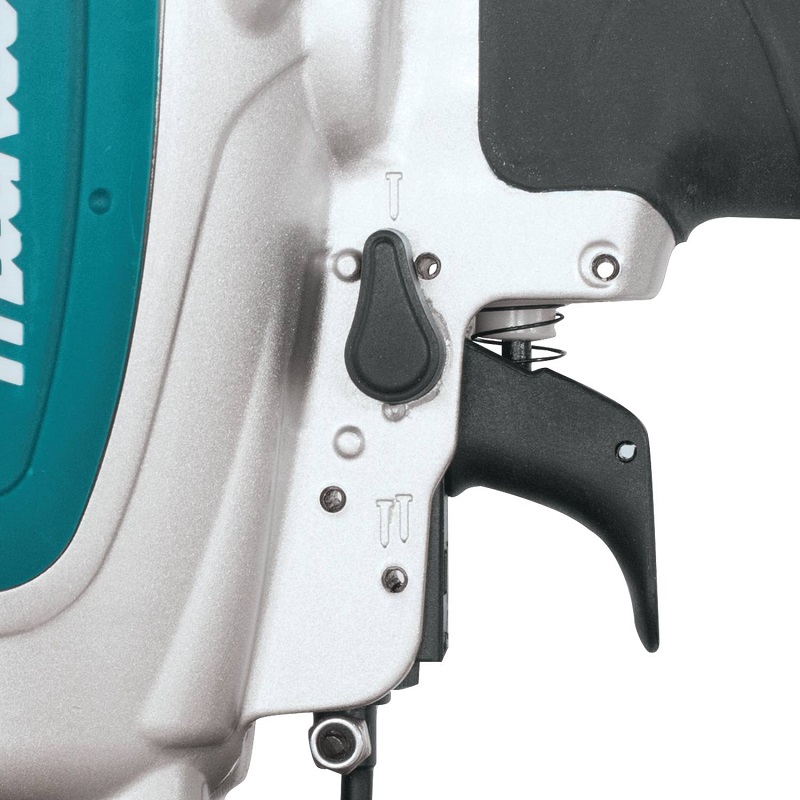

  • 2 mode - sequential & bump fire

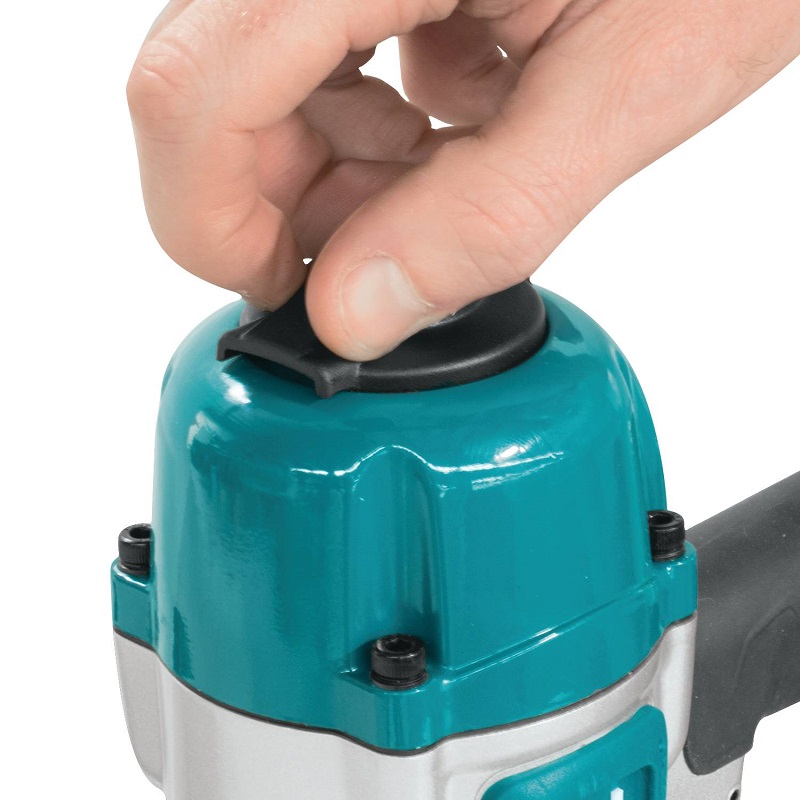

  • 360o exhaust system directs exhaust away from operator
  • Air blower feature cleans material of dust and debris

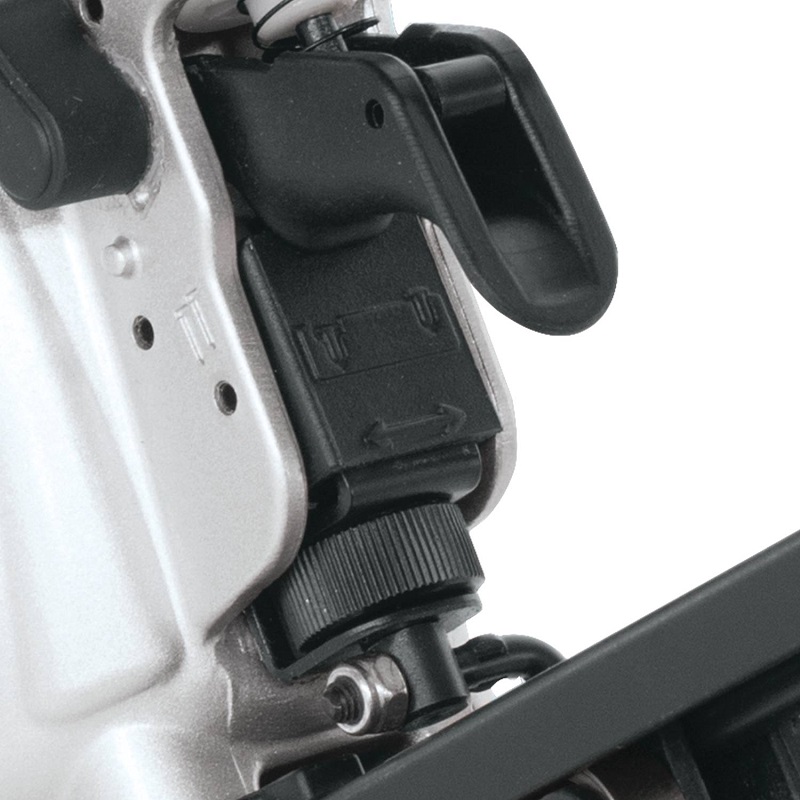

  • Toolless depth adjustment for quick and easy adjustment

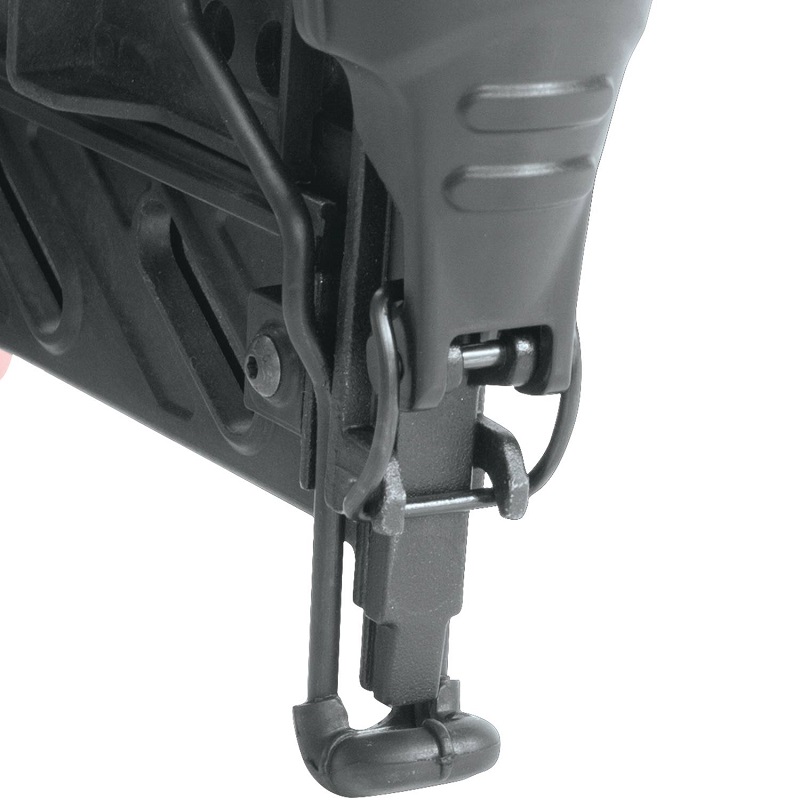

  • Quick release toolless nose enables easy clearing of jammed nails
  • Contact arm design prevents accidental engagement of trigger for maximum operator safety
  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Nail view window enables fast identification of remaining nail capacity
  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

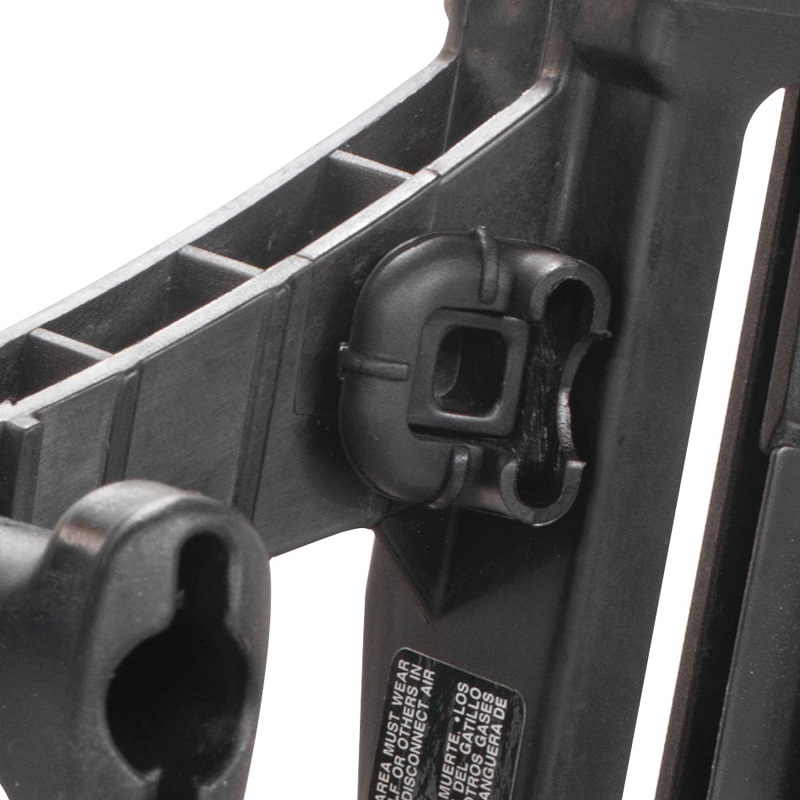

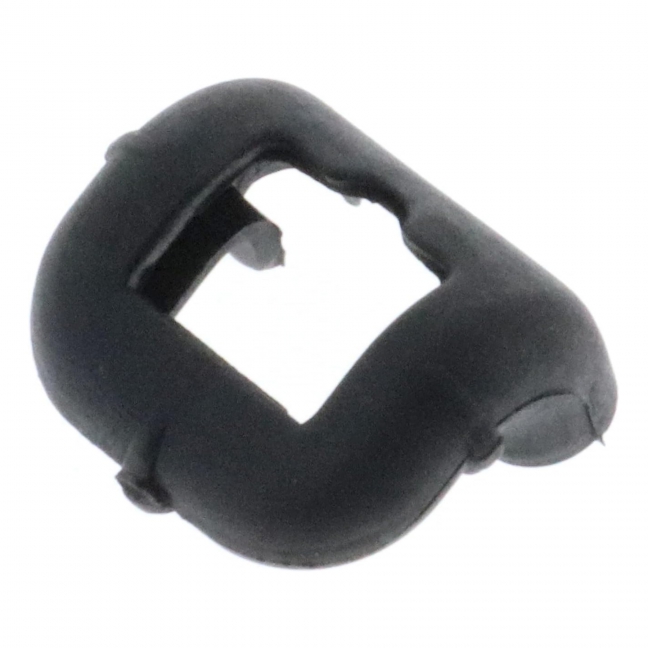

Items Included:Two Nose Adapter (HY00000560), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

  • 2 mode - sequential & bump fire
  • 360o exhaust system directs exhaust away from operator
  • Air blower feature cleans material of dust and debris
  • Toolless depth adjustment for quick and easy adjustment
  • Quick release toolless nose enables easy clearing of jammed nails
  • Contact arm design prevents accidental engagement of trigger for maximum operator safety
  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Nail view window enables fast identification of remaining nail capacity
  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

Items Included: Two Nose Adapter (HY00000560), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

Shipping Dimensions (Length x Width x Height) & Weight : 15.79 In. X 13.11 In. X 5.04 In. Weight : 9.26 Lb.

Specifications

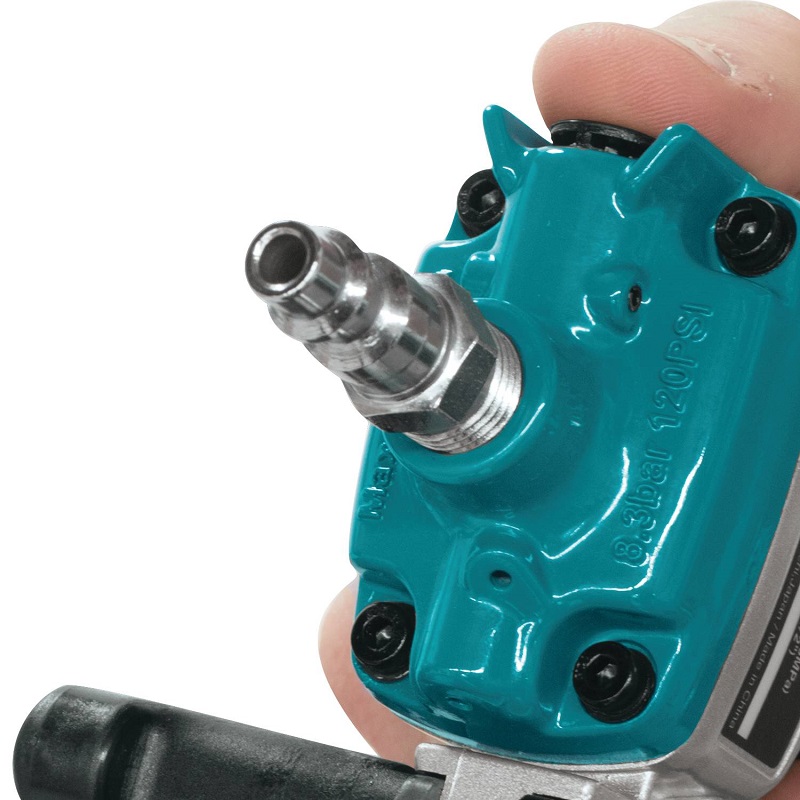

Operating Air Pressure 70 - 120 PSIG
Nail Size (16 ga) 1" - 2-1/2" (25 - 64 mm)
Nail Type 16 ga Finishing Nails
Magazine Capacity 100
Vibration Level 3.0 m/s2
Noise Level 84 dB(A)
Dimensions (L x W x H) 12" x 3-3/4" x 11-3/4" (304 mm x 95 mm x 297 mm)
Net Weight 3.8 lbs (1.7 kg)
