AF635

2-1/2" 15 ga Angled Finish Nailer

15-Gauge Finish Nailer

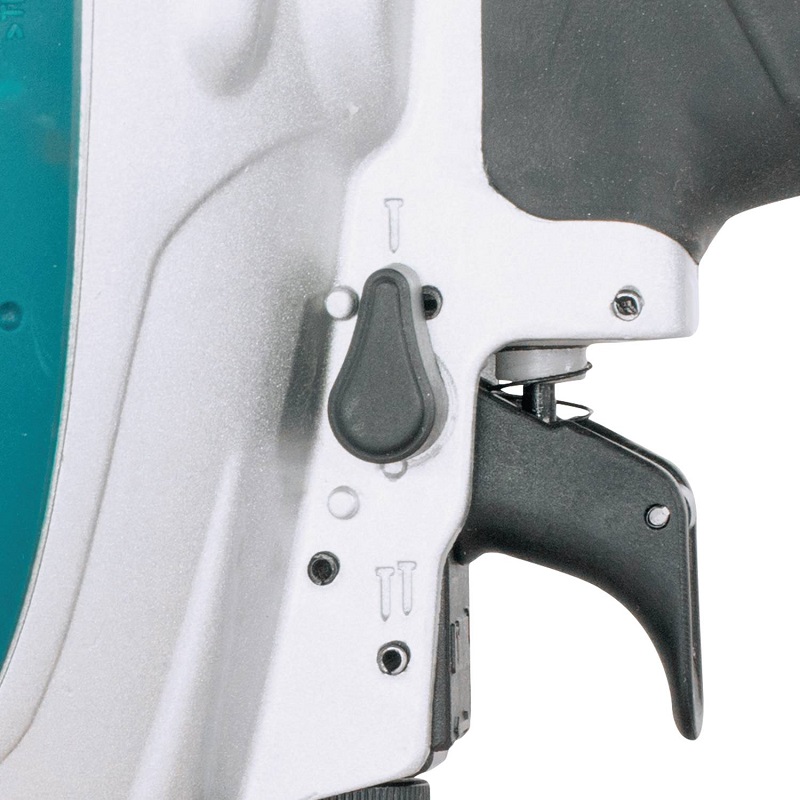

  • 2 mode - sequential & bump fire

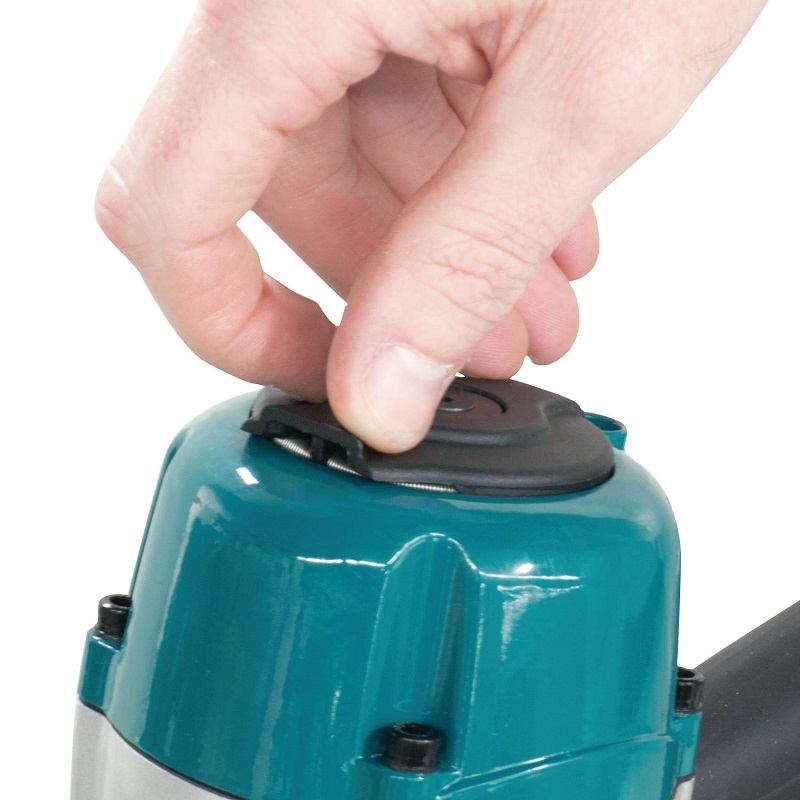

  • 360o exhaust system directs exhaust away from operator
  • Air blower feature cleans material of dust and debris

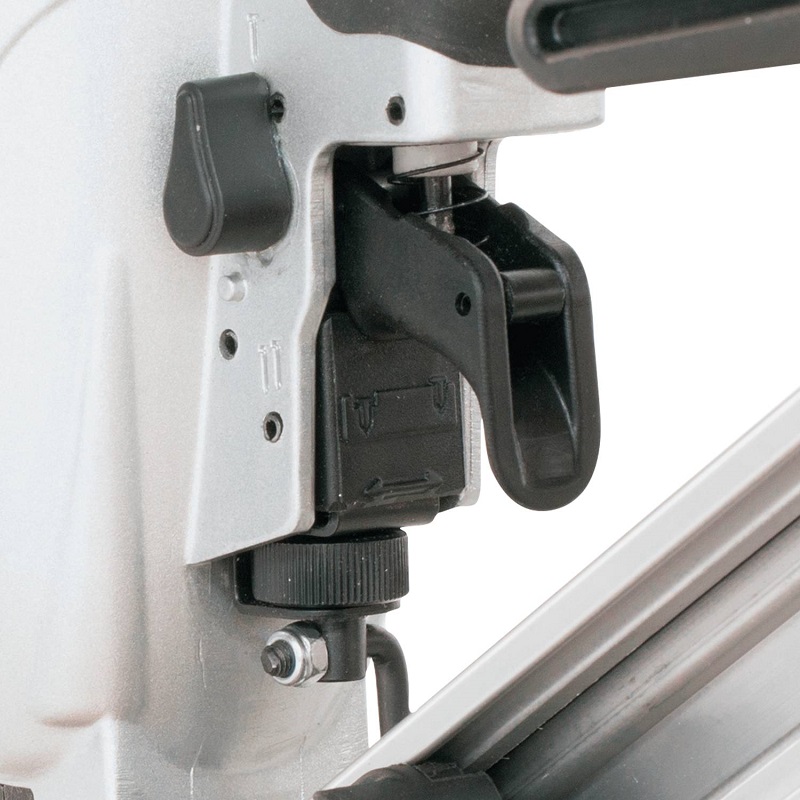

  • Toolless depth adjustment for quick and easy adjustment

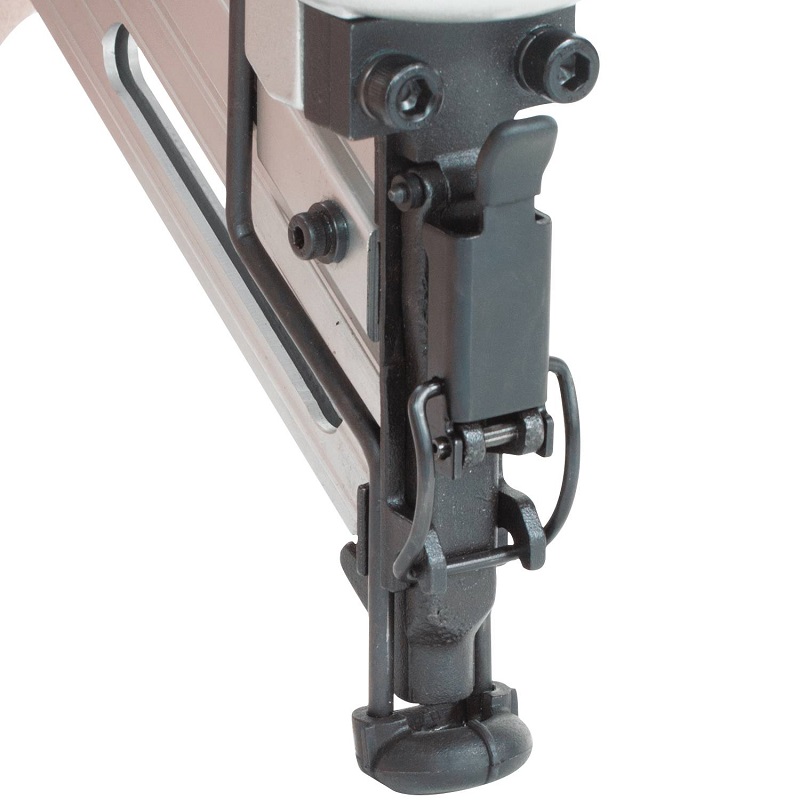

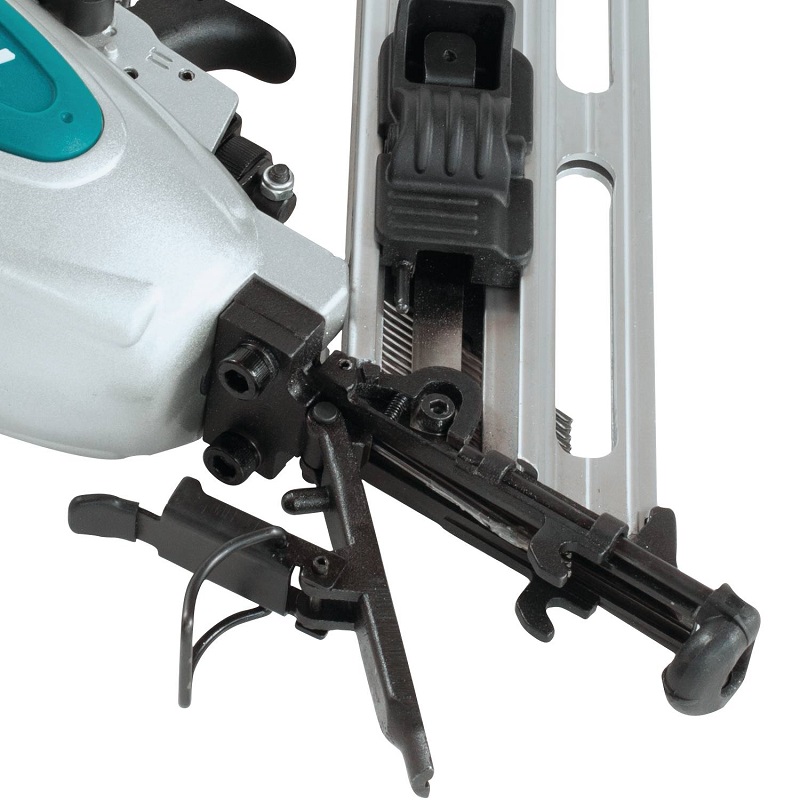

  • Quick release toolless nose enables easy clearing of jammed nails
  • Contact arm design prevents accidental engagement of trigger for maximum operator safety
  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin

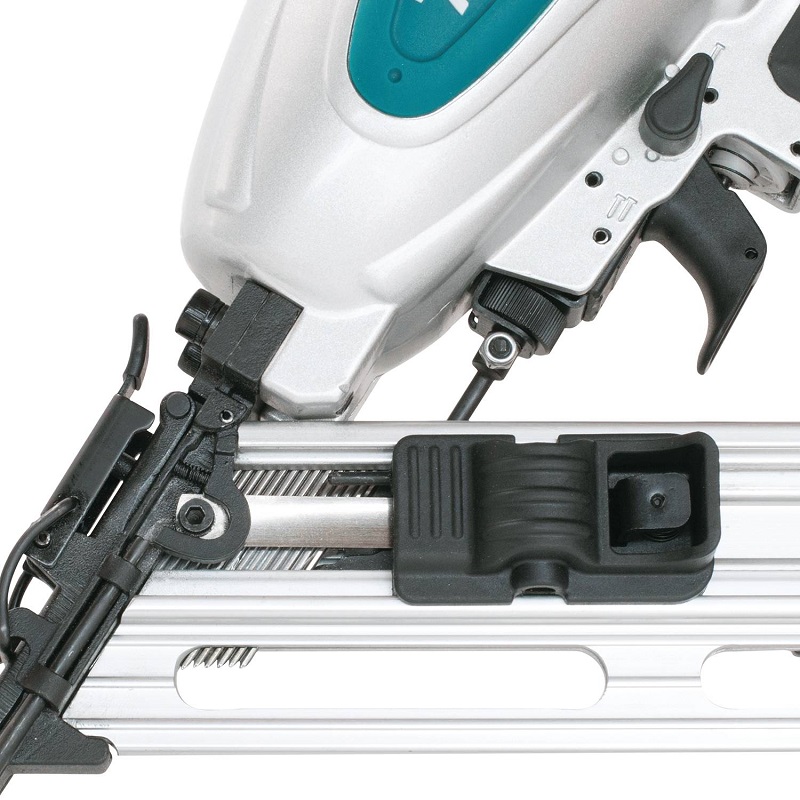

  • Nail view window enables fast identification of remaining nail capacity

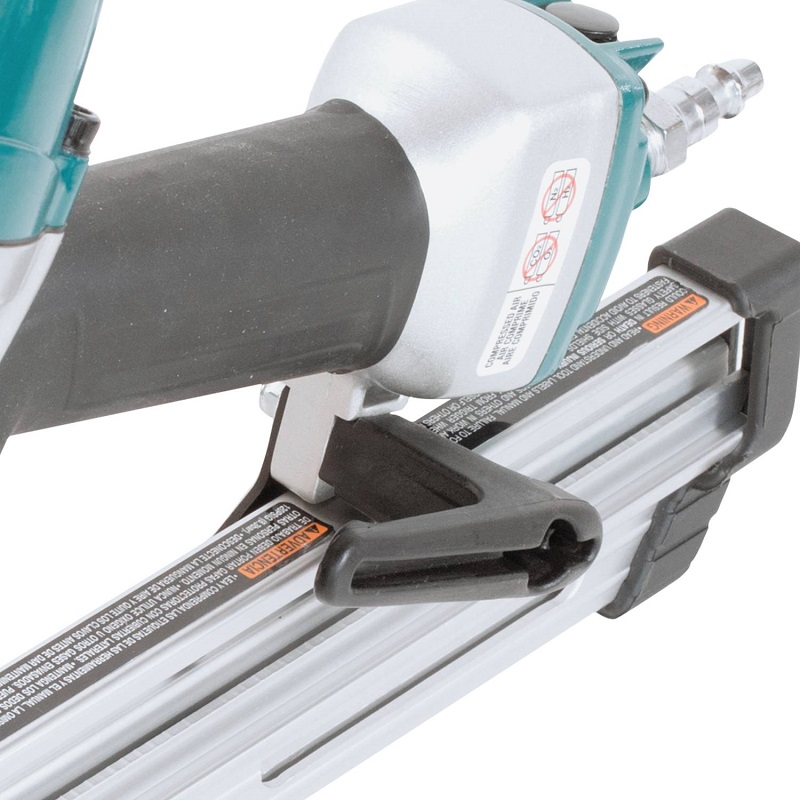

  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

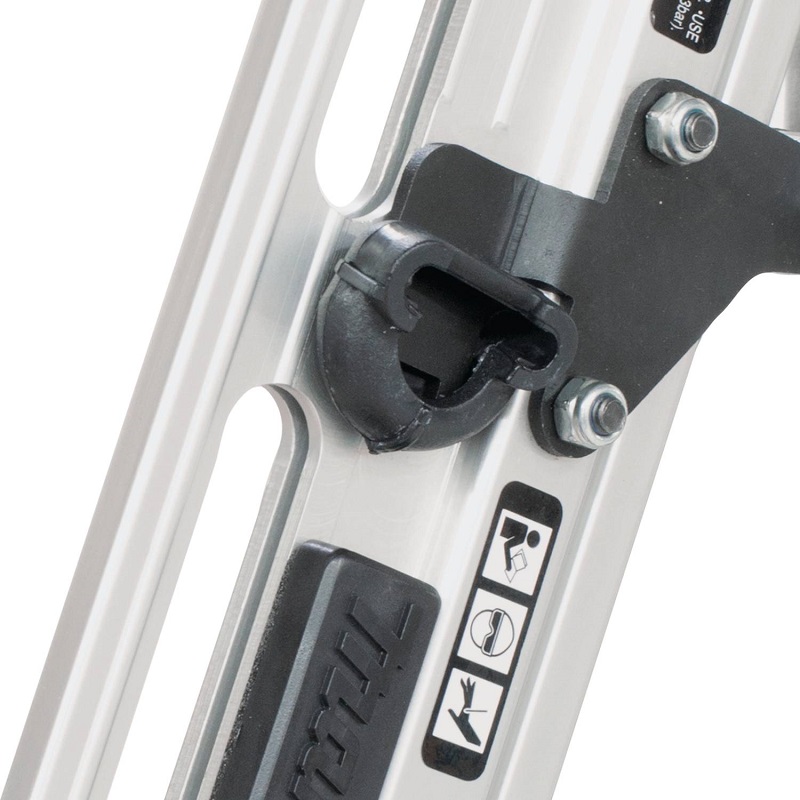

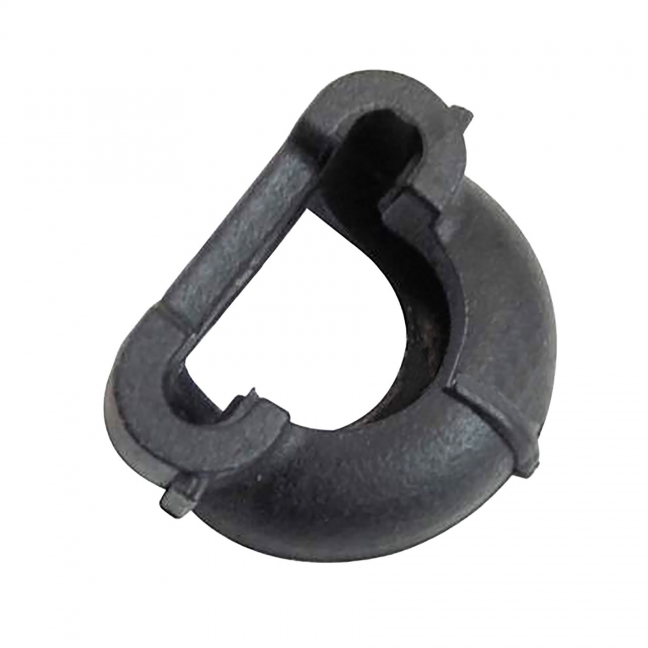

Items Included:Two Nose Adapter (HY00000422), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

  • 2 mode - sequential & bump fire
  • 360o exhaust system directs exhaust away from operator
  • Air blower feature cleans material of dust and debris
  • Toolless depth adjustment for quick and easy adjustment
  • Quick release toolless nose enables easy clearing of jammed nails
  • Contact arm design prevents accidental engagement of trigger for maximum operator safety
  • High visibility slim nose tip enables precise positioning of nails
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Nail view window enables fast identification of remaining nail capacity
  • Protective rubber bumpers guard housing against wear and damage
  • Soft rubber anti-slip ribbed grip for vibration absorption and comfortable operation

Items Included: Two Nose Adapter (HY00000422), Oil Supply (181434-7), Plastic Carrying Case, Safety Goggles

Shipping Dimensions (Length x Width x Height) & Weight : 13.43 In. X 12.13 In. X 4.49 In. Weight : 9.55 Lb.

Specifications

Operating Air Pressure 70 - 120 PSIG
Nail Size (15 ga) 1-1/4" - 2-1/2" (32 - 64 mm)
Nail Type 15 ga Finishing Nails
Magazine Capacity 100
Vibration Level 3.5 m/s2
Noise Level 84 dB(A)
Dimensions (L x W x H) 13-3/8" x 3-15/16" x 12-1/8" (339 mm x 100 mm x 309 mm)
Net Weight 4.0 lbs (1.8 kg)
