DDF484Z

18V LXT Brushless 1/2" Drill-Driver, Tool Only

Features Brushless DC Motor

Variable 2-Speed, Reversible

LXT Technology LXT Technology LXT Technology 18V Battery
  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

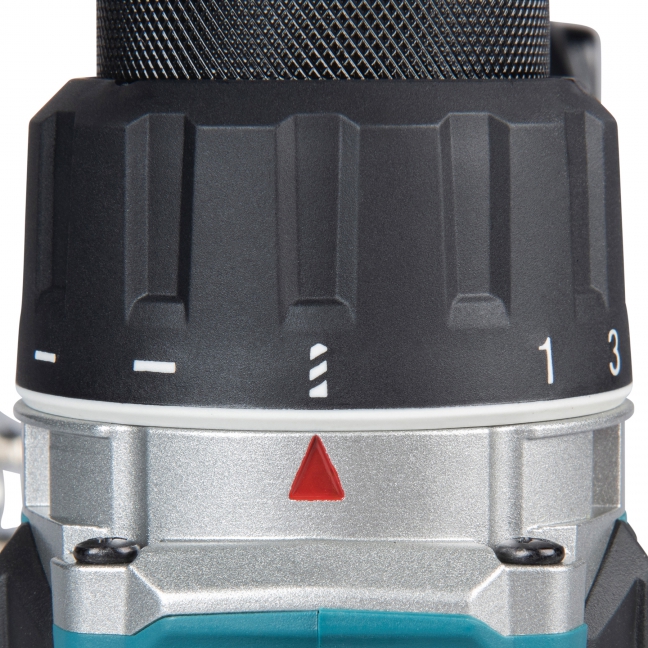

  • 21 clutch settings deliver up to 530 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 6-3/4" long)

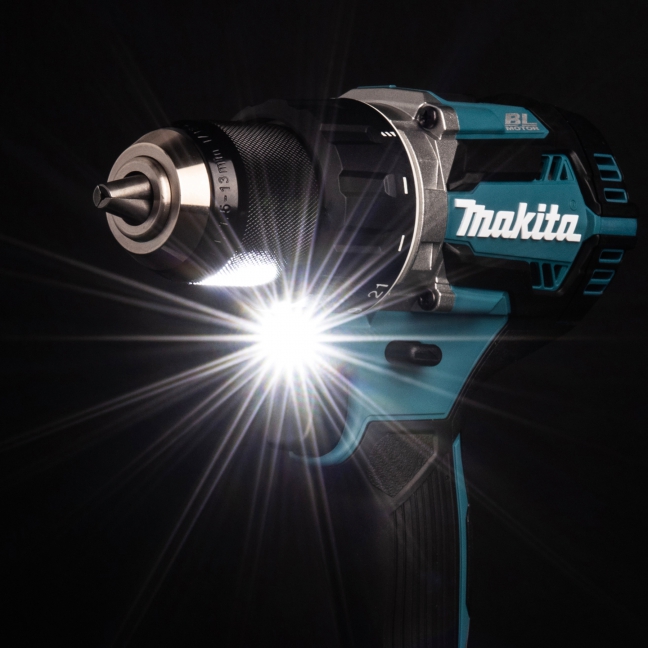

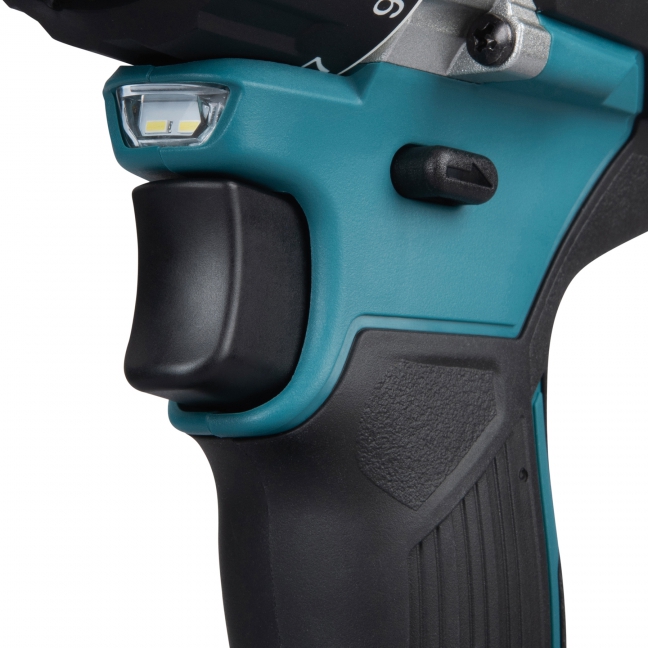

  • Dual LED job lights with pre-glow and afterglow features

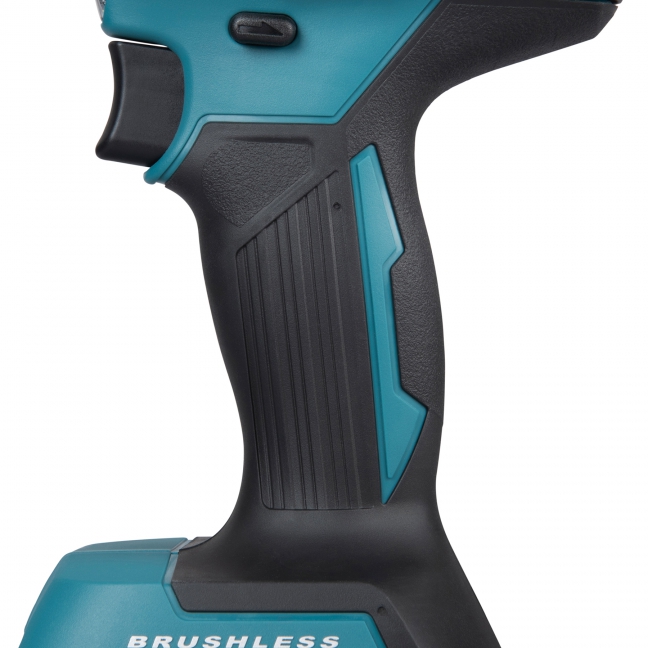

  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

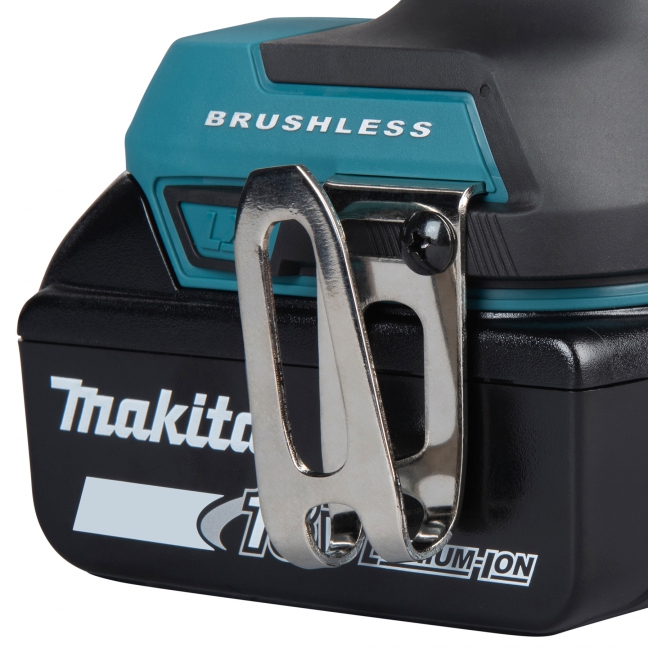

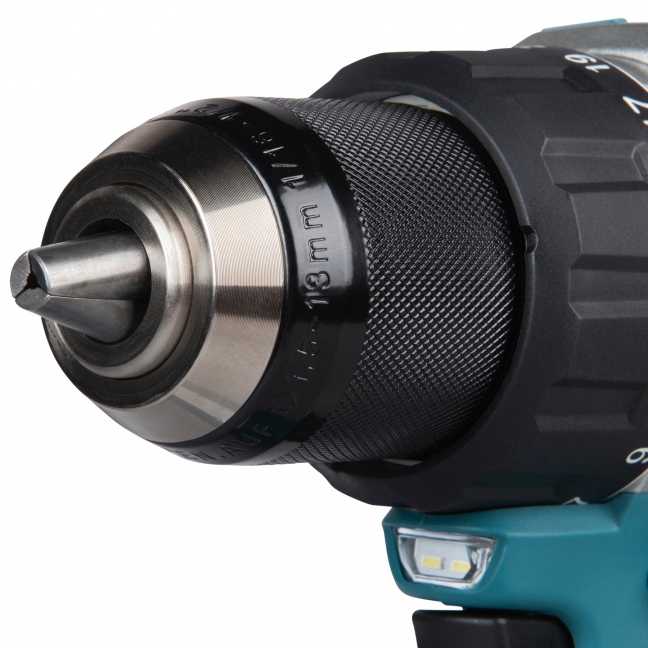

Items Included:Tool Only. Batteries and Charger Sold Separately. 1/2" Keyless Drill Chuck (766027-7), Double Ended Bit 2-45 (784637-8), Hook (346449-3)

  • eXtreme Protection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • 21 clutch settings deliver up to 530 in. lbs. of torque
  • All metal gears for more efficient power transmission
  • Ultra-compact design (only 6-3/4" long)
  • Dual LED job lights with pre-glow and afterglow features
  • Improved ergonomic soft rubber grip design for vibration absorption and comfortable operation features re-contoured rear grip portion and ribbed grip for improved hold

Items Included: Tool Only. Batteries and Charger Sold Separately. 1/2" Keyless Drill Chuck (766027-7), Double Ended Bit 2-45 (784637-8), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.02 In. X 9.17 In. X 3.58 In. Weight : 3.38 Lb.

Specifications

Battery Capacities: 18V LXT
Capacities:

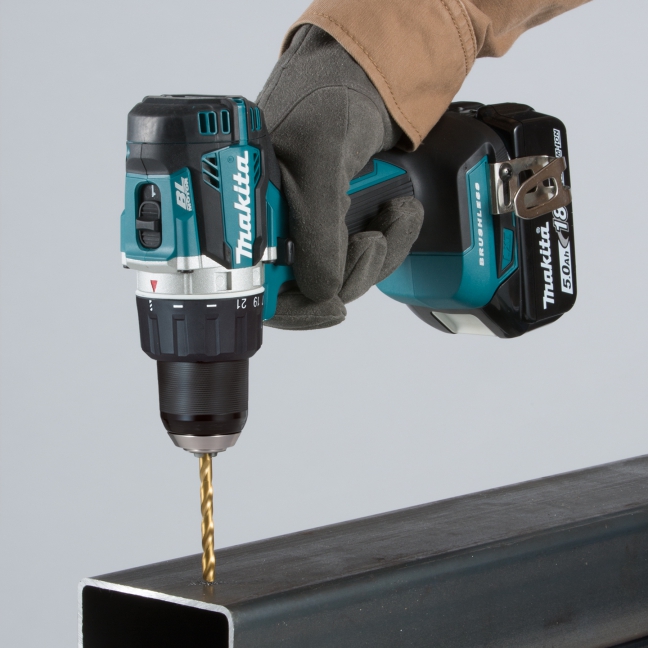

Steel 1/2" (13 mm)

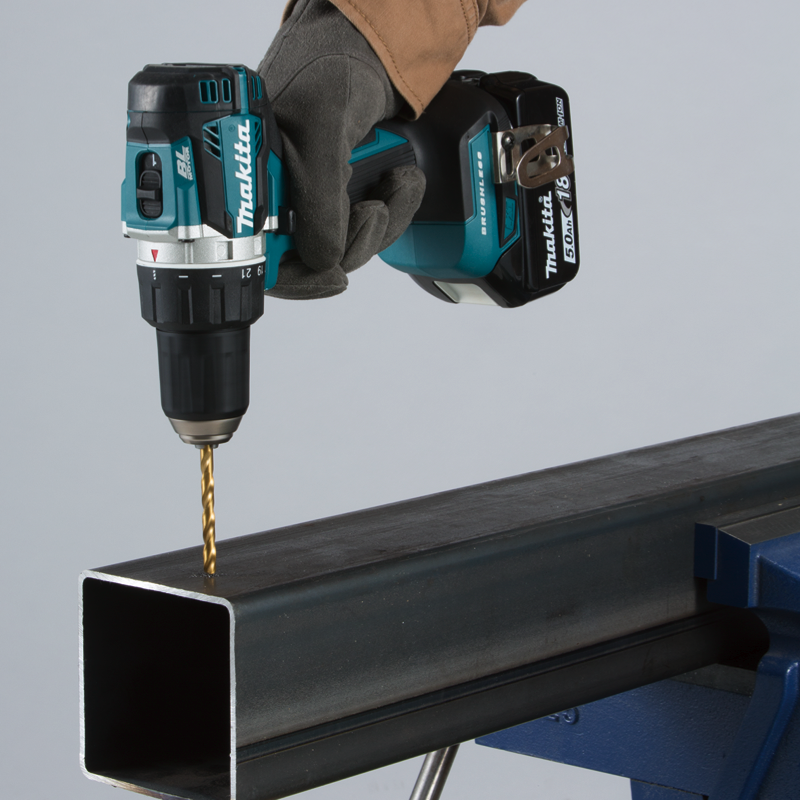

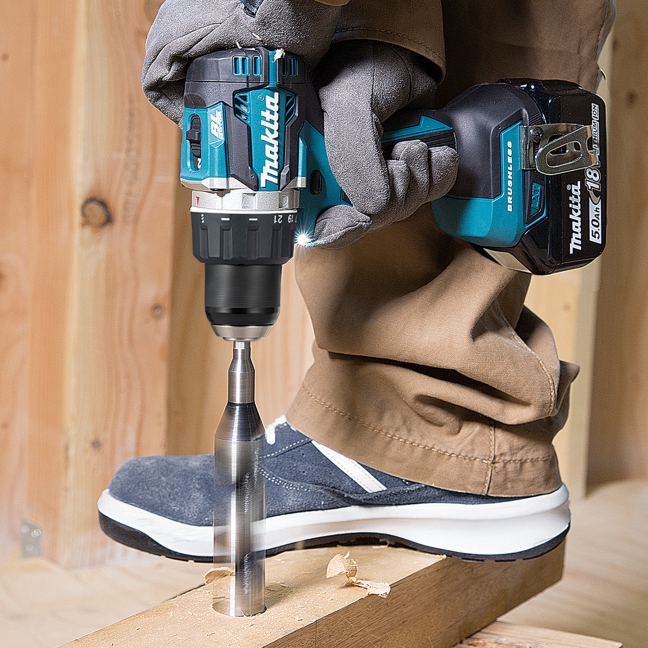

Wood 1-1/2" (38 mm)
No Load Speed:
Low 0 - 500 RPM
High 0 - 2,000 RPM
Maximum Torque  530 in. lbs (60 Nm)
Vibration Level 2.5 m/s2
Noise Level 76 dB(A)
Overall Length 6-3/4" (172 mm)
Net Weight 2.7 lbs (1.2 kg)
