TD022DS

7.2V Li-Ion 1/4" Impact Driver, 1.5Ah x1Kit

Compact And Lightweight Design With Precision Control And High Fastening Torque

Variable Speed, Reversible, Electric Brake

LXT Technology
  • Multi-function variable speed rotary switch allows operators to adjust driving speed and direction simultaneously for precise fastening applications
  • Switch position enables easy access for left or right handed users
  • Lock-off button prevents accidental start up
  • Adjustable handle with enhanced hinge mechanism for operational versatility
  • LED job light with pre-glow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

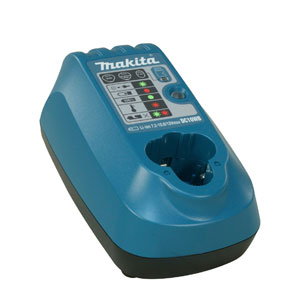

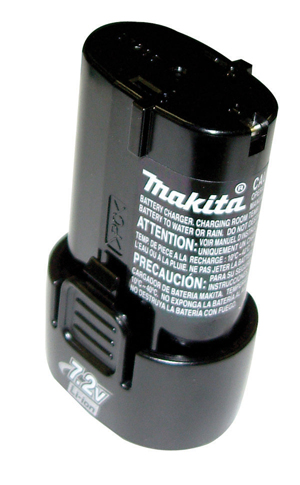

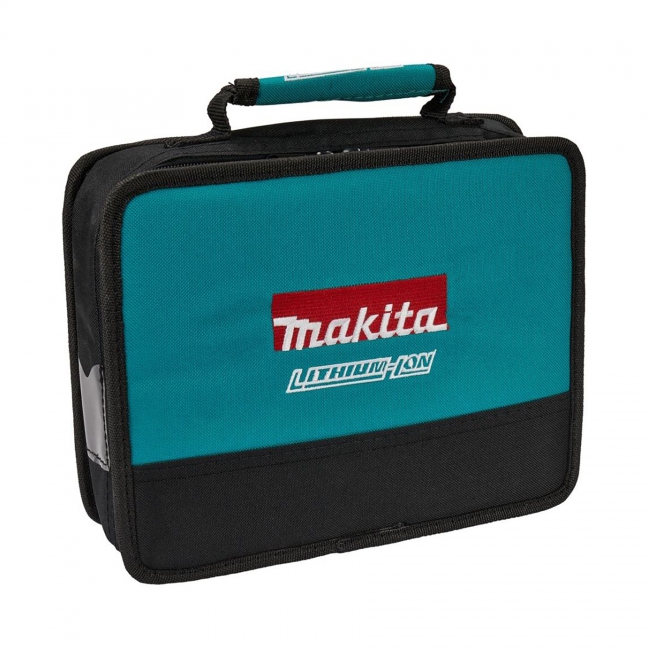

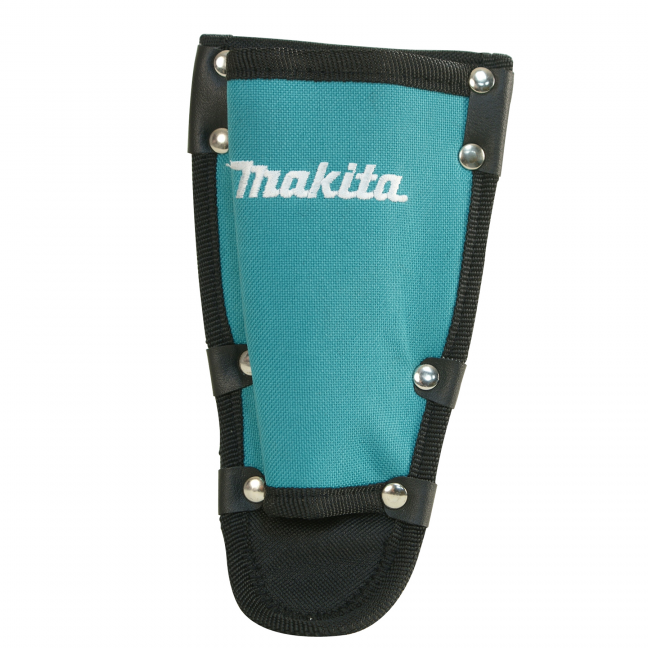

Items Included:7.2V Li-Ion (1.5 Ah) Battery BL0715 (198001-1), Charger (DC10WB), Holster (168435-2), Phillips Bit 2-50 (784244-7), Tool Bag (831277-4)

  • Multi-function variable speed rotary switch allows operators to adjust driving speed and direction simultaneously for precise fastening applications
  • Switch position enables easy access for left or right handed users
  • Lock-off button prevents accidental start up
  • Adjustable handle with enhanced hinge mechanism for operational versatility
  • LED job light with pre-glow feature
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: 7.2V Li-Ion (1.5 Ah) Battery BL0715 (198001-1), Charger (DC10WB), Holster (168435-2), Phillips Bit 2-50 (784244-7), Tool Bag (831277-4)

Shipping Dimensions (Length x Width x Height) & Weight : 9.61 In. X 12.09 In. X 3.82 In. Weight : 4.3 Lb.

Specifications

Battery Capacities 7.2V Li-Ion
Hex Shank 1/4"
Impacts Per Minute 0 - 3,000 IPM
No Load Speed 0 - 2,450 RPM
Maximum Torque  220 in. lbs (25 Nm)
Capacities:
Machine Screw 1/8" - 5/16" (M3 - M8)
Standard Bolt 1/8" - 5/16" (M3 - M8)
High Tensile Bolt 1/8" - 1/4" (M3 - M6)
Vibration Level 7.0 m/s2
Noise Level 85 dB(A)
Overall Length 11-1/8" (282 mm)
Net Weight 1.2 lbs (0.56 kg)
