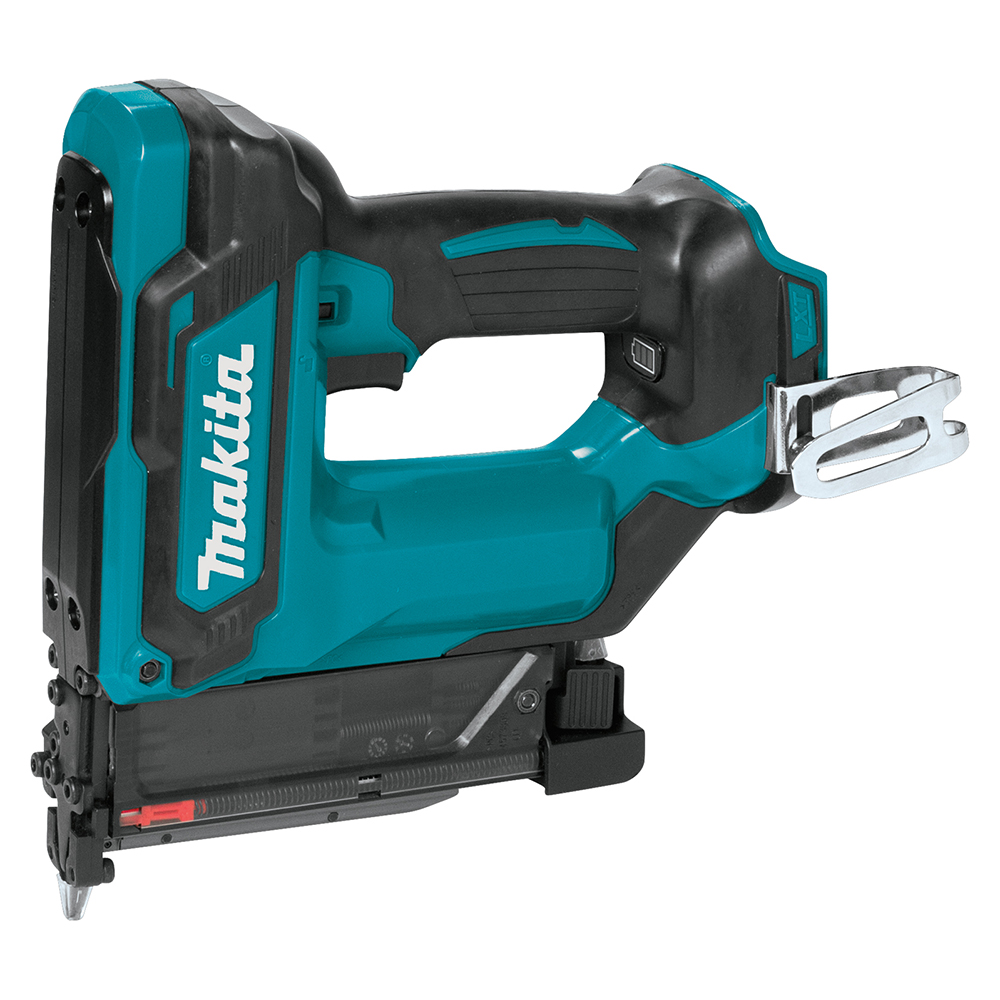

DPT353Z

18V LXT 1-3/8" 23 ga Pin Nailer, Tool Only

Hose-Free Maneuverability And Control With Low Reaction Force


LXT Technology 18V Battery

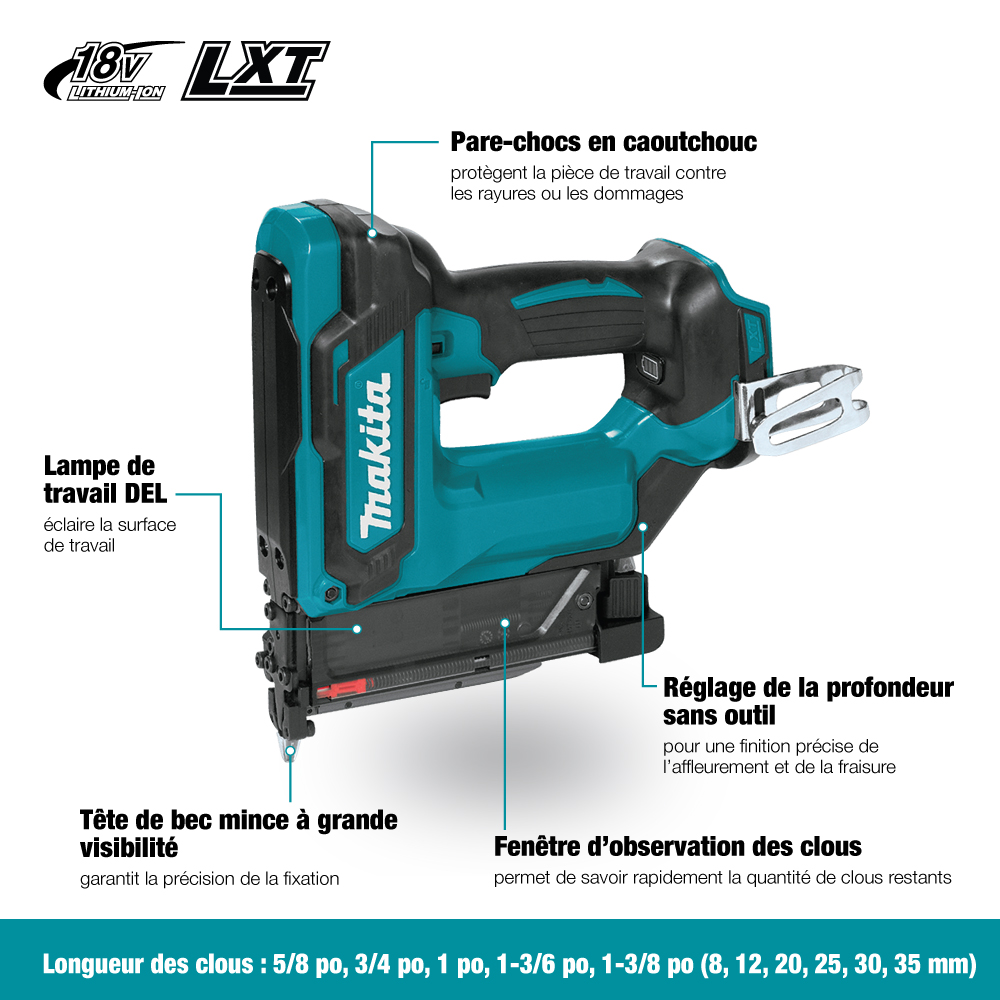

  • Low reaction force mechanism for easy, high-quality nailing of long pins in hard density materials

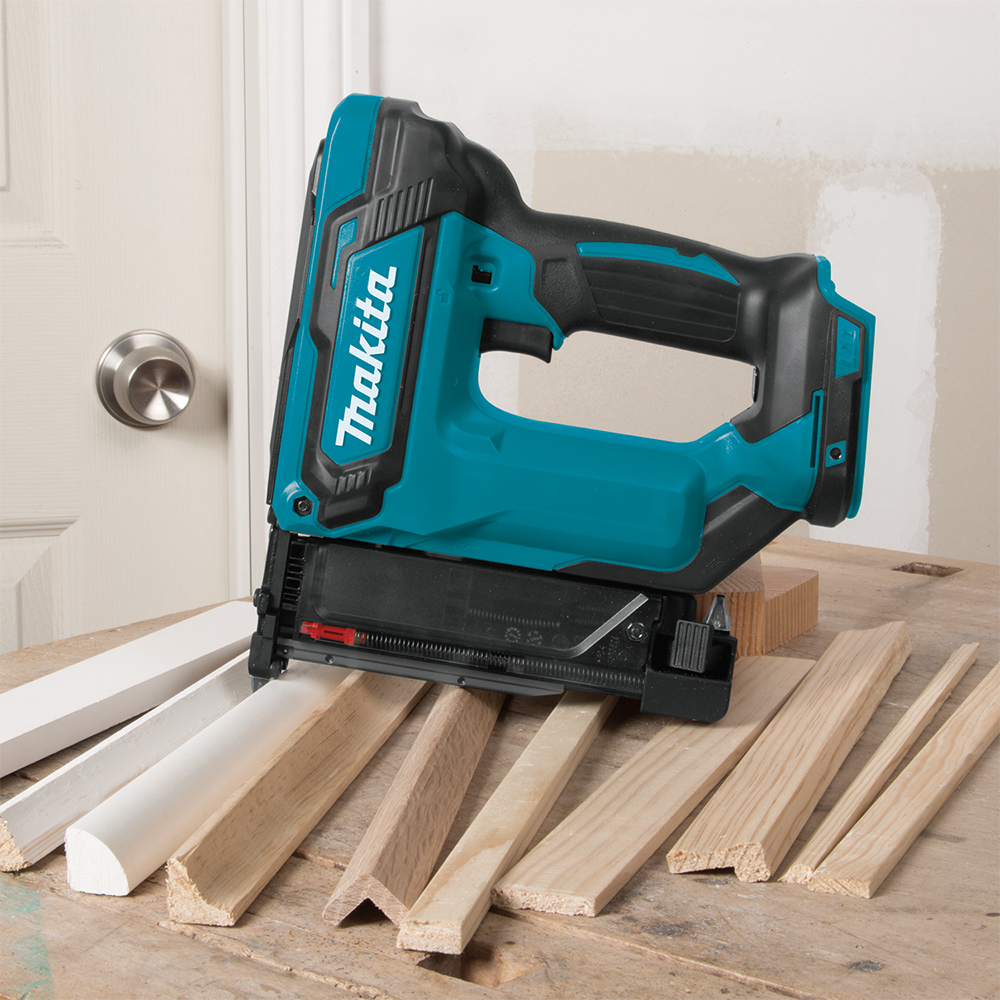

  • Slim contact tip design enables precise fastening in wood trim, crown moulding, baseboard, cabinetry and other woodworking applications!
  • On-board depth control dial for quick and easy adjustment
  • Trigger lock-off feature prevents accidental firing for increased operator safety
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life

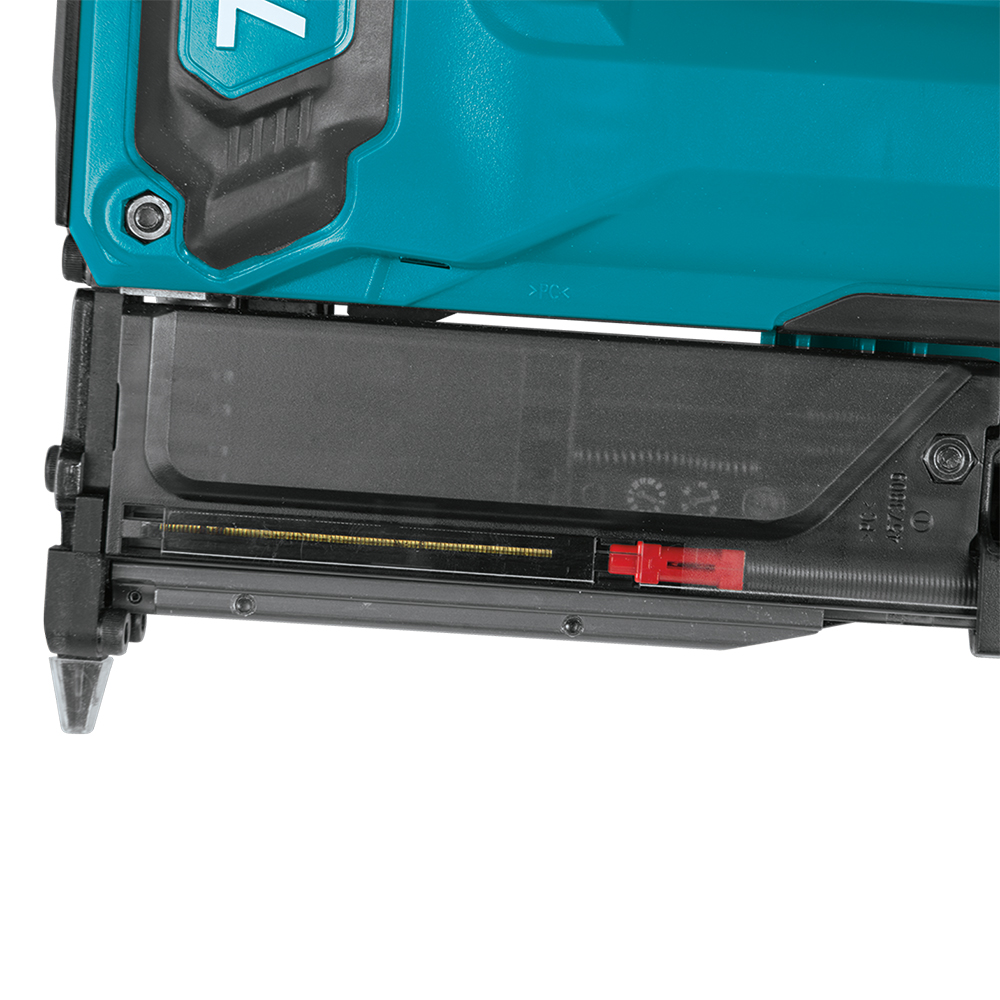

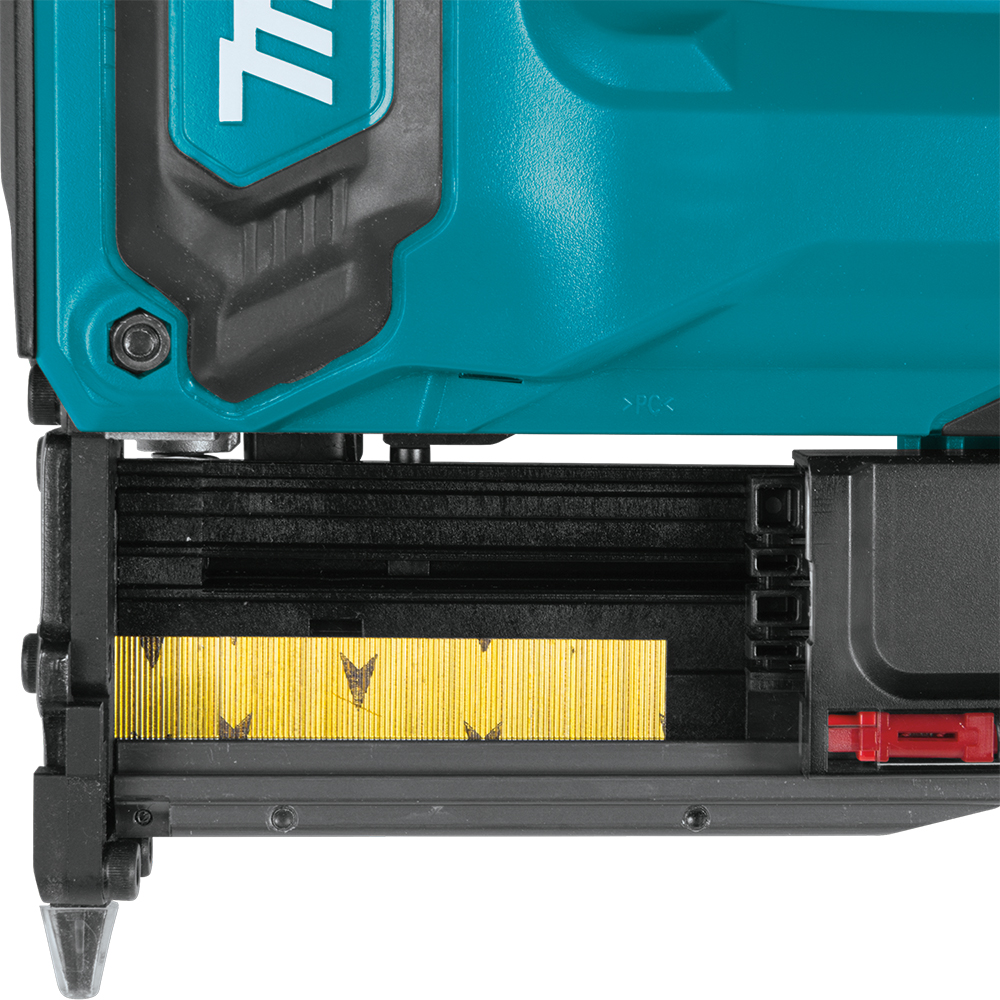

  • Magazine window enables fast identification of remaining pin capacity

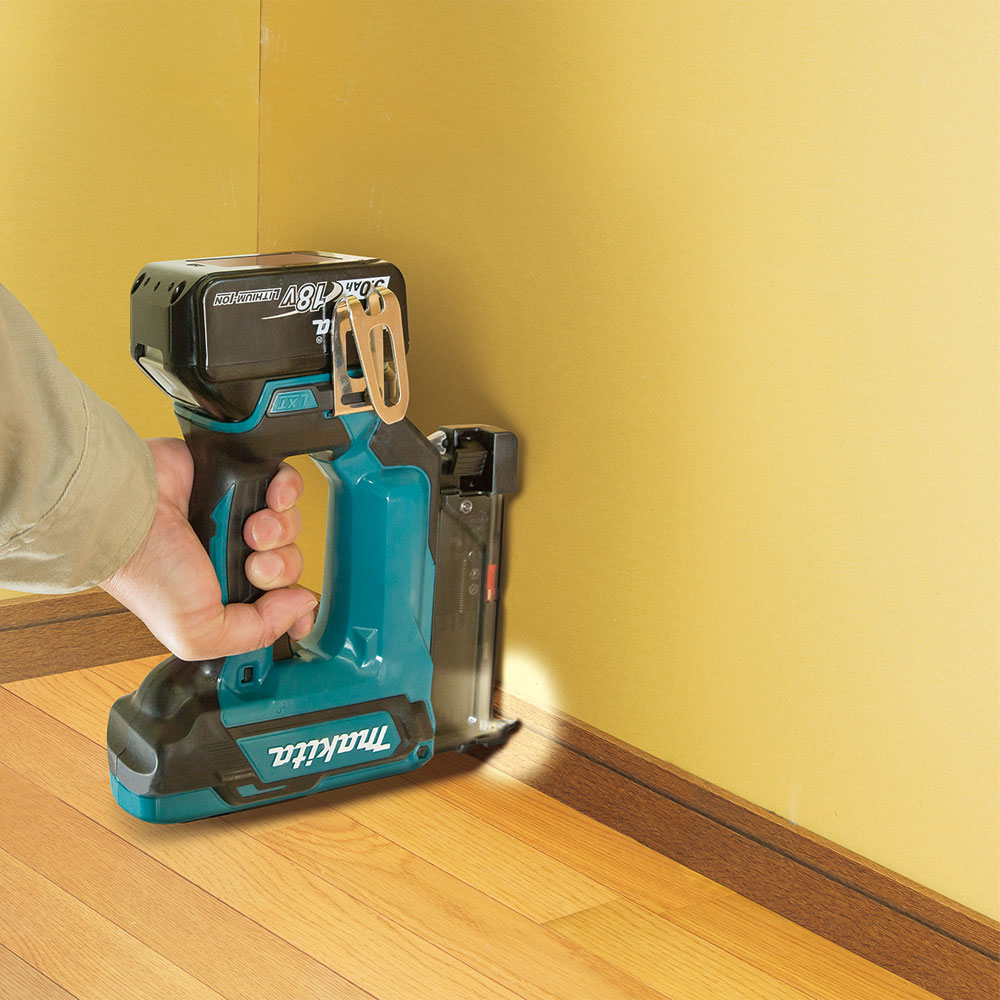

  • LED job light illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

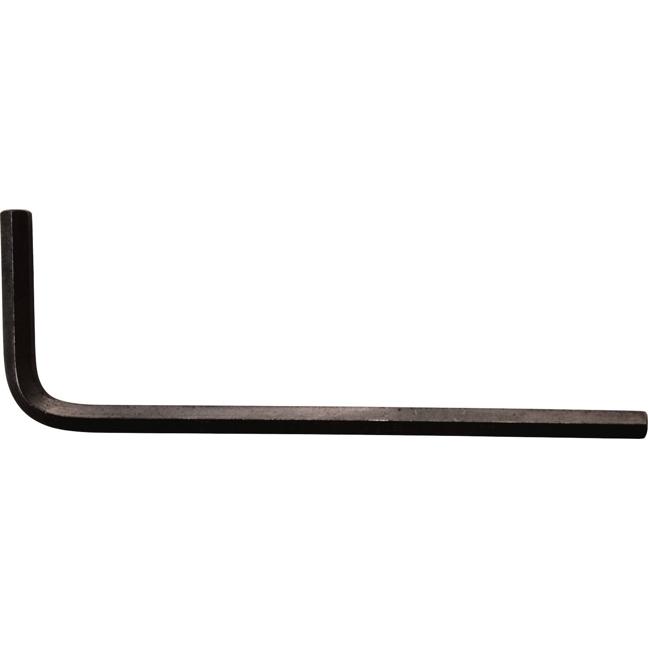

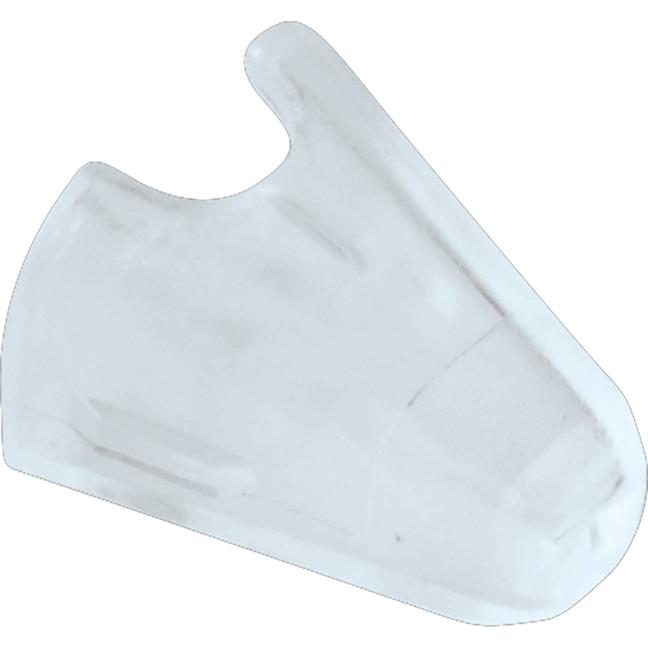

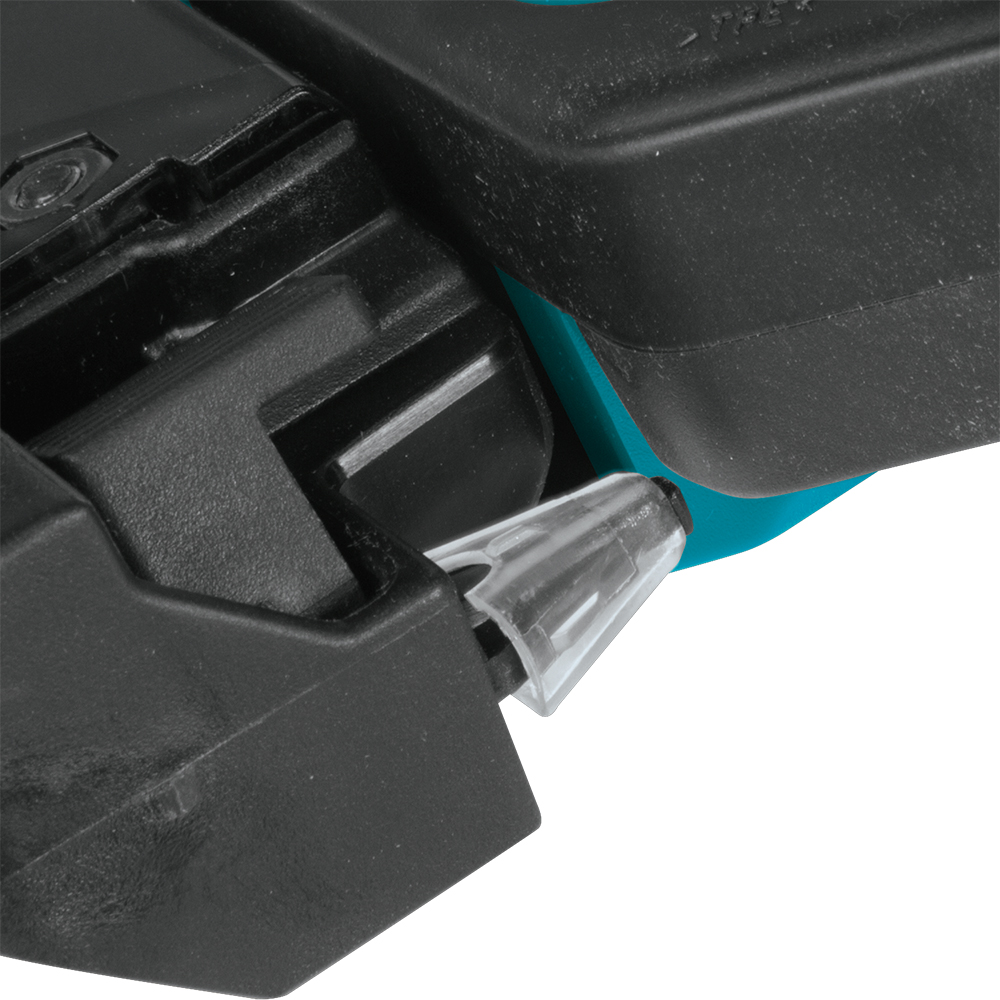

Items Included:Tool Only. Batteries and Charger Sold Separately. Two Nose Adapter (422372-7), Hex Wrench 3 (783201-2), Hook (346449-3)

  • Low reaction force mechanism for easy, high-quality nailing of long pins in hard density materials
  • Slim contact tip design enables precise fastening in wood trim, crown moulding, baseboard, cabinetry and other woodworking applications!
  • On-board depth control dial for quick and easy adjustment
  • Trigger lock-off feature prevents accidental firing for increased operator safety
  • Anti-dry fire mechanism prevents added wear on drive pin
  • Battery protection system provides over-discharge, temperature and circuit protection for enhanced performance, battery cycle life and overall battery life
  • Magazine window enables fast identification of remaining pin capacity
  • LED job light illuminates work area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Two Nose Adapter (422372-7), Hex Wrench 3 (783201-2), Hook (346449-3)

Shipping Dimensions (Length x Width x Height) & Weight : 9.21 In. X 11.42 In. X 3.39 In. Weight : 4.41 Lb.

Specifications

Battery Capacities: 18V LXT
Magazine Capacities 100 nails
Gauge 23 ga
Pin Length 5/8", 11-16", 1", 1-3/16", 1-3/8" (15, 18, 25, 30, 35 mm)
Vibration Level 2.5 m/s2
Noise Level 76 dB(A)
Overall Length 10-1/8" (257 mm)
Net Weight 3.6 lbs (1.6 kg)
