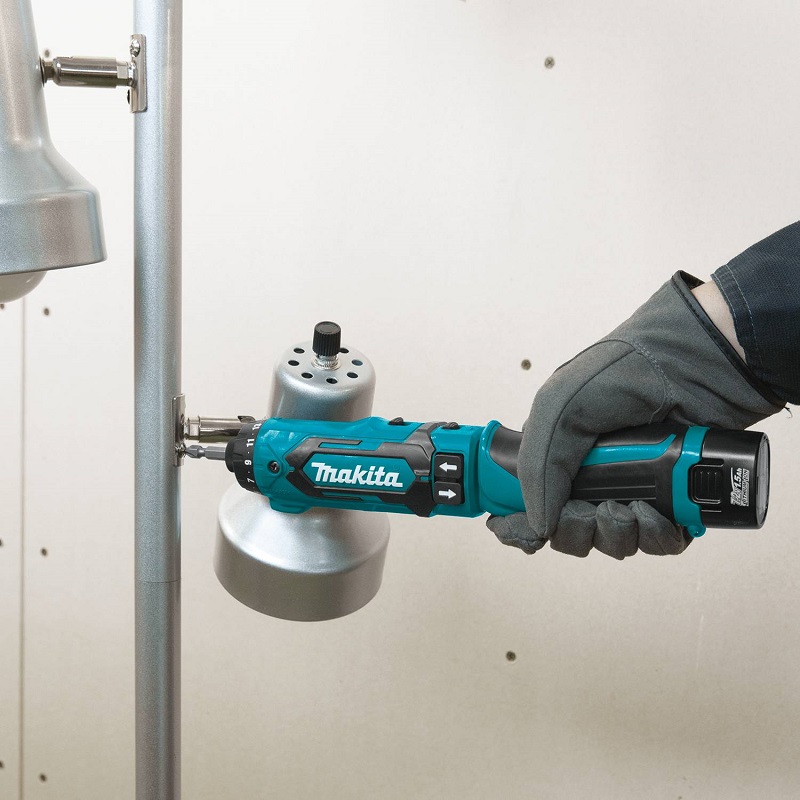

DF012DSE

7.2V Li-Ion 1/4" Hex Drill-Driver, 1.5Ah x2Kit

Compact And Lightweight Design With Precision Control

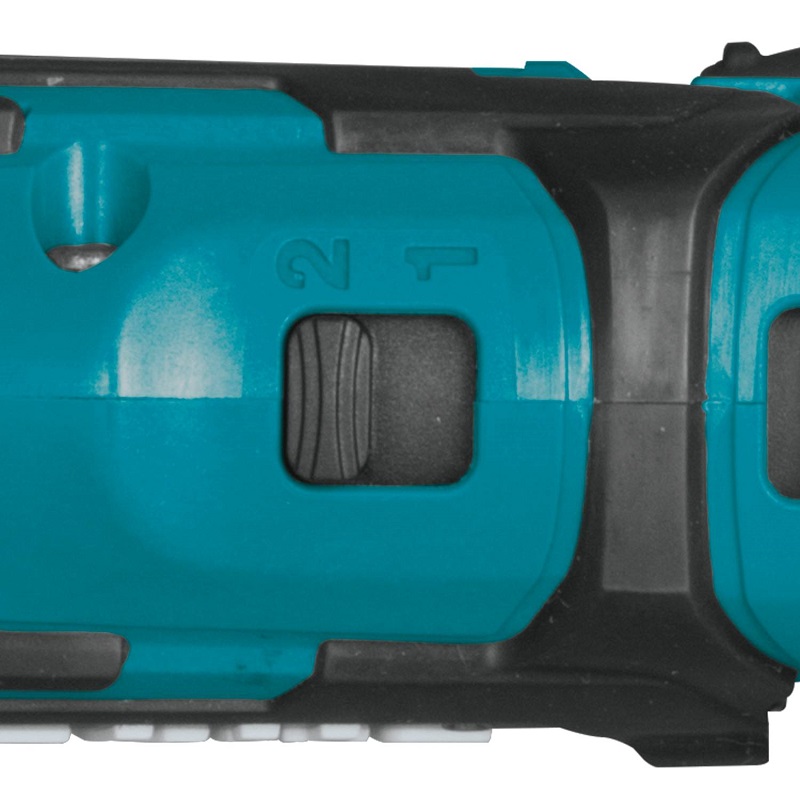

Variable 2-Speed, Reversible

LXT Technology
  • Auto stop system indicates battery power reduction and stops operation when battery reaches minimal capacity in order to prevent incomplete fastening
  • Auto stop clutch stops motor automatically when clutch is disengaged
  • Adjustable handle with enhanced hinge mechanism for operational versatility
  • Locking feature prevents accidental start up and enables use as a hand-held screwdriver
  • LED job light illuminates work area and features independent on/off switch
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

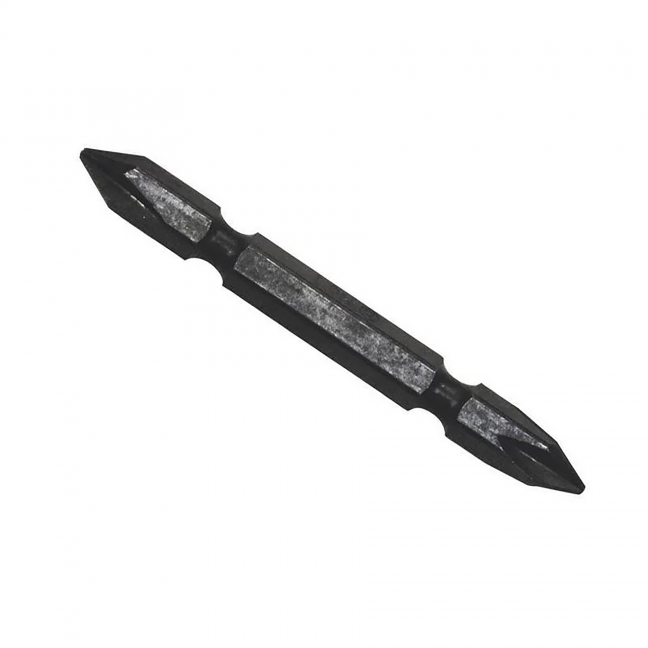

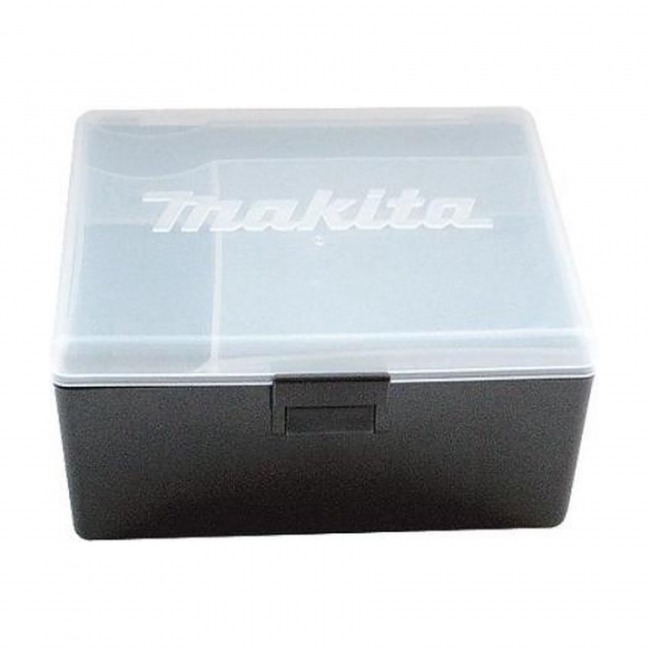

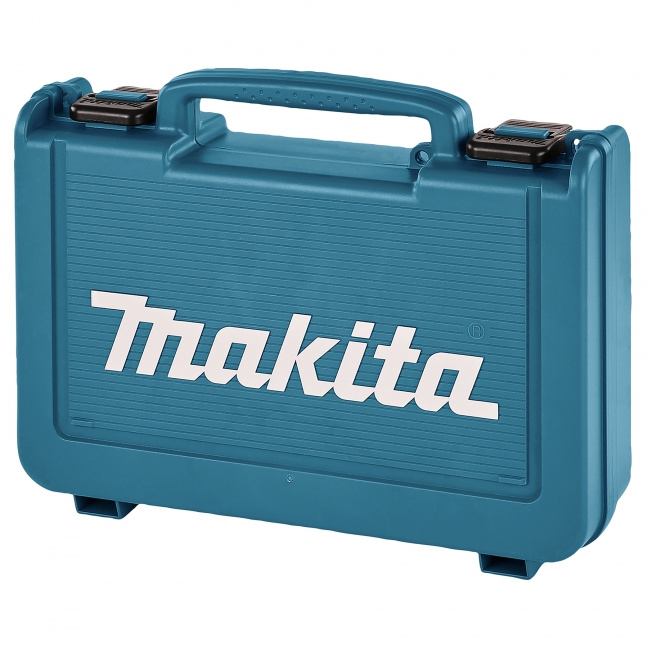

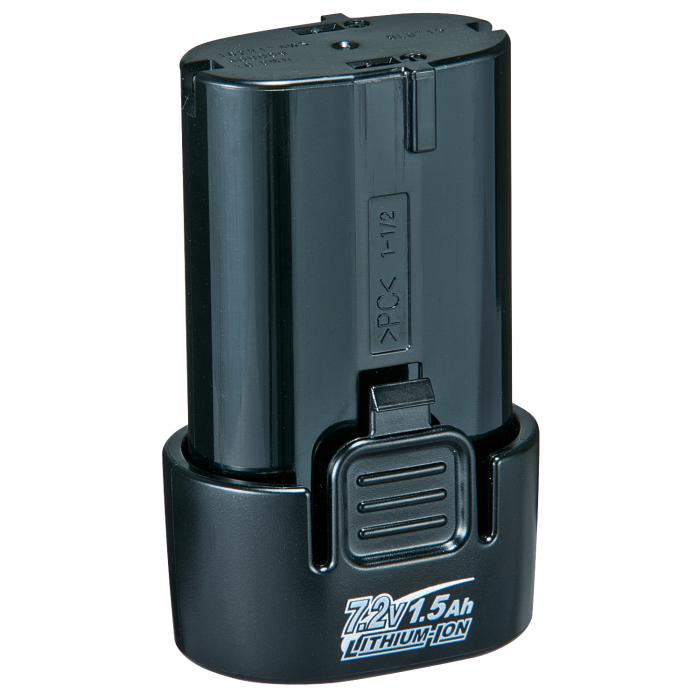

Items Included:Two 7.2V Li-Ion (1.5 Ah) Batteries BL0715 (198001-1), Charger (DC10WB), Phillips Bit 1-50 (784245-5), Phillips Bit 2-50 (784244-7), Battery Plastic Case (824781-0), Plastic Carrying Case (158775-6)

  • Auto stop system indicates battery power reduction and stops operation when battery reaches minimal capacity in order to prevent incomplete fastening
  • Auto stop clutch stops motor automatically when clutch is disengaged
  • Adjustable handle with enhanced hinge mechanism for operational versatility
  • Locking feature prevents accidental start up and enables use as a hand-held screwdriver
  • LED job light illuminates work area and features independent on/off switch
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Two 7.2V Li-Ion (1.5 Ah) Batteries BL0715 (198001-1), Charger (DC10WB), Phillips Bit 1-50 (784245-5), Phillips Bit 2-50 (784244-7), Battery Plastic Case (824781-0), Plastic Carrying Case (158775-6)

Shipping Dimensions (Length x Width x Height) & Weight : 10.08 In. X 14.53 In. X 4.21 In. Weight : 5.42 Lb.

Specifications

Battery Capacities 7.2V Li-Ion
Hex Shank 1/4"
Capacities:
Steel 3/16" (5 mm)
Wood 1/4" (6 mm)
No Load Speed:
Low 0 - 200 RPM
High 0 - 650 RPM
Maximum Torque 71 in. lbs (8.0 Nm)
Vibration Level 2.5 m/s2
Noise Level 70 dB(A)
Overall Length 8-5/8" (218 mm)
Net Weight 1.2 lbs (0.53 kg)
