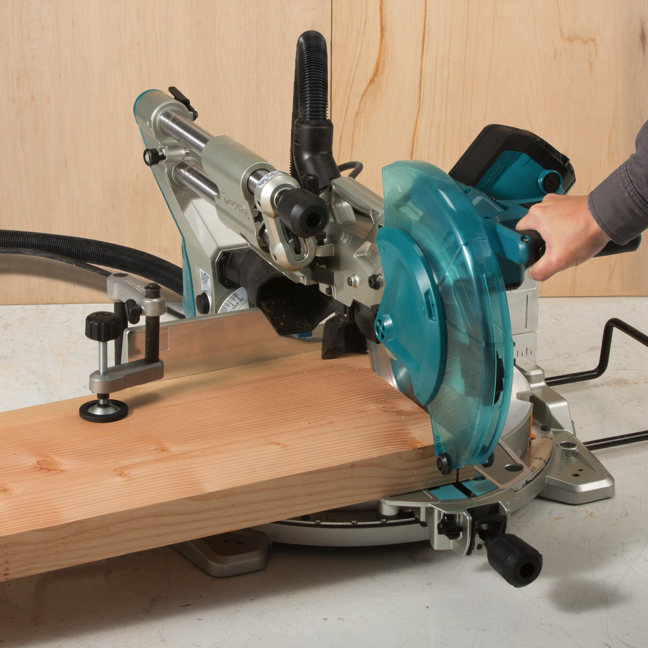

10" Sliding Compound Mitre Saw

Up To 12" Cuts In 2x Material, 6-5/8" Nested Crown Moulding And 5-1/4" Vertical Baseboard

Incorporates Makita's Deep And eXact Cutting Technology (DXT)

NEW Close To Wall "Zero Clearance" Design!

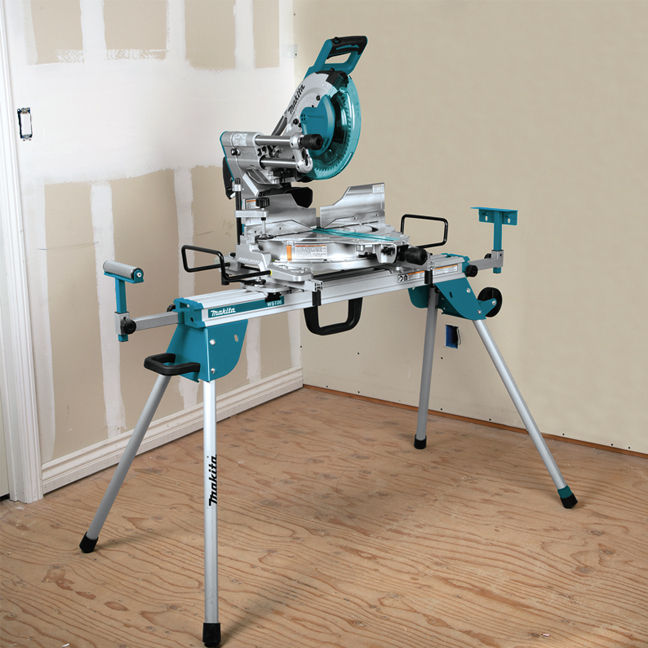

Rail forward design enables saw to be placed against wall to maximize effective workspace
3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
1-3/16" guide rail diameter provides increased stability and cutting precision
Integrated guide fence and lower fence increases rigidity and support of materials
Fence design allows fence to be secured to holders to prevent damage and/or loss
Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
Electronic speed control maintains constant speed under heavy load
Soft start feature gradually increases speed to eliminate start up shock

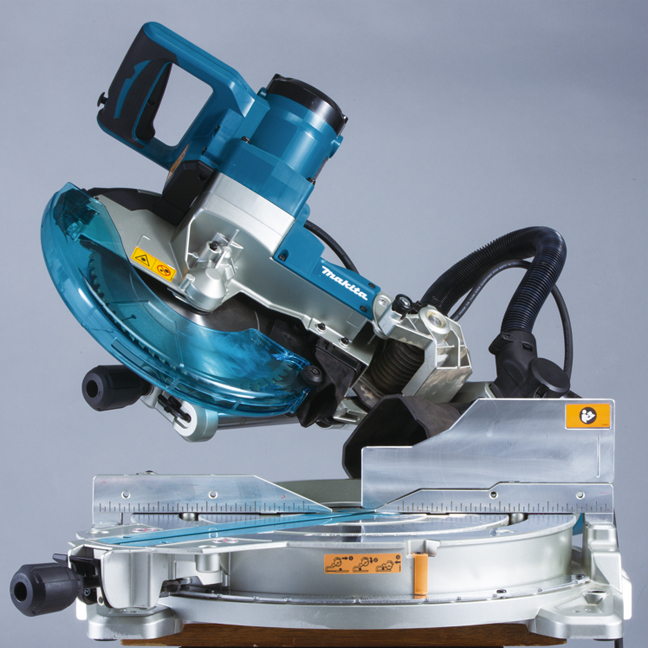

Bevel capacity of 48^o left or right with positive stops at 0^o, 22.5^o, 33.9^o, 45^o & 48^o
Mitre capacity of 60^o left or right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o, 45^o & 60^o
Large mitre table ideal for use with wide materials
Easy to operate mitre angle lock with free spin releasing lever and locking lever
Improved dust collection with dual dust collection ports
Horizontal handle design with 2 stage safety switch for increased operator safety
Ergonomic horizontal soft rubber grip design for vibration absorption and comfortable operation

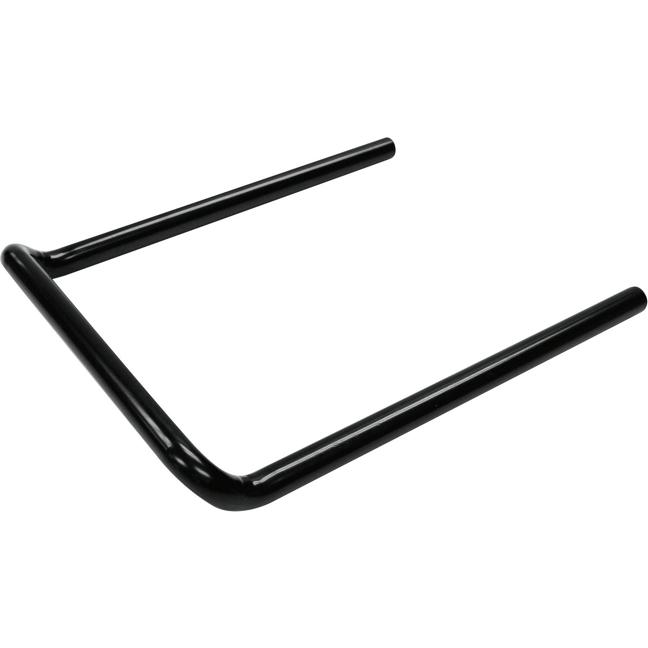

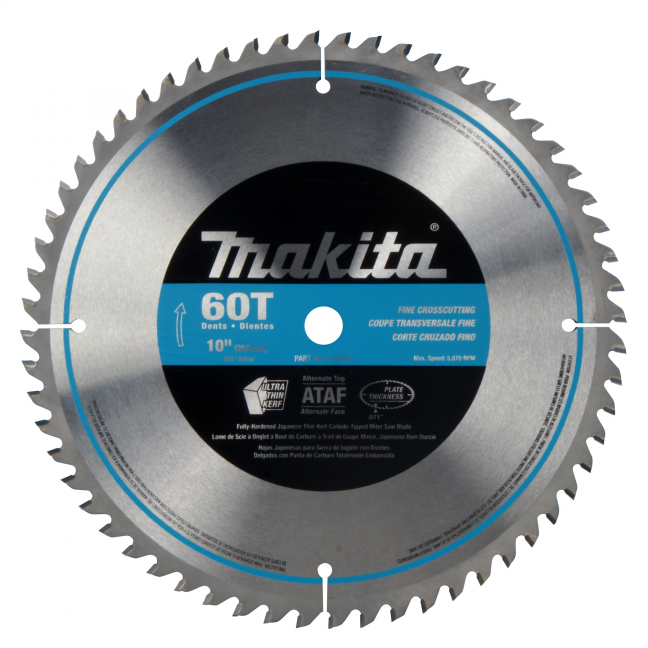

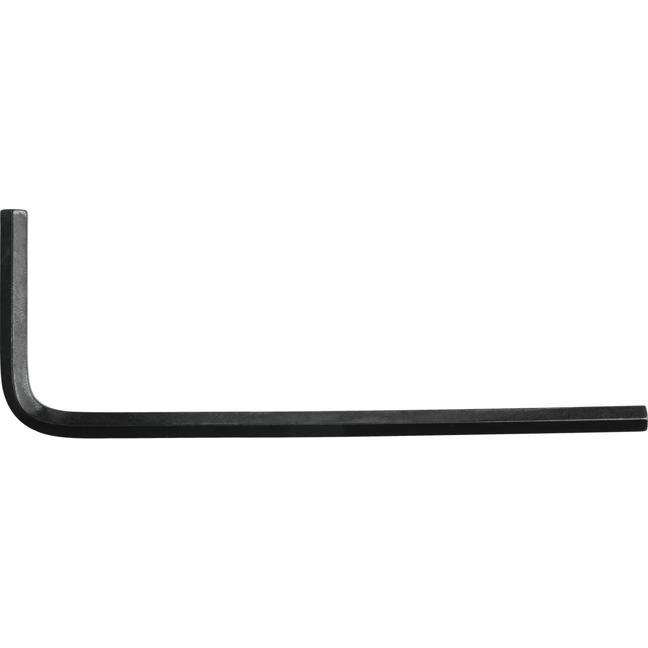

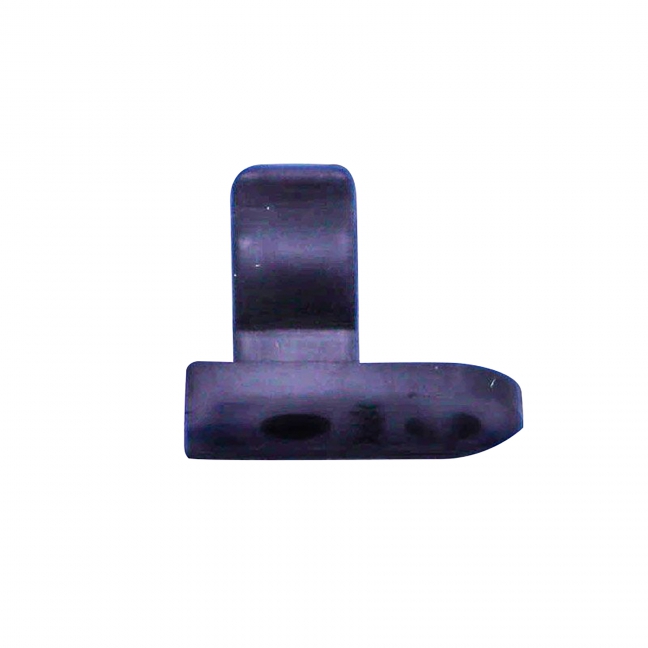

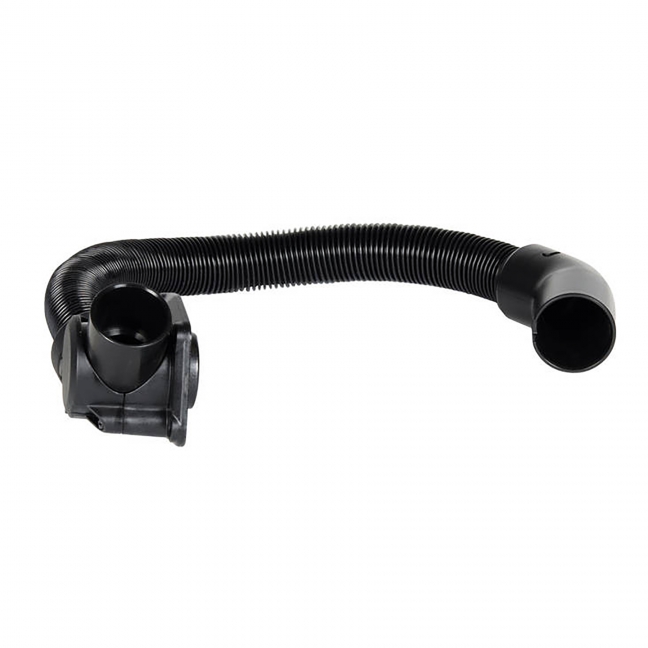

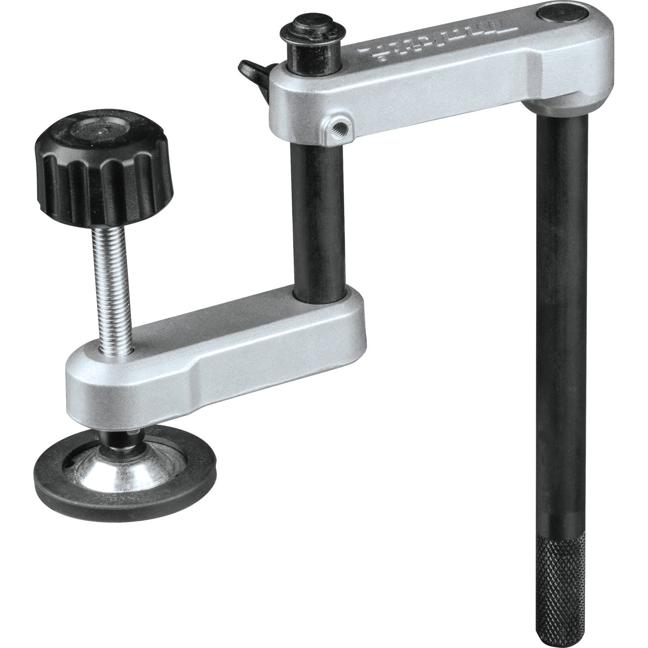

Items Included:10" C.T. Blade 60T (A-93675), Hex Wrench 6 (781044-6), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Dust Nozzle (123980-4), Two Holders (326978-2), Wrench Holder (416536-3)

Where to buy

Rail forward design enables saw to be placed against wall to maximize effective workspace
3 stage gear reduction system greatly increases capacity when cutting vertical baseboard or nested crown molding
1-3/16" guide rail diameter provides increased stability and cutting precision
Integrated guide fence and lower fence increases rigidity and support of materials
Fence design allows fence to be secured to holders to prevent damage and/or loss
Front bevel knob enables easy adjustment without reaching for operator convenience and precise setting of bevel angle
Electronic speed control maintains constant speed under heavy load
Soft start feature gradually increases speed to eliminate start up shock
Bevel capacity of 48^o left or right with positive stops at 0^o, 22.5^o, 33.9^o, 45^o & 48^o
Mitre capacity of 60^o left or right with positive stops at 0^o, 15^o, 22.5^o, 31.6^o, 45^o & 60^o
Large mitre table ideal for use with wide materials
Easy to operate mitre angle lock with free spin releasing lever and locking lever
Improved dust collection with dual dust collection ports
Horizontal handle design with 2 stage safety switch for increased operator safety
Ergonomic horizontal soft rubber grip design for vibration absorption and comfortable operation

Items Included: 10" C.T. Blade 60T (A-93675), Hex Wrench 6 (781044-6), Dust Bag (122852-0), Vertical Vise (126617-2), Triangle Rule (762001-3), Dust Nozzle (123980-4), Two Holders (326978-2), Wrench Holder (416536-3)

Shipping Dimensions (Length x Width x Height) & Weight : 21.65 In. X 32.68 In. X 22.44 In. Weight : 74.21 Lb.

Specifications

Blade Diameter	10" (255 mm)
Arbor	5/8" (15.88 mm)
No Load Speed	3,200 RPM
AMPS (120V)	15.0 A
Vibration Level	2.5 m/s²
Noise Level	91 dB(A)
Dimensions (L x W x H)	31-3/4" x 25" x 26" (805 mm x 644 mm x 660 mm)
Net Weight	57.6 lbs (26.1 kg)
