DCU180ZX1

18V LXT Brushless Wheelbarrow w/Flatbed Tray, Tool Only

Up to 60 minutes of run time on a single 18V (6.0 Ah) battery, 120 minutes on 2

Features Extreme Protection Technology (XPT™)to provide increased dust and water resistance in harsh job site conditions

Holds (2) 18V LXT® batteries but operates using (1) 18V battery at a time

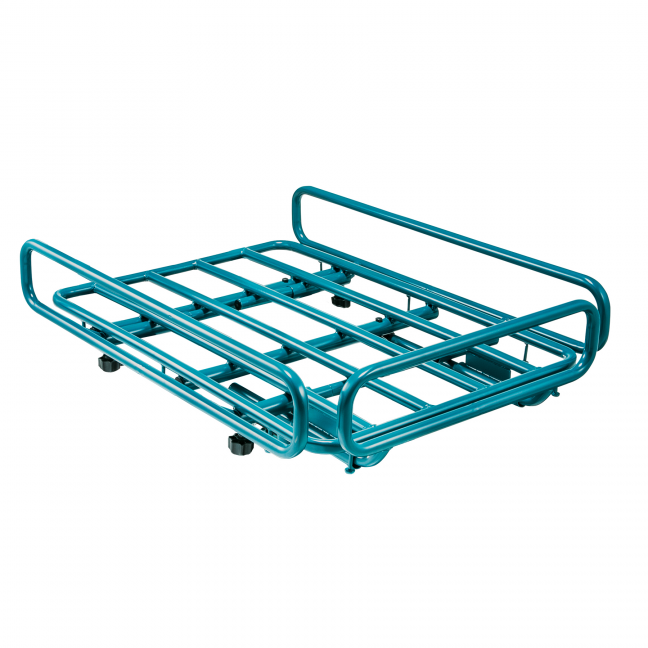

Power-Assisted Flatbed Tray is a convenient solution for material transport on job sites

LXT Technology LXT Technology LXT Technology 18V Battery
  • Delivers up to 60 minutes of run time under load using one 18V LXT (6.0 Ah) BL1860 battery
  • Holds (2) 18V LXT Lithium-Ion batteries but operates using (1) 18V battery at a time; utilizes second battery when needed
  • Makita-built BL™ Brushless Motor for optimal performance
  • 2-speed with maximum speed up to 2.5 MPH on a 12º incline
  • Interchangeable steel tube flat bed or steel bucket (steel bucket optional)
  • Maximum load capacity up to 287 lbs (130 kg)
  • 7" mechanical disc brake for faster stopping
  • Rear wheel spacing is adjustable from 19" to 30" to accommodate the work environment
  • L-shaped legs can be easily installed to replace rear wheels
  • L.E.D. lights on each side of frame to illuminate the work area
  • L.E.D. battery charge indicators show charge level for each 18V LXT battery
  • Weighs 97.5 lbs with flat bed for reduced operator fatigue
  • Rubberized soft grip handles provide increased comfort on the job; adjust to 3 heights

Items Included:Tool Only. Batteries and Charger Sold Separately. Support Foot (2 Ea. 144675-6), Key (643890-4), Wrench 13 (2 Ea. 781039-9), Flatbed Tray (199116-7)

  • Delivers up to 60 minutes of run time under load using one 18V LXT (6.0 Ah) BL1860 battery
  • Holds (2) 18V LXT Lithium-Ion batteries but operates using (1) 18V battery at a time; utilizes second battery when needed
  • Makita-built BL™ Brushless Motor for optimal performance
  • 2-speed with maximum speed up to 2.5 MPH on a 12º incline
  • Interchangeable steel tube flat bed or steel bucket (steel bucket optional)
  • Maximum load capacity up to 287 lbs (130 kg)
  • 7" mechanical disc brake for faster stopping
  • Rear wheel spacing is adjustable from 19" to 30" to accommodate the work environment
  • L-shaped legs can be easily installed to replace rear wheels
  • L.E.D. lights on each side of frame to illuminate the work area
  • L.E.D. battery charge indicators show charge level for each 18V LXT battery
  • Weighs 97.5 lbs with flat bed for reduced operator fatigue
  • Rubberized soft grip handles provide increased comfort on the job; adjust to 3 heights

Items Included: Tool Only. Batteries and Charger Sold Separately. Support Foot (2 Ea. 144675-6), Key (643890-4), Wrench 13 (2 Ea. 781039-9), Flatbed Tray (199116-7)

Shipping Dimensions (Length x Width x Height) & Weight : 33.13 In. X 45 In. X 24.38 In. Weight : 128.15 Lb.

Specifications

Battery Capacities 18V LXT
Maximum Speed:
Forward, High / Low 0 - 3.5 km/h / 0 - 1.5 km/h
Reverse 0 - 1.0 km/h
Minimum Turning Radius (Outer diameter when turning with front wheel as axis) 110 cm
Maximum Climbing Capacity 12°
Maximum Load Capacity 287 lbs (130 kg)
Overall Dimensions (L x W x H) 61-1/2" x 41-3/4" x 35-1/2" (156 cm x 106 cm x 90 cm)
Net Weight 97.5 lbs (44.2 kg)
