12Vmax CXT Green Laser Level 2V1H, Tool Only

2 Vertical Lines / 1 Horizontal Line

IP54 Rated

Green laser ideal for increased visibility in bright working conditions
3 brightness mode selections: eco, normal, bright
Powered by 12V MAX CXT Li-Ion batteries with option to use DC adapter allowing power to be supplied from 18V Li-Ion batteries by using USB Adapter ADP05 and power supply cable
Mode memory function remembers line beam mode that was used when last turned off and stays in that mode when turned on
Shock absorbing construction protects the laser from damage during transport and storage
eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
IP54 rated against penetration from water, dust and debris
Battery protection system with LED indicator light provides over-discharge protection
Large carrying handle for operator convenience

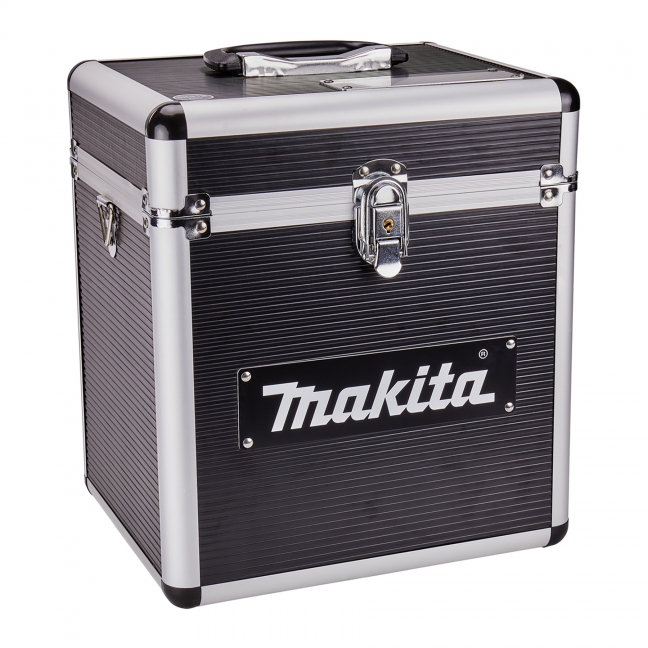

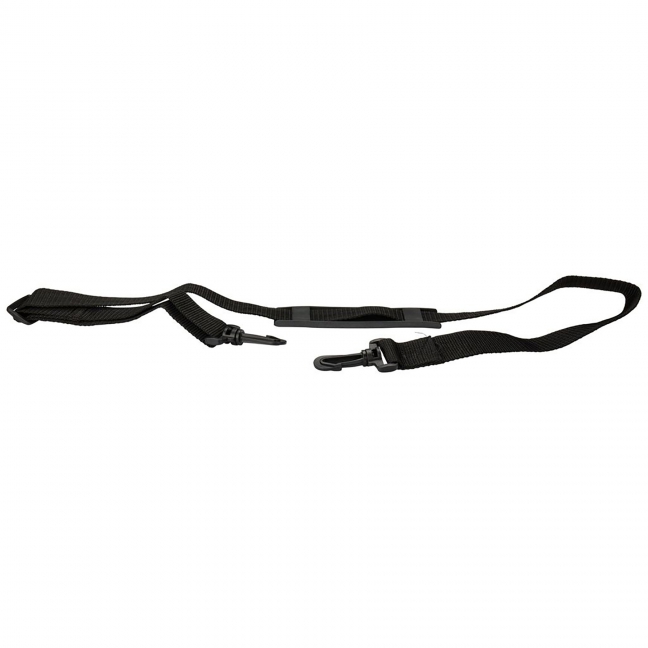

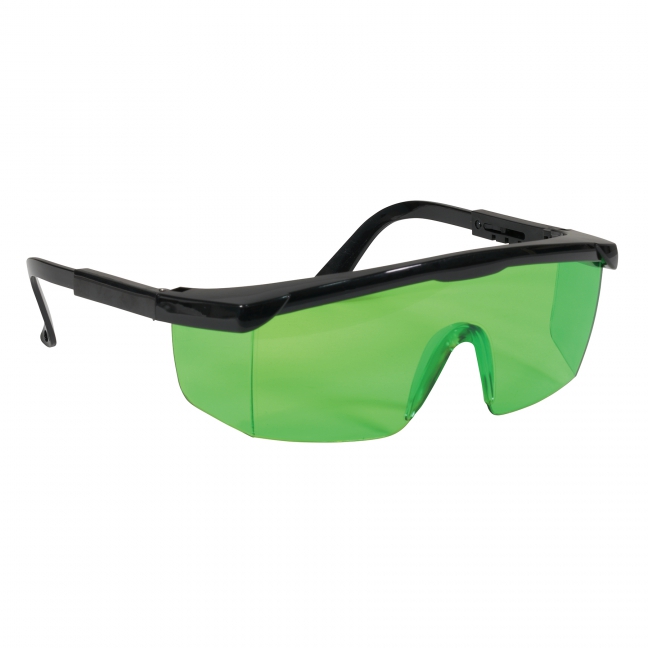

Items Included:Tool Only. Batteries and Charger Sold Separately. Laser Viewing Glass (TK02100200), Shoulder Harness (TK00SB0001), Storage Case (TKAK400MUN)

Where to buy

Green laser ideal for increased visibility in bright working conditions
3 brightness mode selections: eco, normal, bright
Powered by 12V MAX CXT Li-Ion batteries with option to use DC adapter allowing power to be supplied from 18V Li-Ion batteries by using USB Adapter ADP05 and power supply cable
Mode memory function remembers line beam mode that was used when last turned off and stays in that mode when turned on
Shock absorbing construction protects the laser from damage during transport and storage
eXtremeProtection Technology (XPT) offers maximum protection against dust, debris and liquids for optimal performance in extreme conditions
IP54 rated against penetration from water, dust and debris
Battery protection system with LED indicator light provides over-discharge protection
Large carrying handle for operator convenience

Items Included: Tool Only. Batteries and Charger Sold Separately. Laser Viewing Glass (TK02100200), Shoulder Harness (TK00SB0001), Storage Case (TKAK400MUN)

Shipping Dimensions (Length x Width x Height) & Weight : 9.69 In. X 13.11 In. X 11.26 In. Weight : 9.37 Lb.

Specifications

Battery Capacities	12Vmax CXT Li-ion
Laser:
Line Beam Color	Green
Output	1 mW or less
Safety Class	Class 2
Wavelength	510 - 530 nm
Line Width at 10m	2.5 mm
Vertical Line Indication Range	+/- 2^o
Accuracy:
2-Vertical Line	90^o +/- 0.01^o
Emitted Laser	+/- 1 mm / 10 m
Dimensions (L x W x H w/o Protrusions)	4-3/4" x 5-1/8" x 9" (122 mm x 130 mm x 230 mm)
Net Weight	2.7 lbs (1.2 kg)
