HP332DZ

12Vmax CXT Brushless 3/8" Hammer Drill-Driver, Tool Only

Compact eXtreme Technology (CXT)

Variable 2-Speed, Reversible

CXT Technology LXT Technology
  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • 20 clutch settings deliver up to 280 in. lbs. of torque

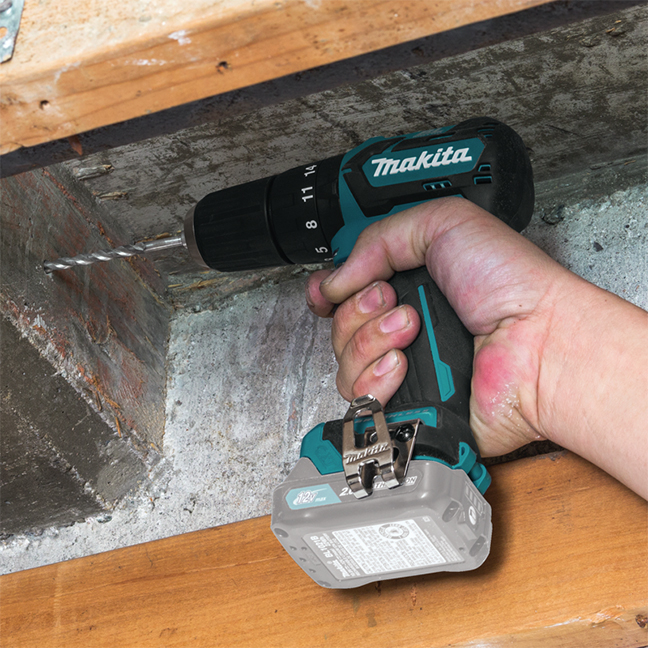

  • Compact size and weight ideal for fast and fatigue free drilling of holes in concrete and masonry
  • 3/8" keyless drill chuck for quick and easy bit changes
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Electric brake stops bit rotation immediately for maximum operator safety
  • LED job light with pre-glow / afterglow features illuminates drilling area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included:Tool Only. Batteries and Charger Sold Separately. Hook (346909-5), Phillips Bit 2-50 (784244-7)

  • Brushless DC motor with high power to weight and size ratio
  • Brushless DC motor generates less heat buildup and is ideal for prolonged use in manufacturing / production applications
  • 20 clutch settings deliver up to 280 in. lbs. of torque
  • Compact size and weight ideal for fast and fatigue free drilling of holes in concrete and masonry
  • 3/8" keyless drill chuck for quick and easy bit changes
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Electric brake stops bit rotation immediately for maximum operator safety
  • LED job light with pre-glow / afterglow features illuminates drilling area
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation

Items Included: Tool Only. Batteries and Charger Sold Separately. Hook (346909-5), Phillips Bit 2-50 (784244-7)

Shipping Dimensions (Length x Width x Height) & Weight : 8.228 In. X 7.874 In. X 2.913 In. Weight : 2.56 Lb.

Specifications

Battery Capacities: 12Vmax CXT Li-ion
Capacities:
Concrete 5/16" (8 mm)
Steel 3/8" (10 mm)
Wood 1-1/8" (28 mm)
No Load Speed:
Low 0 - 450 RPM
High 0 - 1,500 RPM
Blows Per Minute:
Low 0 - 6,750 BPM
High 0 - 22,500 BPM
Maximum Torque  310 in. lbs (35 Nm)
Vibration Level 12.5 m/s2
Noise Level 82 dB(A)
Overall Length 6-5/8" (168 mm)
Net Weight 2.0 lbs (0.9 kg)
