HR1841F

11/16" Rotary Hammer SDS-PLUS

Up To 46% REDUCED VIBRATION! SDS-PLUS Shank

Hammer & Rotation / Rotation Only

Variable Speed, Reversible

Anti vibration Technology
  • Anti-Vibration Technology (AVTTM) system incorporates an active dynamic vibration absorbing counterbalance spring and a vibration absorbing handle to actively counteract the vibration of the tool for greatly reduced transmission to the operator
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Reverse rotation system using brush holder unit provides the same amount of power in forward and reverse and extends life of carbon brushes
  • 2 operating modes: Rotation / Rotation + Hammer
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED light illuminates drilling position
  • Ergonomic soft rubber grip for vibration absorption and comfortable operation

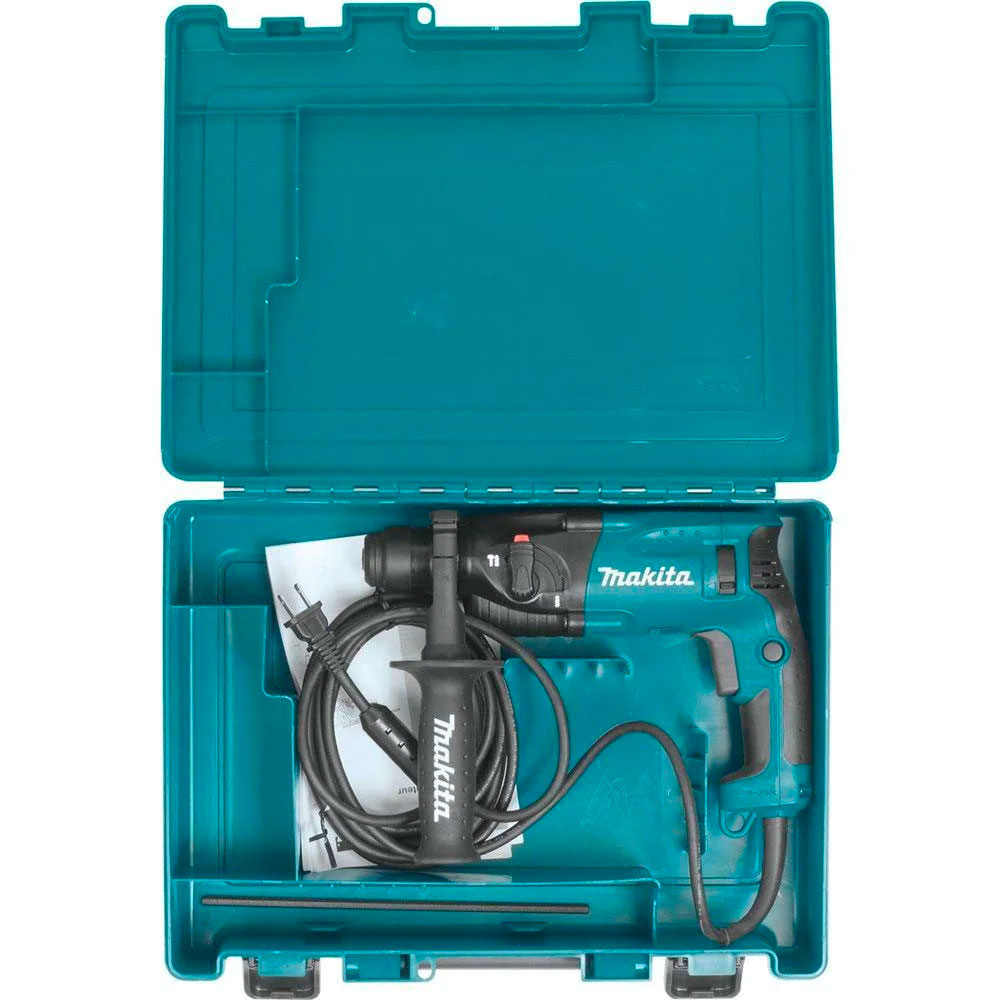

Items Included:Side Handle (158057-6), Depth Gauge (415486-9), Plastic Carrying Case (824650-5)

  • Anti-Vibration Technology (AVTTM) system incorporates an active dynamic vibration absorbing counterbalance spring and a vibration absorbing handle to actively counteract the vibration of the tool for greatly reduced transmission to the operator
  • Torque limiter stops bit rotation if bit jams for increased operator safety and enhanced tool protection
  • Variable speed trigger allows operator to adjust speed based on materials or application
  • Reverse rotation system using brush holder unit provides the same amount of power in forward and reverse and extends life of carbon brushes
  • 2 operating modes: Rotation / Rotation + Hammer
  • One-touch SDS-PLUS sliding chuck for easy bit installation and removal
  • LED light illuminates drilling position
  • Ergonomic soft rubber grip for vibration absorption and comfortable operation

Items Included: Side Handle (158057-6), Depth Gauge (415486-9), Plastic Carrying Case (824650-5)

Shipping Dimensions (Length x Width x Height) & Weight : 4.43 In. X 14.57 In. X 12.32 In. Weight : 8.82 Lb.

Specifications

Bit Type SDS-PLUS
Maximum Capacities:
Concrete 11/16" (18 mm)
Steel 1/2" (13 mm)
Wood 15/16" (24 mm)
No Load Speed 0 – 2,100 RPM
Blows Per Minute 0 – 4,800 BPM
Impact Energy 1.4 J (1.0 ft. lbs)
AMPS (120V) 4.1 A
Vibration Level 7.5 m/s2(Concrete) / 3.0 m/s2 (Metal)
Overall Length 11-1/4" (285 mm)
Net Weight 5.4 lbs (2.5 kg)
