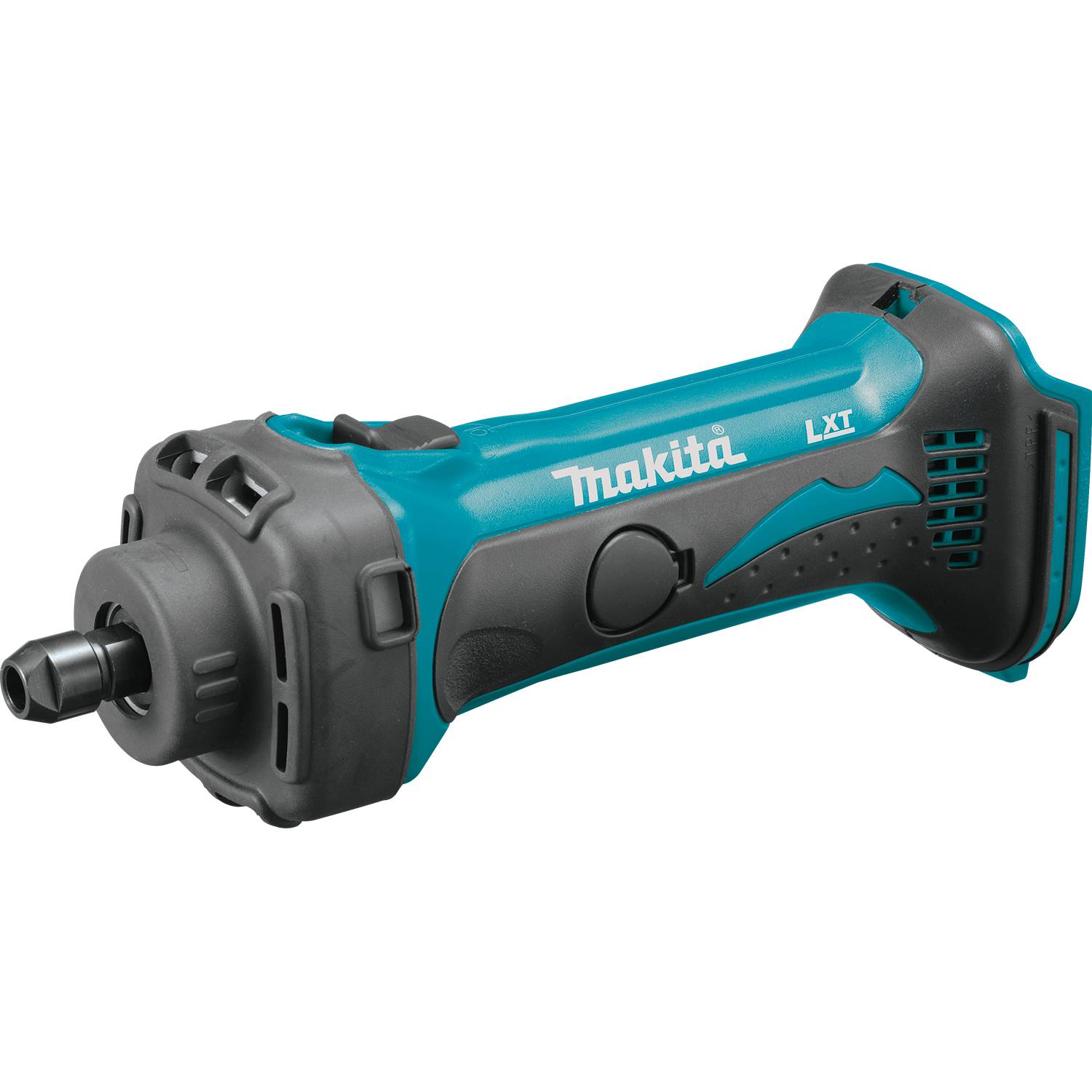

DGD801Z

18V LXT 1/4" Die Grinder w/Thumb Switch, Tool Only

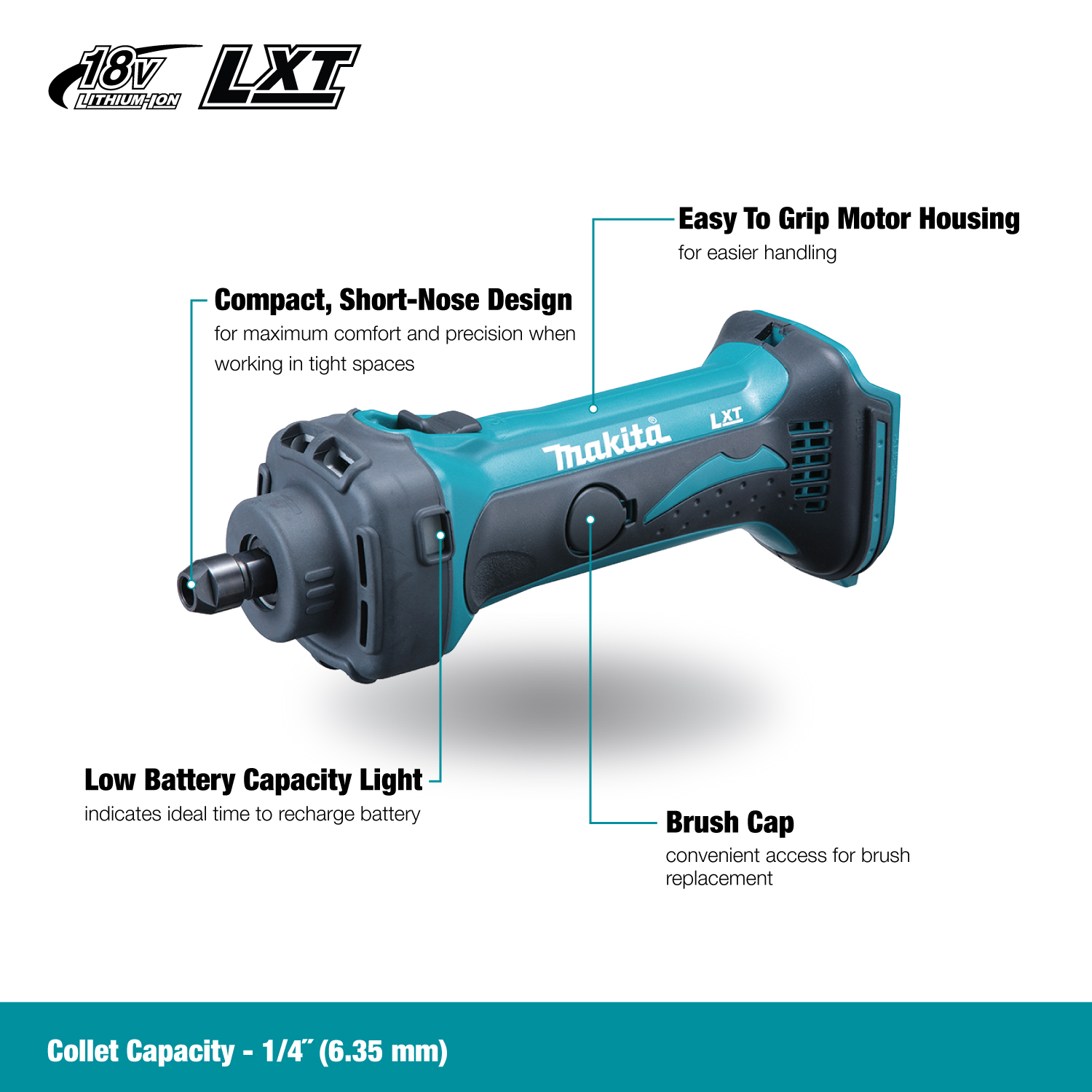

Compact And Lightweight Die Grinder


LXT Technology 18V Battery
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position

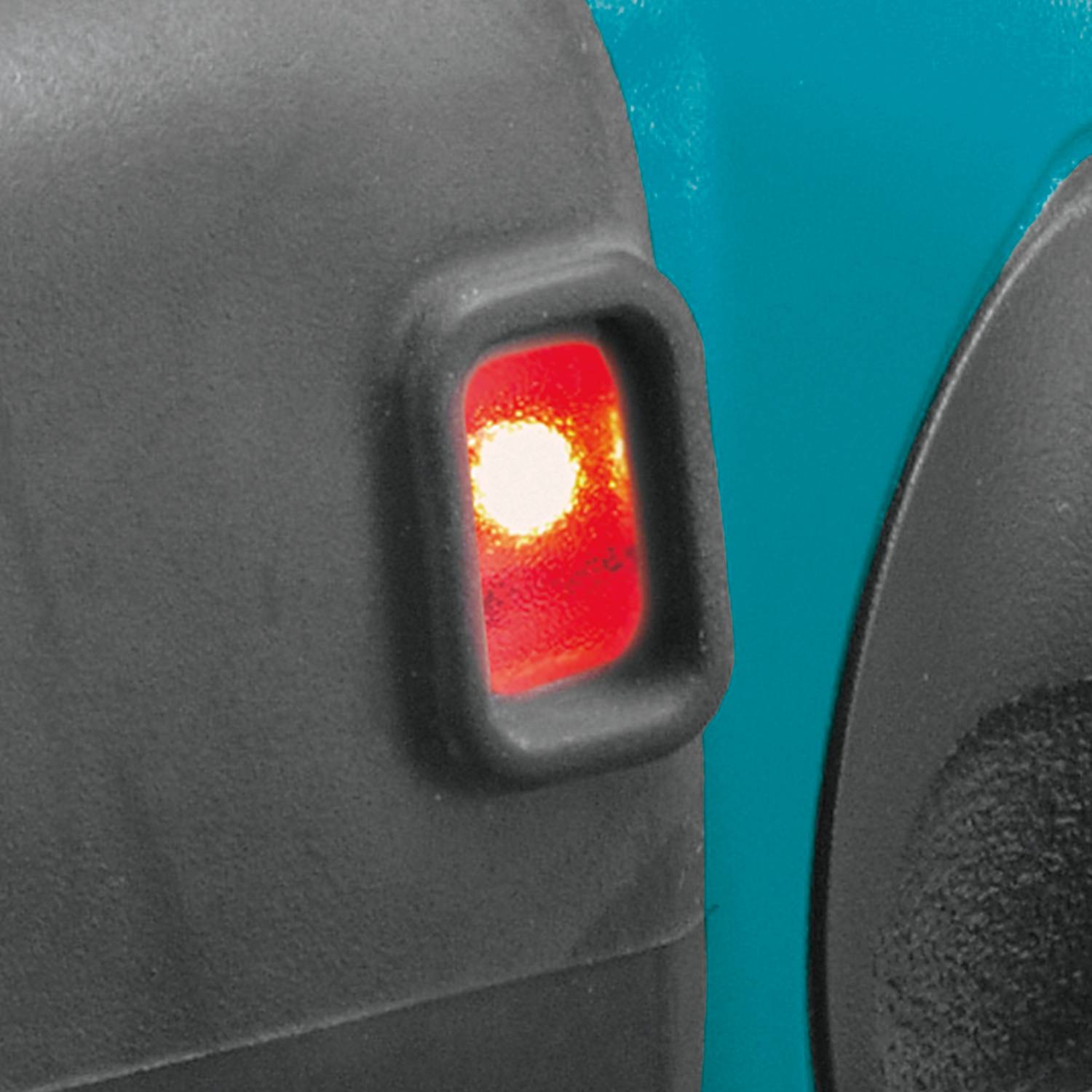

  • Low battery capacity light indicates ideal time to recharge battery
  • Vent slots direct exhaust towards opposite side of operator
  • Easy to grip motor housing for easier handling

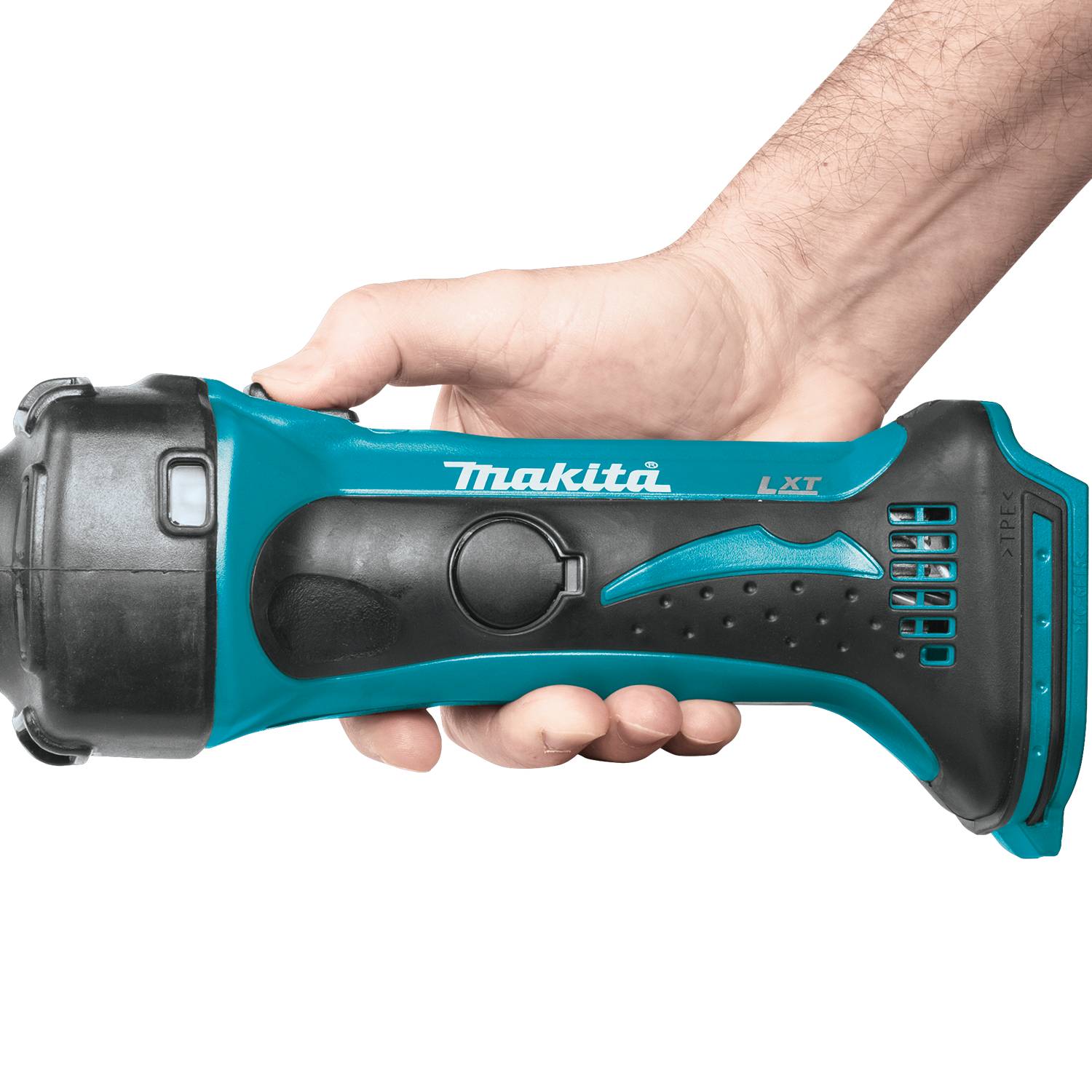

  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Compact, short-nose design for maximum comfort and precision when working in tight spaces

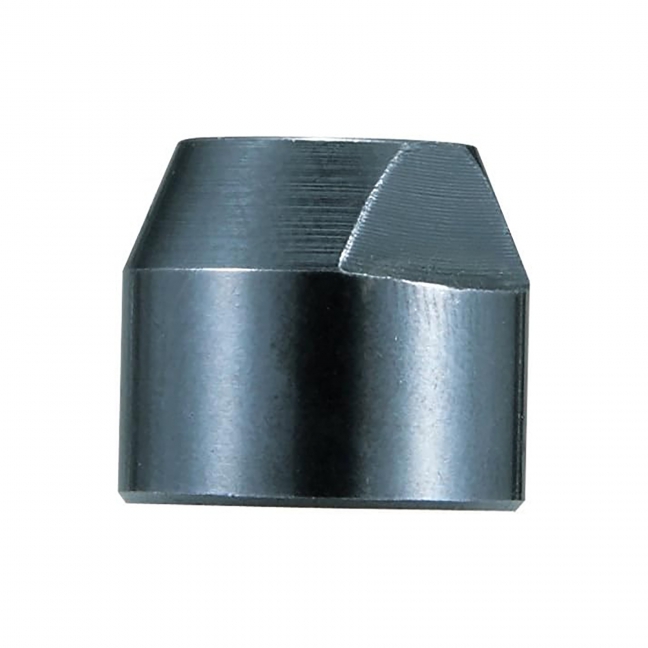

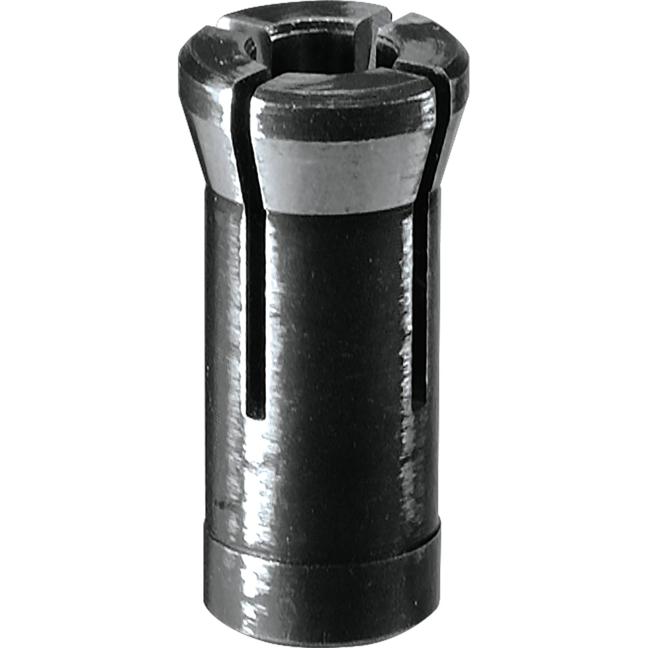

Items Included:Tool Only. Batteries and Charger Sold Separately. Two Wrenches 13 (781039-9), 1/4" Collet Cone (763673-7), Collet Nut (763668-0)

Read More
  • Anti-restart feature prevents accidental start up of tool during battery changing when switch is locked in the on position
  • Low battery capacity light indicates ideal time to recharge battery
  • Vent slots direct exhaust towards opposite side of operator
  • Easy to grip motor housing for easier handling
  • Ergonomic soft rubber grip design for vibration absorption and comfortable operation
  • Compact, short-nose design for maximum comfort and precision when working in tight spaces

Items Included: Tool Only. Batteries and Charger Sold Separately. Two Wrenches 13 (781039-9), 1/4" Collet Cone (763673-7), Collet Nut (763668-0)

Shipping Dimensions (Length x Width x Height) & Weight : 4.96 In. X 11.54 In. X 3.54 In. Weight : 3.14 Lb.

Check out product flyer

Specifications

Battery Capacities 18V LXT
Collet Capacity 1/4" (6.35 mm)
Maximum Wheel Diameter 1-7/16" (36 mm)
No Load Speed 26,000 RPM
Vibration Level 4.5 m/s2
Noise Level 70 dB(A)
Overall Length 12-1/8" (307 mm)
Net Weight 2.5 lbs (1.1 kg)
